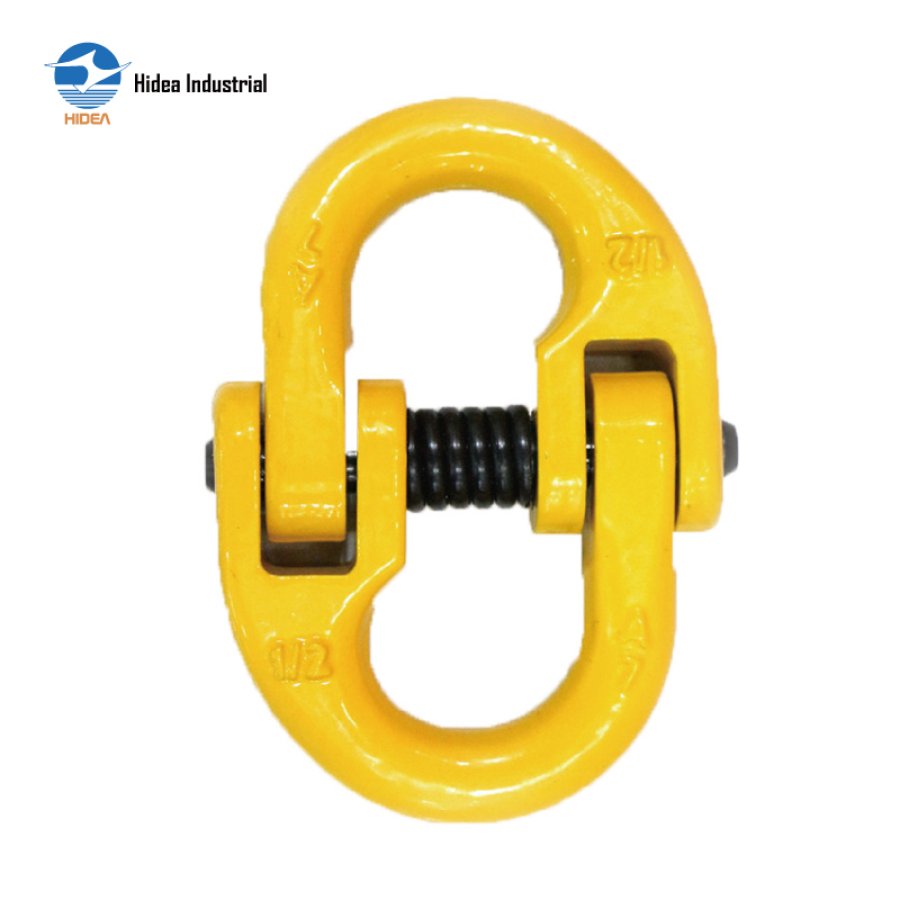

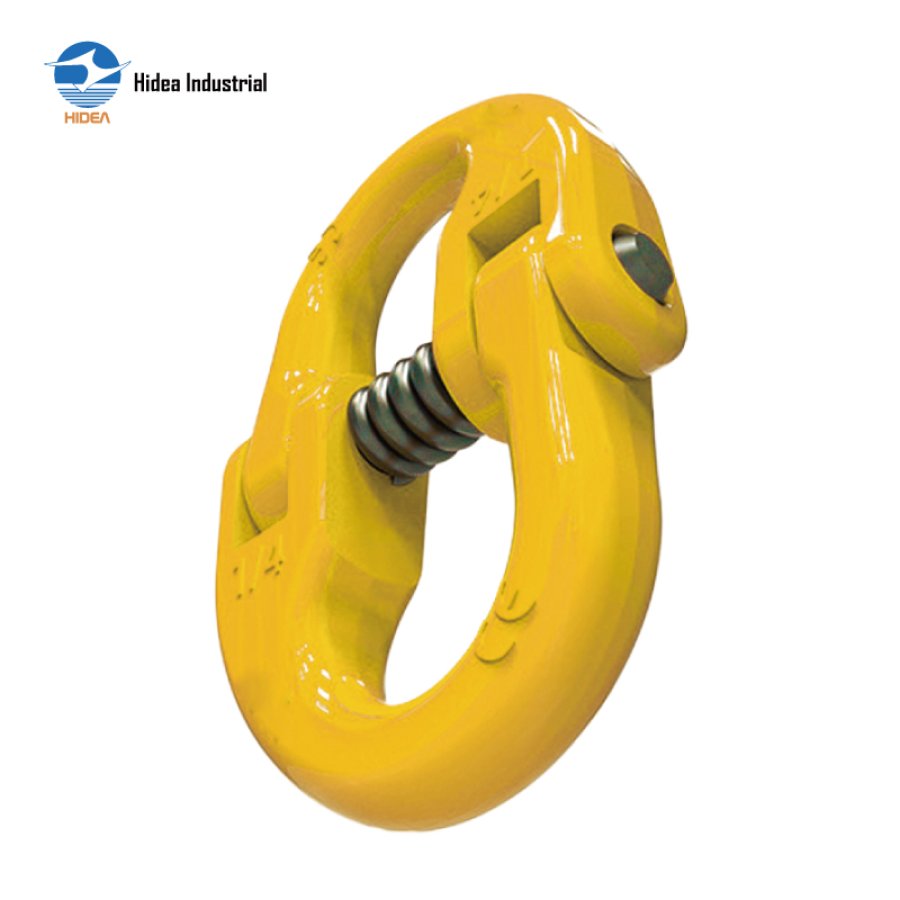

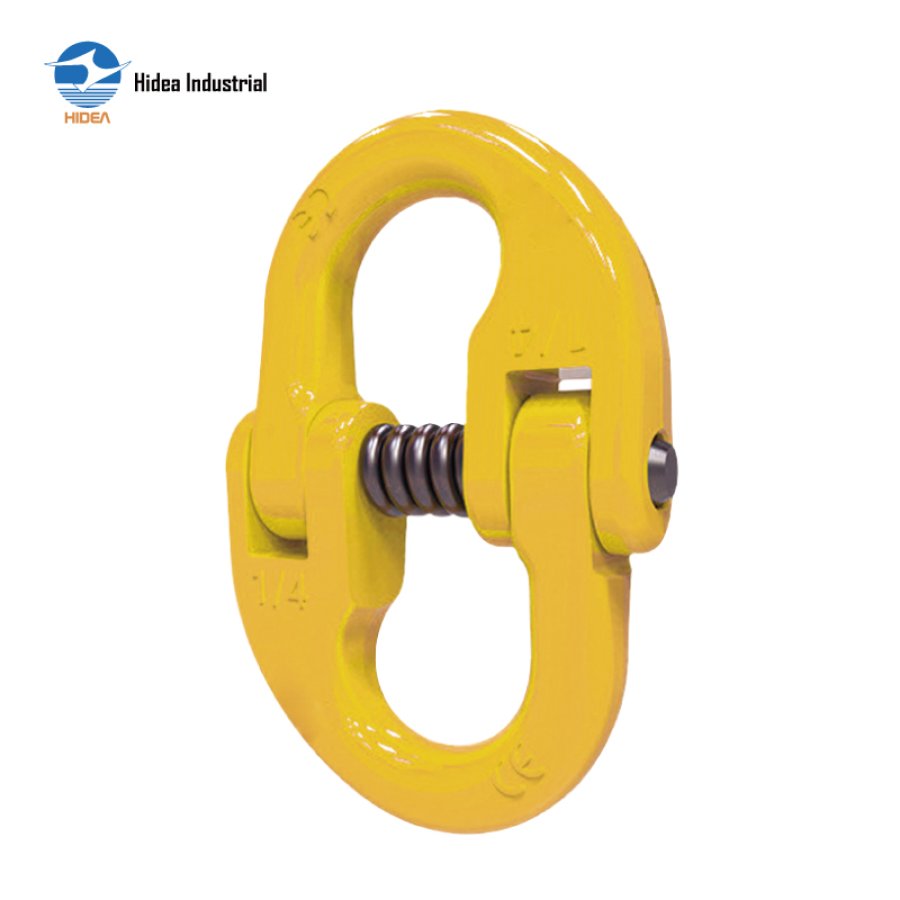

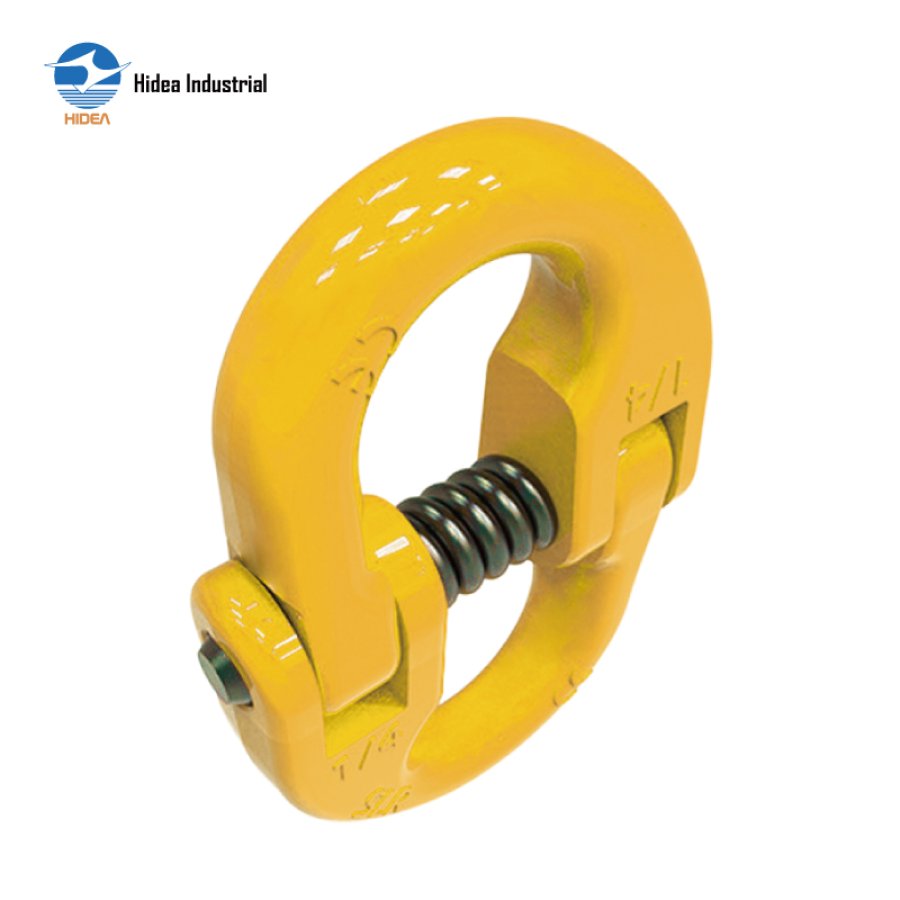

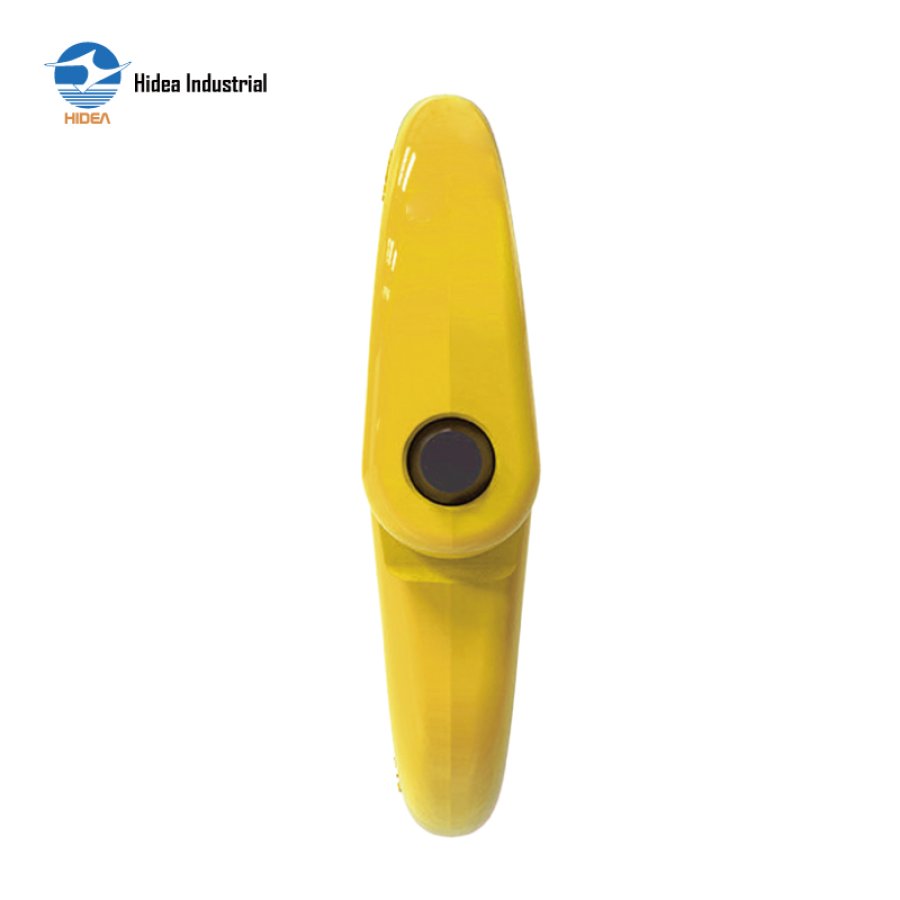

Hidea Grade 80 A-337 US Type Connecting Link for Industrial Rigging and Lifting Systems

A-337 US TYPE G80 CONNECTING LINK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH670-A-337 US TYPE G80 CONNECTING LINK

ITEM NO.

WEIGHT
(kg)

WLL
(T)

B.L
(T)

A+1.5

B+1.5

L±2.5

K±2

W±1

H±1

C±0.2

D±0.3

E±1.5

20RH670-1/4

0.13

1.5

6

16.5

18

67

51

8

13

4

4

18.5

20RH670-9/32

0.15

1.6

64

18

18

64

48.6

8

13

4

5.1

17.6

20RH670-5/16

0.15

2

8

17.7

21.8

78.5

58.5

9.8

14.5

6.5

6.6

21.5

20RH670-3/8

0.33

3.2

12.8

22

24

87.6

63.6

12

17

6.2

8.1

21.5

20RH670-1/2

0.76

5.4

21.6

28.5

35

115.5

85.5

15

21.6

7.8

7.8

28

20RH670-5/8

1.3

8.2

32.8

33

40.5

143

106

18.5

26

9.5

10

36

20RH670-3/4

2.27

12.8

51.2

41

47

162

116

23

32

12

13

39

20RH670-7/8

3.4

15.5

62

50.5

54.5

188.5

136.5

26

38

13

15.5

47.5
