Raw Material 100% high tenacity and tensile strength polyester yarns of low elongation for slings
Colors coded and application properties constructed according to standards ASME B30.9, also meeting EN1492-2, ISO4878, machinery directive 2006/42/EC, and compliant with GS, CE safety requirements

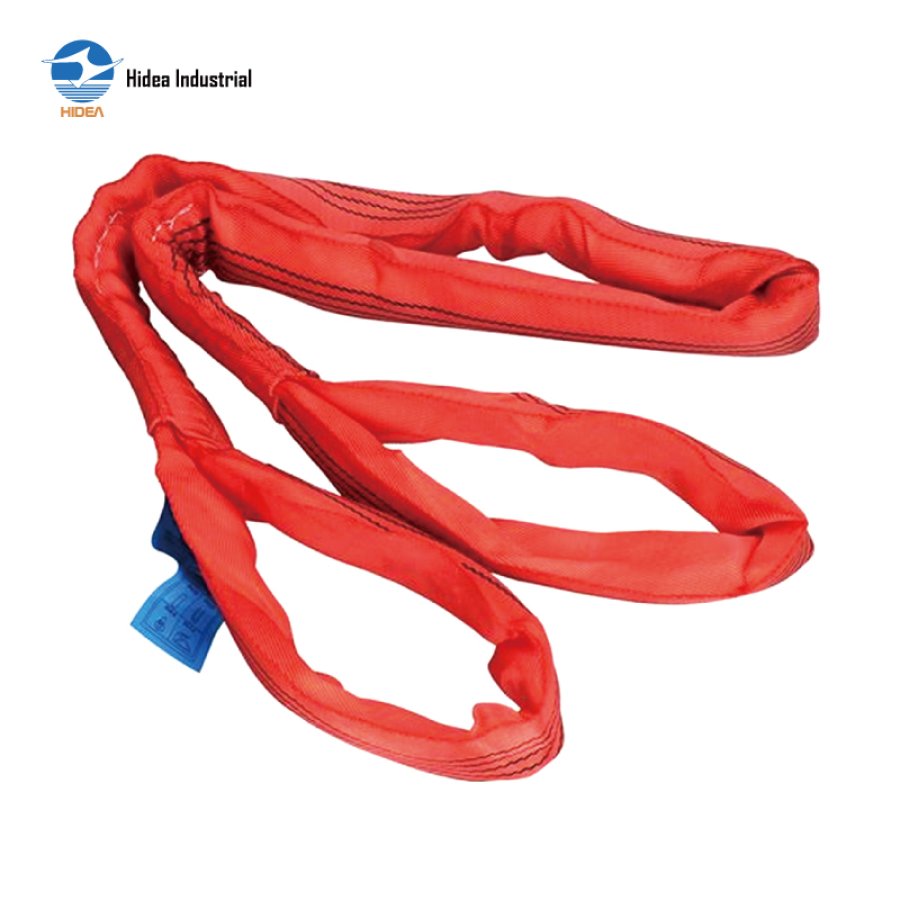

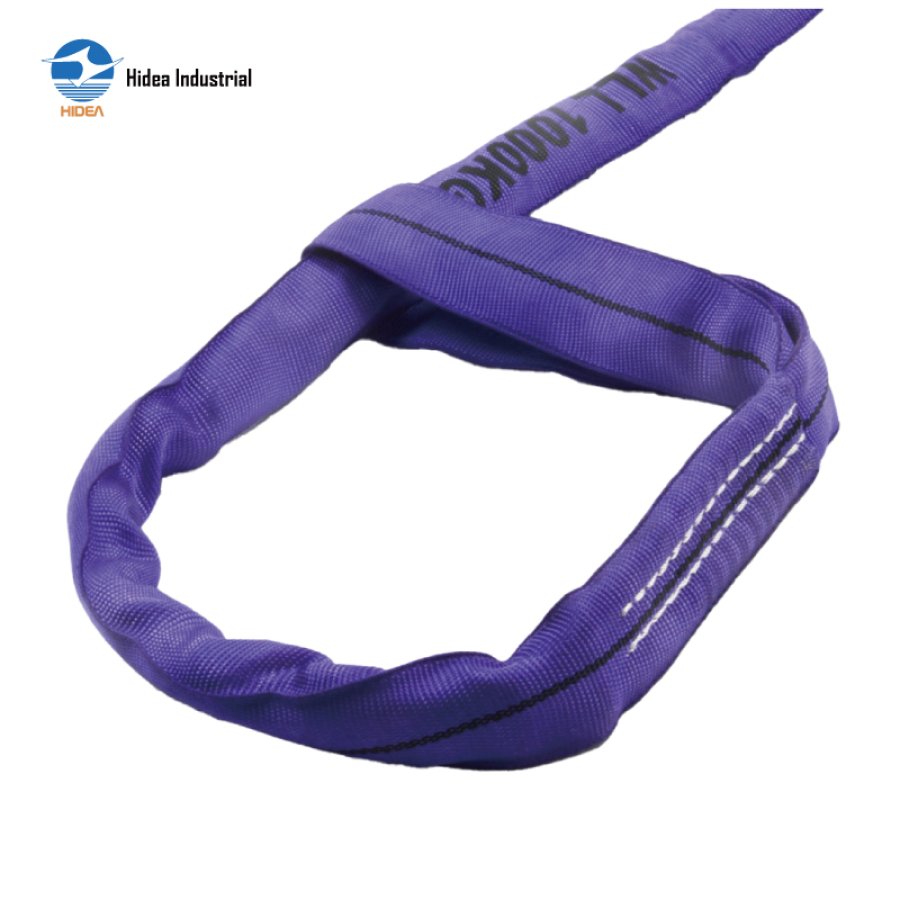

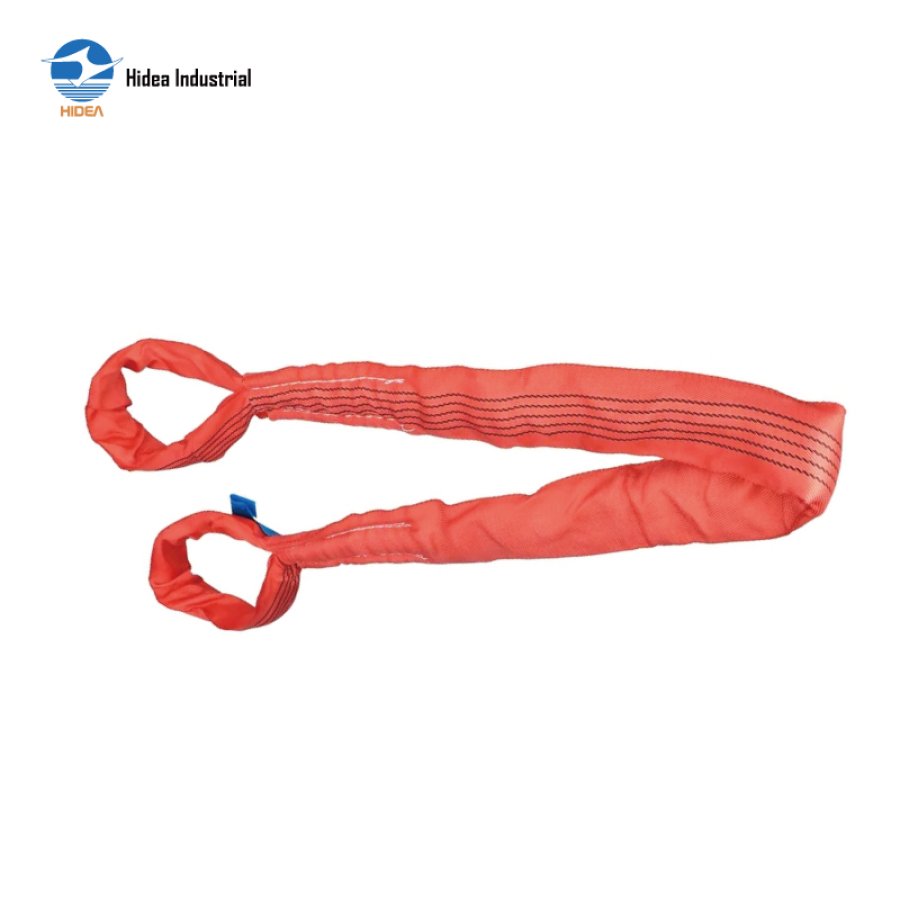

The eyes at each end make it easy for operation and flexible, maintaining all the basic webbing slings features plus more safety. An additional textured, abrasion resistant sleeve covers the body of the standard round sling forming two color coded lifting eyes

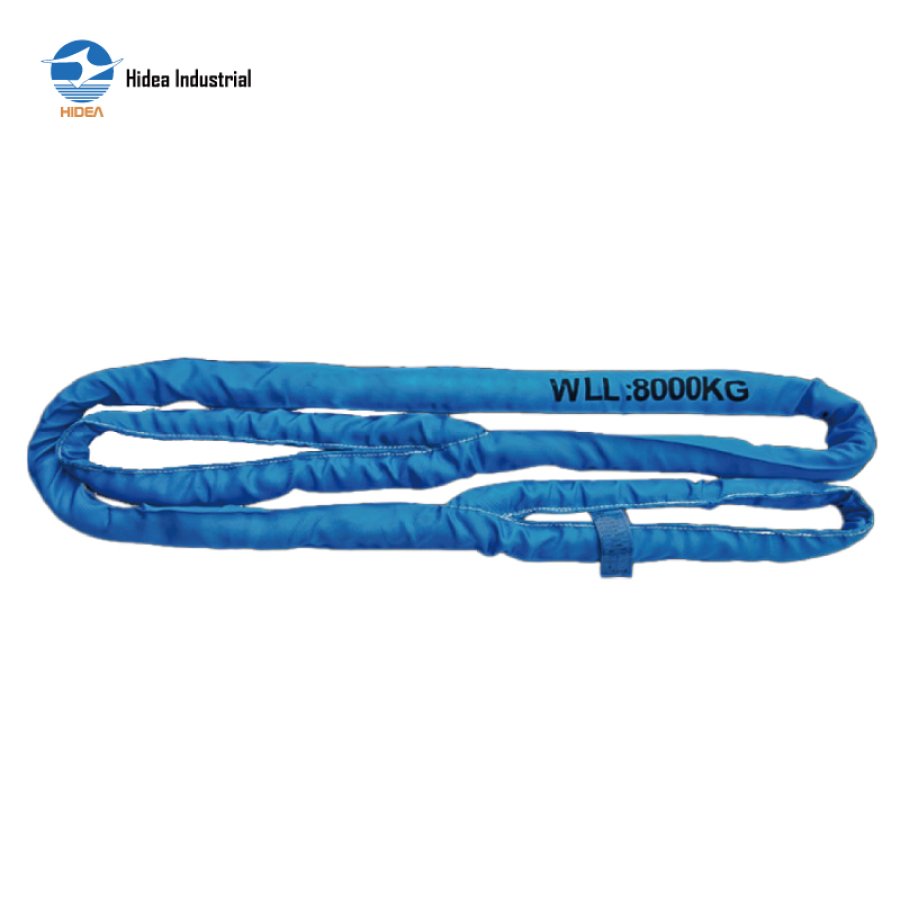

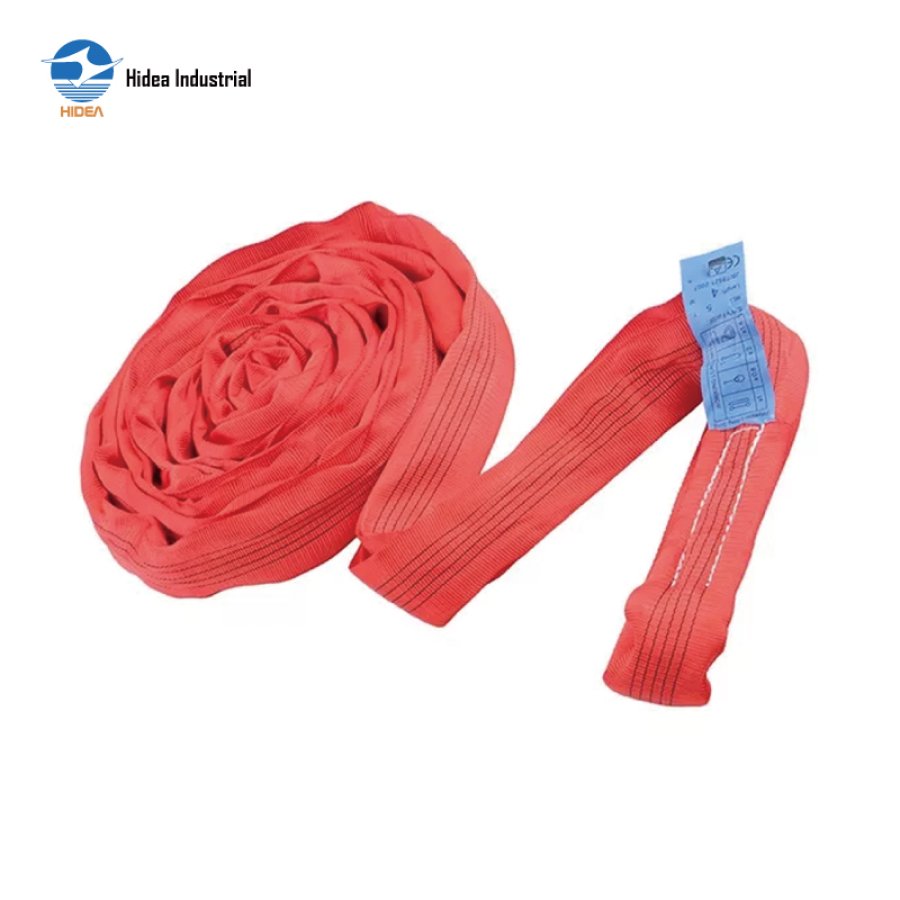

Safety Factors 6:1, 7:1 and 8:1 available upon request; clearly marked with WLL and length on surface of sling and a tag with serial number and technical data
QINGDAO HIDEA PARAMETER SHEET FOR
EYE-EYE TYPE ROUND SLING EUROPEAN TYPE
| WORKING LOAD LIMIT IN Kgs | |||||||||
| STRAIGHT LIFT | CHOKED LIFT | LIFTING AT AN ANGLEβ | |||||||
| 0-7° | 7°-45° | 45°-60° | Up to 45° | 45°-60° | |||||
| Stock Number | COLOR | W.L.L (Kgs) | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 |
| ENWS1 | 1,000 | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 700 | 500 | |
| ENWS2 | 2,000 | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 1,400 | 1,000 | |
| ENWS3 | 3,000 | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 2,100 | 1,500 | |
| ENWS4 | 4,000 | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 2,800 | 2,000 | |
| ENWS5 | 5,000 | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 3,500 | 2,500 | |
| ENWS6 | 6,000 | 6,000 | 4,800 | 12,000 | 8400 | 6,000 | 3,200 | 3,000 | |
| ENWS8 | 8,000 | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 5600 | 4,000 | |
| ENWS10 | 10,000 | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 7,000 | 5,000 | |
| ENWS12 | 12,000 | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 8,400 | 6,000 | |
