Hidea European Type Commercial Wire Rope Thimbles – Perfect for Cable and Wire Rope Systems

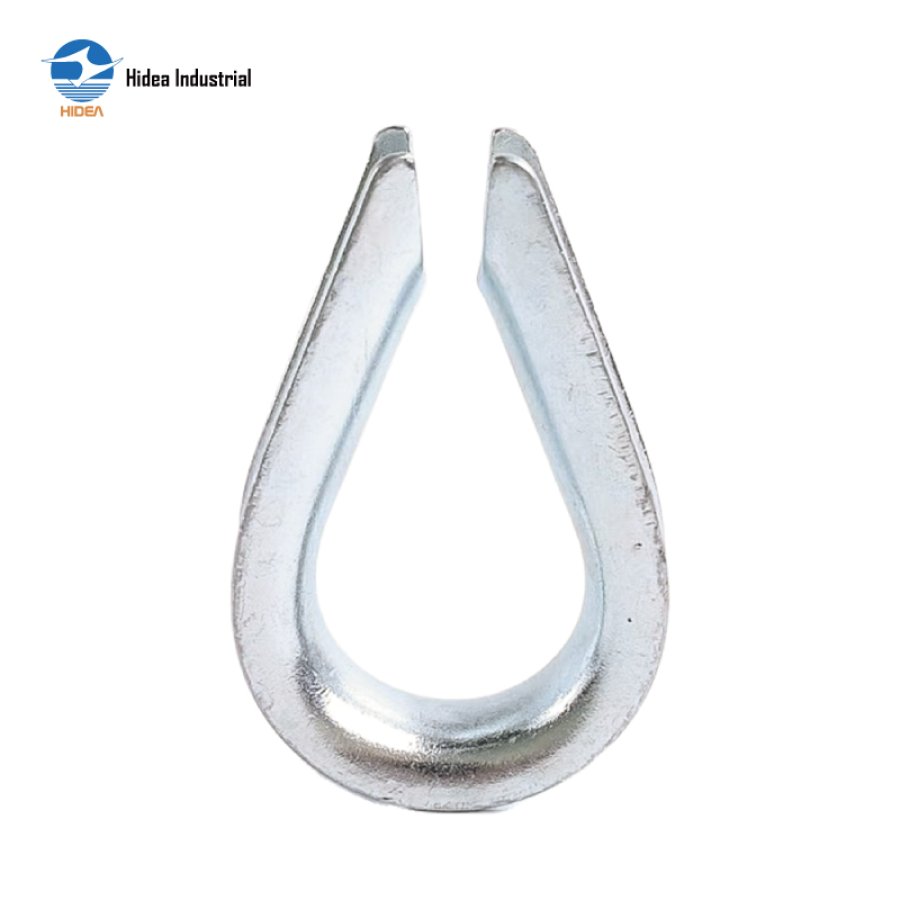

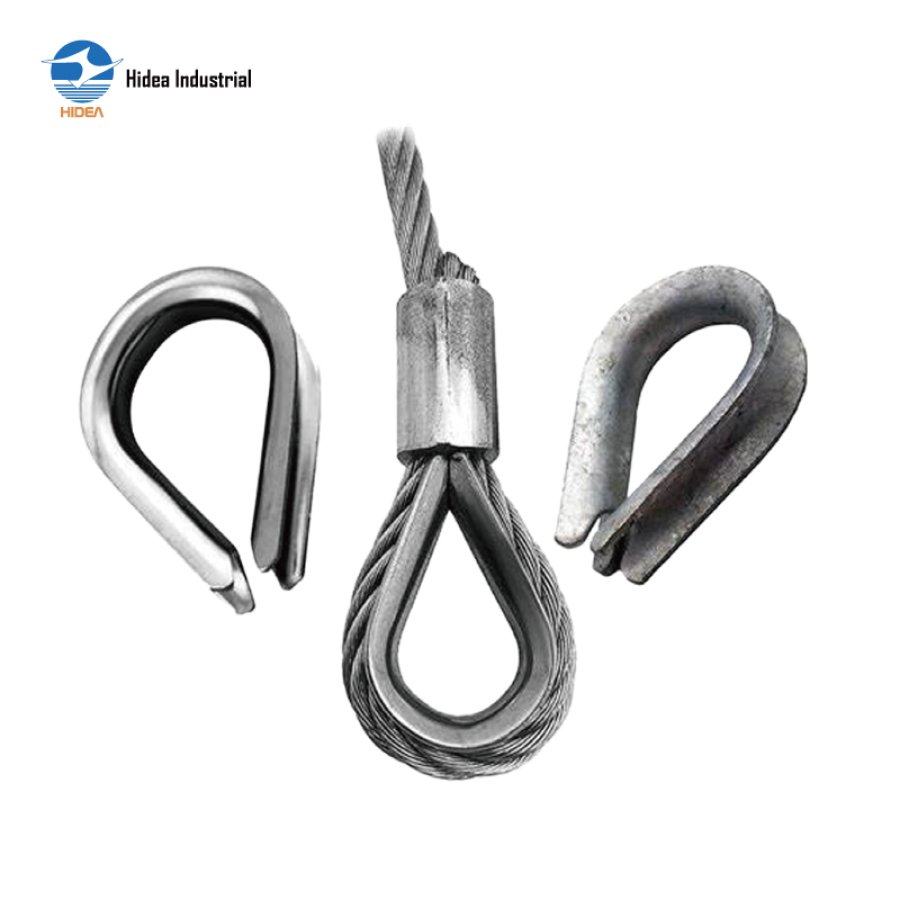

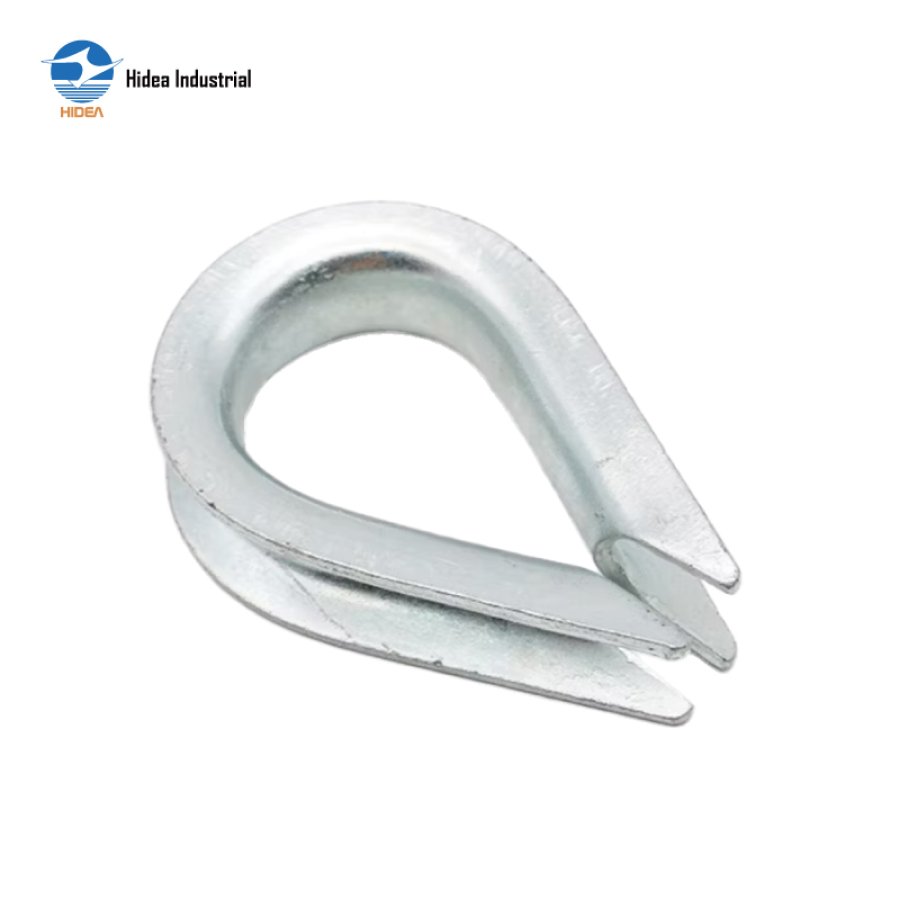

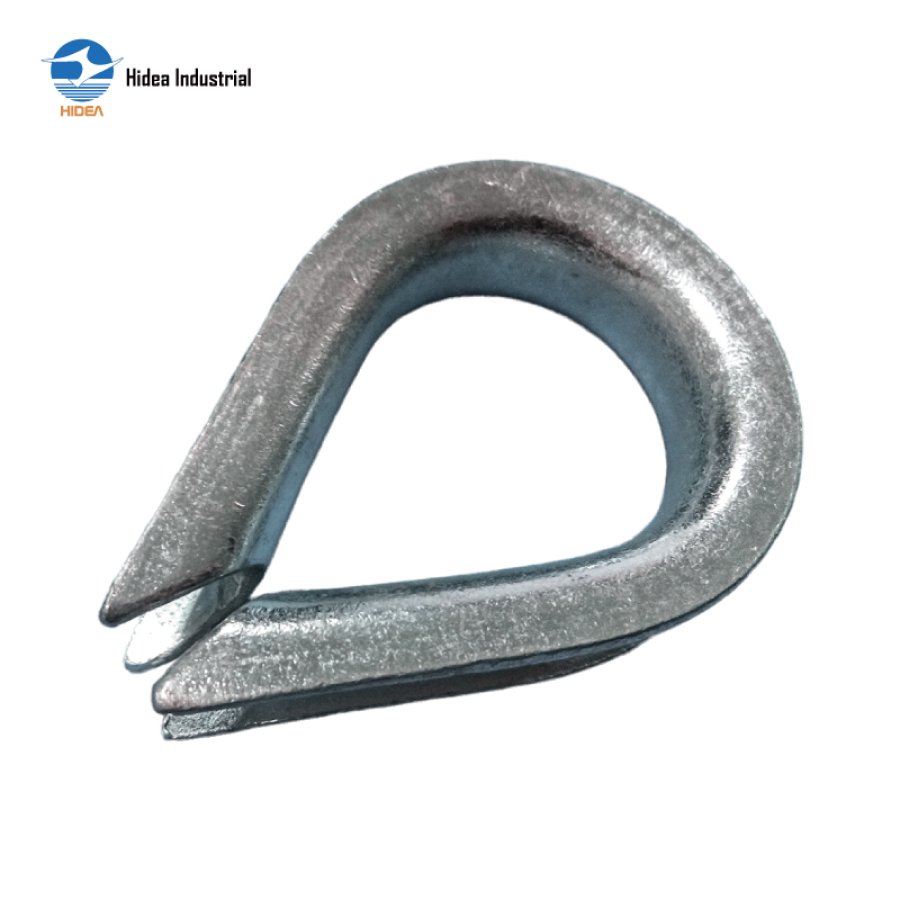

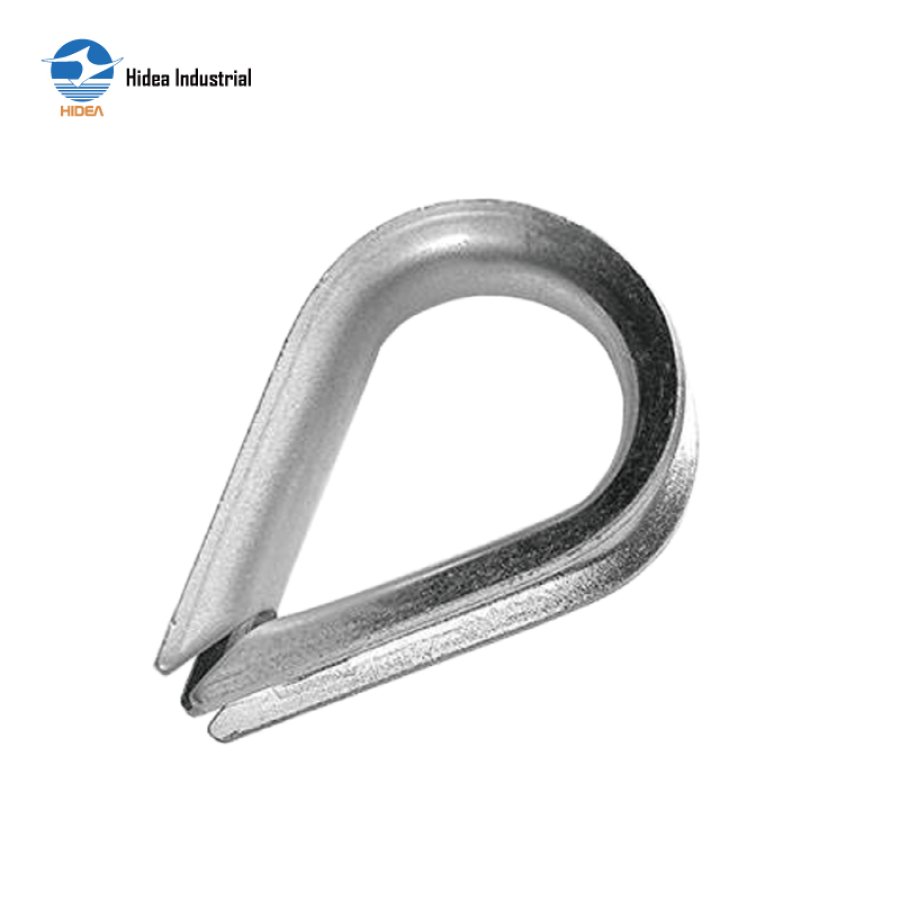

EUROPEAN COMMERCIAL TYPE WIRE ROPE THIMBLE

Material Mild Steel Plate
Stamped & Bent to shape, Machined & polished
Surface Electro Galv. / zinc plated OR as requested
Meets the performance requirements of DIN / EN13411-1
Commercial wire rope thimbles European type

Inquire Now

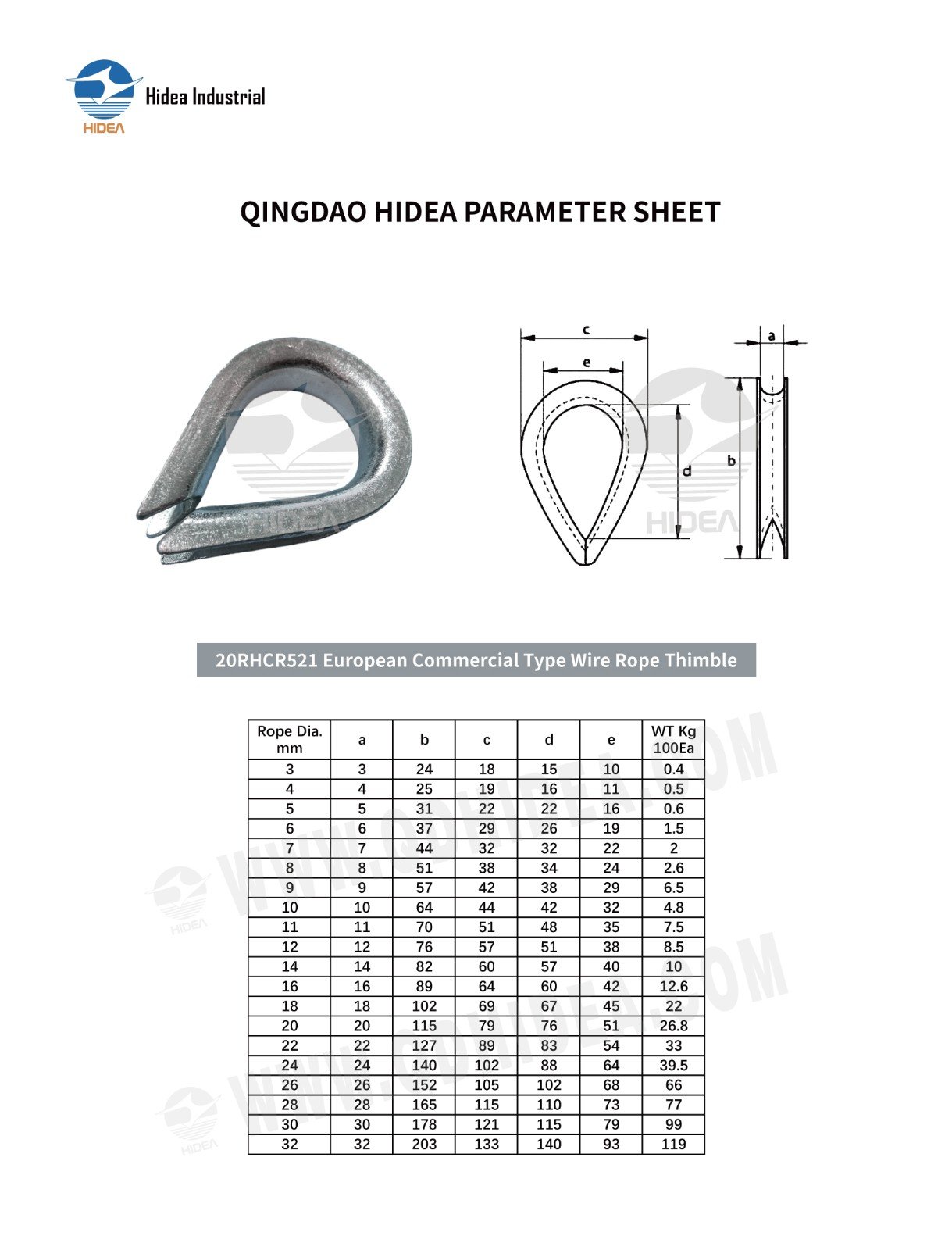

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR521 European Commercial Type Wire Rope Thimble

Rope Dia. mm	a	b	C	d	e	WT Kg 100Ea
3	3	24	18	15	10	0.4
4	4	25	19	16	11	0.5
5	5	31	22	22	16	0.6
6	6	37	29	26	19	1.5
7	7	44	32	32	22	2
8	8	51	38	34	24	2.6
9	9	57	42	38	29	6.5
10	10	64	44	42	32	4.8
11	11	70	51	48	35	7.5
12	12	76	57	51	38	8.5
14	14	82	60	57	40	10
16	16	89	64	60	42	12.6
18	18	102	69	67	45	22
20	20	115	79	76	51	26.8
22	22	127	89	83	54	33
24	24	140	102	88	64	39.5
26	26	152	105	102	68	66
28	28	165	115	110	73	77
30	30	178	121	115	79	99
32	32	203	133	140	93	119
