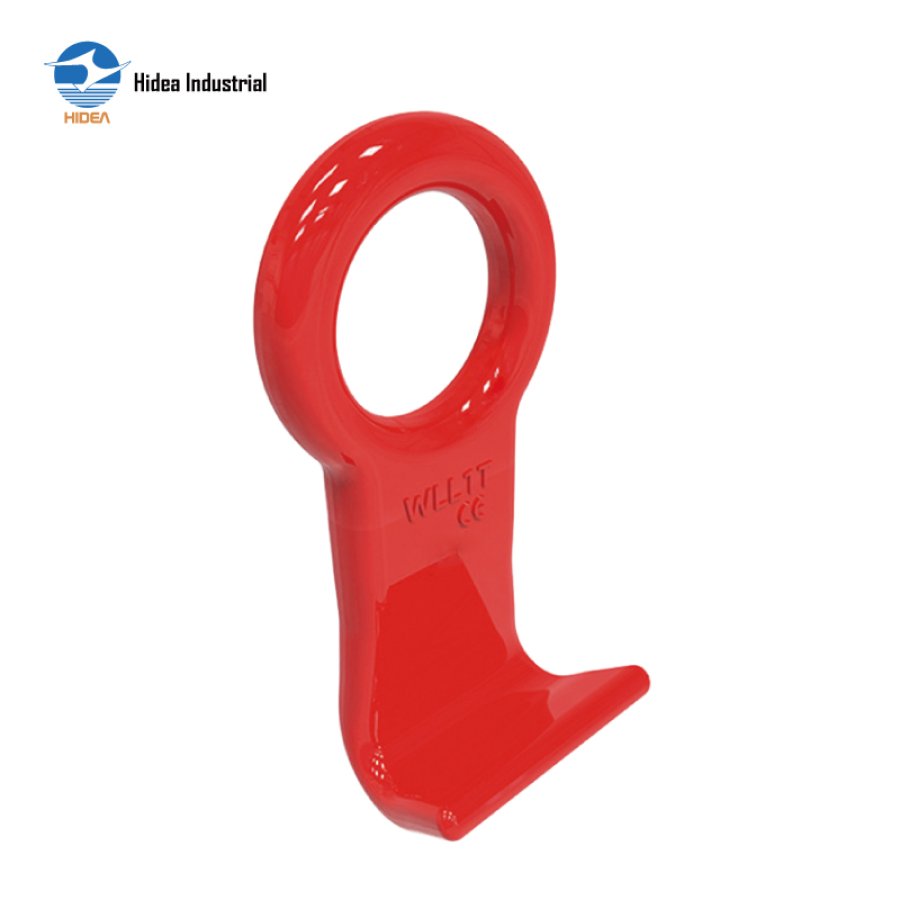

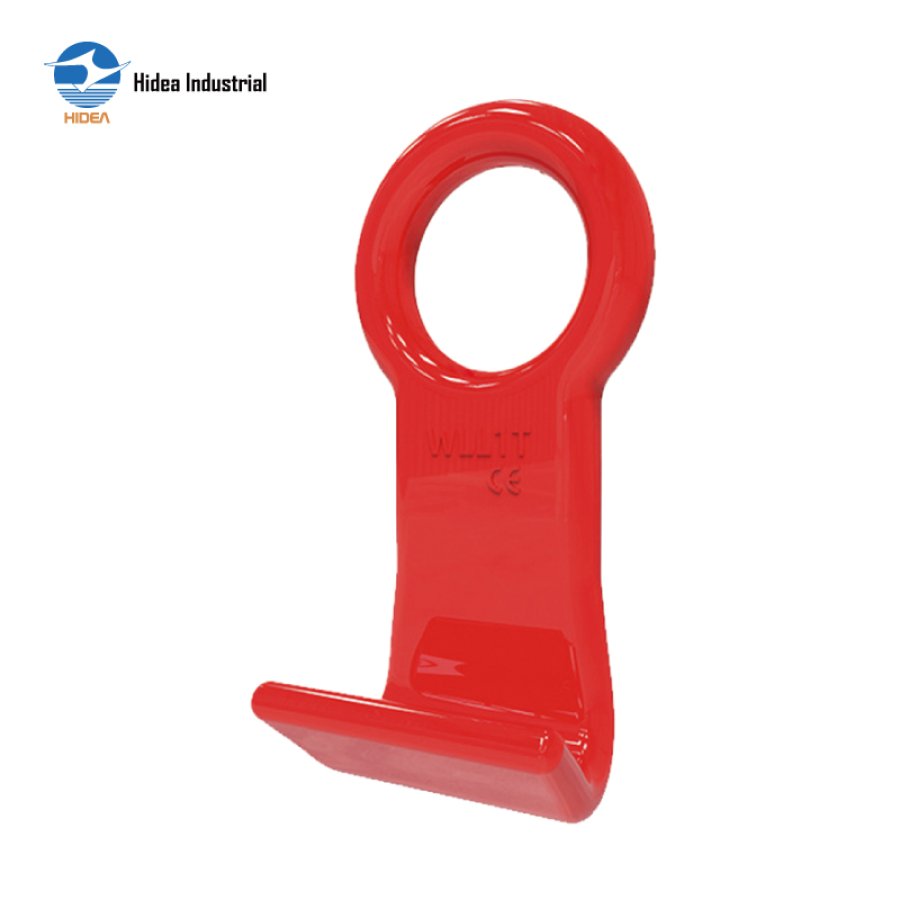

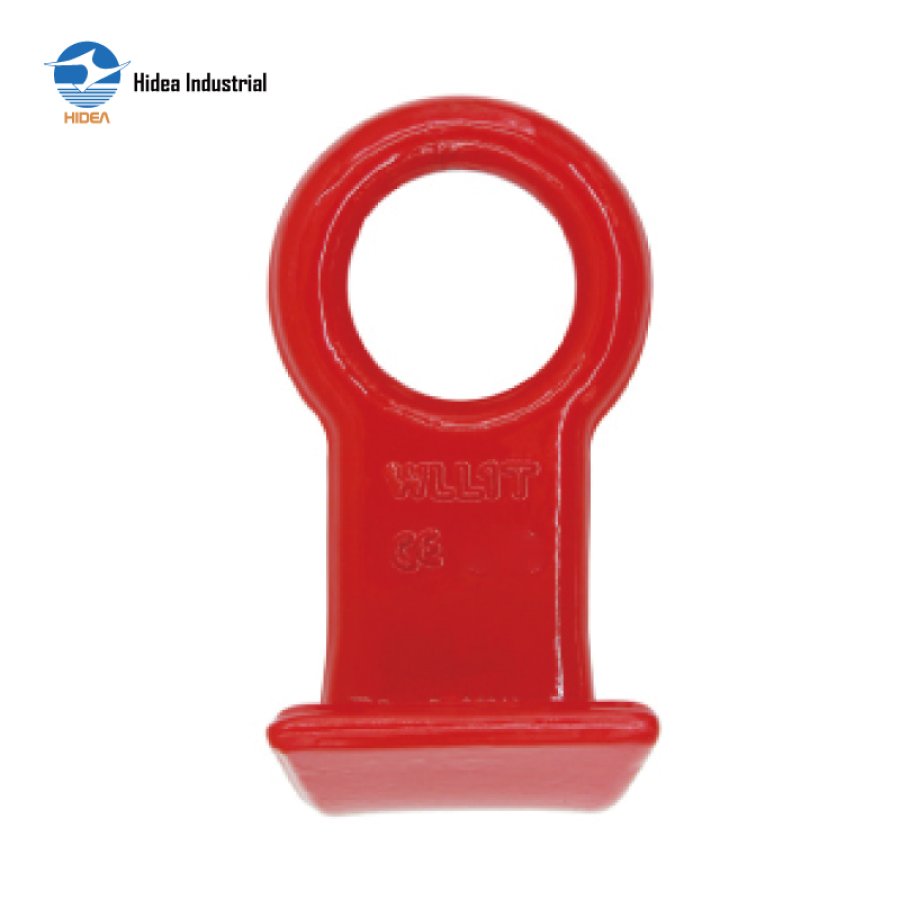

High-Strength and High-Performance Hidea G80 Barrel Hook

G80 BARREL HOOK

Forged carbon steel-Quenched and Tempered
Ultimate load is 4 times the Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Regular mark: WLL1T

Inquire Now

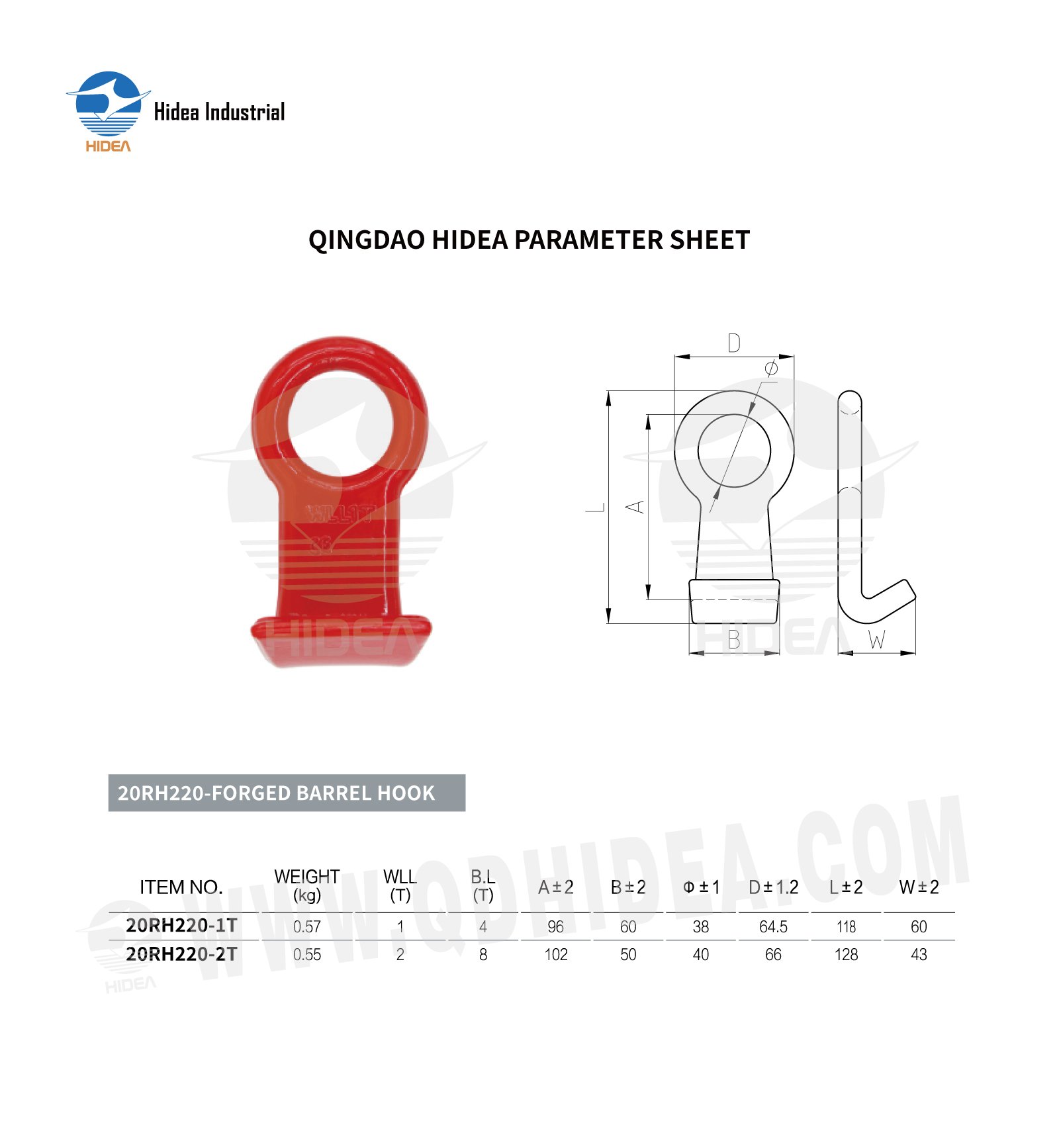

QINGDAO HIDEA PARAMETER SHEET FOR

20RH220-FORGED BARREL HOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±2	B±2	Φ±1	D±1.2	L±2	W±2

20RH220-1T	0.57	1	4	96	60	38	64.5	118	60
20RH220-2 T	0.55	2	8	102	50	40	66	128	43
