HIDEA G80 Grab Link with Wing: Durable and Dependable Rigging Solutions

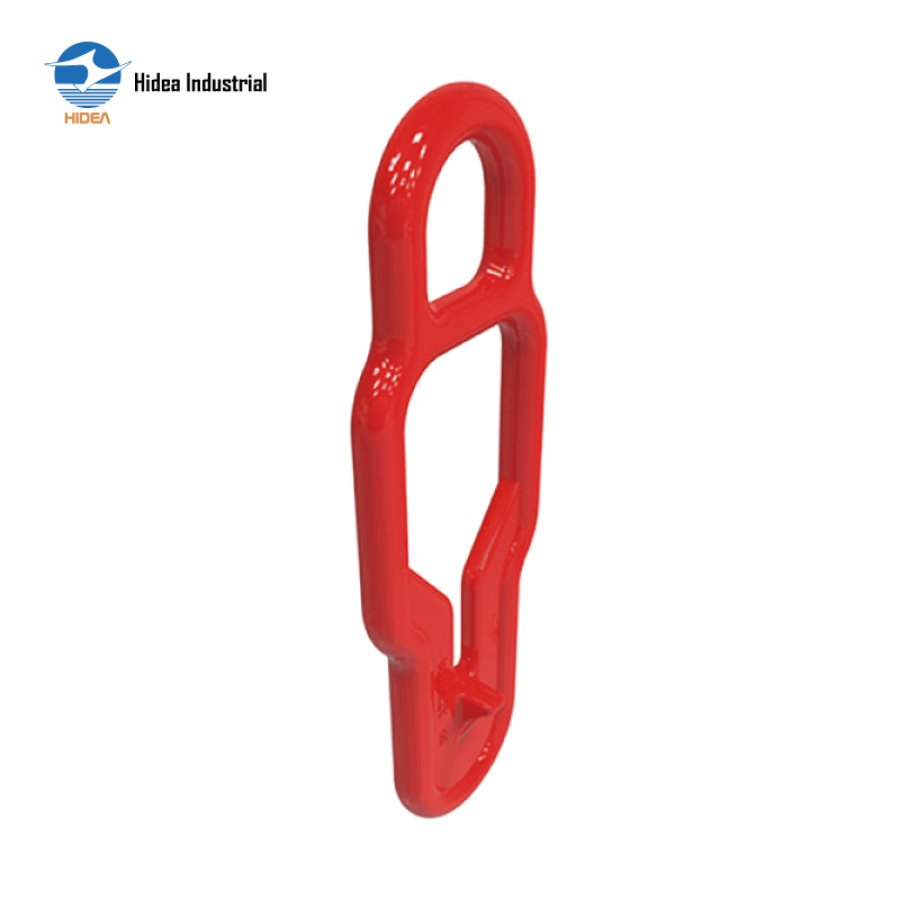

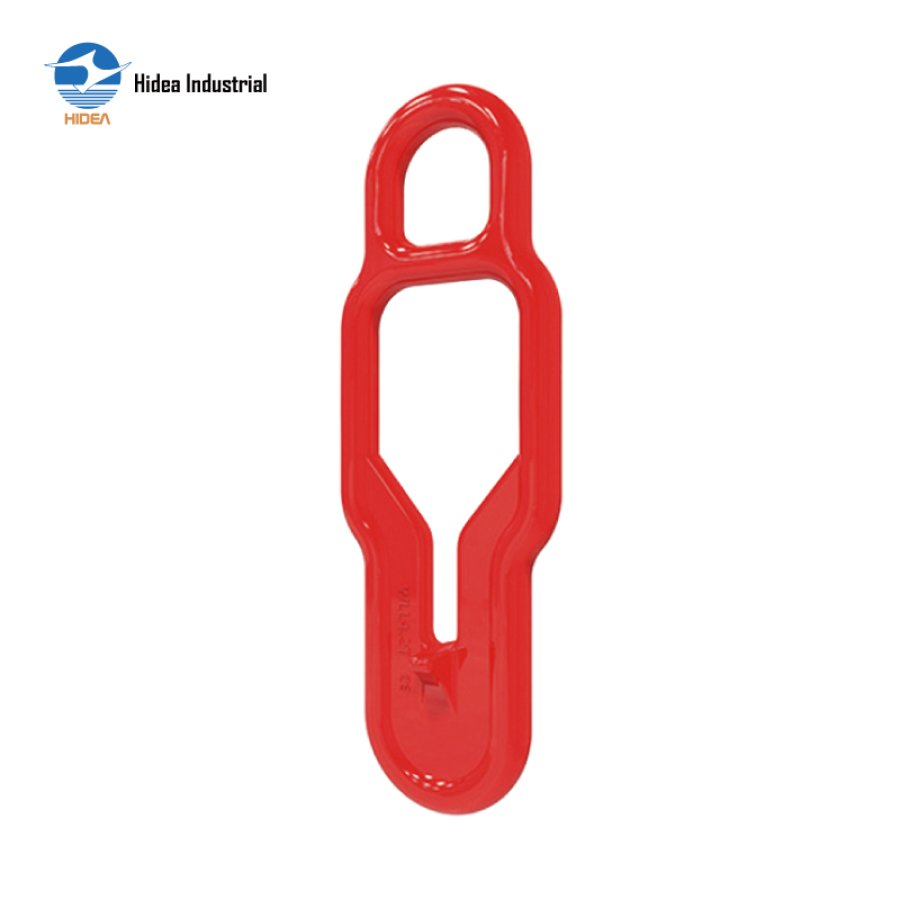

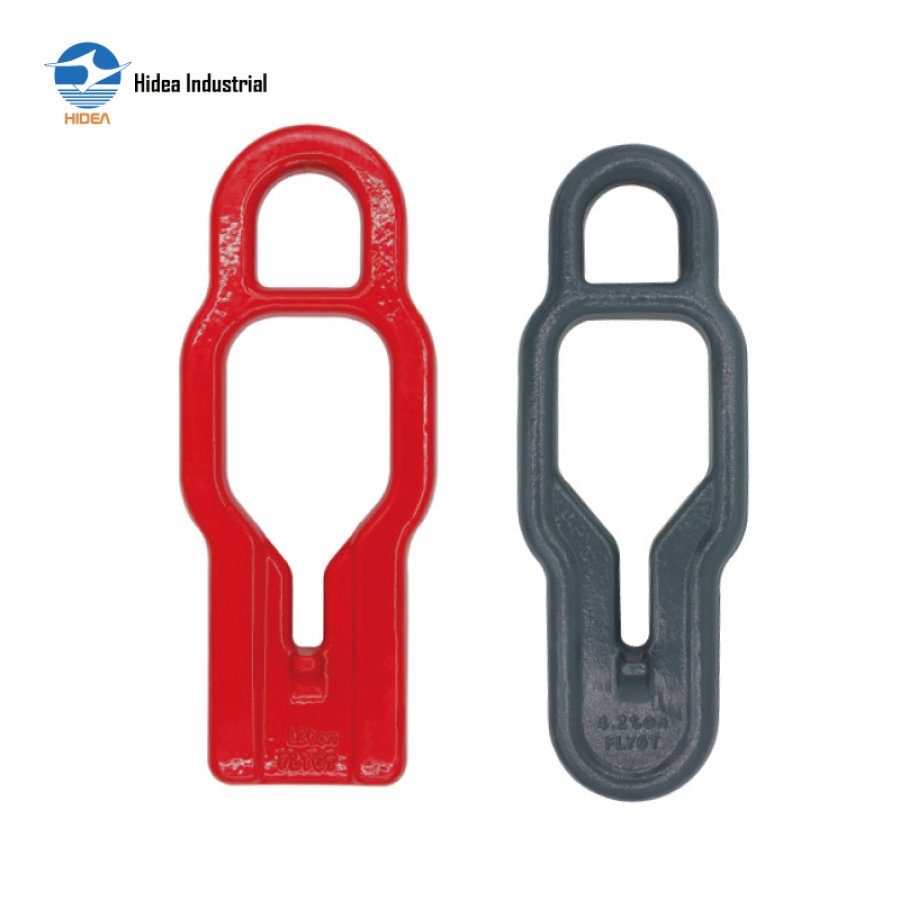

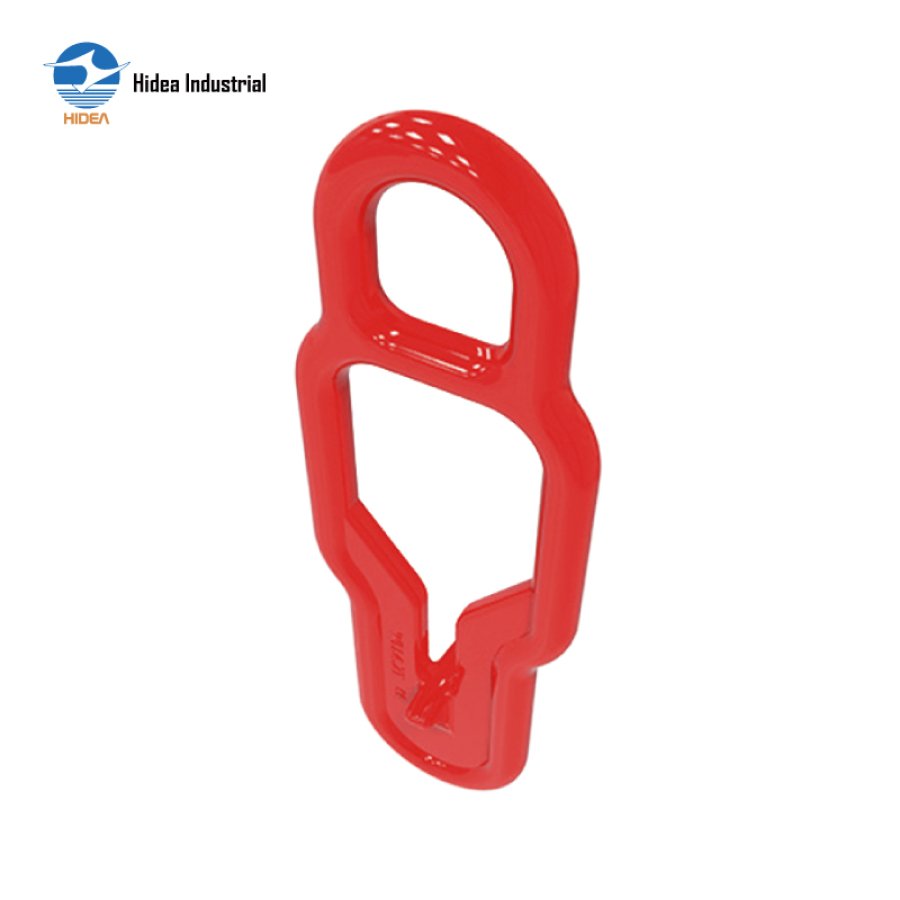

G80 ALLOY FORGED LINK WITH WING

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

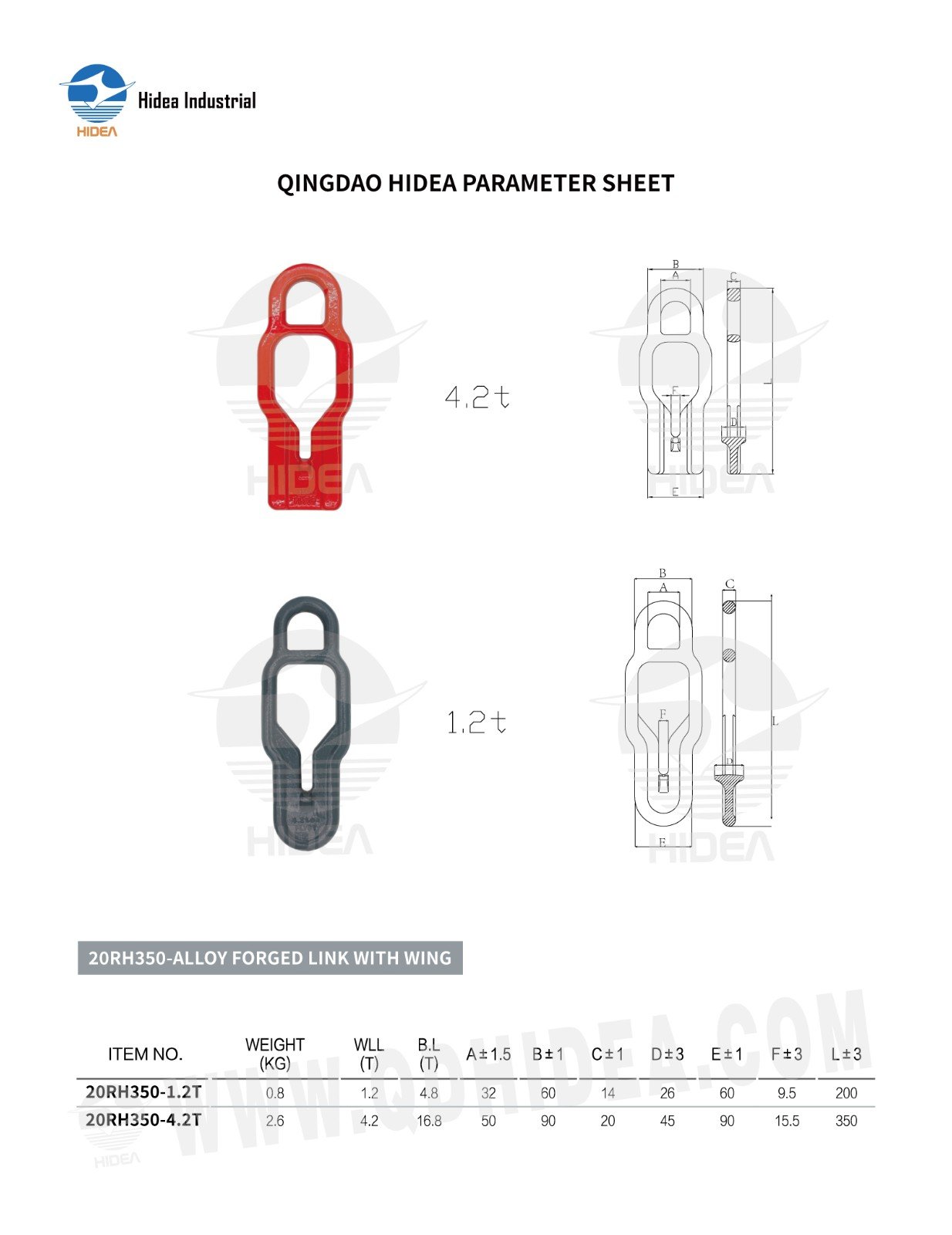

QINGDAO HIDEA PARAMETER SHEET FOR

20RH350-ALLOY FORGED LINK WITH WING

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±1.5	B±1	C±1	D±3	E±1	F±3	L±3
20RH350-1.2T	0.8	1.2	4.8	32	60	14	26	60	9.5	200
20RH350-4.2T	2.6	4.2	16.8	50	90	20	45	90	15.5	350
