HSH-C(K) type lever block hoist is a kind of portable and versatile hand-operated loading and pulling appliance
The HSH-C(K) type lever hoist can be used in power industry, mines, ship-building yards, construction sites, transportation and telecommunication for installing equipments, cargo lifting, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc., and it has exceptional advantages particularly to be applied in every limited & narrow places in the upper air high above the ground and at any angles
High quality alloy steel lever handle & forged alloy hooks, supper G80 lifting chains and hand chains, rated load range from 0.75 tons to 6 tons
The HSH-C(K) lever block meeting standards ASME B30.16, ANSI/ASME HST-5 and EN14901

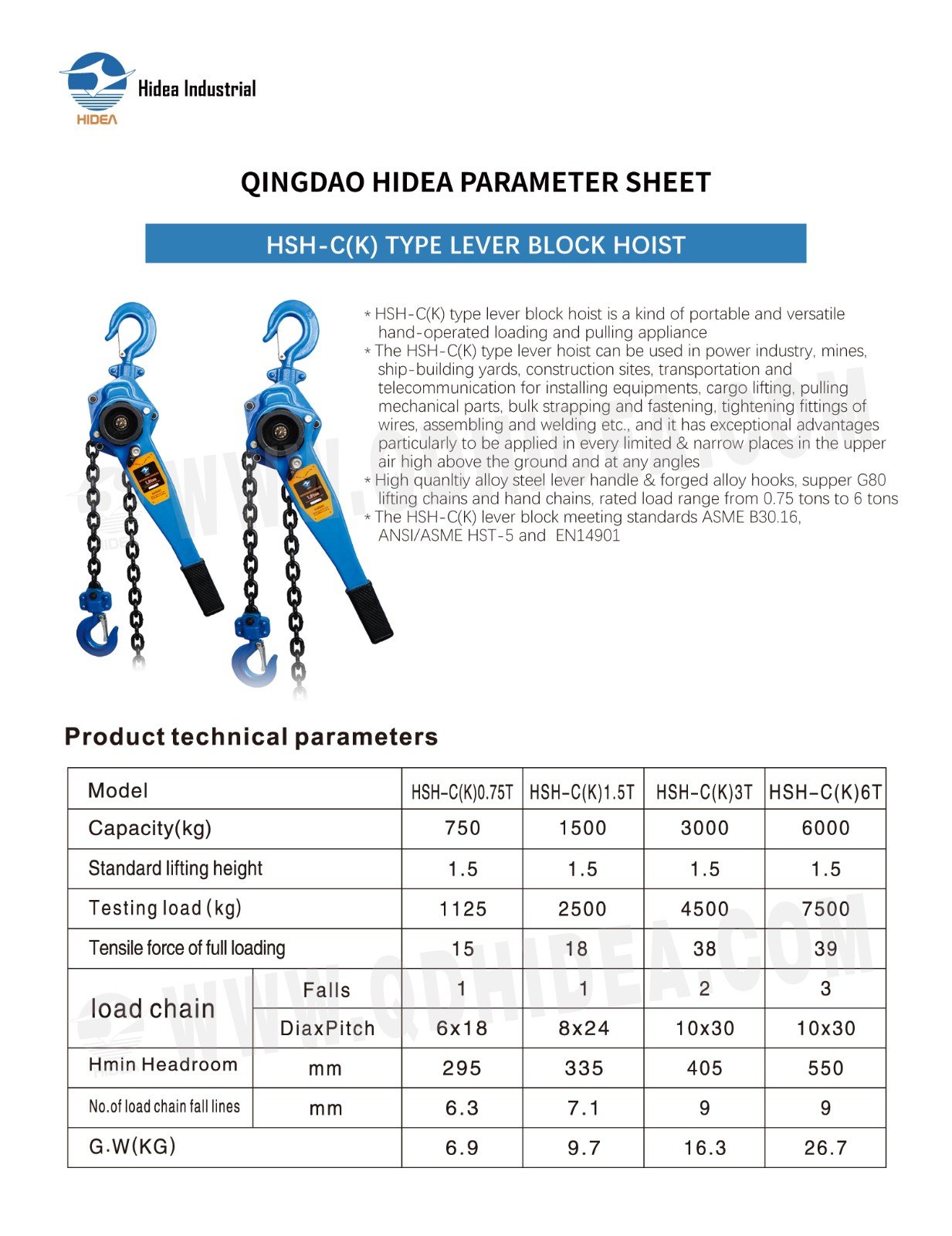

QINGDAO HIDEA PARAMETER SHEET FOR
HSH-C(K)TYPE LEVER BLOCK HOIST
| Model | HSH-C(K)0.75T | HSH-C(K)1.5T | HSH-C(K)3T | HSH-C(K)6T | ||||
| Capacity(kg) | 750 | 1500 | 3000 | 6000 | ||||
| Standard lifting height | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| Testing load(kg) | 1125 | 2500 | 4500 | 7500 | ||||
| Tensile force of full loading | 15 | 18 | 38 | 39 | ||||
| load chain | Falls | 1 | 1 | 2 | 3 | |||
| DiaxPitch | 6×18 | 8x24 | 10x30 | 10x30 | ||||
| Hmin Headroom | mm | 295 | 335 | 405 | 550 | |||
| No.of load chain fall lines | mm | 6.3 | 7.1 | 9 | 9 | |||
| G.W(KG) | 6.9 | 9.7 | 16.3 | 26.7 | ||||
