Material: body AND pin super alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G)
Standard US Federal Specification RR-C-271 Type IVA Class 3, Grade A/ASME B30.26 /EN13889
Temperature range: -60 to 200 centigrade degrees

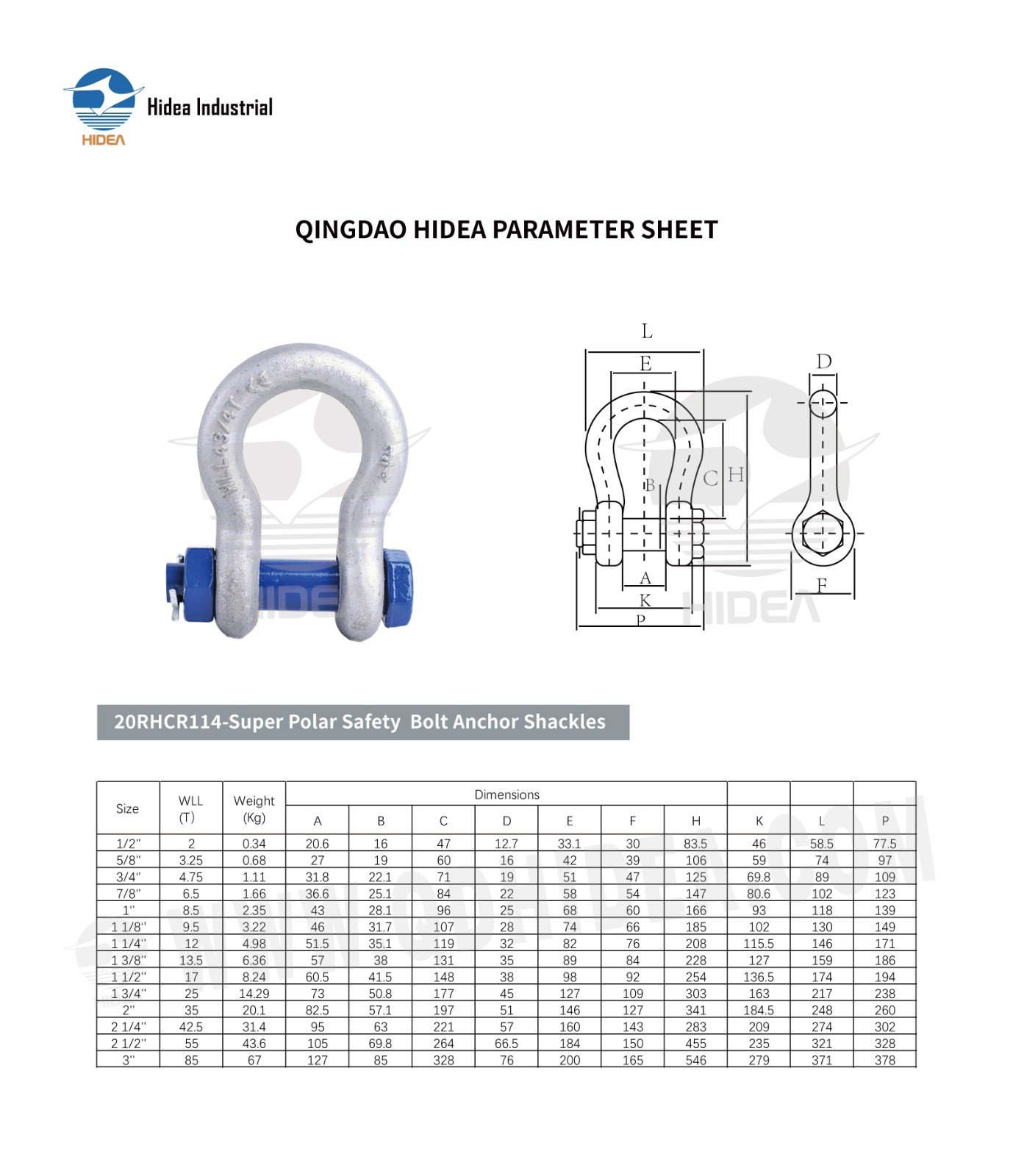

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR114-Super Polar Safety Bolt Anchor Shackles
| Size | WLL (T) | Weight (Kg) | Dimensions | |||||||||
| A | B | C | D | E | F | H | K | L | P | |||
| 1/2" | 2 | 0.34 | 20.6 | 16 | 47 | 12.7 | 33.1 | 30 | 83.5 | 46 | 58.5 | 77.5 |
| 5/8" | 3.25 | 0.68 | 27 | 19 | 60 | 16 | 42 | 39 | 106 | 59 | 74 | 97 |
| 3/4" | 4.75 | 1.11 | 31.8 | 22.1 | 71 | 19 | 51 | 47 | 125 | 69.8 | 89 | 109 |
| 7/8 | 6.5 | 1.66 | 36.6 | 25.1 | 84 | 22 | 58 | 54 | 147 | 80.6 | 102 | 123 |
| 1" | 8.5 | 2.35 | 43 | 28.1 | 96 | 25 | 68 | 60 | 166 | 93 | 118 | 139 |
| 11/8 | 9.5 | 3.22 | 46 | 31.7 | 107 | 28 | 74 | 66 | 185 | 102 | 130 | 149 |
| 11/4" | 12 | 4.98 | 51.5 | 35.1 | 119 | 32 | 82 | 76 | 208 | 115.5 | 146 | 171 |
| 13/8" | 13.5 | 6.36 | 57 | 38 | 131 | 35 | 89 | 84 | 228 | 127 | 159 | 186 |
| 11/2" | 17 | 8.24 | 60.5 | 41.5 | 148 | 38 | 98 | 92 | 254 | 136.5 | 174 | 194 |
| 13/4" | 25 | 14.29 | 73 | 50.8 | 177 | 45 | 127 | 109 | 303 | 163 | 217 | 238 |
| 2" | 35 | 20.1 | 82.5 | 57.1 | 197 | 51 | 146 | 127 | 341 | 184.5 | 248 | 260 |
| 21/4" | 42.5 | 31.4 | 95 | 63 | 221 | 57 | 160 | 143 | 283 | 209 | 274 | 302 |
| 21/2" | 55 | 43.6 | 105 | 69.8 | 264 | 66.5 | 184 | 150 | 455 | 235 | 321 | 328 |
| 3" | 85 | 67 | 127 | 85 | 328 | 76 | 200 | 165 | 546 | 279 | 371 | 378 |
