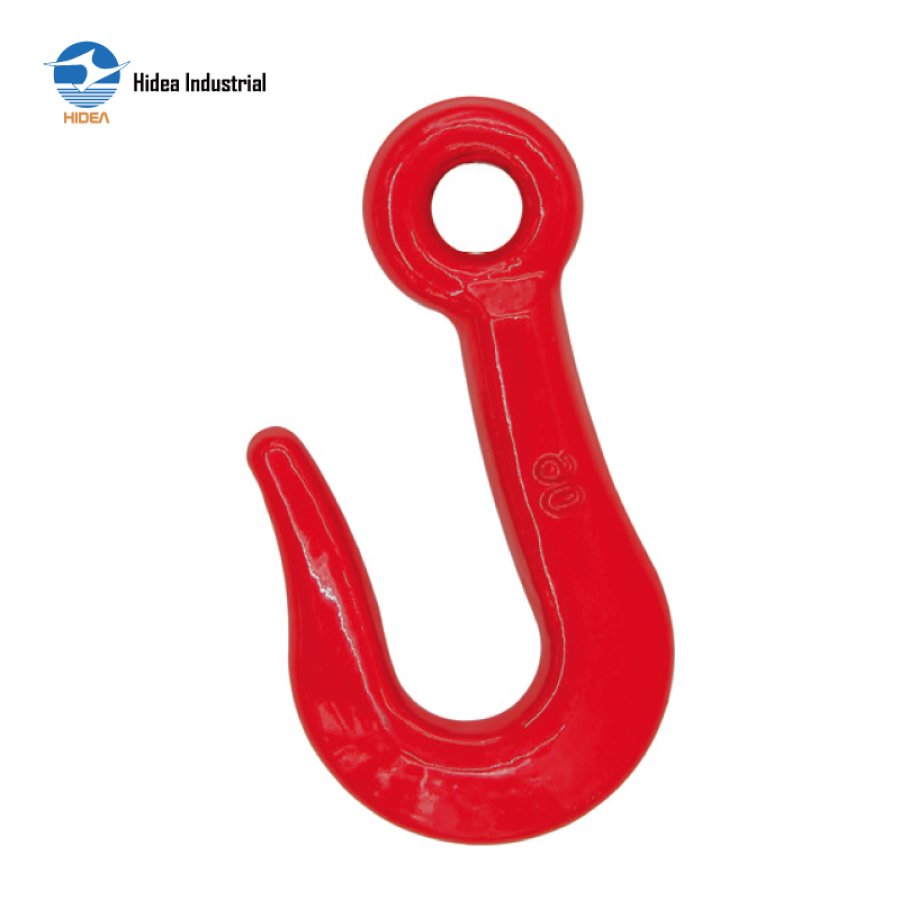

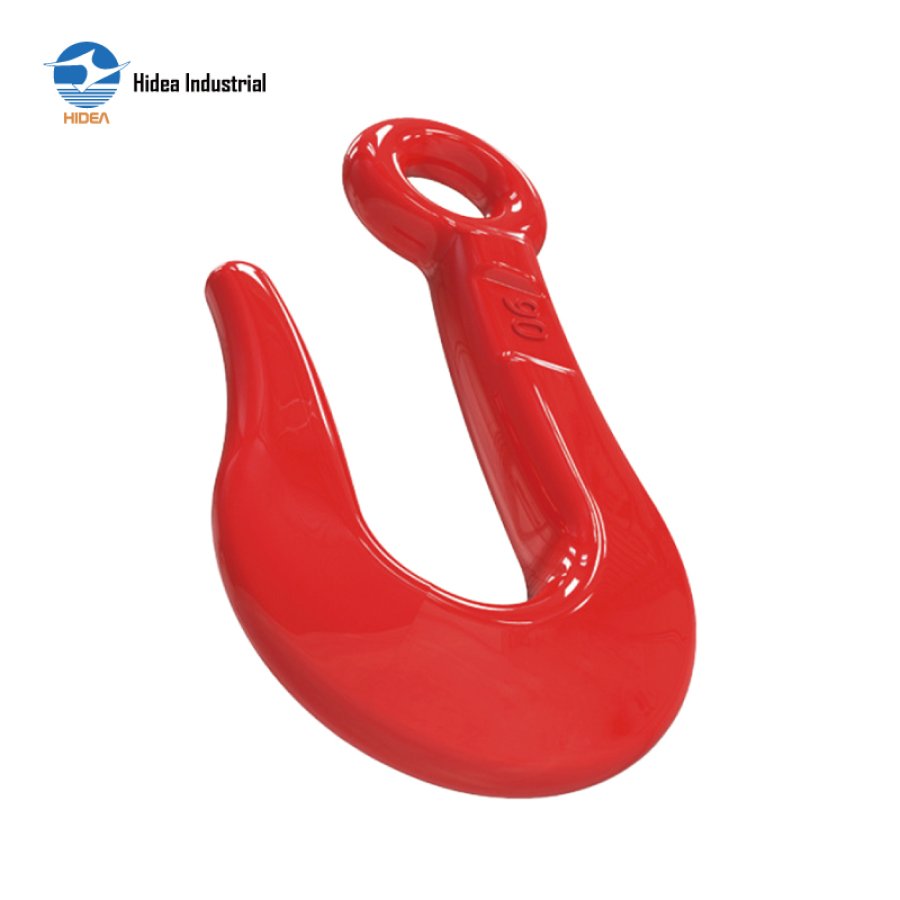

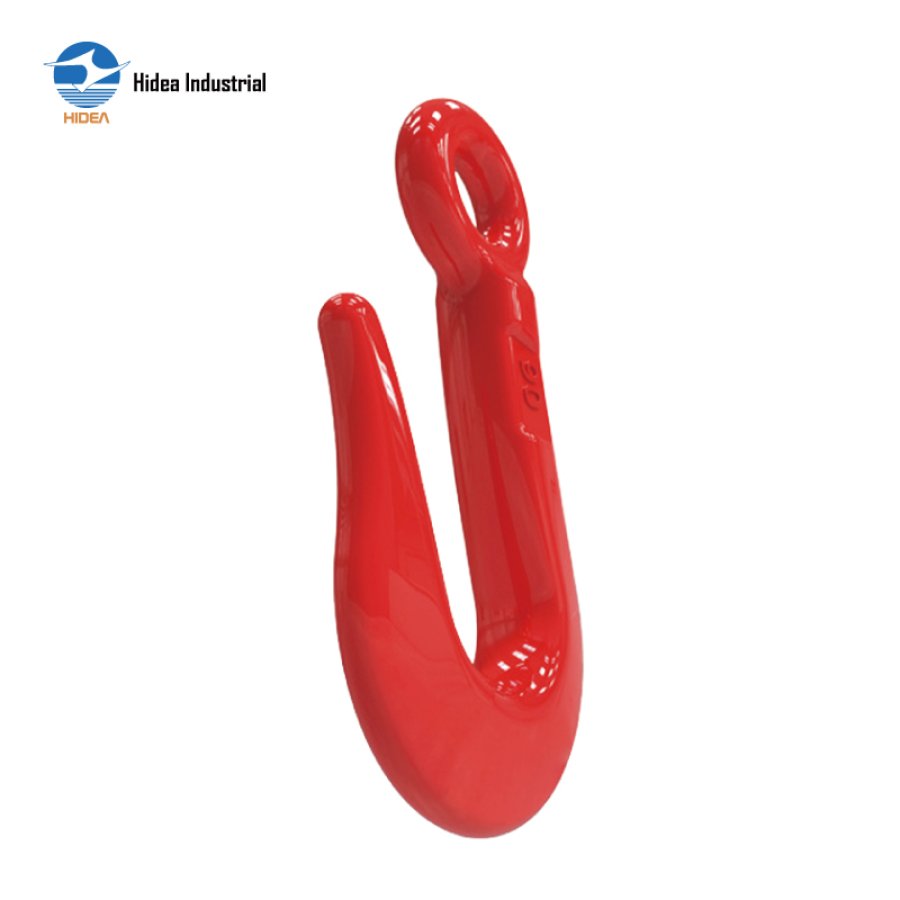

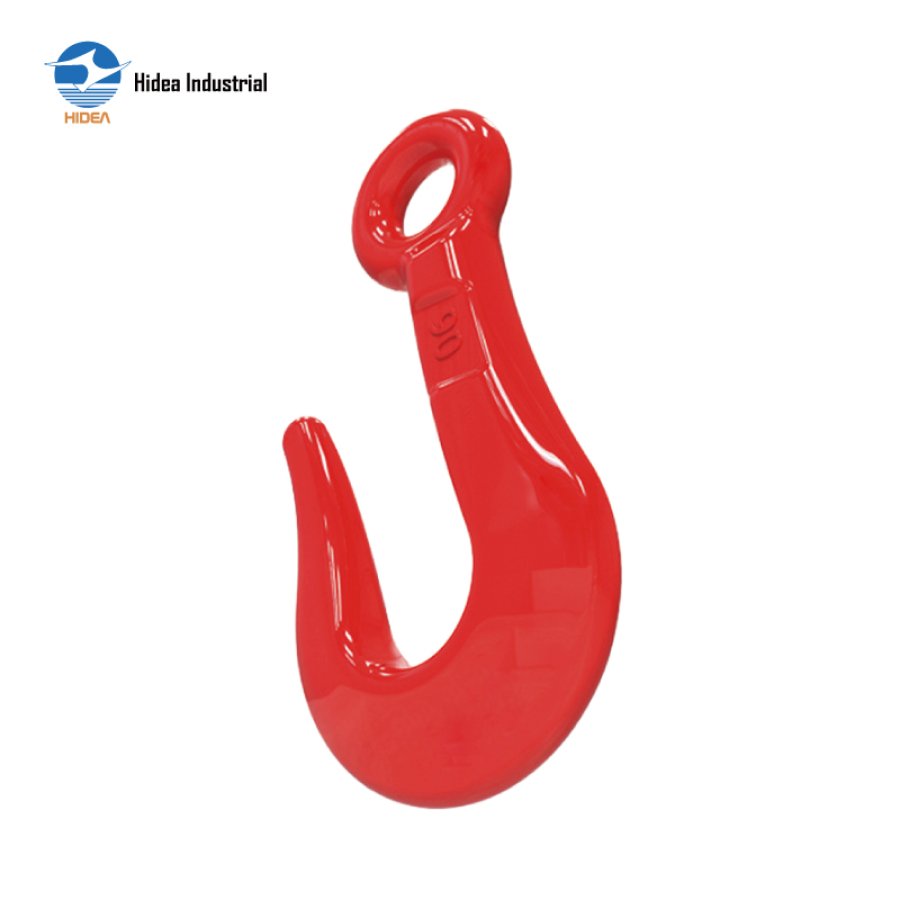

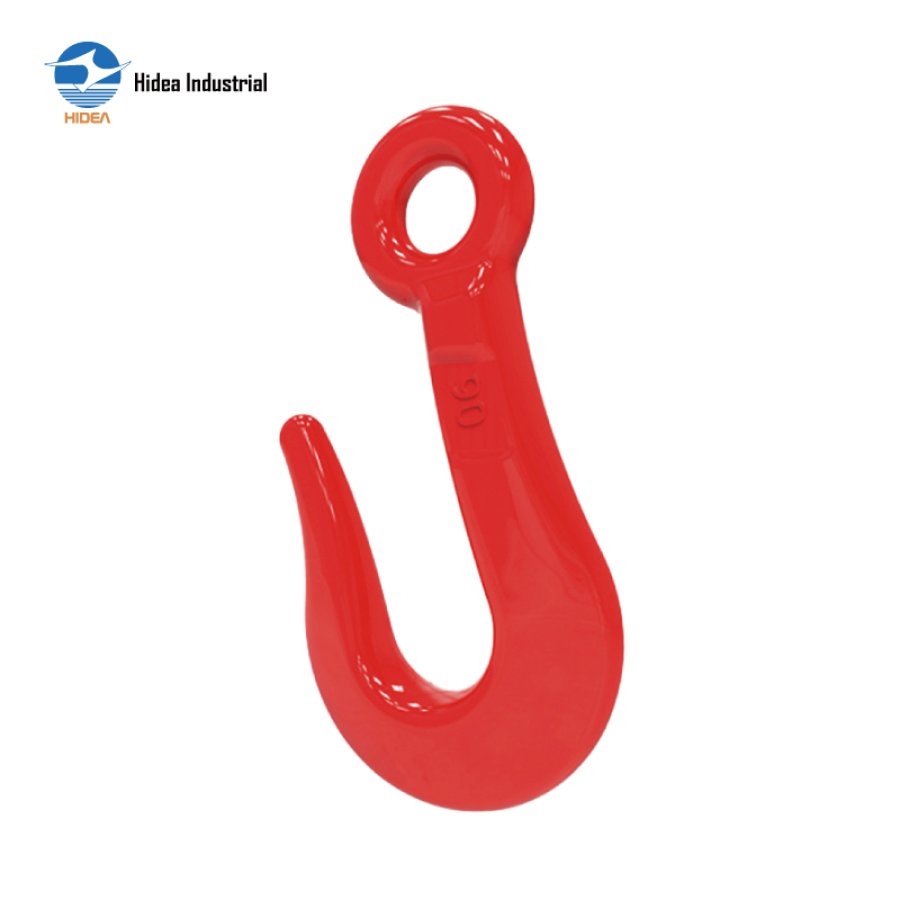

Tough and Long-Lasting Hidea G80 Agricultural Hook

G80 AGRICULTURAL HOOK

Forged mild steel
Only for lashing or pulling
Never to be used for lifting

Inquire Now

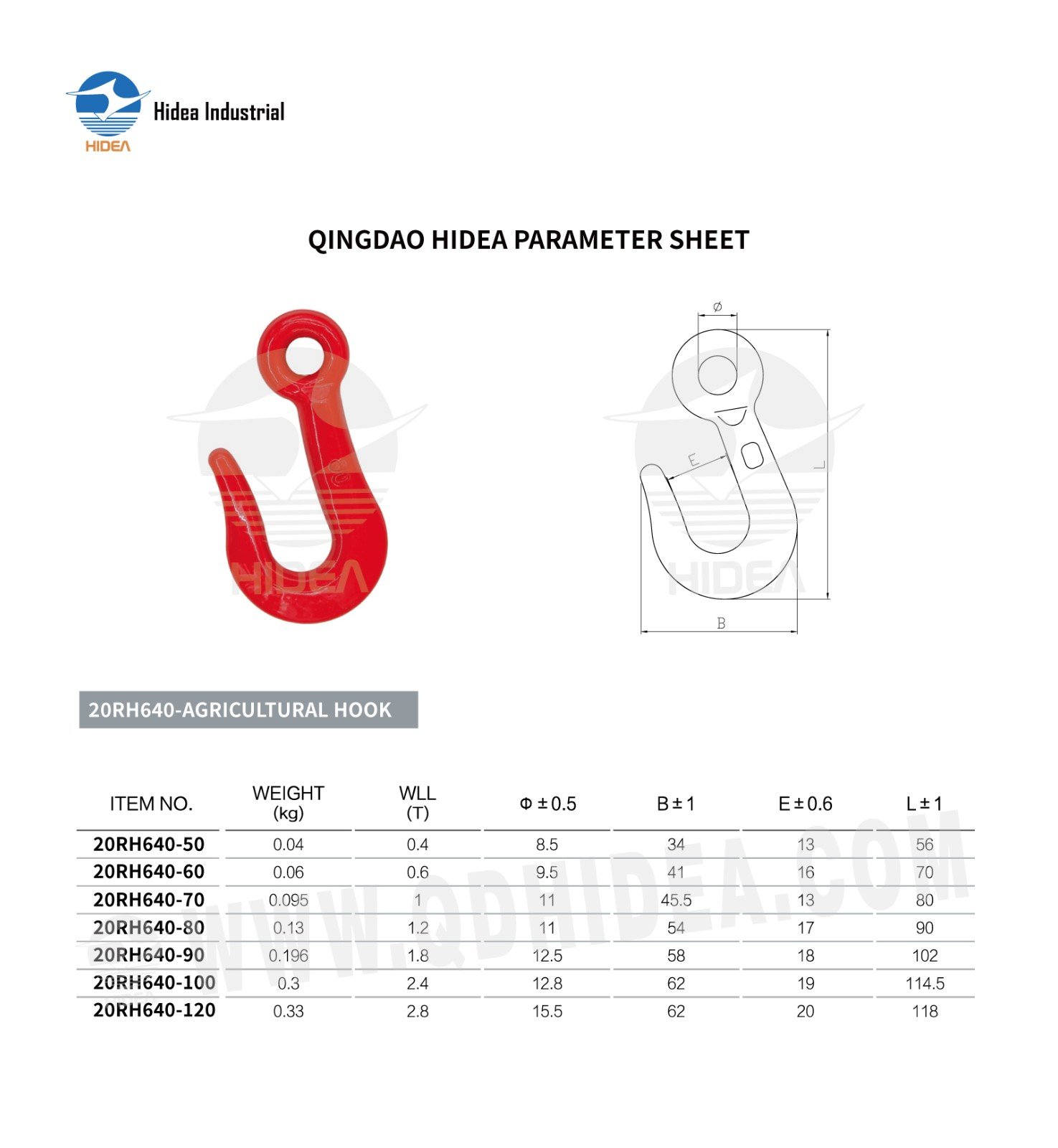

QINGDAO HIDEA PARAMETER SHEET FOR

20RH640-AGRICULTURAL HOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	Φ±0.5	B±1	E±0.6	L±1
20RH640-50	0.04	0.4	8.5	34	13	56
20RH640-60	0.06	0.6	9.5	41	16	70
20RH640-70	0.095	1	11	45.5	13	80
20RH640-80	0.13	1.2	11	54	17	90
20RH640-90	0.196	1.8	12.5	58	18	102
20RH640-100	0.3	2.4	12.8	62	19	114.5
20RH640-120	0.33	2.8	15.5	62	20	118
