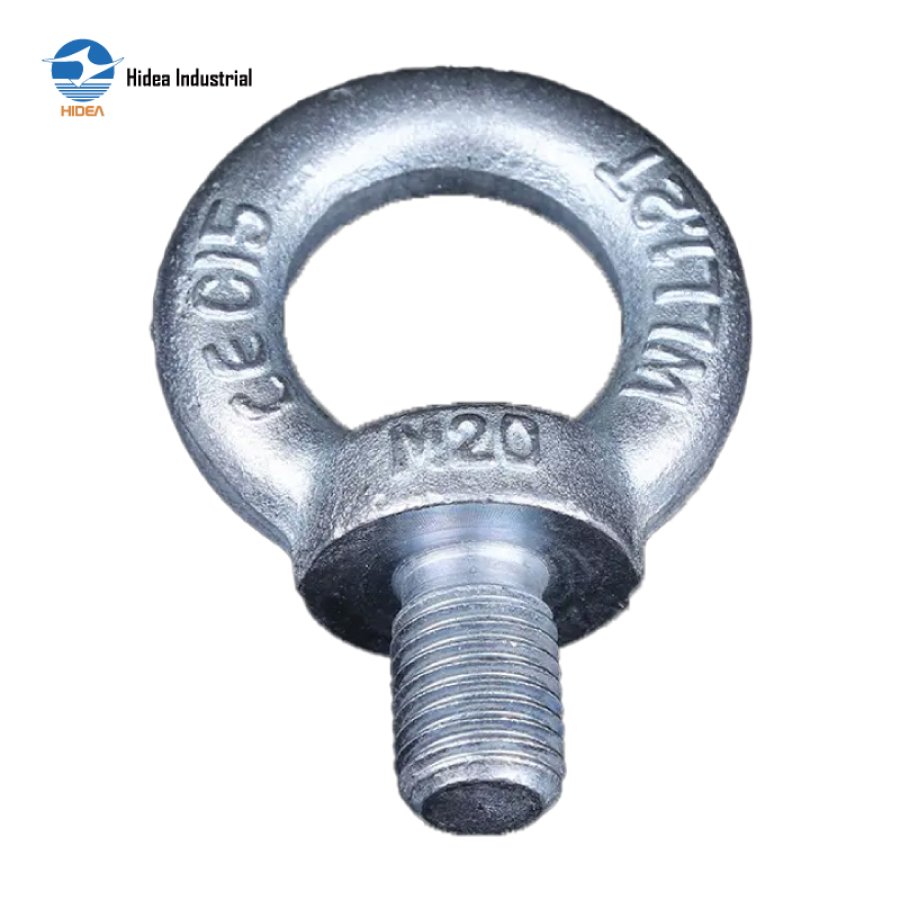

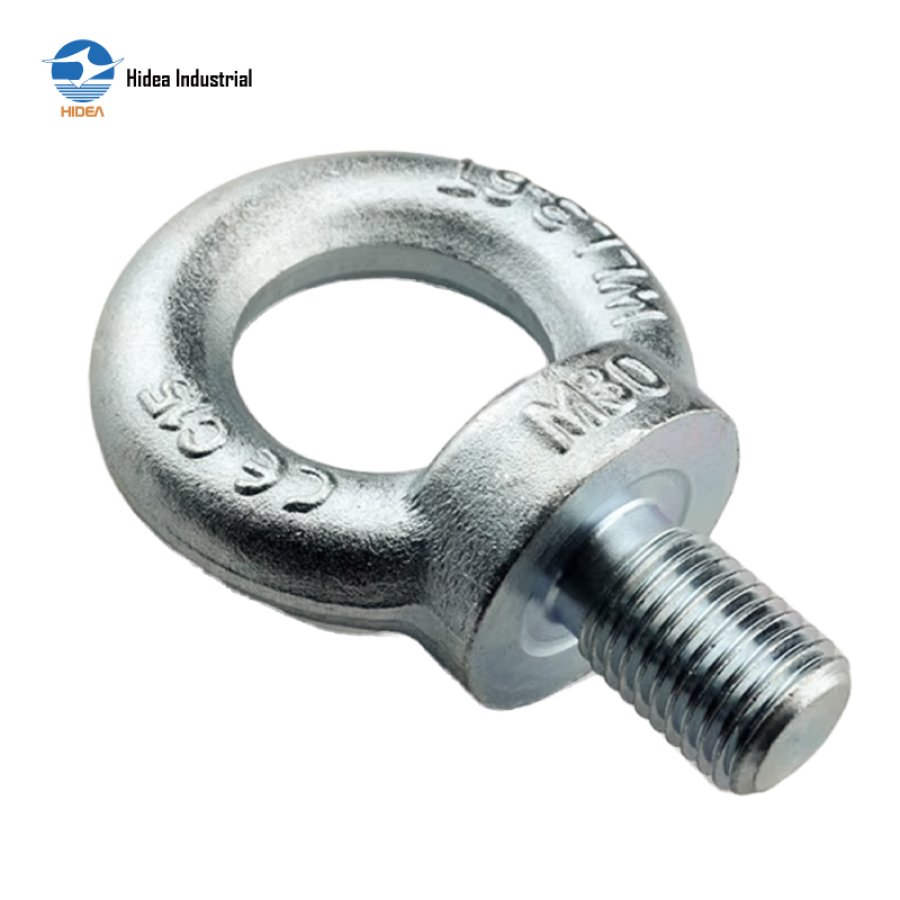

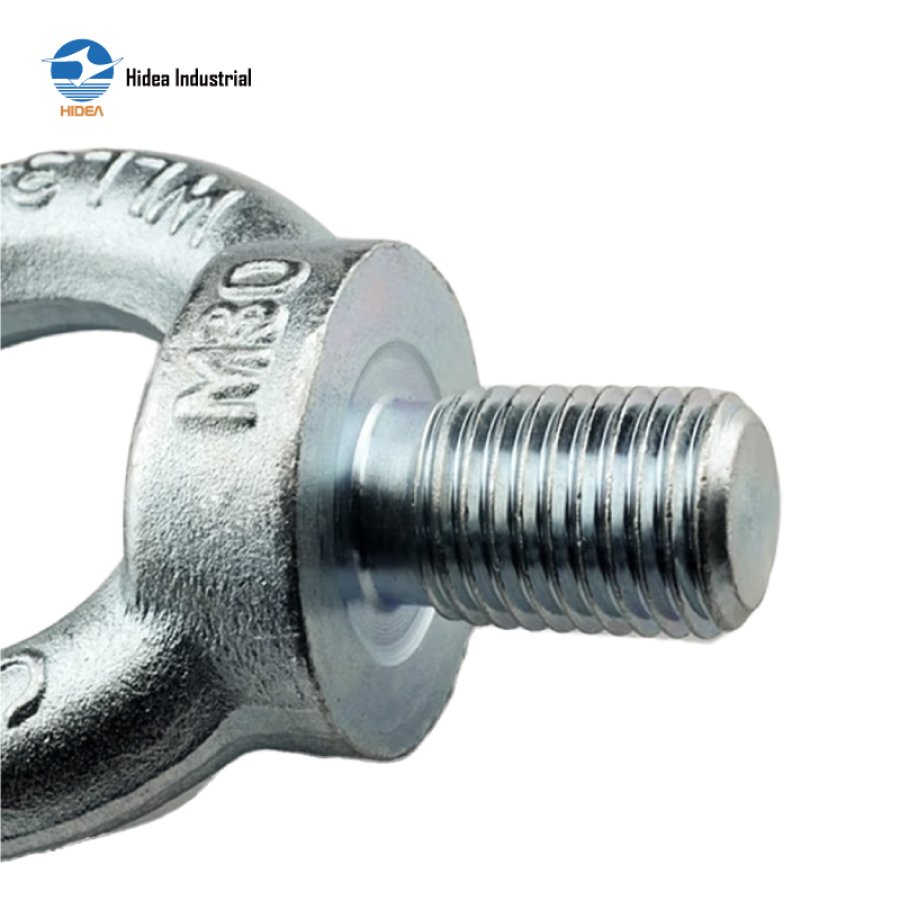

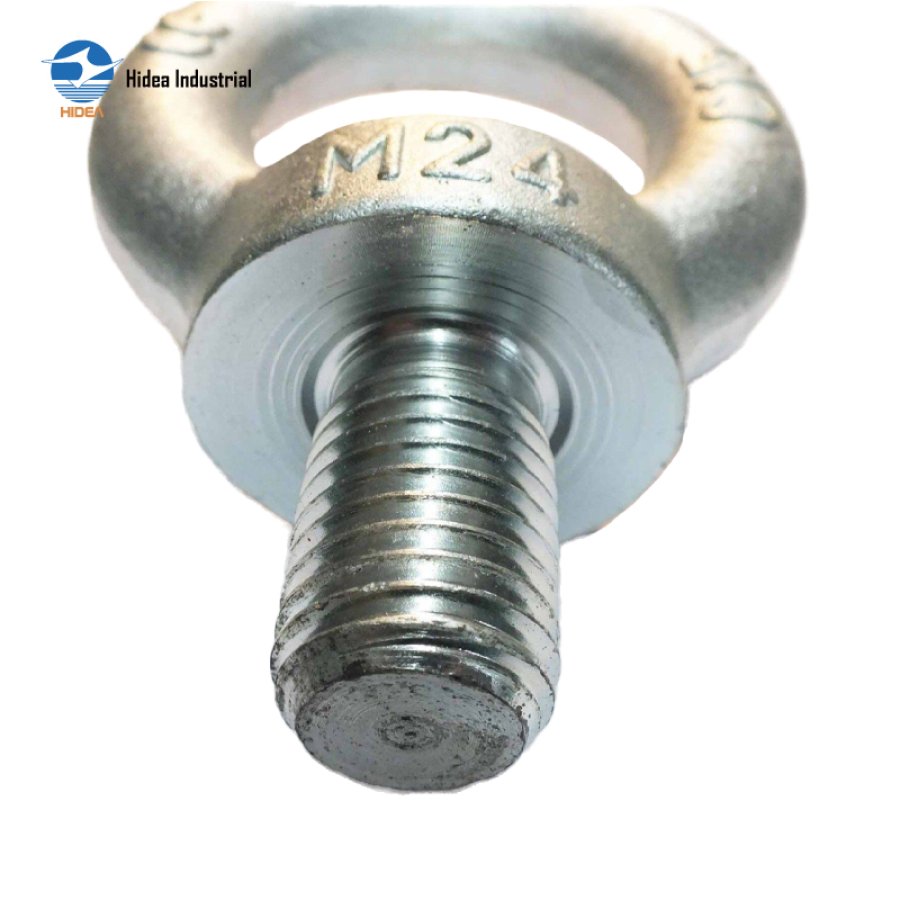

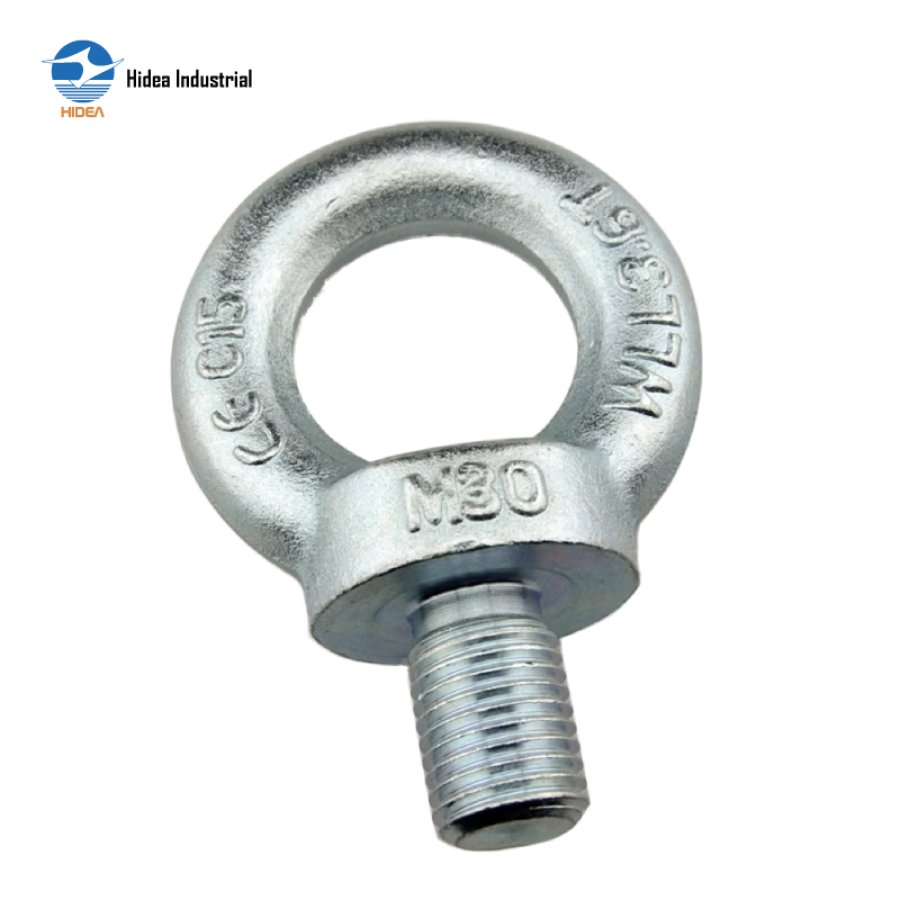

Hidea DIN 580 Forged Lifting Eye Bolts – Perfect for Safe and Efficient Lifting Operations

EYE BOLT DIN 580

Drop forged & machined,quenched and tempered
Proof Tested & certificate available
Surface Electro Galv. / zinc plated OR as requested
DIN580 lifting eyebolt

Inquire Now

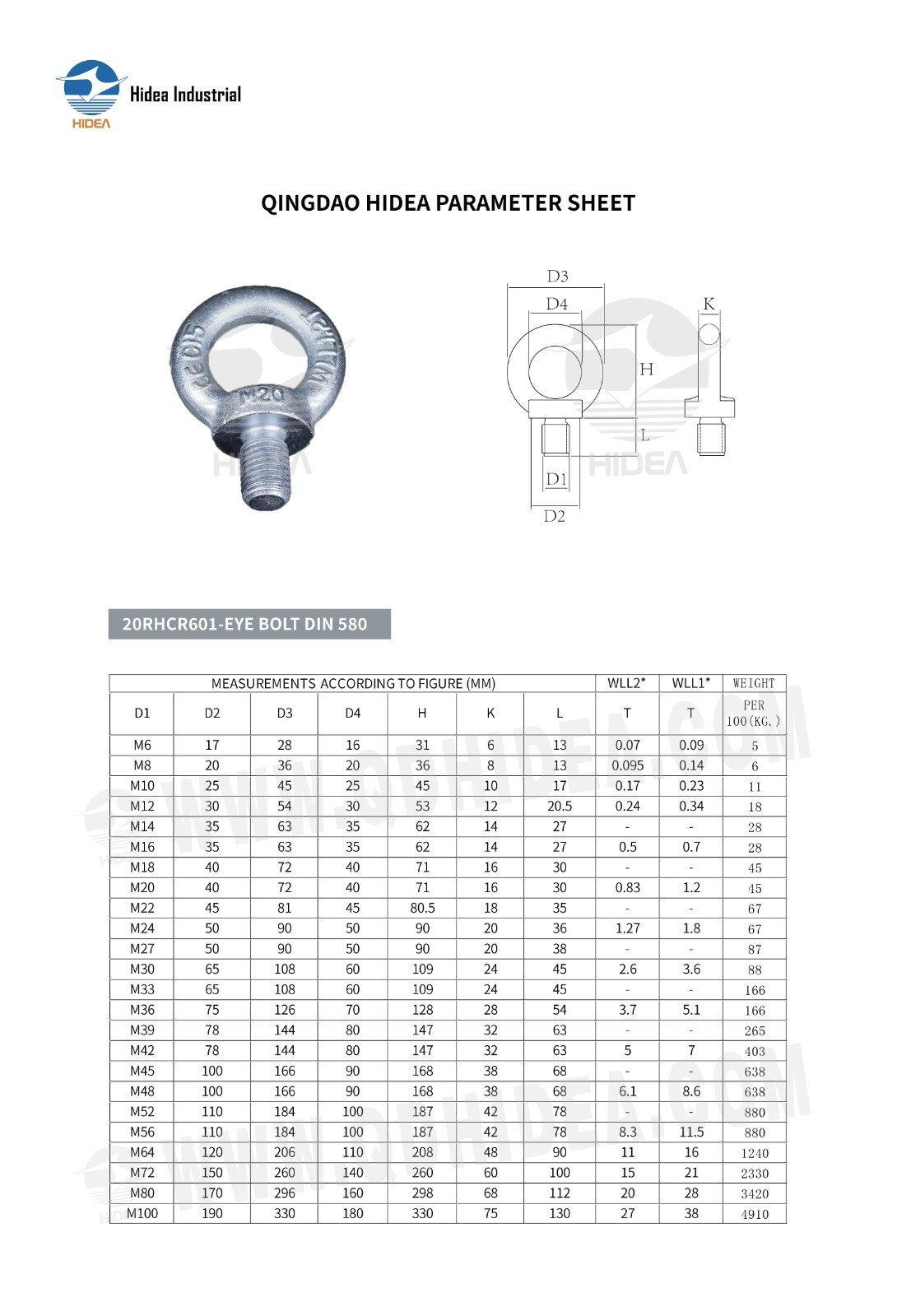

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR601-EYE BOLT DIN 580

MEASUREMENTS ACCORDING TO FIGURE(MM)							WLL2*	WLL1*	WEIGHT
D1	D2	D3	D4	H	K	L	T	T	PER 100(KG.)
M6	17	28	16	31	6	13	0.07	0.09	5
M8	20	36	20	36	8	13	0.095	0.14	6
M10	25	45	25	45	10	17	0.17	0.23	11
M12	30	54	30	53	12	20.5	0.24	0.34	18
M14	35	63	35	62	14	27			28
M16	35	63	35	62	14	27	0.5	0.7	28
M18	40	72	40	71	16	30			45
M20	40	72	40	71	16	30	0.83	1.2	45
M22	45	81	45	80.5	18	35			67
M24	50	90	50	90	20	36	1.27	1.8	67
M27	50	90	50	90	20	38			87
M30	65	108	60	109	24	45	2.6	3.6	88
M33	65	108	60	109	24	45			166
M36	75	126	70	128	28	54	3.7	5.1	166
M39	78	144	80	147	32	63			265
M42	78	144	80	147	32	63	5	7	403
M45	100	166	90	168	38	68			638
M48	100	166	90	168	38	68	6.1	8.6	638
M52	110	184	100	187	42	78			880
M56	110	184	100	187	42	78	8.3	11.5	880
M64	120	206	110	208	48	90	11	16	1240
M72	150	260	140	260	60	100	15	21	2330
M80	170	296	160	298	68	112	20	28	3420
M100	190	330	180	330	75	130	27	38	4910
