High-Strength Hidea US Type Eye Hoist Hook with Latch: Certified for Secure Lifting Operations

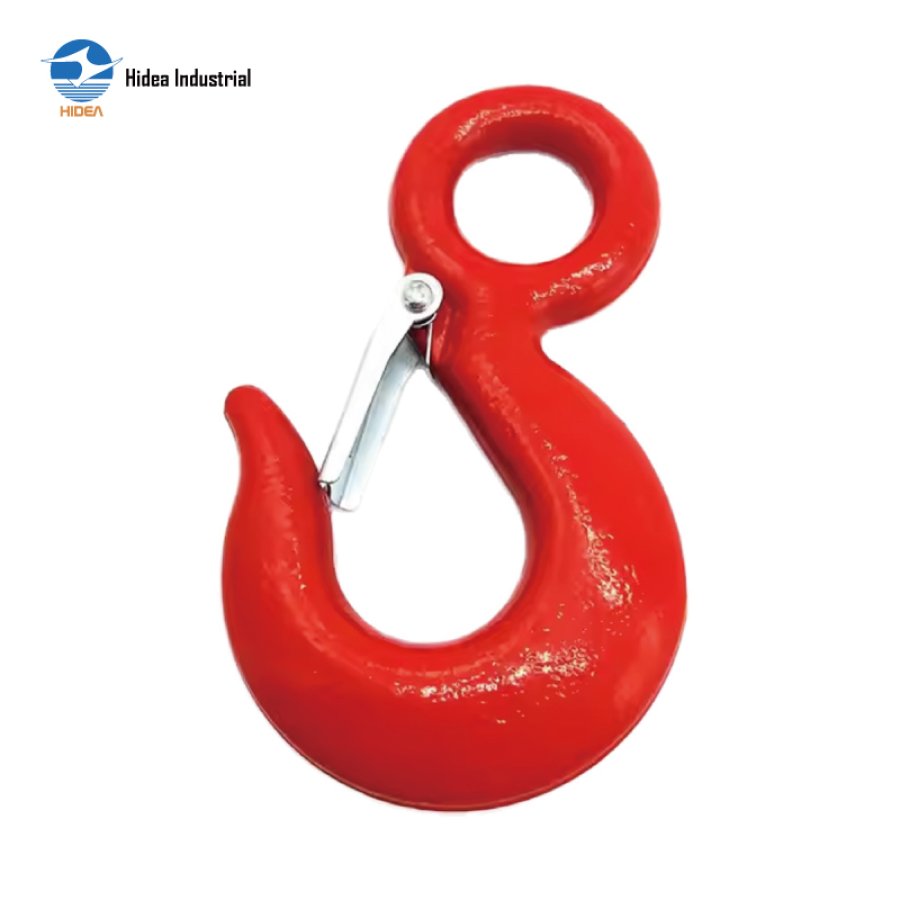

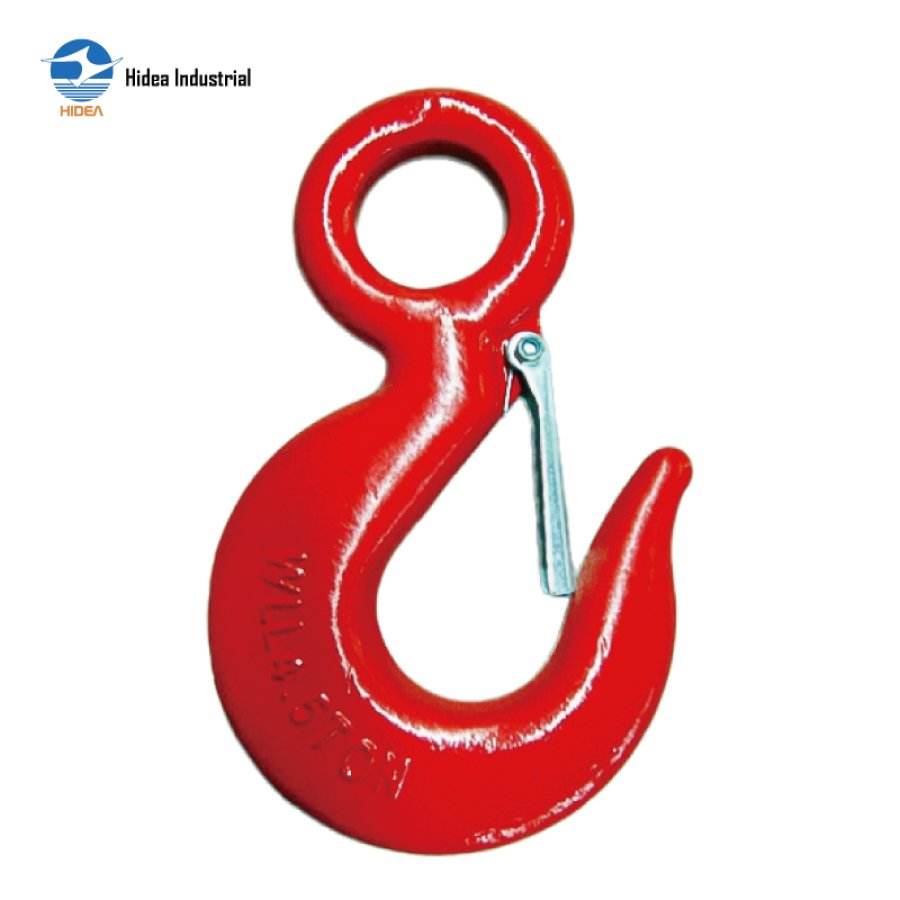

G43/70 US TYPE EYE HOIST HOOK WITH LATCH 320A/320C

Material: supper alloy steel/carbon steel rated G70/G43
Drop forged, quenched & tempered
Breakage test & magnaflux crack detection
Safety factor 5:1 & certificates available
Surface electro galvanized (EG) OR powder coated OR as requested

Inquire Now

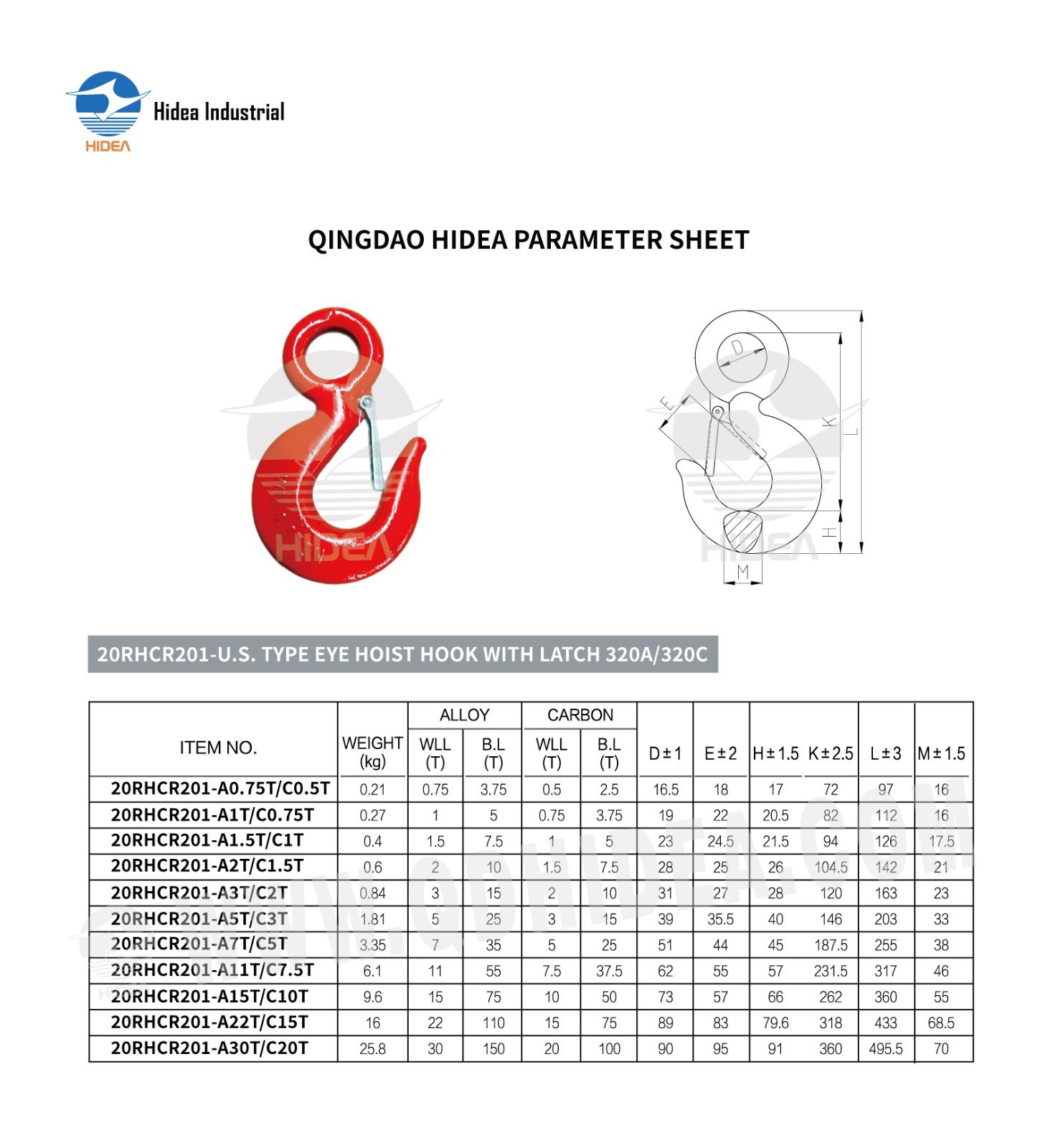

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR201-U.S.TYPE EYE HOIST HOOK WITH LATCH 320A/320C

ITEM NO.	WEIGHT (kg)	ALLOY		CARBON		D±1	E±2	H±1.5 K±2.5		L±3	M±1.5
ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	WLL (T)	B.L (T)	D±1	E±2	H±1.5 K±2.5		L±3	M±1.5
20RHCR201-A0.75T/C0.5T	0.21	0.75	3.75	0.5	2.5	16.5	18	17	72	97	16
20RHCR201-A1T/C0.75T	0.27	1	5	0.75	3.75	19	22	20.5	82	112	16
20RHCR201-A1.5T/C1T	0.4	1.5	7.5	1	5	23	24.5	21.5	94	126	17.5
20RHCR201-A2T/C1.5T	0.6	2	10	1.5	7.5	28	25	26	104.5	142	21
20RHCR201-A3T/C2T	0.84	3	15	2	10	31	27	28	120	163	23
20RHCR201-A5T/C3T	1.81	5	25	3	15	39	35.5	40	146	203	33
20RHCR201-A7T/C5T	3.35	7	35	5	25	51	44	45	187.5	255	38
20RHCR201-A11T/C7.5T	6.1	11	55	7.5	37.5	62	55	57	231.5	317	46
20RHCR201-A15T/C10T	9.6	15	75	10	50	73	57	66	262	360	55
20RHCR201-A22T/C15T	16	22	110	15	75	89	83	79.6	318	433	68.5
20RHCR201-A30T/C20T	25.8	30	150	20	100	90	95	91	360	495.5	70
