Pivoting Lifting Ring | G80 Lifting & Lashing Point

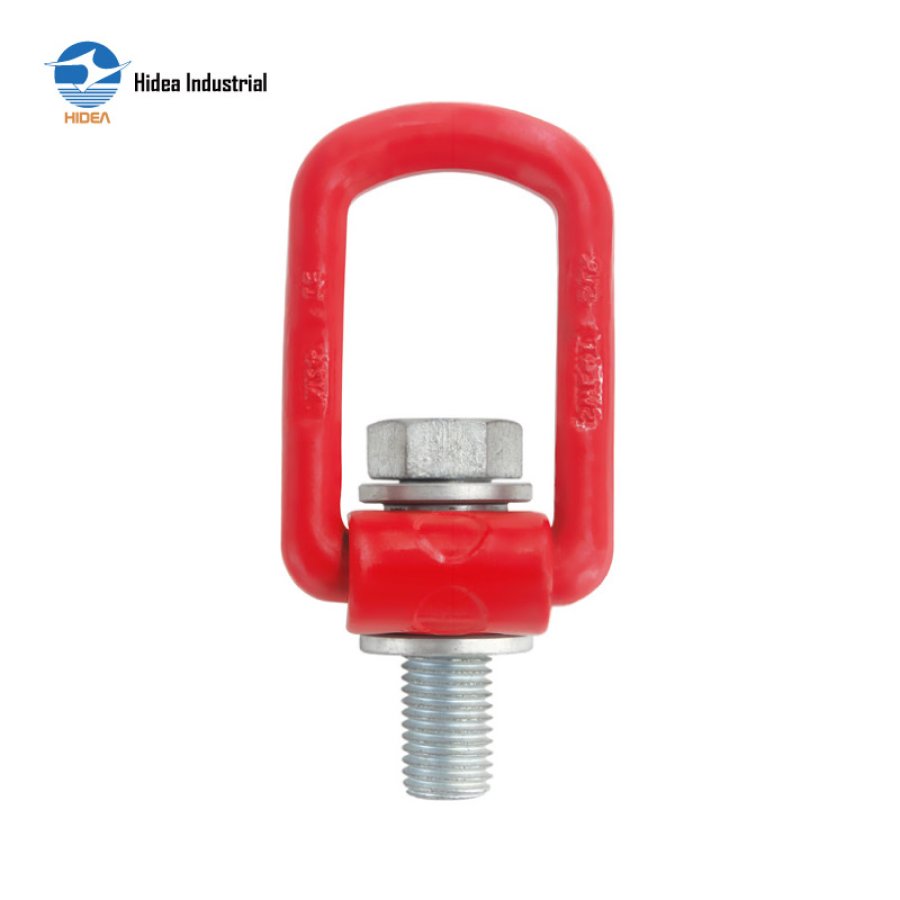

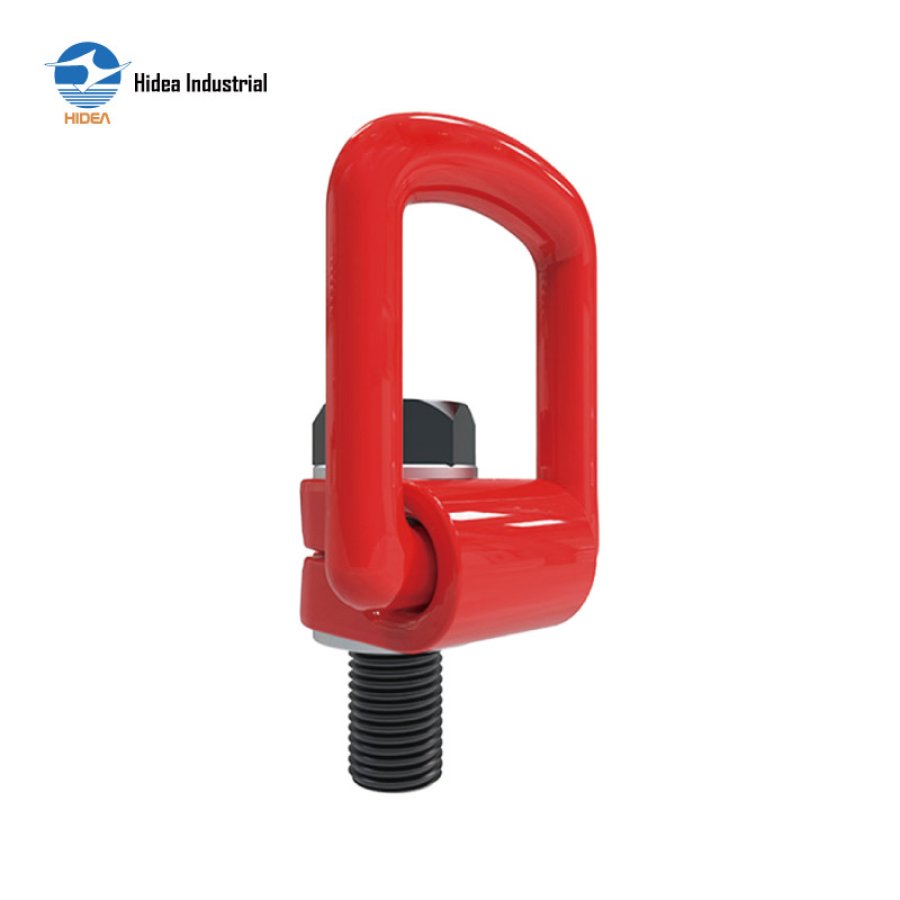

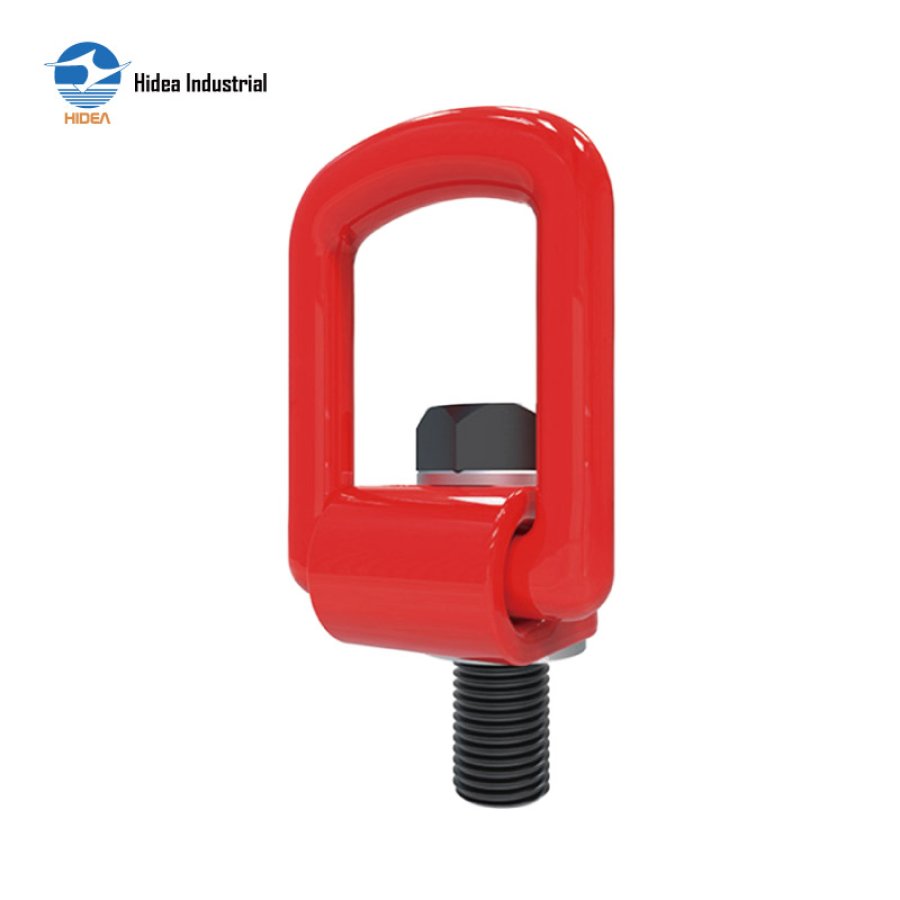

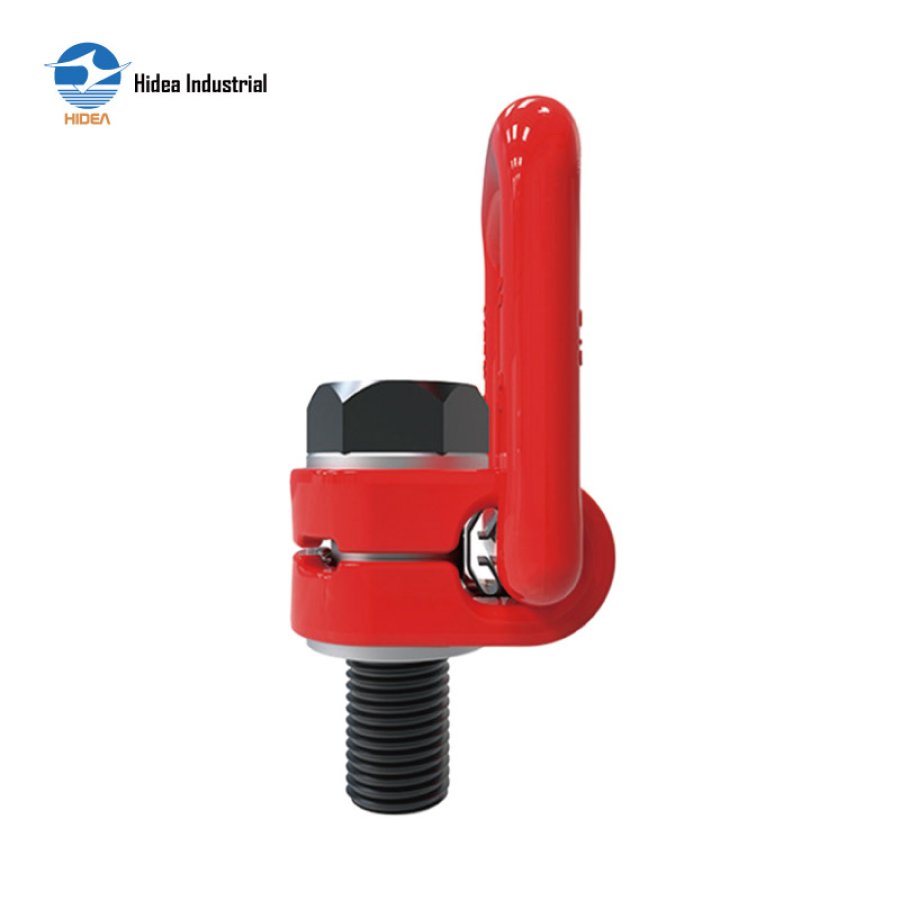

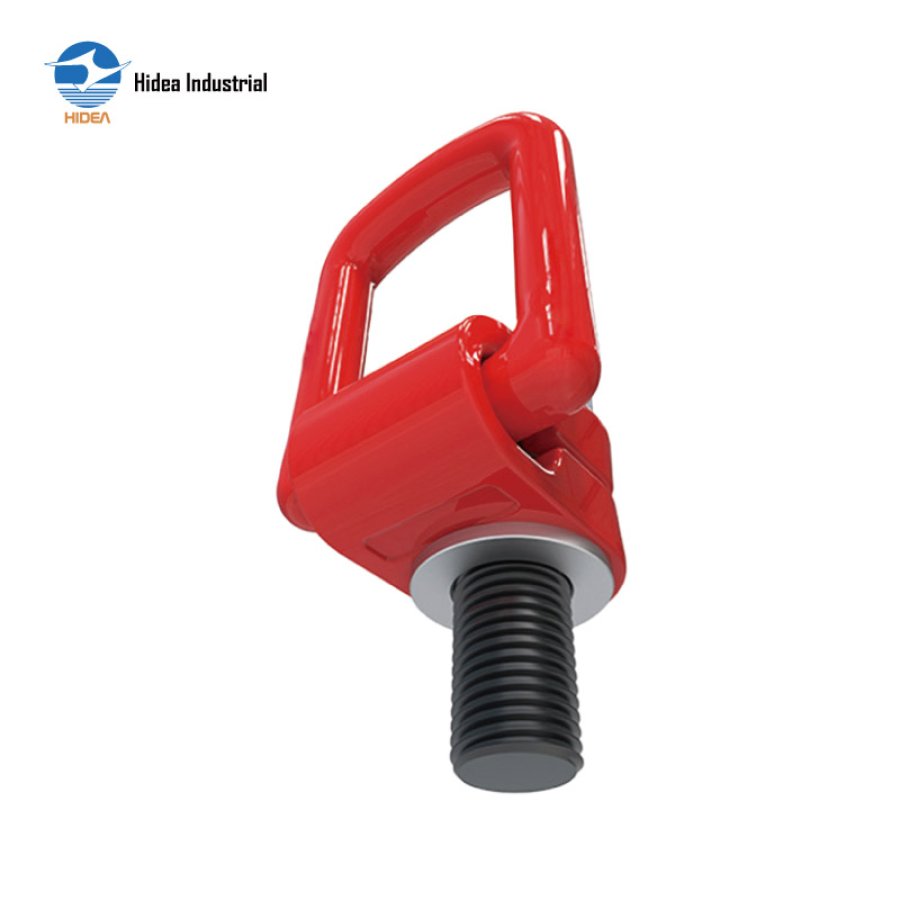

G80 PIVOTING LIFTING SCREW

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

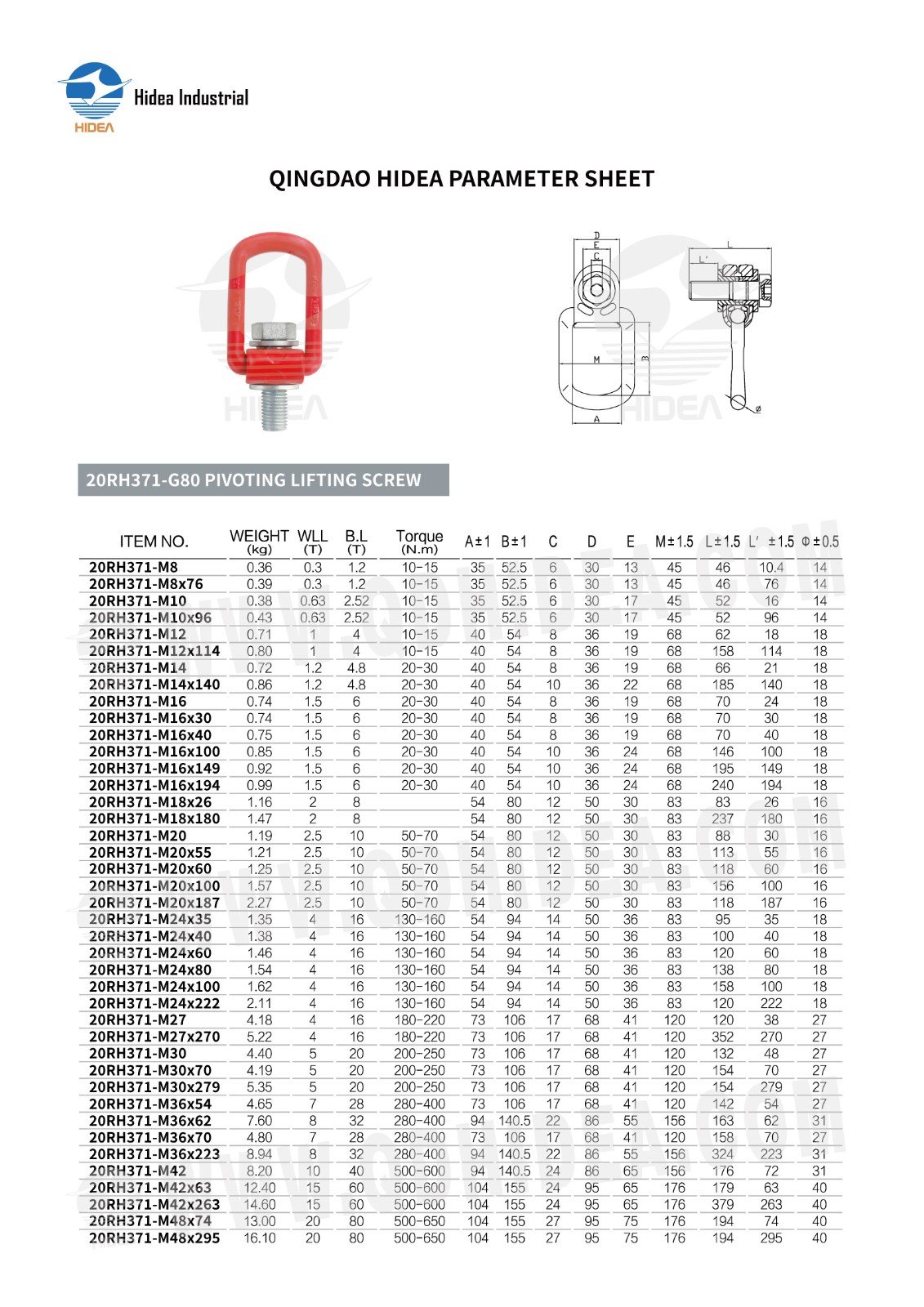

QINGDAO HIDEA PARAMETER SHEET FOR

20RH371-G80 PIVOTING LIFTING SCREW

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	Torque (N.m)	A±1	B±1	C	D	E	M±1.5	L±1.5	L'±1.5	Ф±0.5
20RH371-M8	0.36	0.3	1.2	10-15	35	52.5	6	30	13	45	46	10.4	14
20RH371-M8x76	0.39	0.3	1.2	10-15	35	52.5	6	30	13	45	46	76	14
20RH371-M10	0.38	0.63	2.52	10-15	35	52.5	6	30	17	45	52	16	14
20RH371-M10x96	0.43	0.63	2.52	10-15	35	52.5	6	30	17	45	52	96	14
20RH371-M12	0.71	1	4	10-15	40	54	8	36	19	68	62	18	18
20RH371-M12x114	0.80	1	4	10-15	40	54	8	36	19	68	158	114	18
20RH371-M14	0.72	1.2	4.8	20-30	40	54	8	36	19	68	66	21	18
20RH371-M14x140	0.86	1.2	4.8	20-30	40	54	10	36	22	68	185	140	18
20RH371-M16	0.74	1.5	6	20-30	40	54	8	36	19	68	70	24	18
20RH371-M16x30	0.74	1.5	6	20-30	40	54	8	36	19	68	70	30	18
20RH371-M16x40	0.75	1.5	6	20-30	40	54	8	36	19	68	70	40	18
20RH371-M16x100	0.85	1.5	6	20-30	40	54	10	36	24	68	146	100	18
20RH371-M16x149	0.92	1.5	6	20-30	40	54	10	36	24	68	195	149	18
20RH371-M16x194	0.99	1.5	6	20-30	40	54	10	36	24	68	240	194	18
20RH371-M18x26	1.16	2	8		54	80	12	50	30	83	83	26	16
20RH371-M18x180	1.47	2	8		54	80	12	50	30	83	237	180	16
20RH371-M20	1.19	2.5	10	50-70	54	80	12	50	30	83	88	30	16
20RH371-M20x55	1.21	2.5	10	50-70	54	80	12	50	30	83	113	55	16
20RH371-M20x60	1.25	2.5	10	50-70	54	80	12	50	30	83	118	60	16
20RH371-M20x100	1.57	2.5	10	50-70	54	80	12	50	30	83	156	100	16
20RH371-M20x187	2.27	2.5	10	50-70	54	80	12	50	30	83	118	187	16
20RH371-M24x35	1.35	4	16	130-160	54	94	14	50	36	83	95	35	18
20RH371-M24x40	1.38	4	16	130-160	54	94	14	50	36	83	100	40	18
20RH371-M24x60	1.46	4	16	130-160	54	94	14	50	36	83	120	60	18
20RH371-M24x80	1.54	4	16	130-160	54	94	14	50	36	83	138	80	18
20RH371-M24x100	1.62	4	16	130-160	54	94	14	50	36	83	158	100	18
20RH371-M24x222	2.11	4	16	130-160	54	94	14	50	36	83	120	222	18
20RH371-M27	4.18	4	16	180-220	73	106	17	68	41	120	120	38	27
20RH371-M27x270	5.22	4	16	180-220	73	106	17	68	41	120	352	270	27
20RH371-M30	4.40	5	20	200-250	73	106	17	68	41	120	132	48	27
20RH371-M30x70	4.19	5	20	200-250	73	106	17	68	41	120	154	70	27
20RH371-M30x279	5.35	5	20	200-250	73	106	17	68	41	120	154	279	27
20RH371-M36x54	4.65	7	28	280-400	73	106	17	68	41	120	142	54	27
20RH371-M36x62	7.60	8	32	280-400	94	140.5	22	86	55	156	163	62	31
20RH371-M36x70	4.80	7	28	280-400	73	106	17	68	41	120	158	70	27
20RH371-M36x223	8.94	8	32	280-400	94	140.5	22	86	55	156	324	223	31
20RH371-M42	8.20	10	40	500-600	94	140.5	24	86	65	156	176	72	31
20RH371-M42x63	12.40	15	60	500-600	104	155	24	95	65	176	179	63	40
20RH371-M42x263	14.60	15	60	500-600	104	155	24	95	65	176	379	263	40
20RH371-M48x74	13.00	20	80	500-650	104	155	27	95	75	176	194	74	40
20RH371-M48x295	16.10	20	80	500-650	104	155	27	95	75	176	194	295	40
