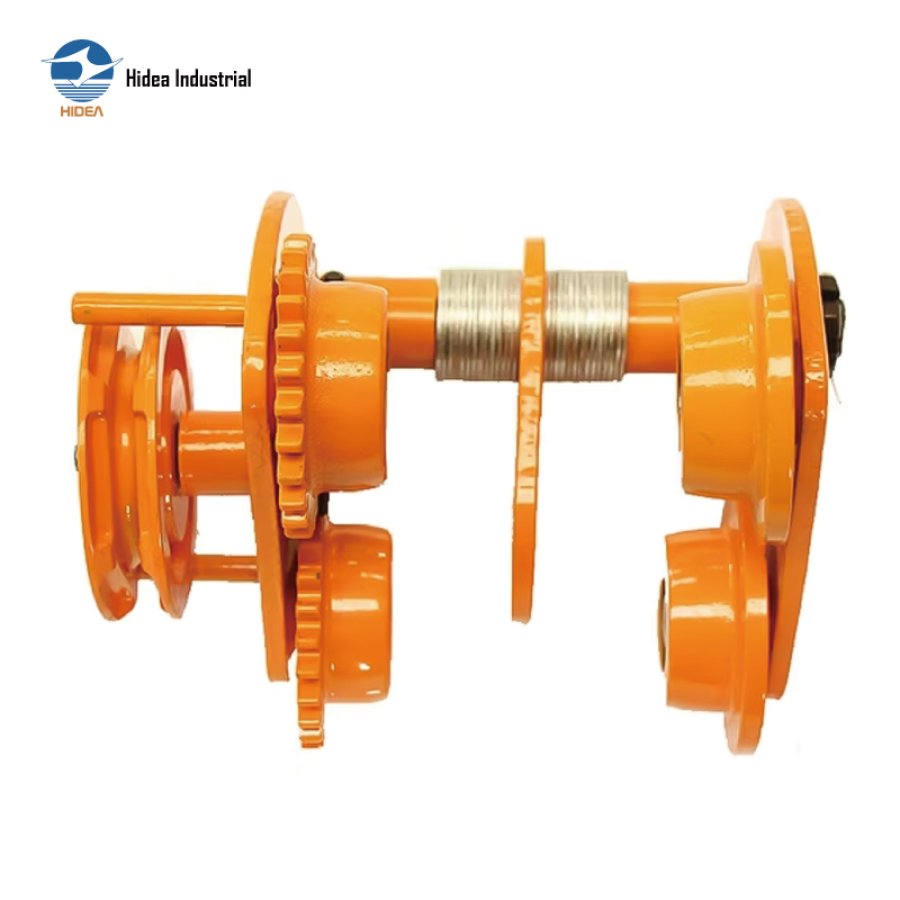

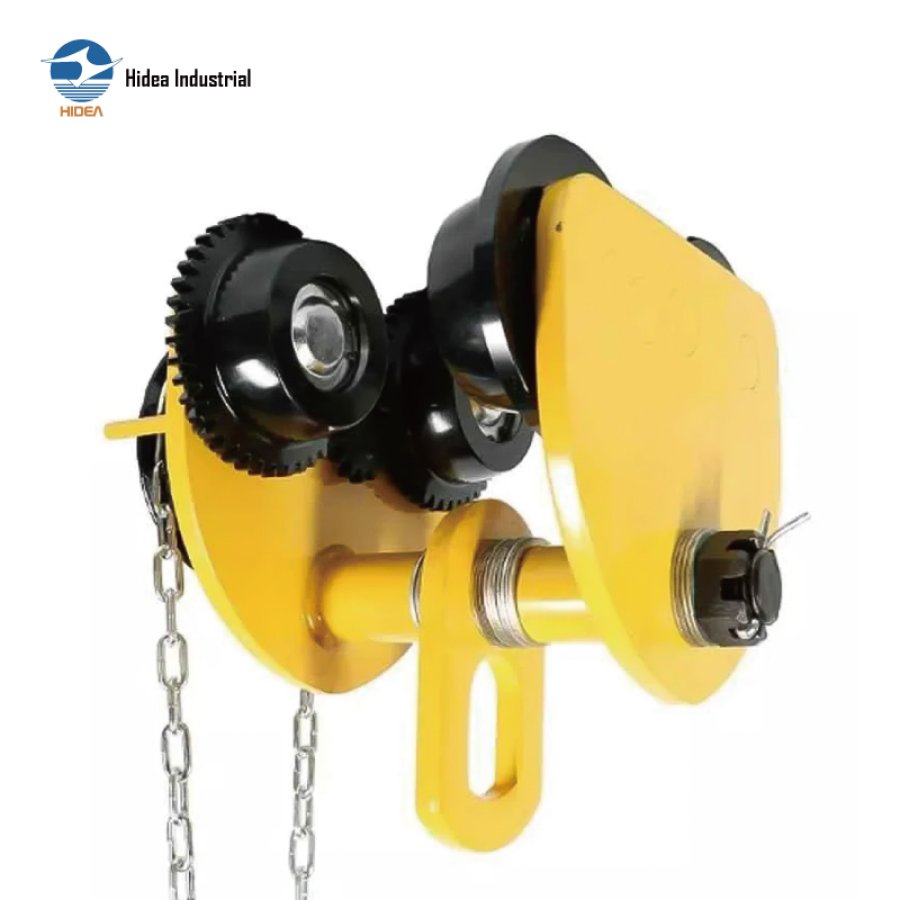

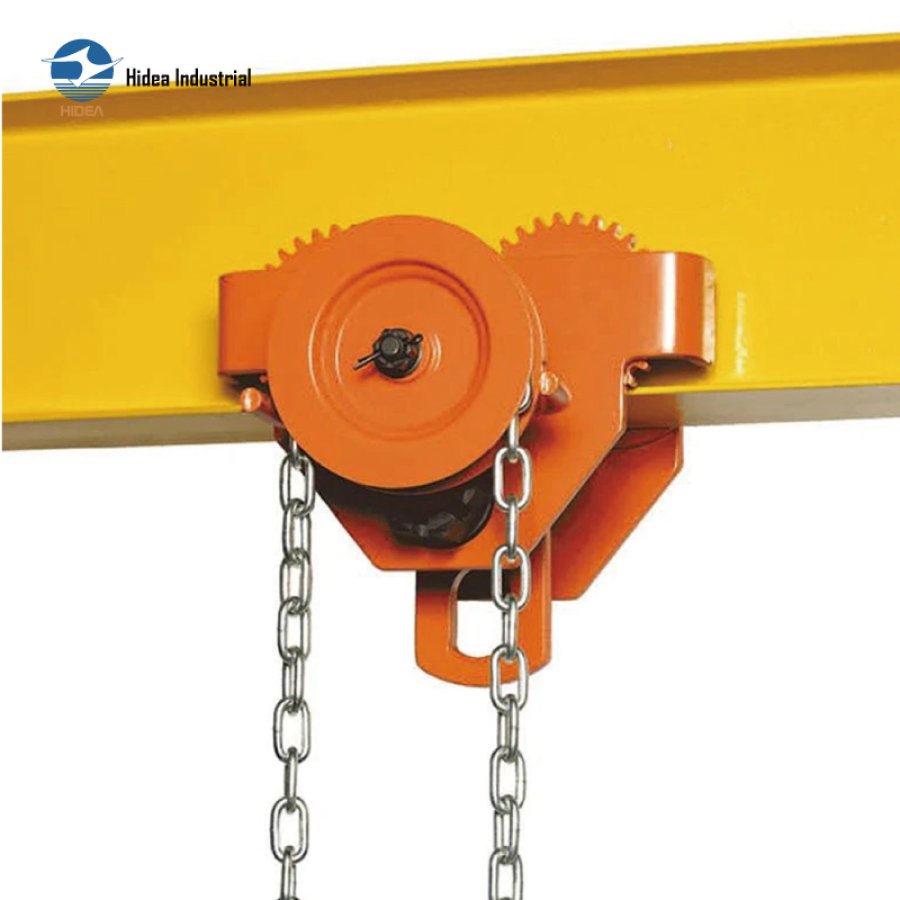

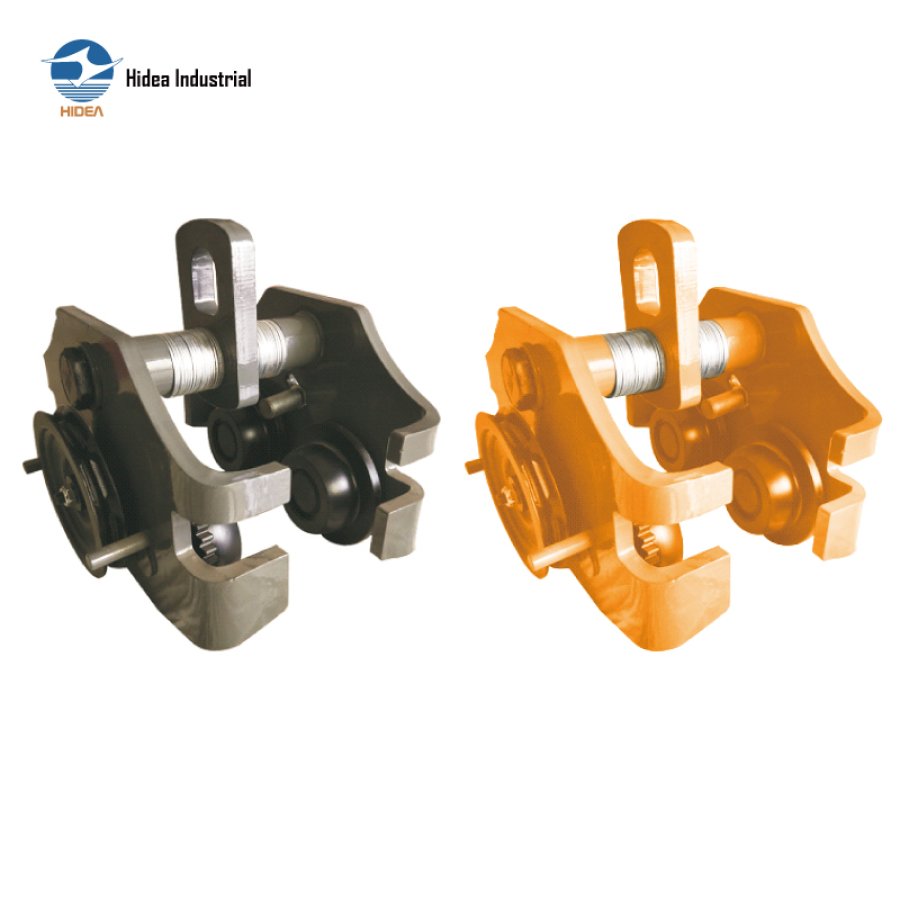

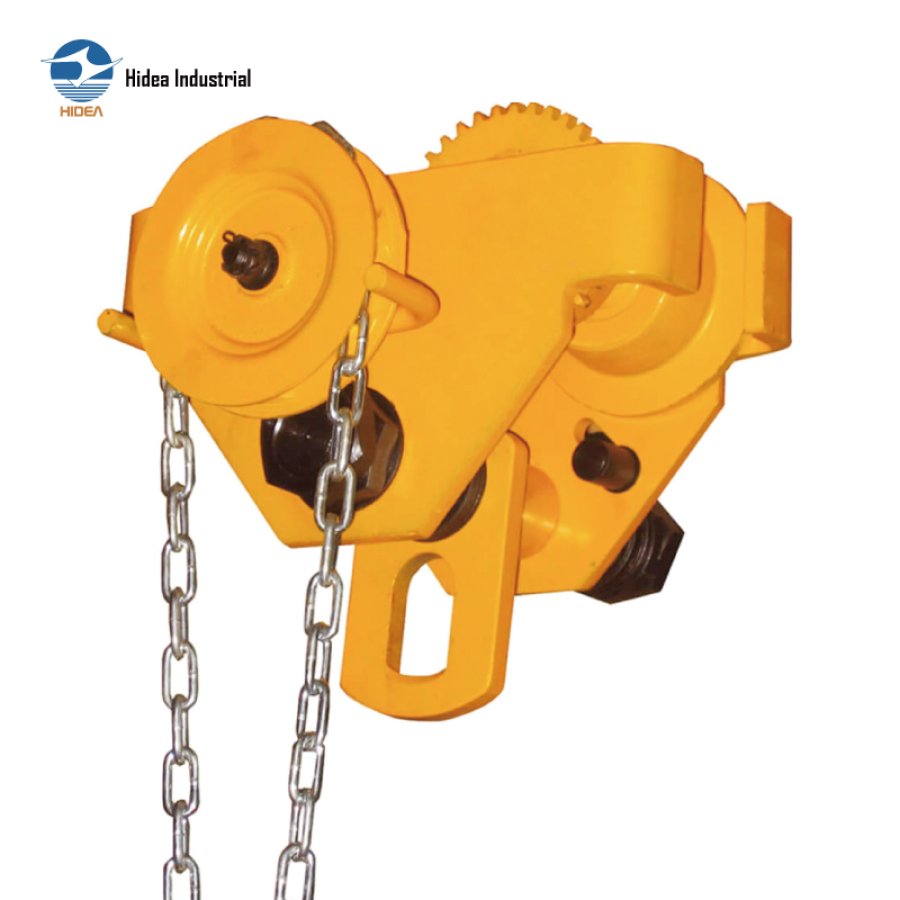

The GCL-C type I beam geared trolleys, featured baffle plates at both ends with 2 protective jaws, are designed to be used in industrial settings for moving heavy loads horizontally along an I-beam track with hoists equipment
The GCL-C I-beam geared trolleys come in various weight capacities from 0.5T to 5T or more and to fit different beam widths from 80mm to 180mm, each normally equipped with 3M hand chains or chain length as requested
The GCL-C I-beam geared trolleys are typically made of high quality steel materials and can be manually operated or powered by electric or pneumatic hoists, and used in a wide range of industries such as manufacturing, construction, and transportation
The GCL-C geared beam trolleys meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

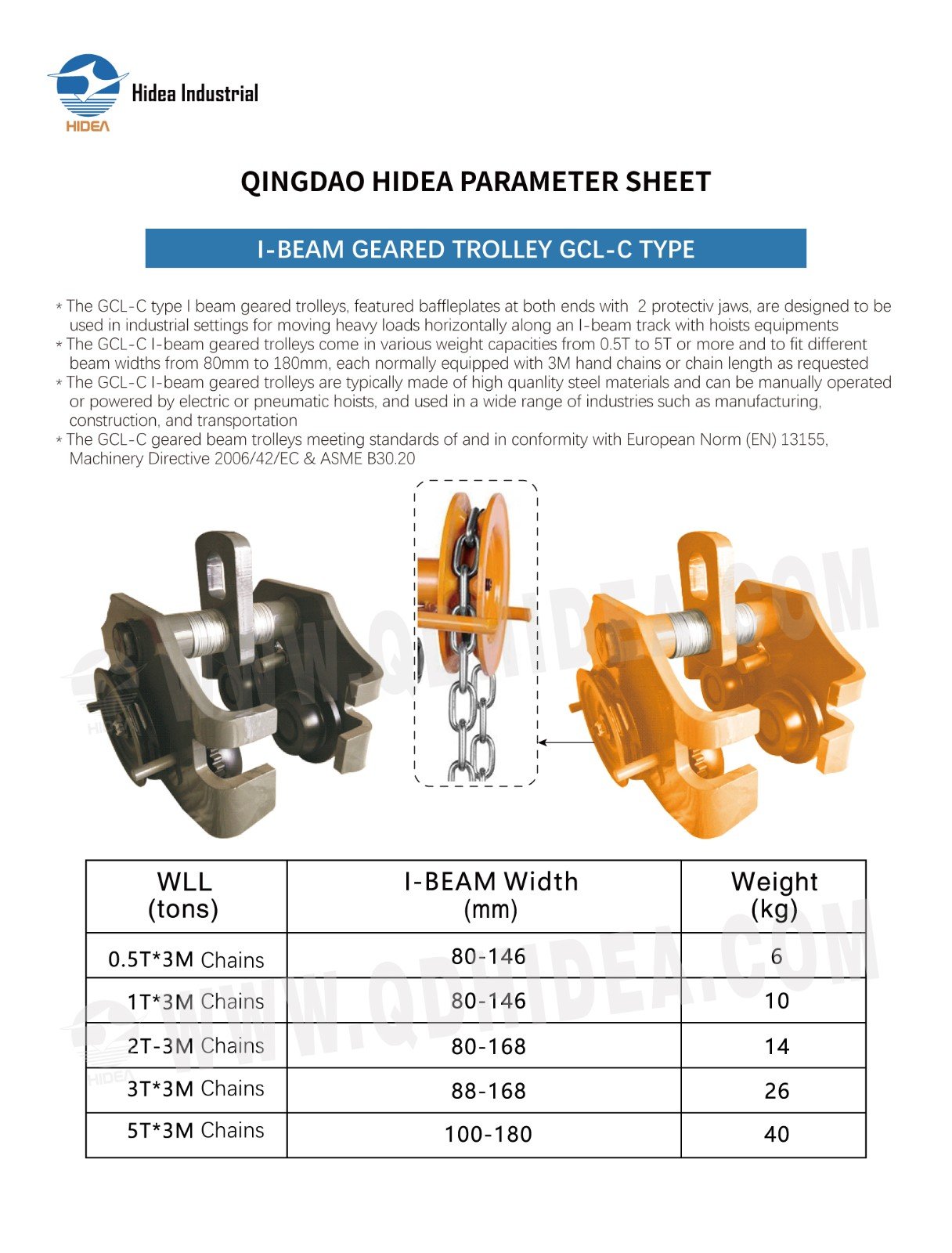

QINGDAO HIDEA PARAMETER SHEET FOR
I-BEAM GEARED TROLLEY GCL-C TYPE
| WLL (tons) | I-BEAM Width (mm) | Weight (kg) | |||
| 0.5T*3M Chains | 80-146 | 6 | |||
| 1T*3M Chains | 80-146 | 10 | |||
| 2T-3M Chains | 80-168 | 14 | |||
| 3T*3M Chains | 88-168 | 26 | |||
| 5T*3M Chains | 100-180 | 40 | |||
