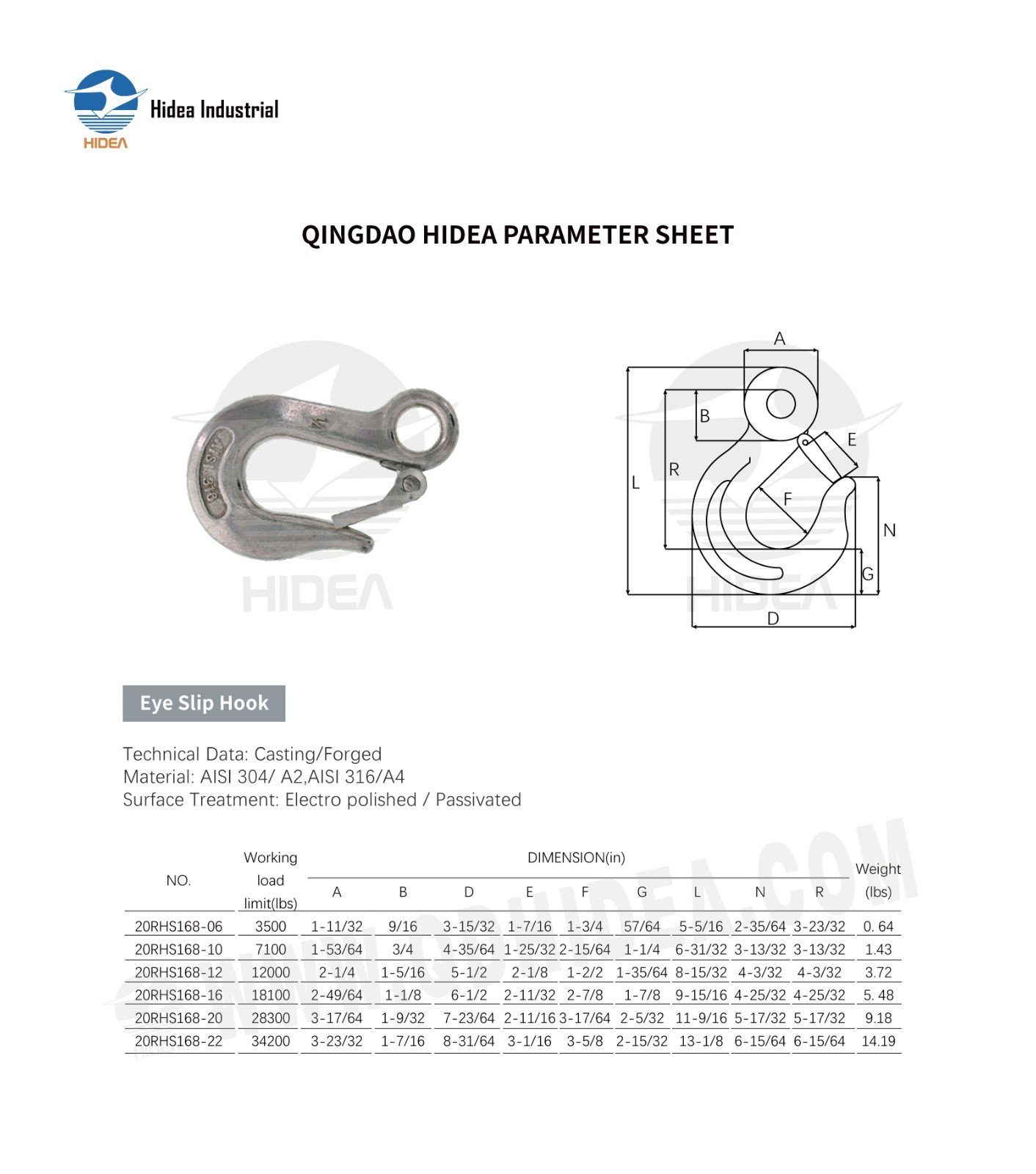

QINGDAO HIDEA PARAMETER SHEET FOR

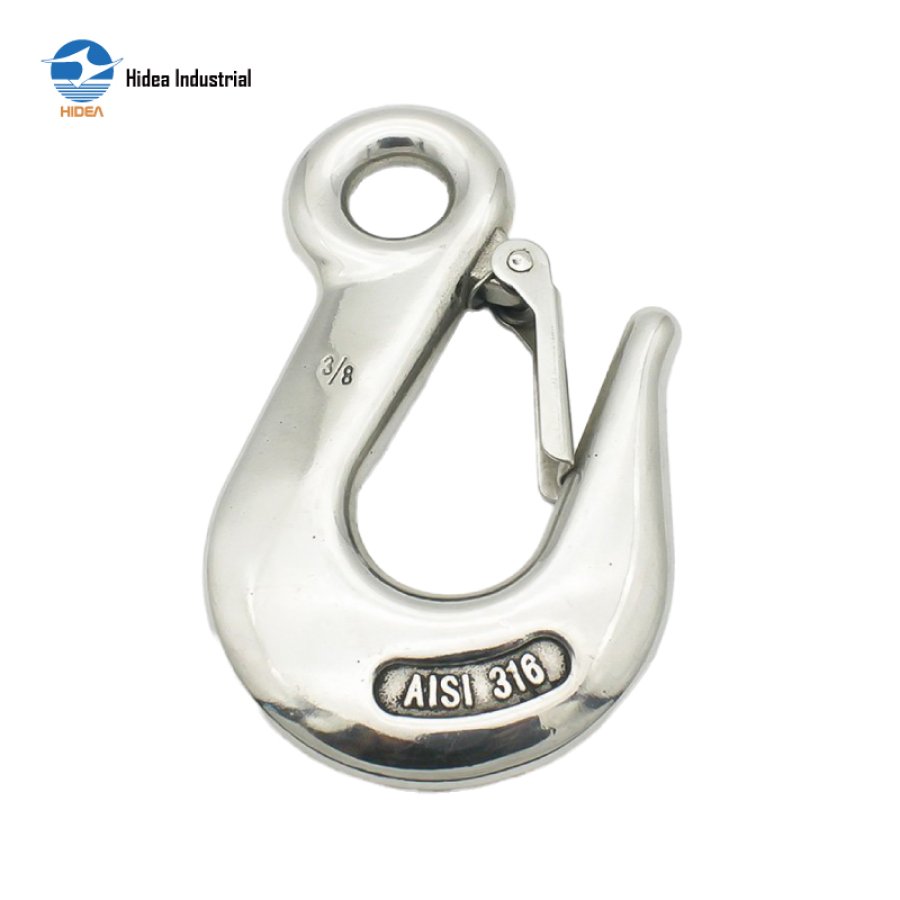

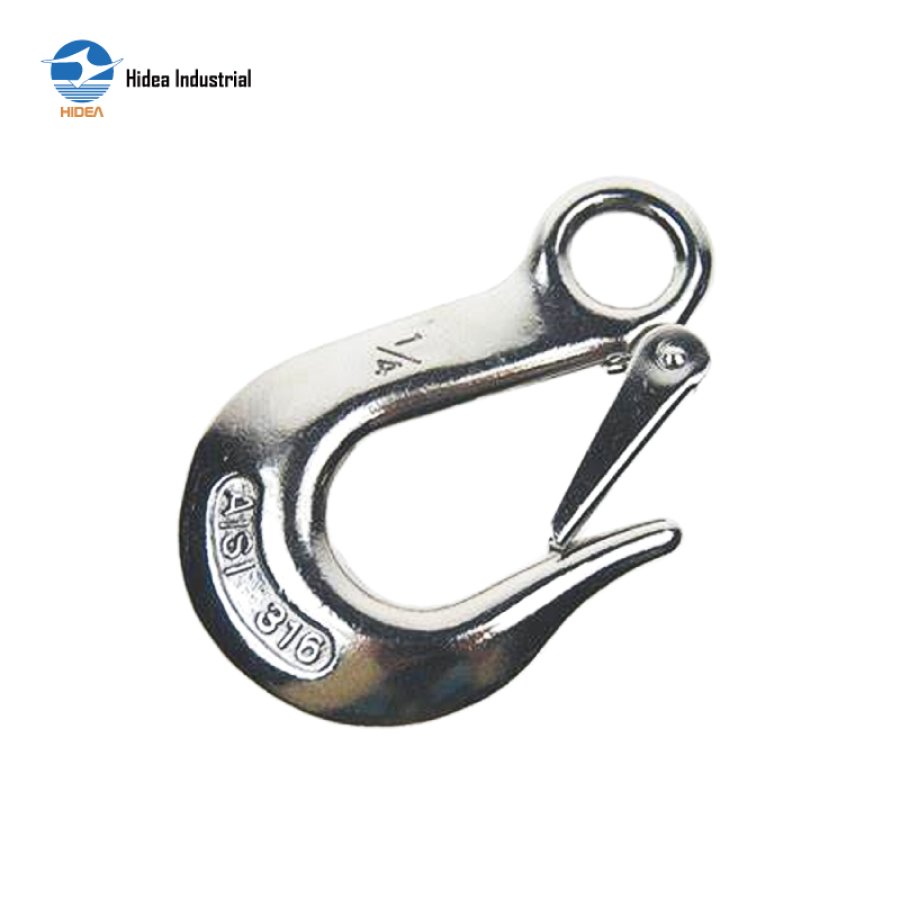

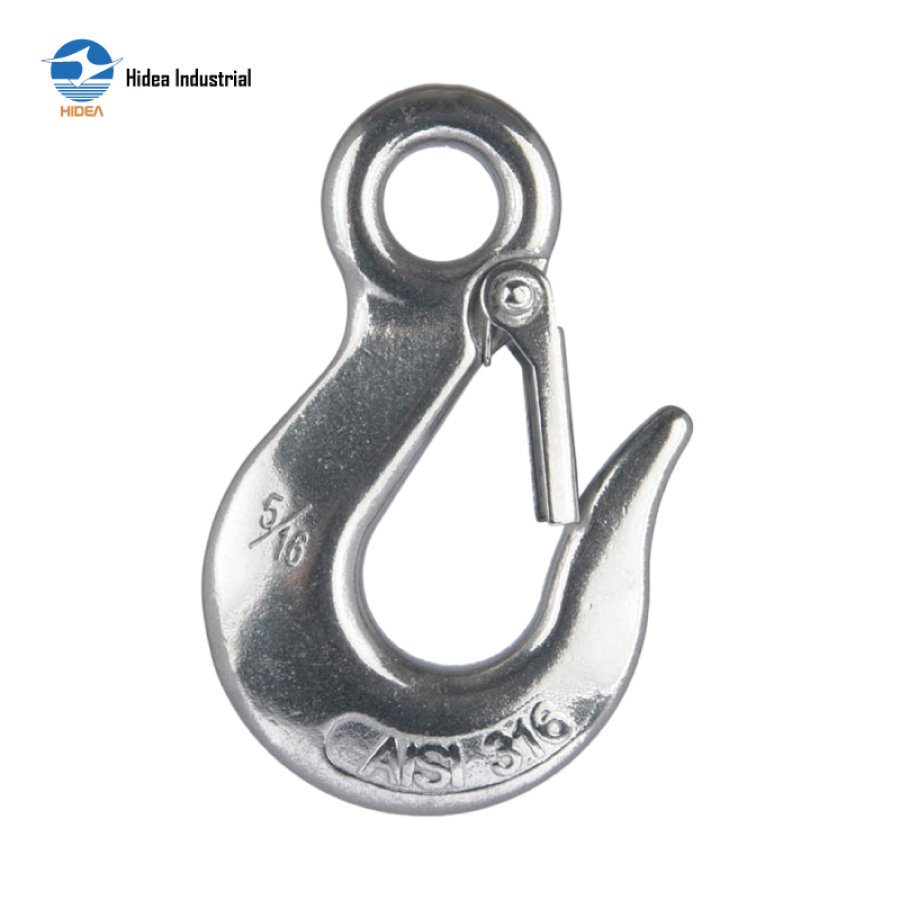

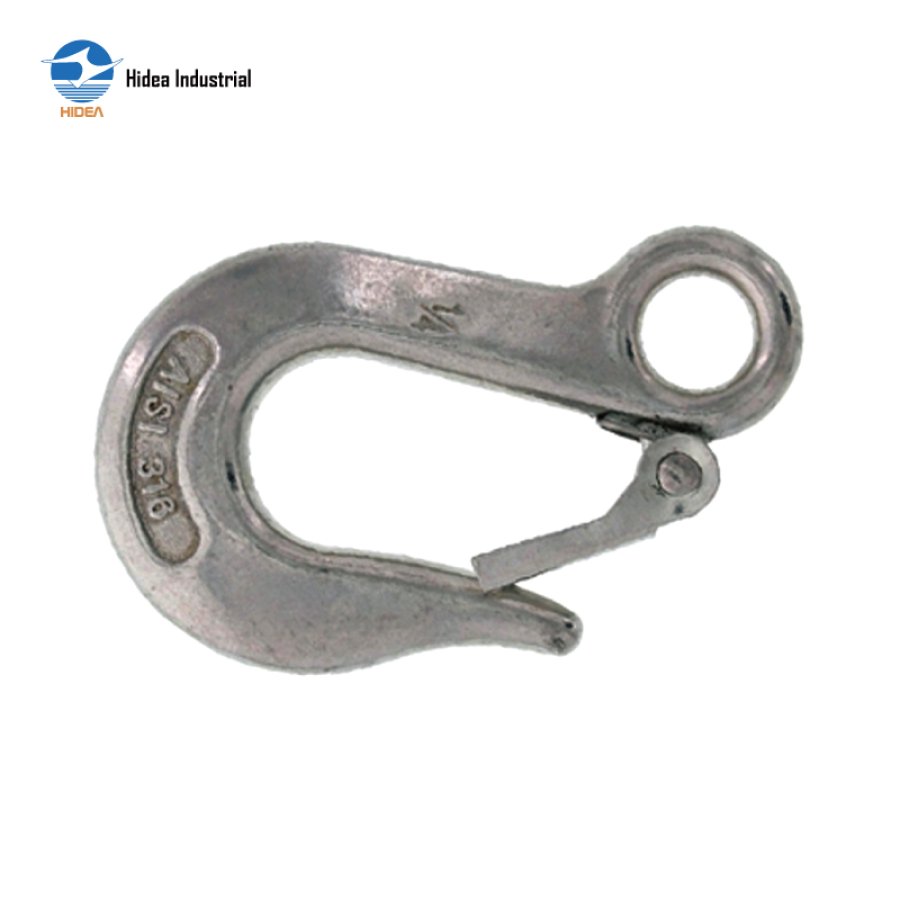

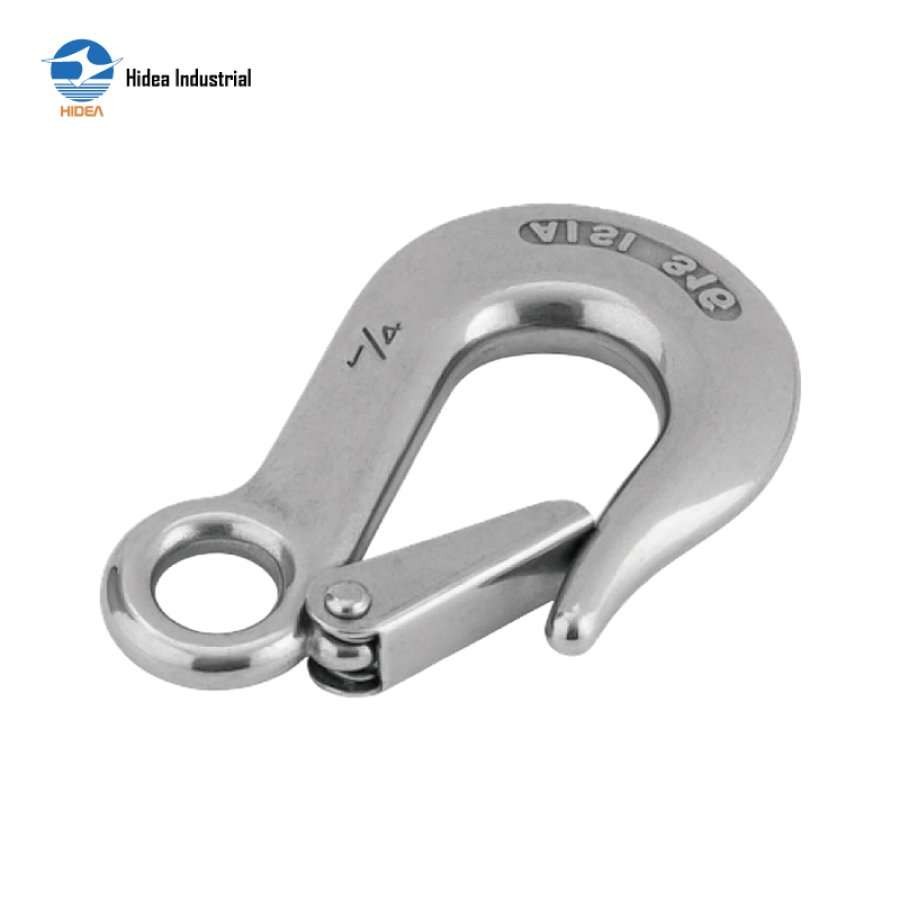

Eye Slip Hook
| NO. | Working load limit(Ibs) | DIMENSION(in) | Weight (lbs) | |||||||||
| A | B | D | E F | G | L | N | R | |||||
| 20RHS168-06 | 3500 | 1-11/32 | 9/16 | 3-15/32 | 1-7/161-3/4 | 57/64 | 5-5/16 | 2-35/64 | 3-23/32 | 0.64 | ||
| 20RHS168-10 | 7100 | 1-53/64 | 3/4 | 4-35/64 | 1-25/322-15/64 | 1-1/4 | 6-31/32 | 3-13/32 | 3-13/32 | 1.43 | ||
| 20RHS168-12 | 12000 | 2-1/4 | 1-5/16 | 5-1/2 | 2-1/8 1-2/2 | 1-35/64 | 8-15/32 | 4-3/32 | 4-3/32 | 3.72 | ||
| 20RHS168-16 | 18100 | 2-49/64 | 1-1/8 | 6-1/2 | 2-11/322-7/8 | 1-7/8 | 9-15/16 | 4-25/32 | 4-25/32 | 5.48 | ||
| 20RHS168-20 | 28300 | 3-17/64 | 1-9/32 | 7-23/64 | 2-11/163-17/64 | 2-5/32 | 11-9/16 | 5-17/32 | 5-17/32 | 9.18 | ||
| 20RHS168-22 | 34200 | 3-23/32 | 1-7/16 | 8-31/64 | 3-1/163-5/8 | 2-15/32 | 13-1/8 | 6-15/64 | 6-15/64 | 14.19 | ||
