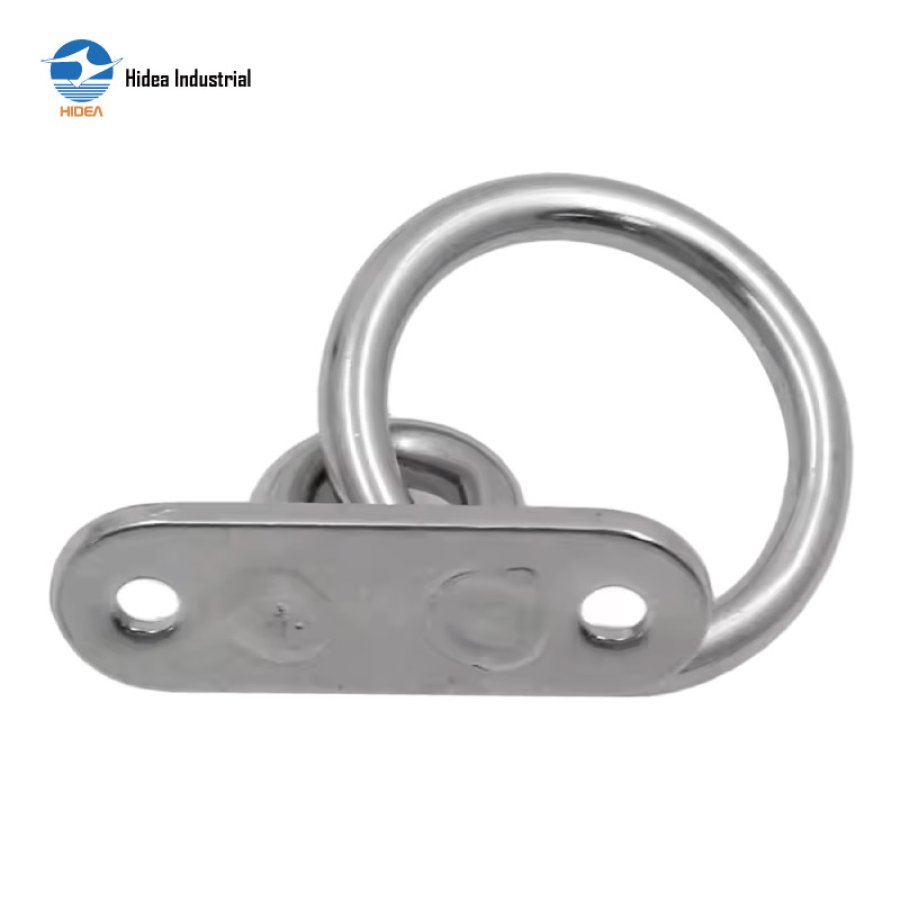

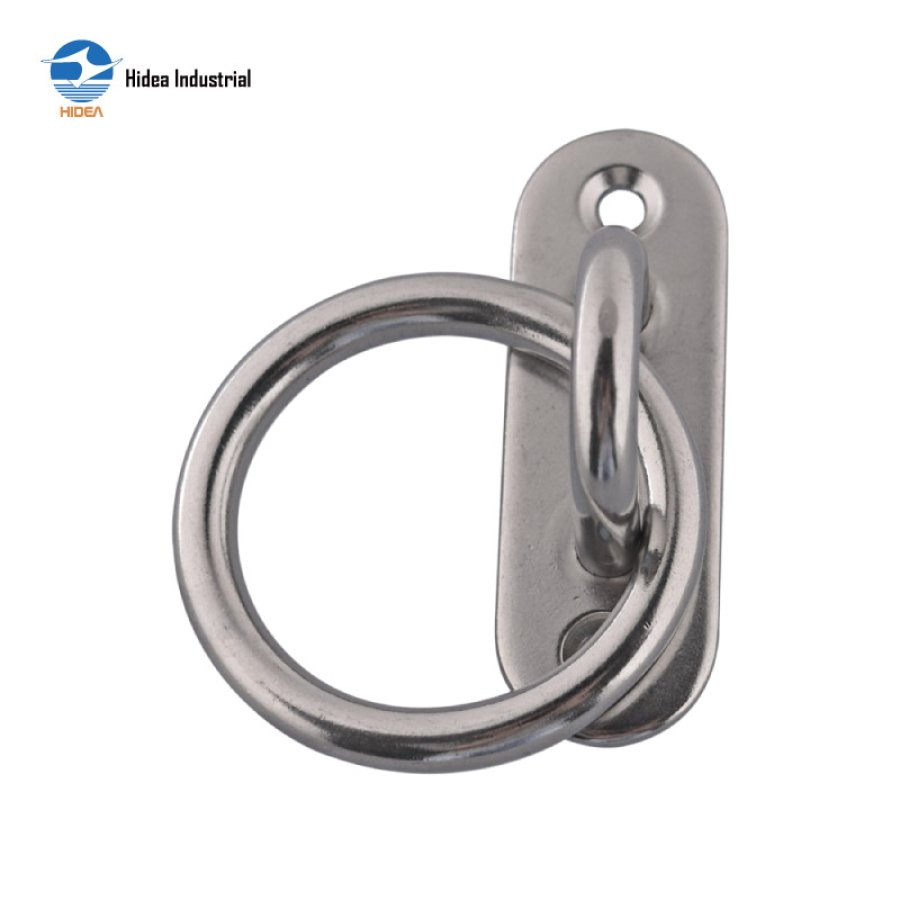

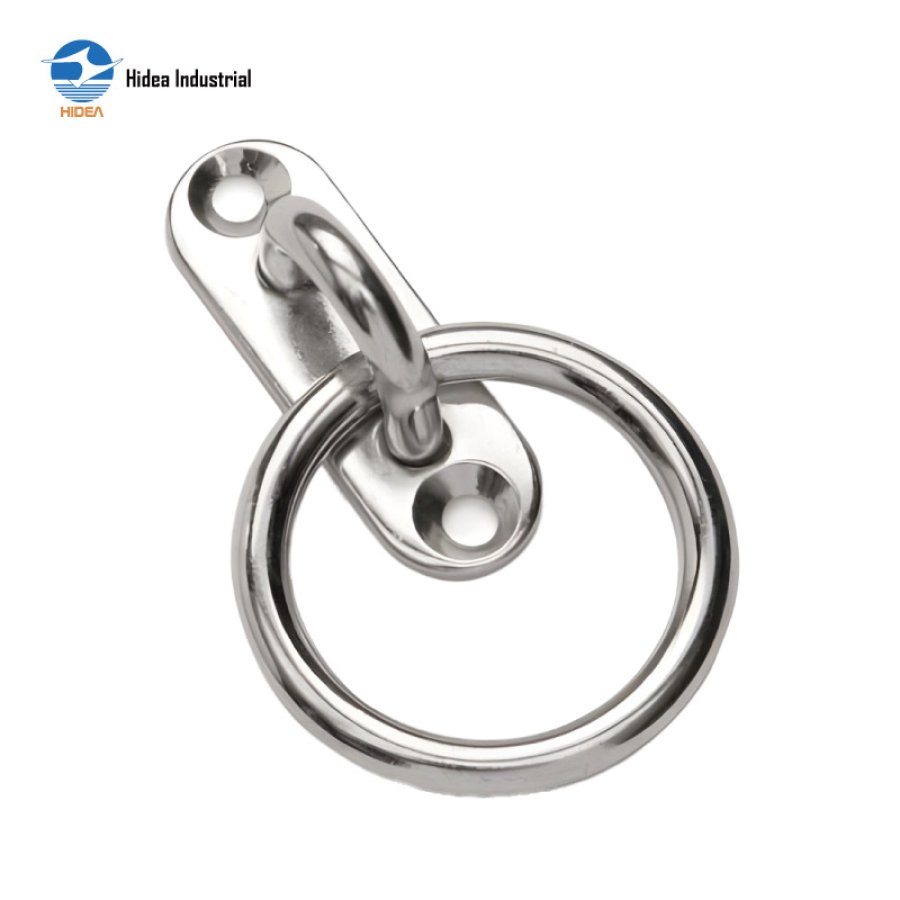

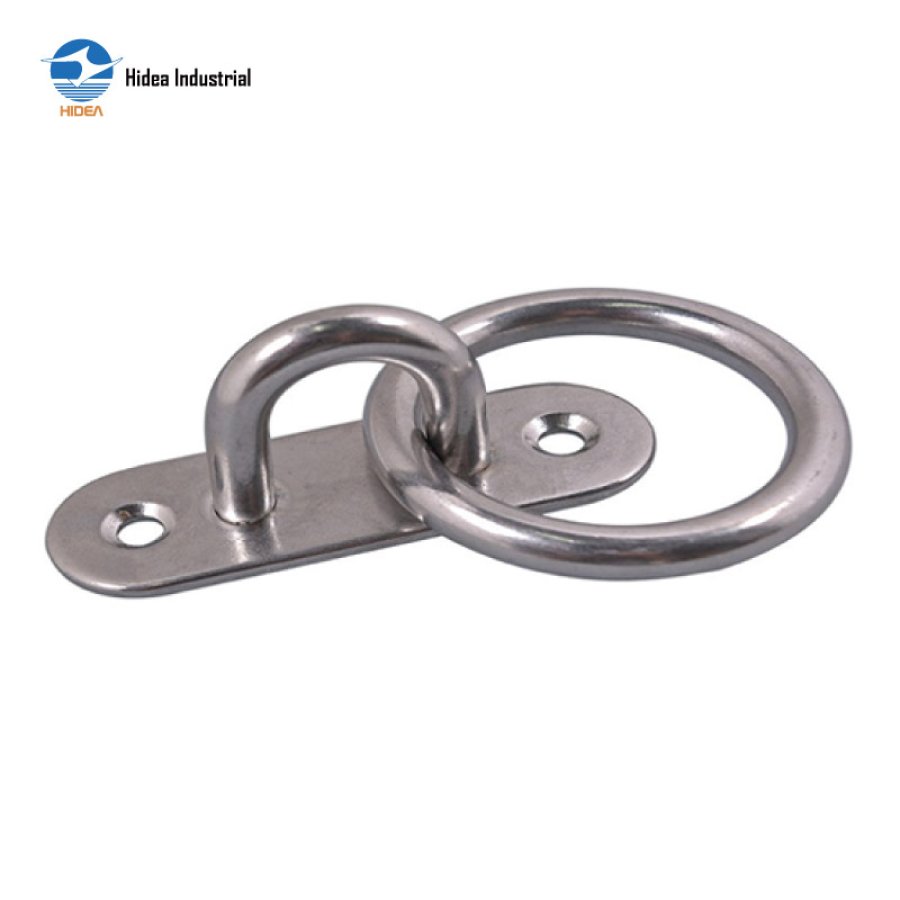

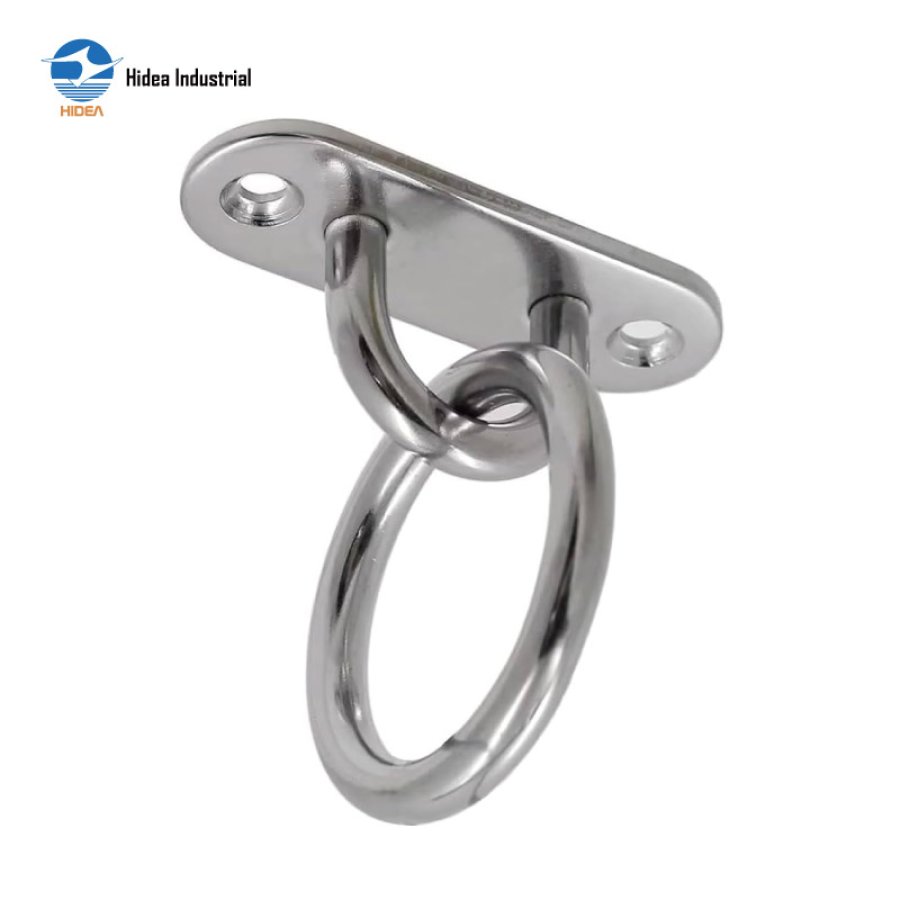

Durable HIDEA Stainless Steel Oval Eye Plate with Ring – Polished, Burr-Free Surface for Versatile Applications

OVAL EYE PLATE WITH RING

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

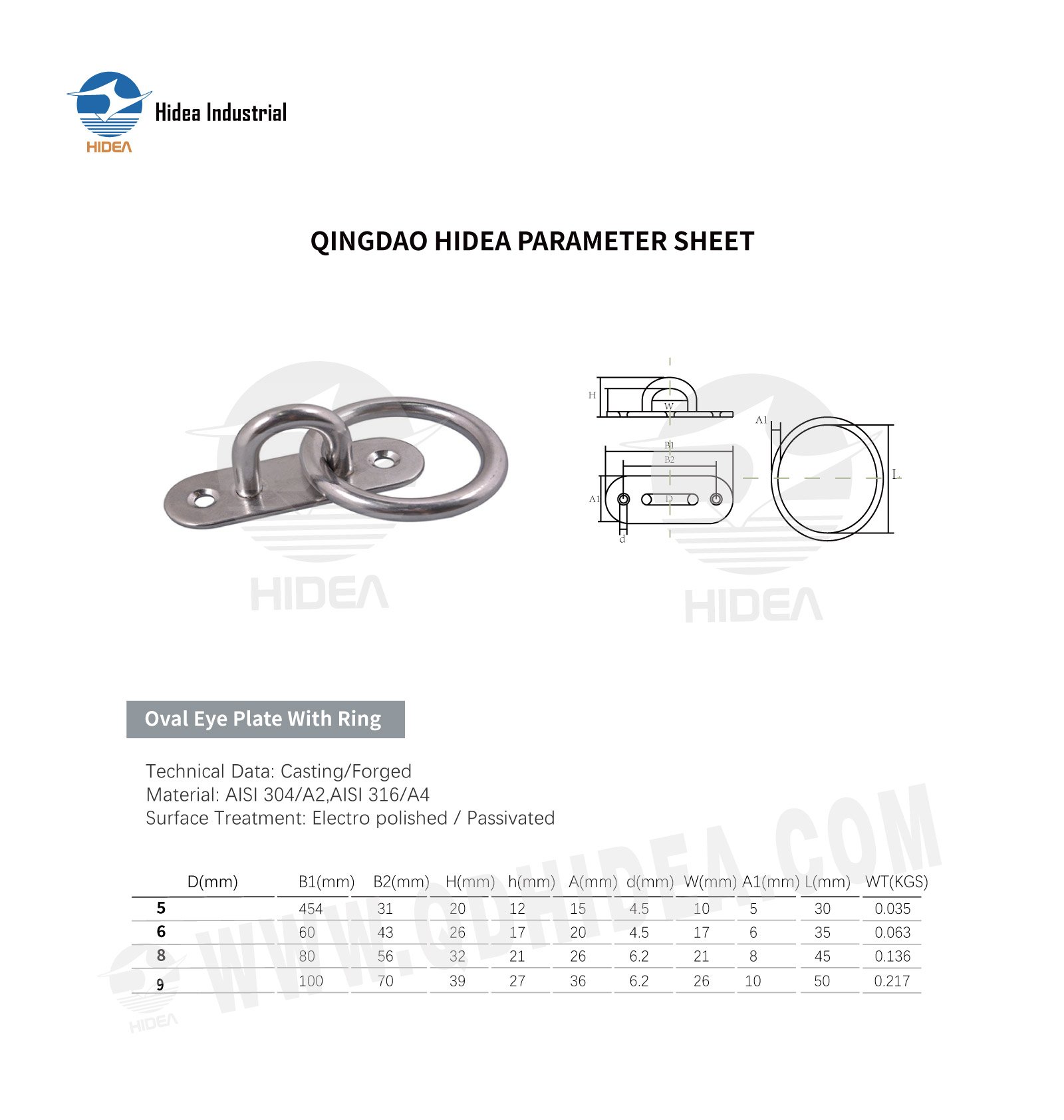

QINGDAO HIDEA PARAMETER SHEET FOR

Oval Eye Plate With Ring

D(mm)	B1(mm)	B2(mm)	H(mm)	h(mm)	A(mm)	d(mm)	W(mm)	A1(mm)	L(mm)	WT(KGS)
5	454	31	20	12	15	4.5	10	5	30	0.035
6	60	43	26	17	20	4.5	17	6	35	0.063
8	80	56	32	21	26	6.2	21	8	45	0.136
9	100	70	39	27	36	6.2	26	10	50	0.217
