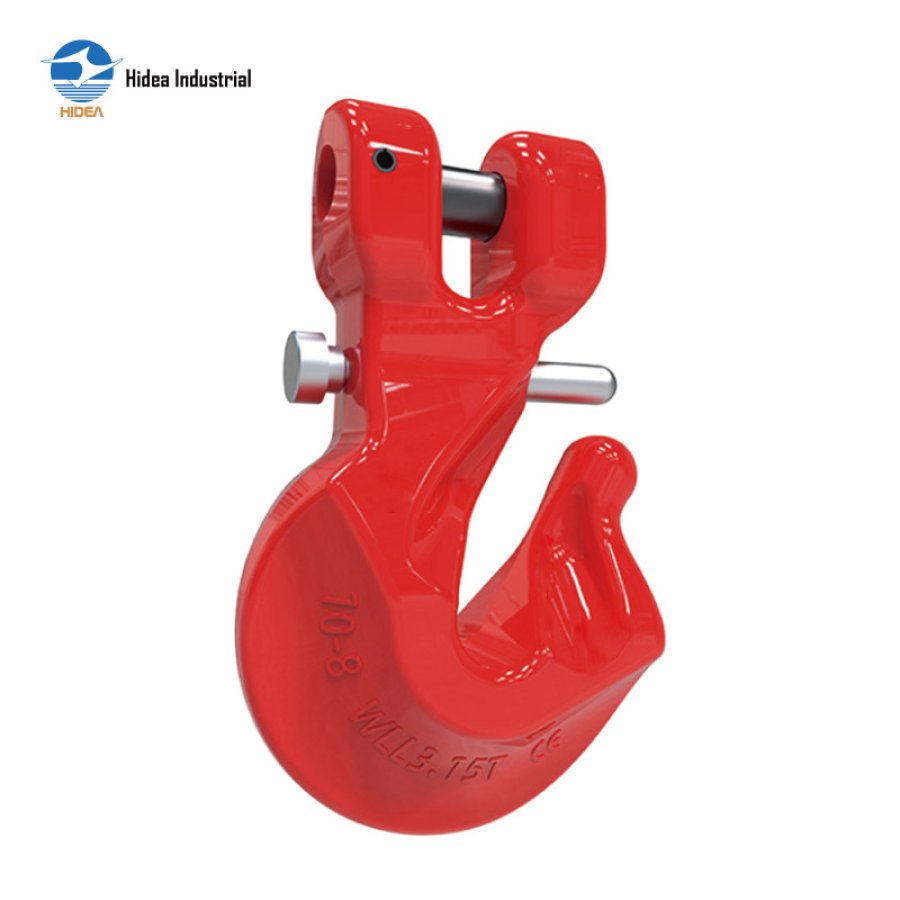

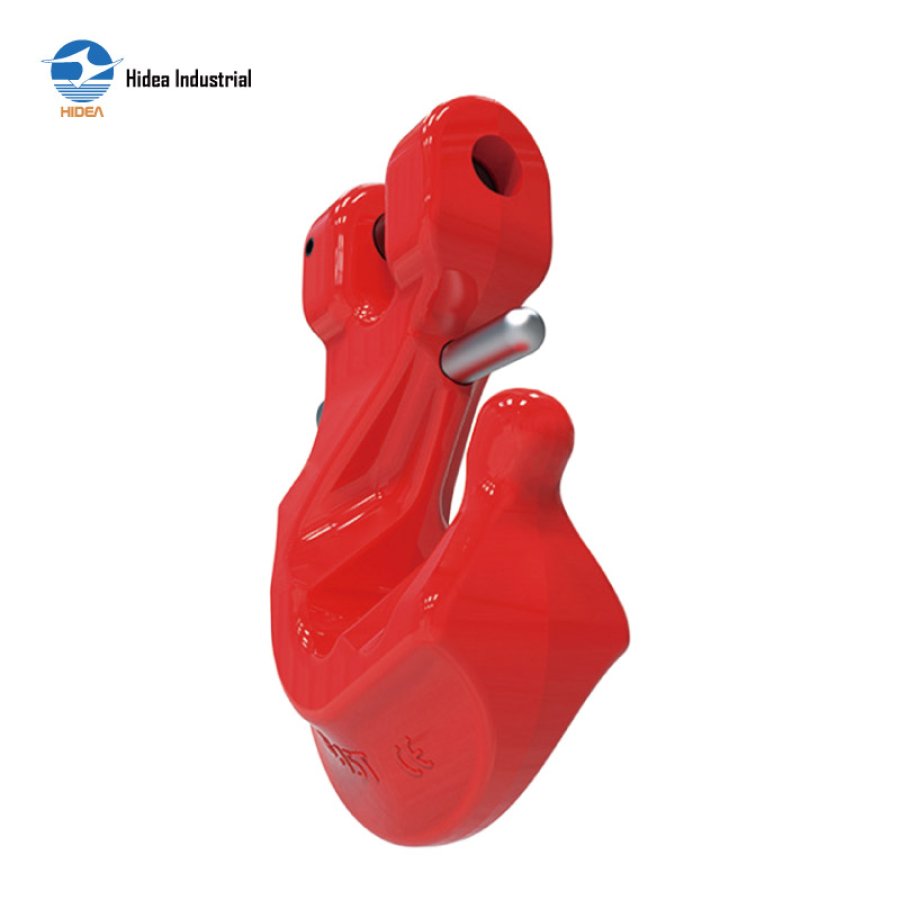

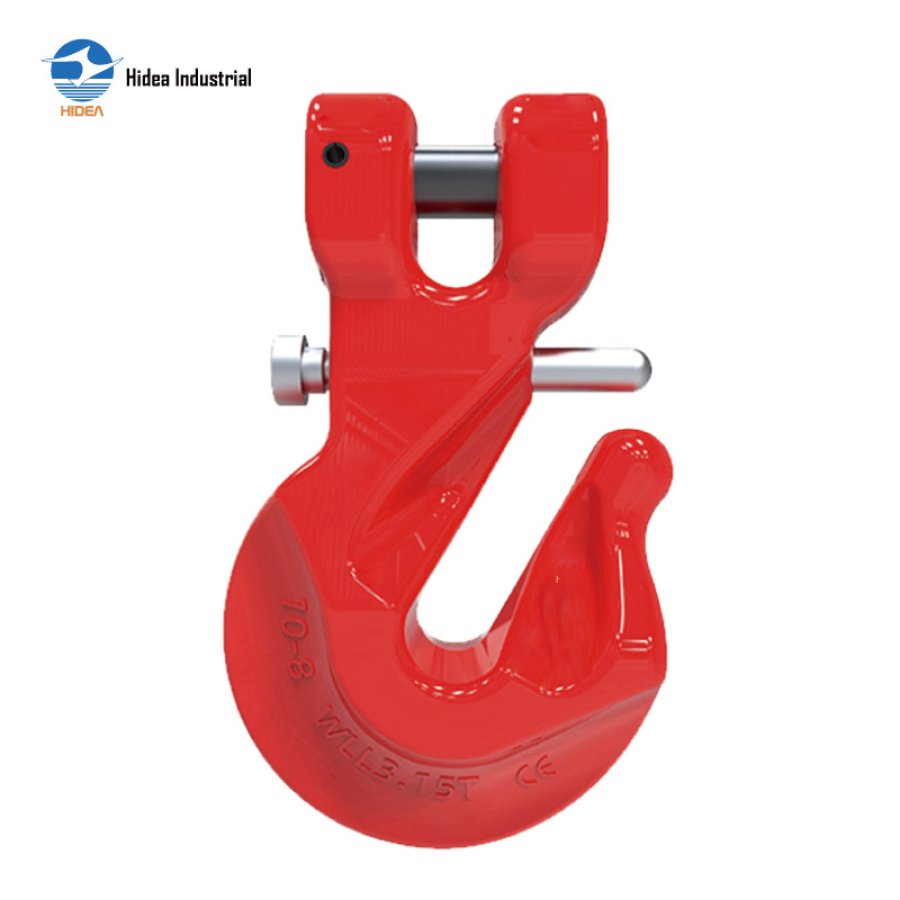

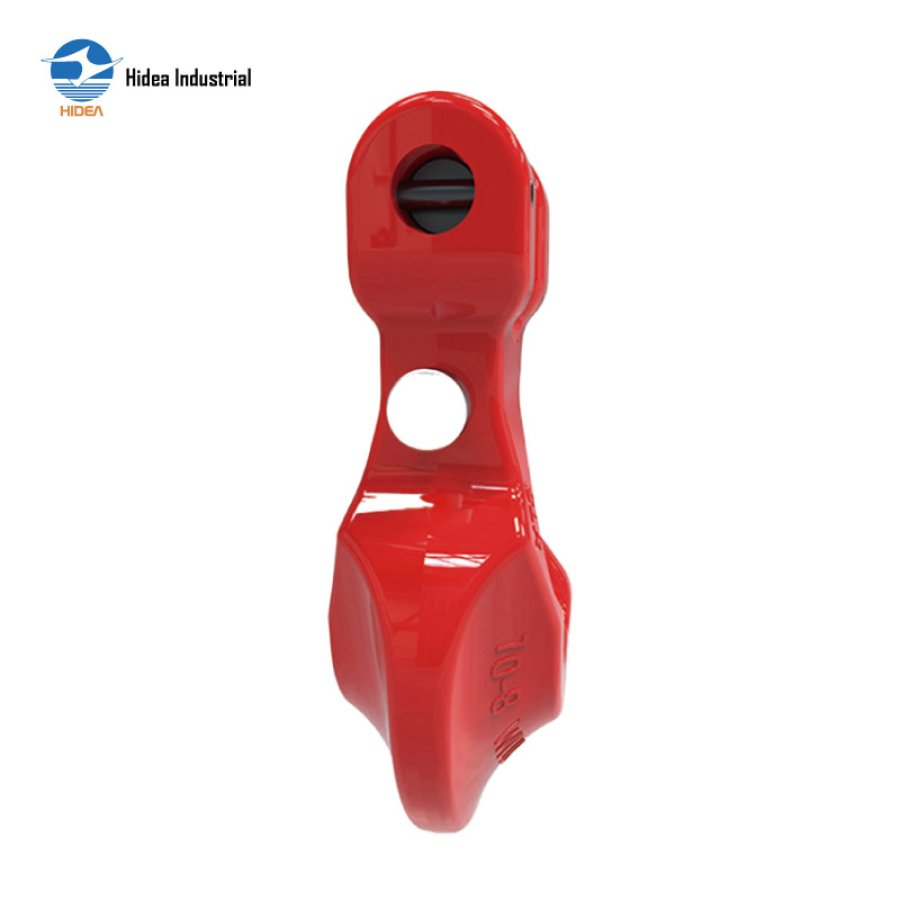

Powerful and Robust Hidea G80 Crook Grab Hook with Safety Pin

G80 SPECIAL TYPE CROOK HOOK WITH SAFETY PIN

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

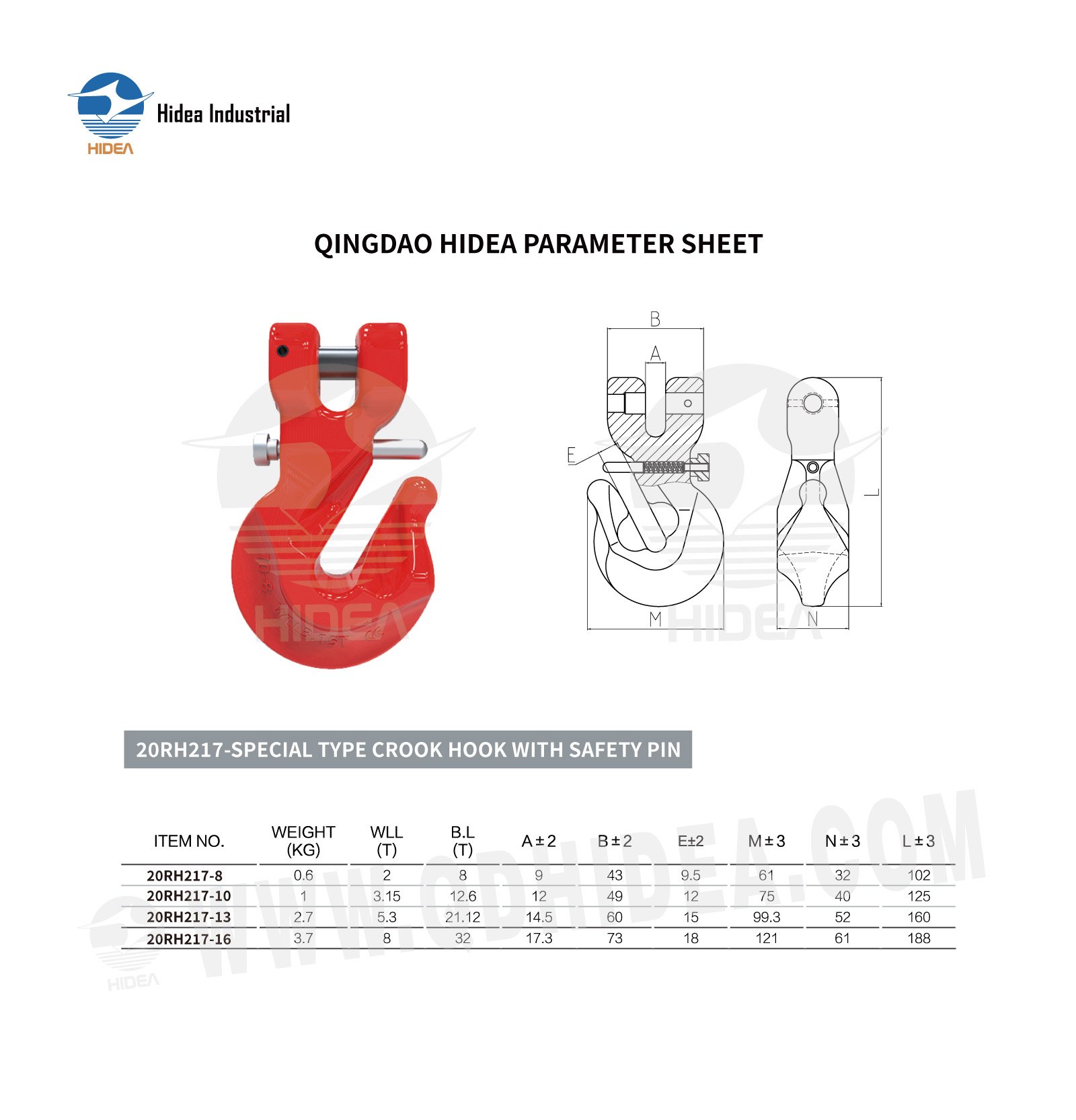

QINGDAO HIDEA PARAMETER SHEET FOR

20RH217-SPECIAL TYPE CROOK HOOK WITH SAFETY PIN

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±2	B±2	E±2	M±3	N±3	L±3
20RH217-8	0.6	2	8	9	43	9.5	61	32	102
20RH217-10	1	3.15	12.6	12	49	12	75	40	125
20RH217-13	2.7	5.3	21.12	14.5	60	15	99.3	52	160
20RH217-16	3.7	8	32	17.3	73	18	121	61	188
