Hidea DIN1480 Hook to Hook Open Body Turnbuckle: Robust Tensioning Solution for Heavy Loads

DIN1480 TURNBUCKLES WITH HOOK/HOOK

Material High tensile Carbon Steel
Forged, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested

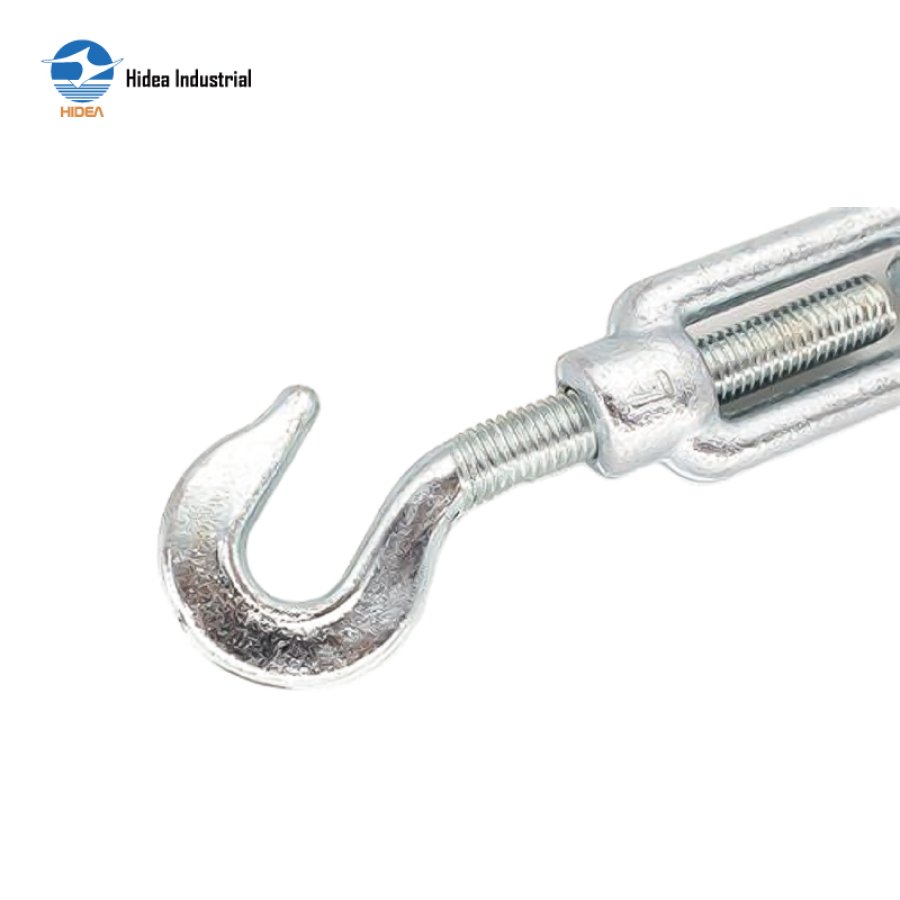

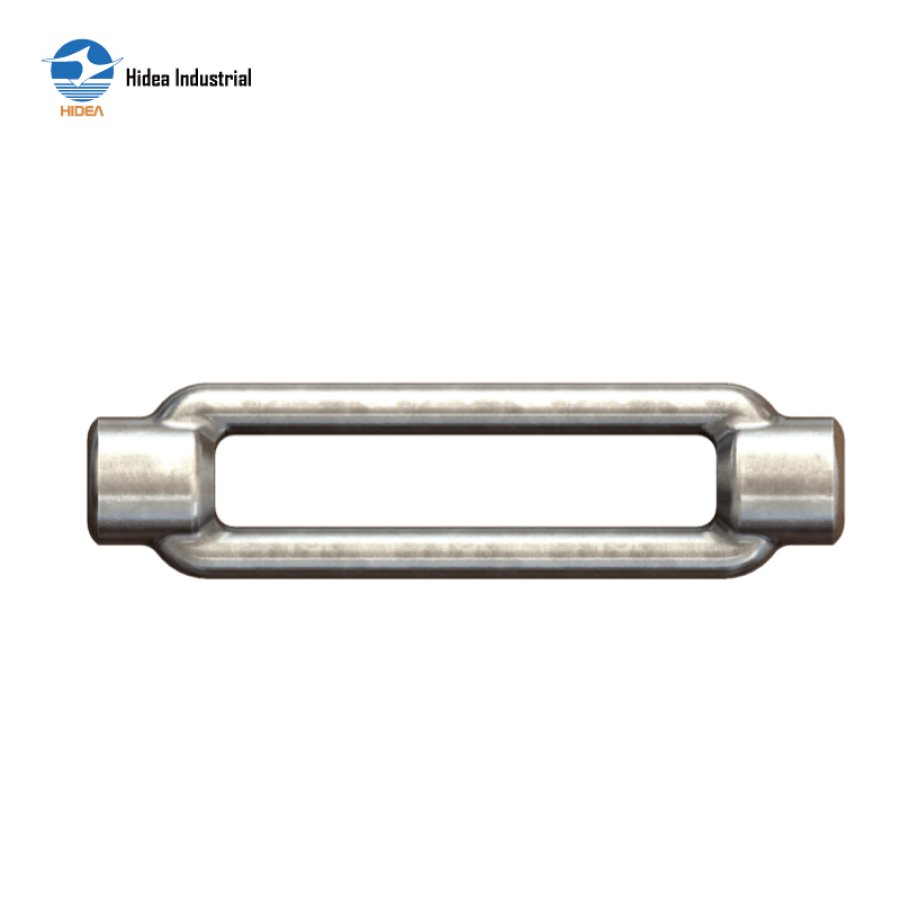

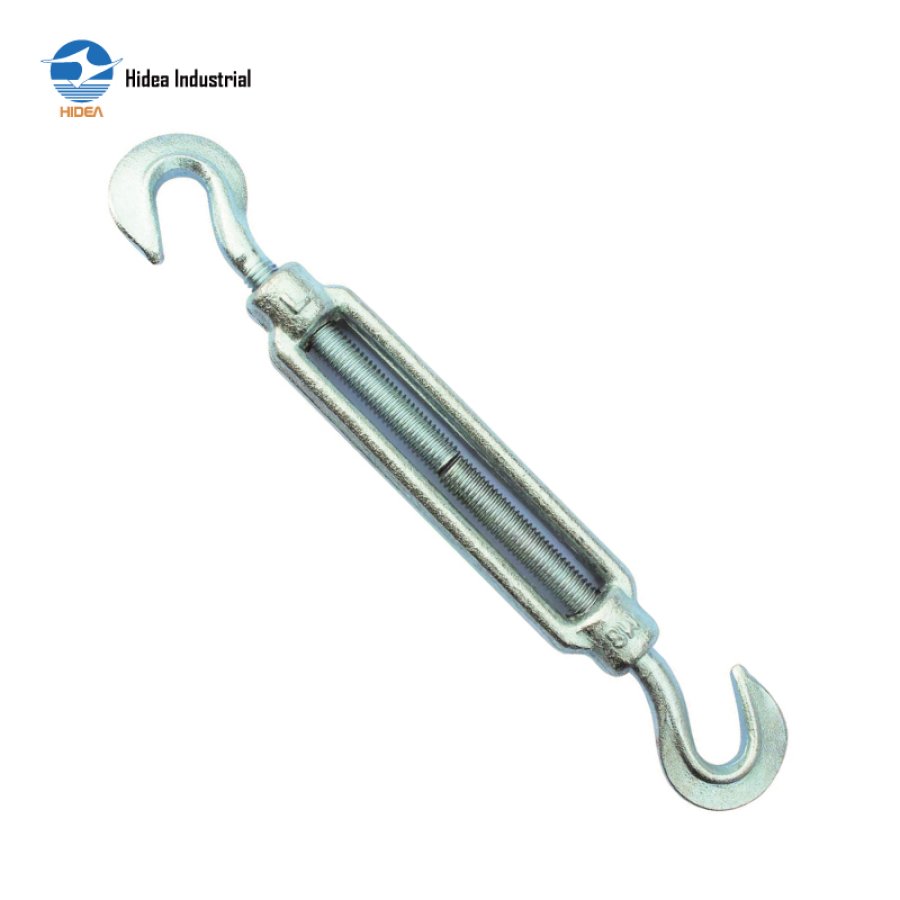

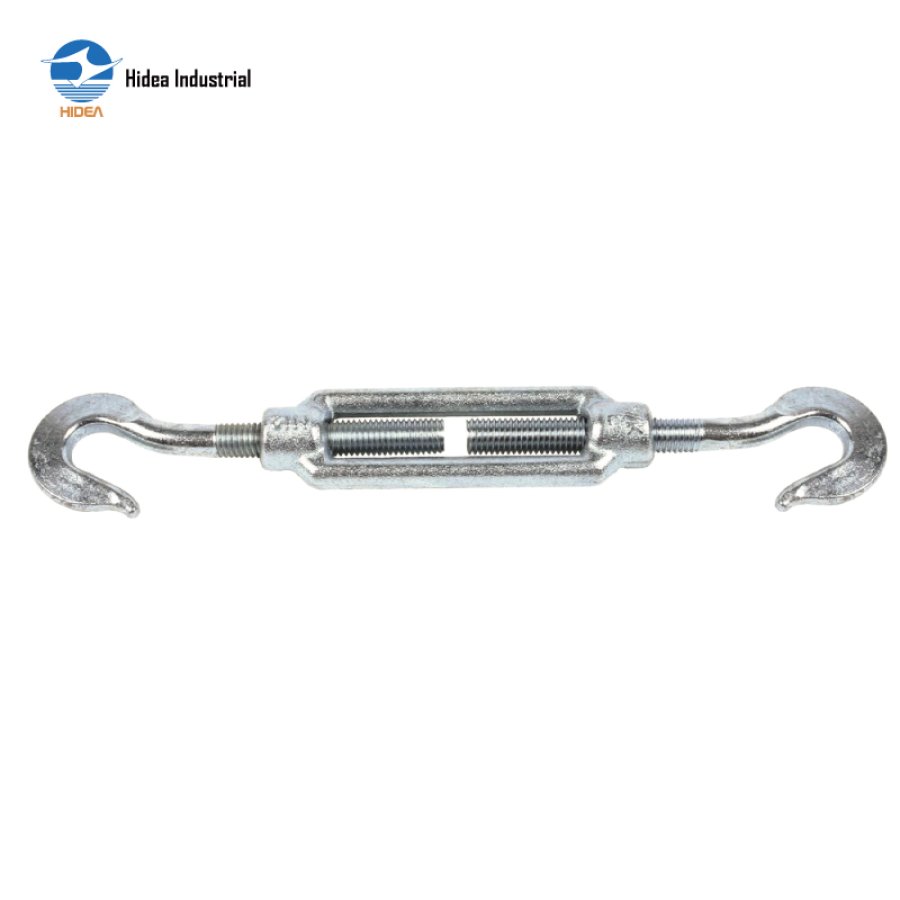

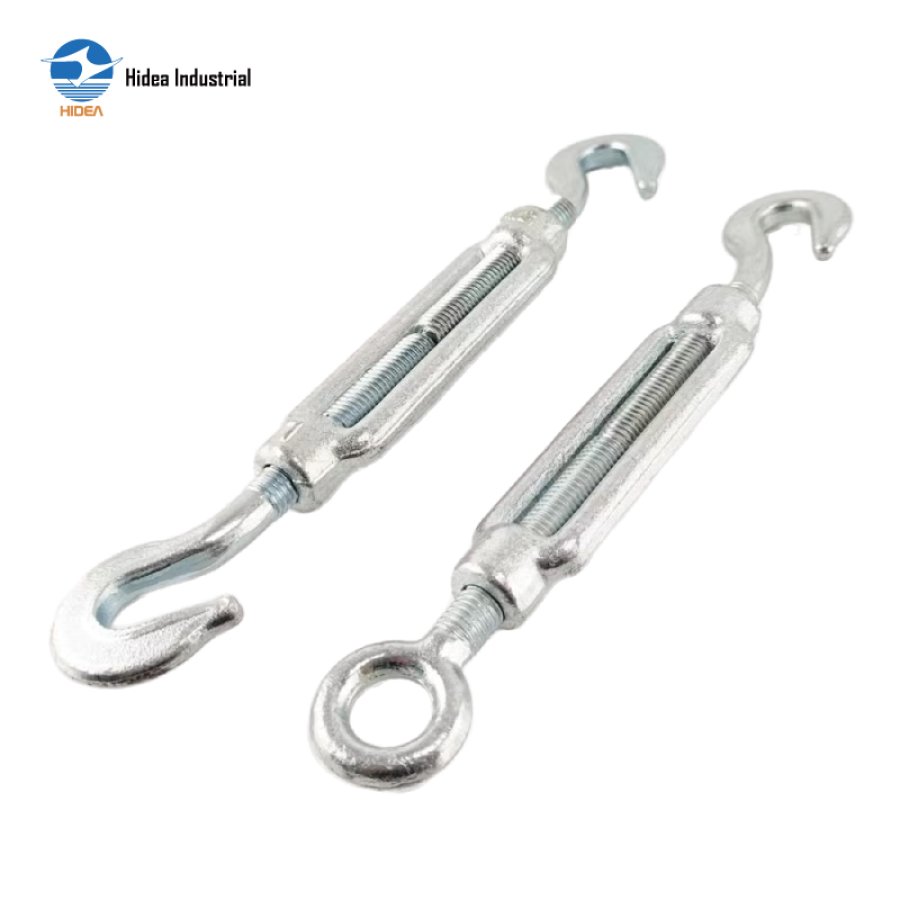

Din1480 hook & hook open body type turnbuckles

Inquire Now

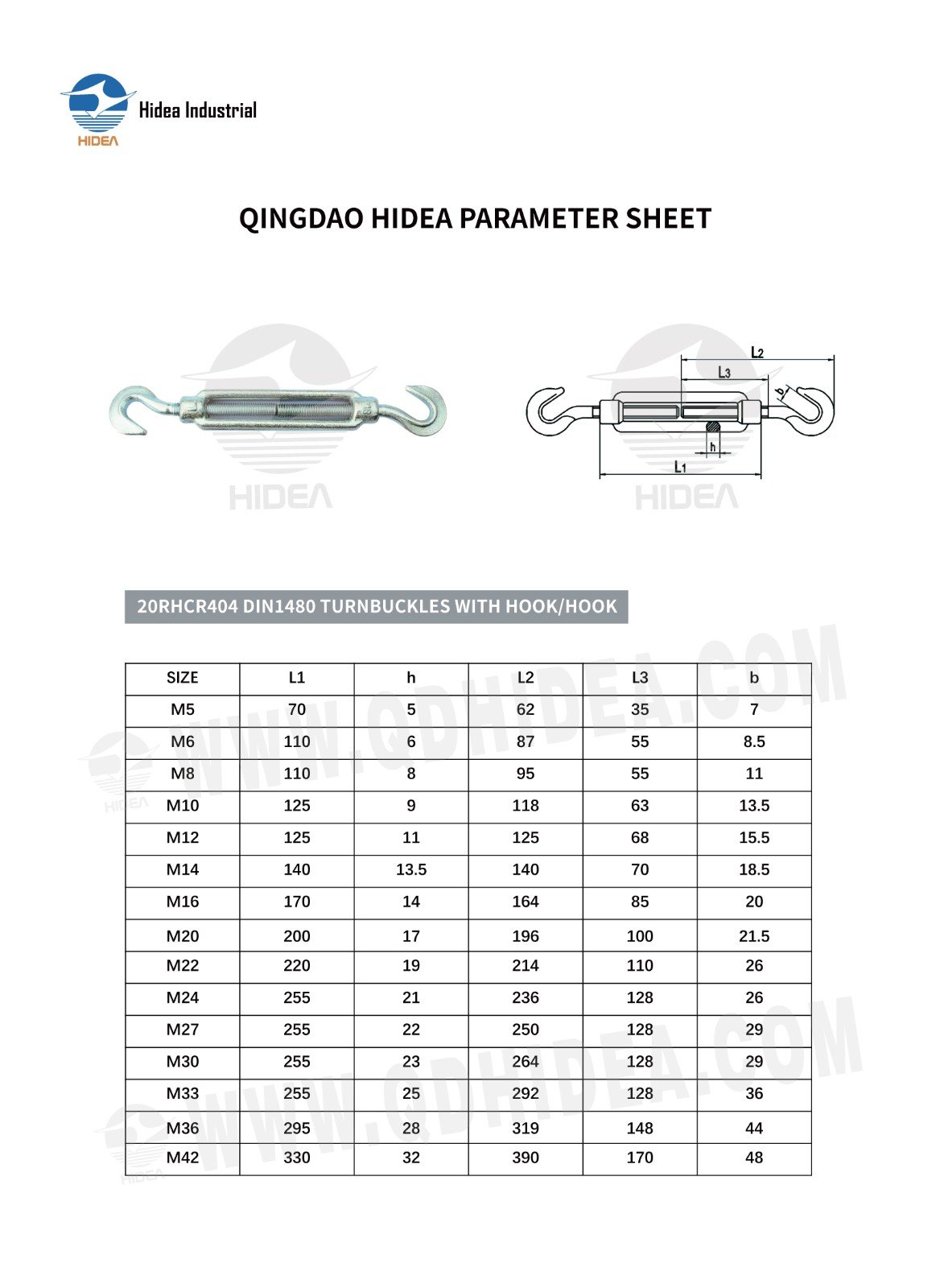

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR404 DIN1480 TURNBUCKLES WITH HOOK/HOOK

SIZE	L1	h	L2	L3	b
M5	70	5	62	35	7
M6	110	6	87	55	8.5
M8	110	8	95	55	11
M10	125	9	118	63	13.5
M12	125	11	125	68	15.5
M14	140	13.5	140	70	18.5
M16	170	14	164	85	20
M20	200	17	196	100	21.5
M22	220	19	214	110	26
M24	255	21	236	128	26
M27	255	22	250	128	29
M30	255	23	264	128	29
M33	255	25	292	128	36
M36	295	28	319	148	44
M42	330	32	390	170	48
