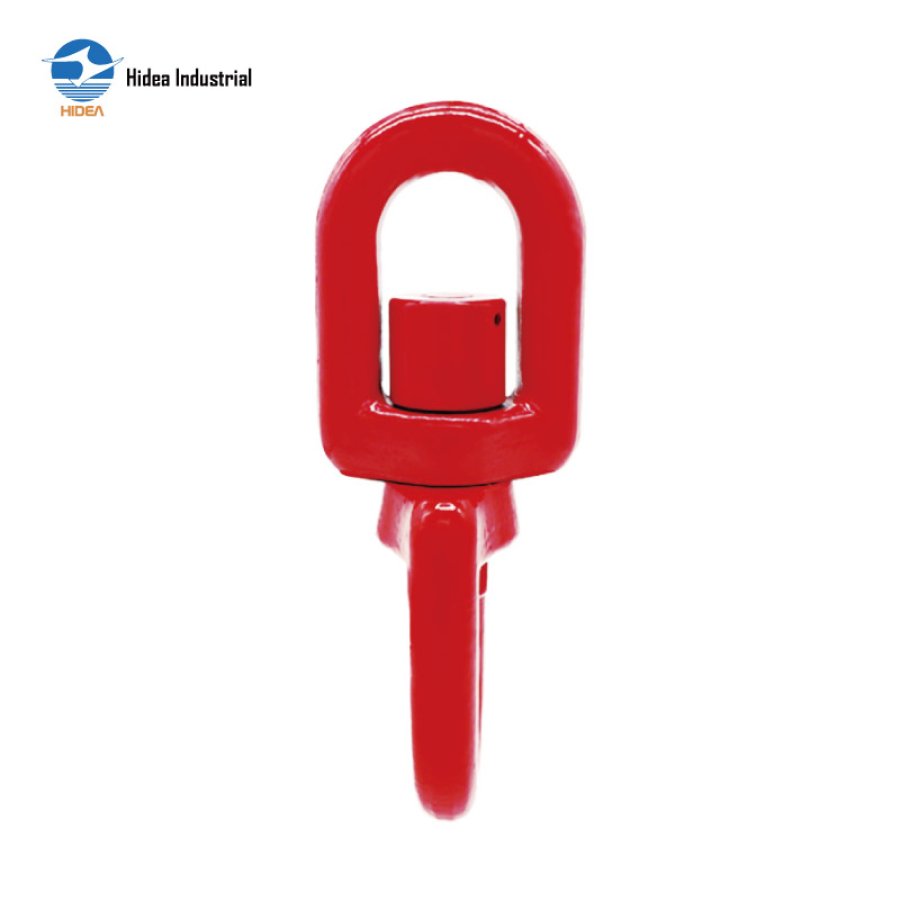

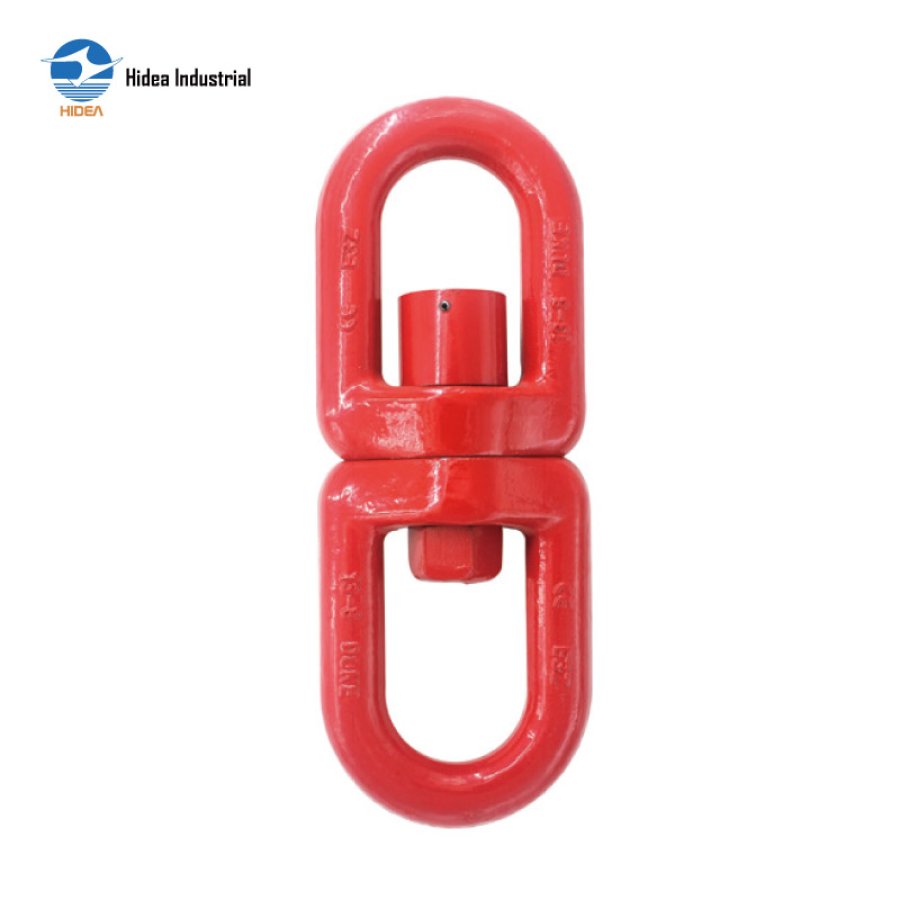

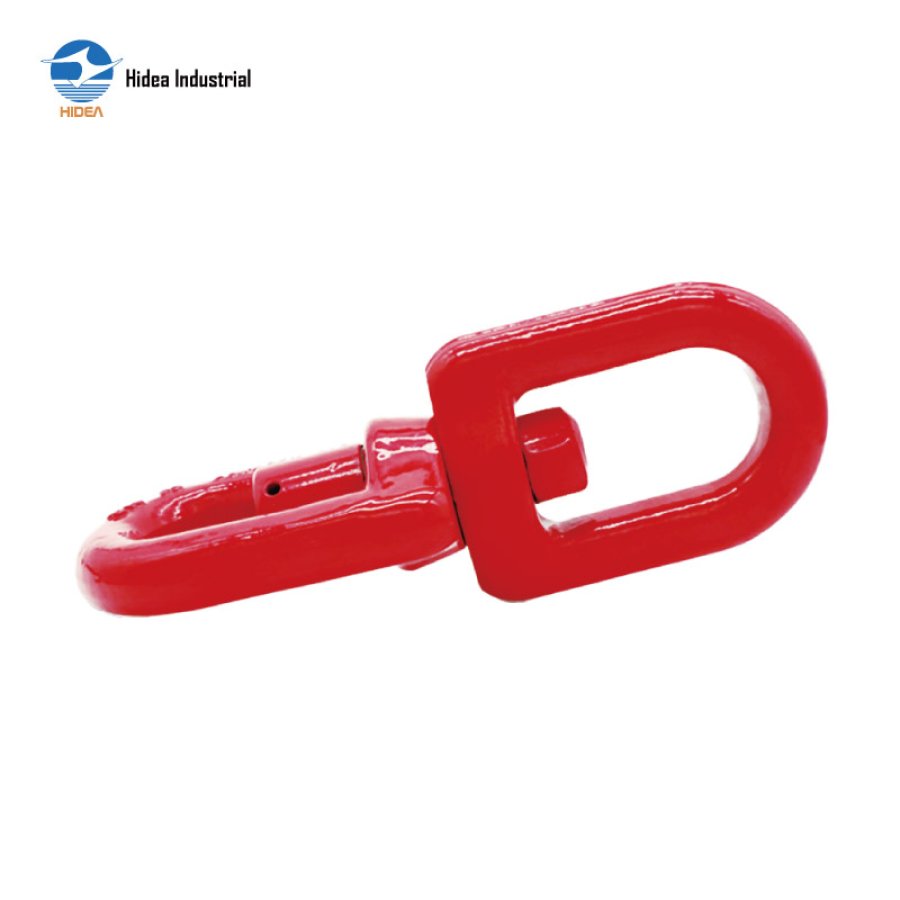

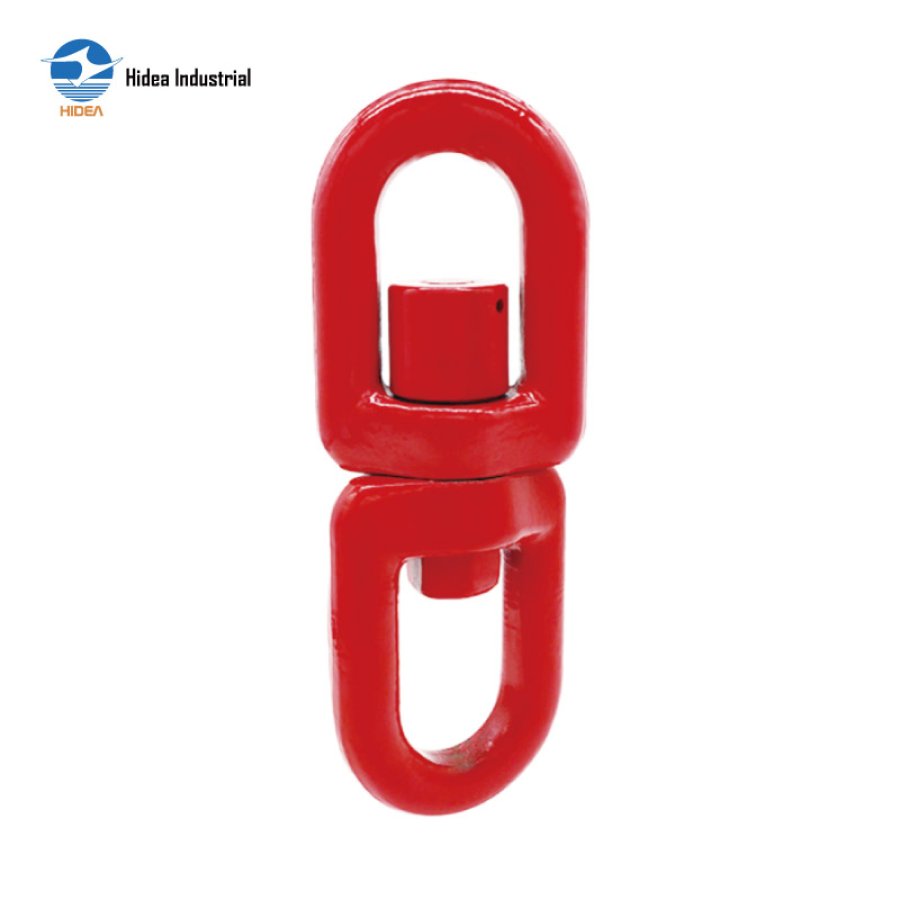

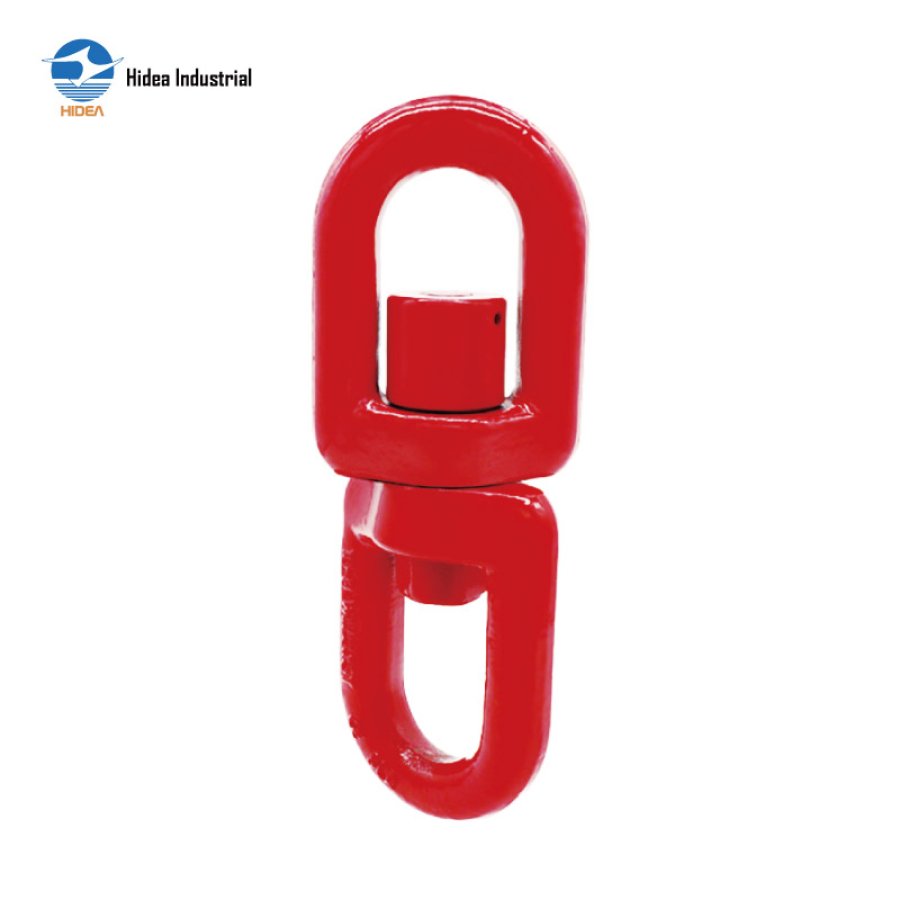

Hidea G80 Double Eye Swivel with Bearing | Advanced Bearing Swivel for Rigging and Hoisting Equipment

G80 EYE SWIVEL WITH BEARING

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Can be Rotated under Non-load Conditions

Inquire Now

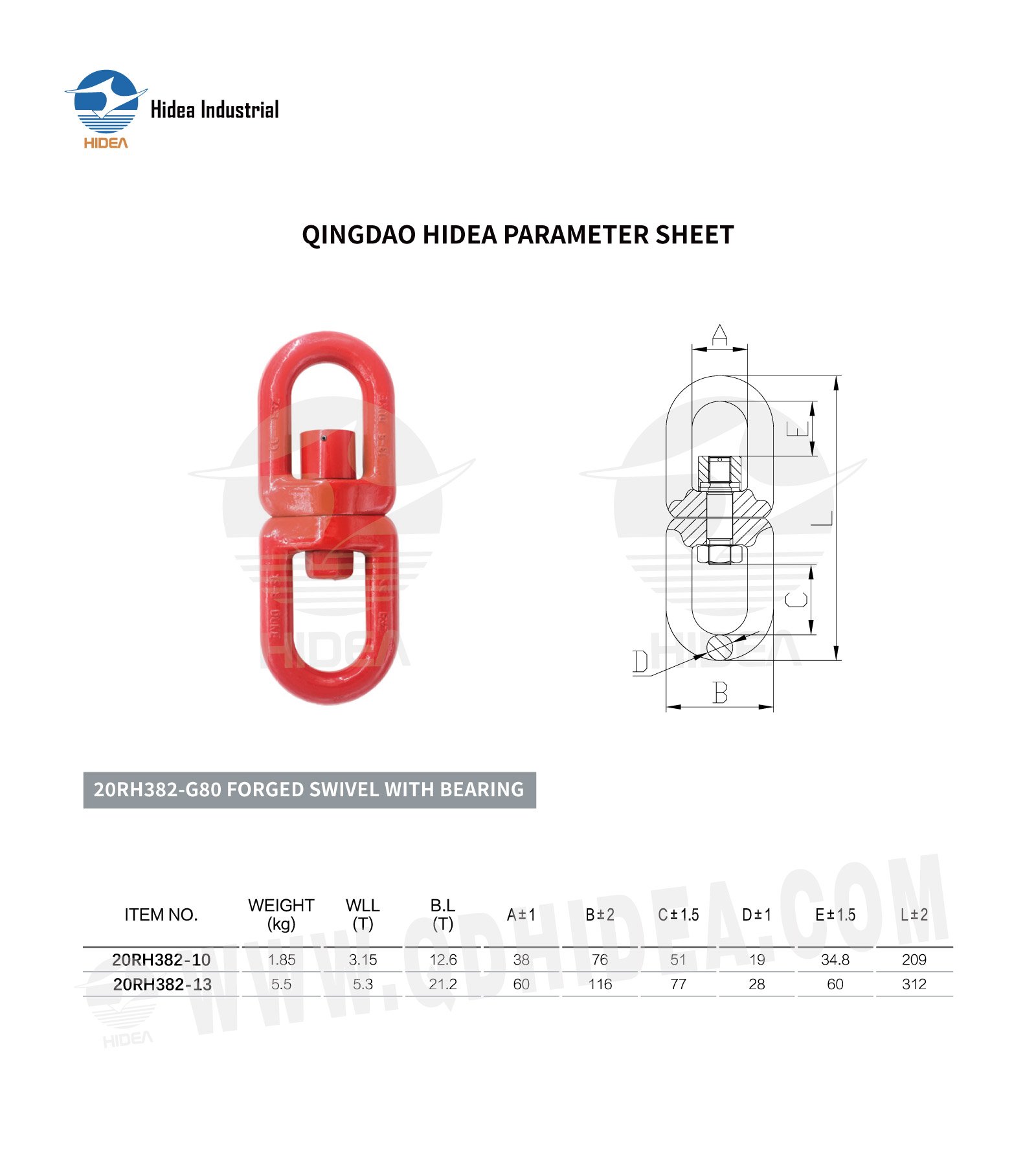

QINGDAO HIDEA PARAMETER SHEET FOR

20RH382-G80 FORGED SWIVEL WITH BEARING

ITEM NO	WEIGHT (kg)	WLL (T)	B.L (T)	A±1	B±2	C±1.5	D±1	E±1.5	L±2
20RH382-10	1.85	3.15	12.6	38	76	51	19	34.8	209
20RH382-13	5.5	5.3	21.2	60	116	77	28	60	312
