Long Version Hidea G80 Clevis Sling Hook for Enhanced Reach

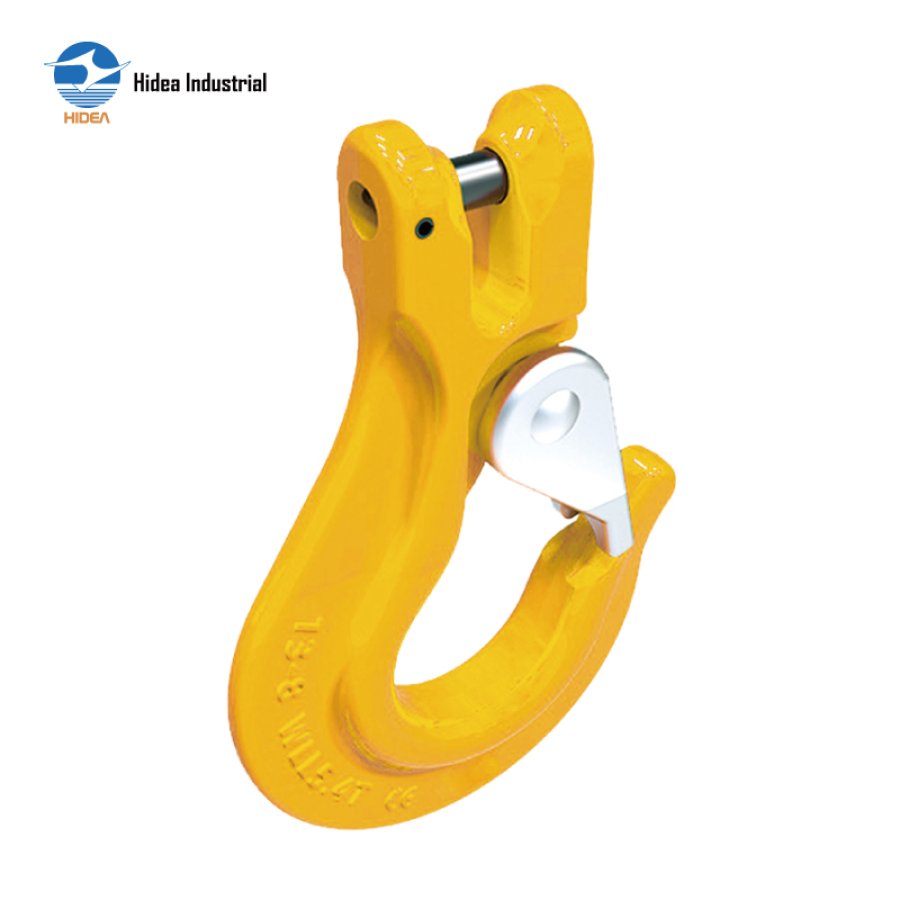

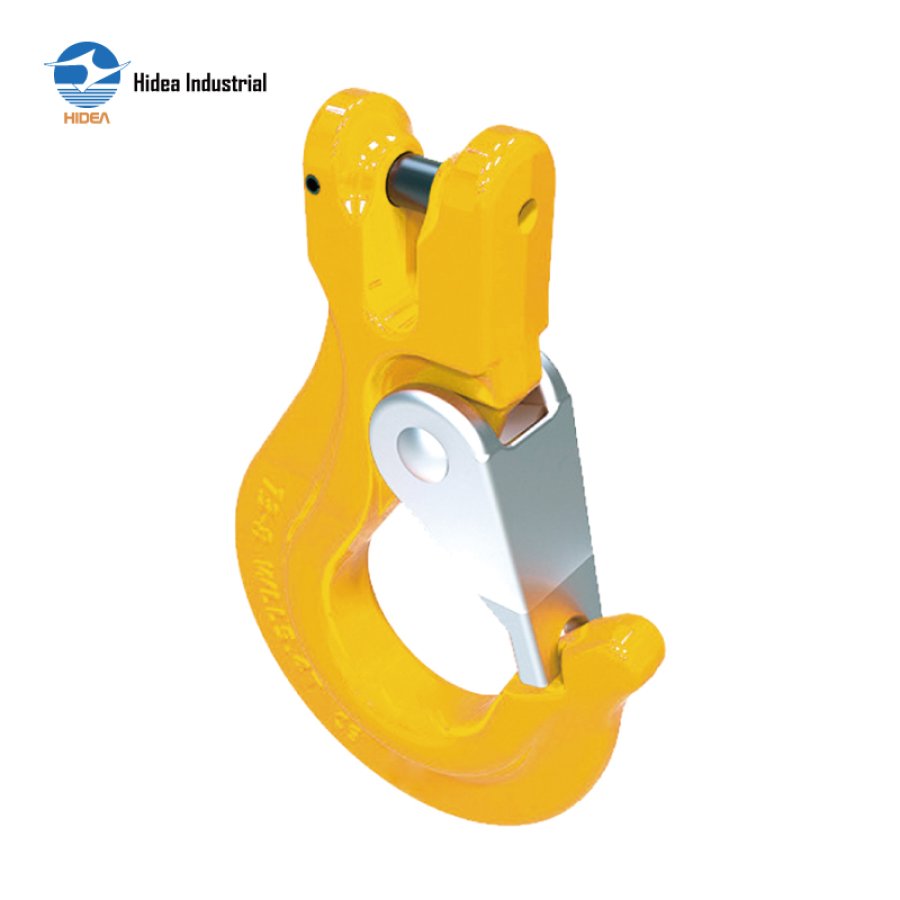

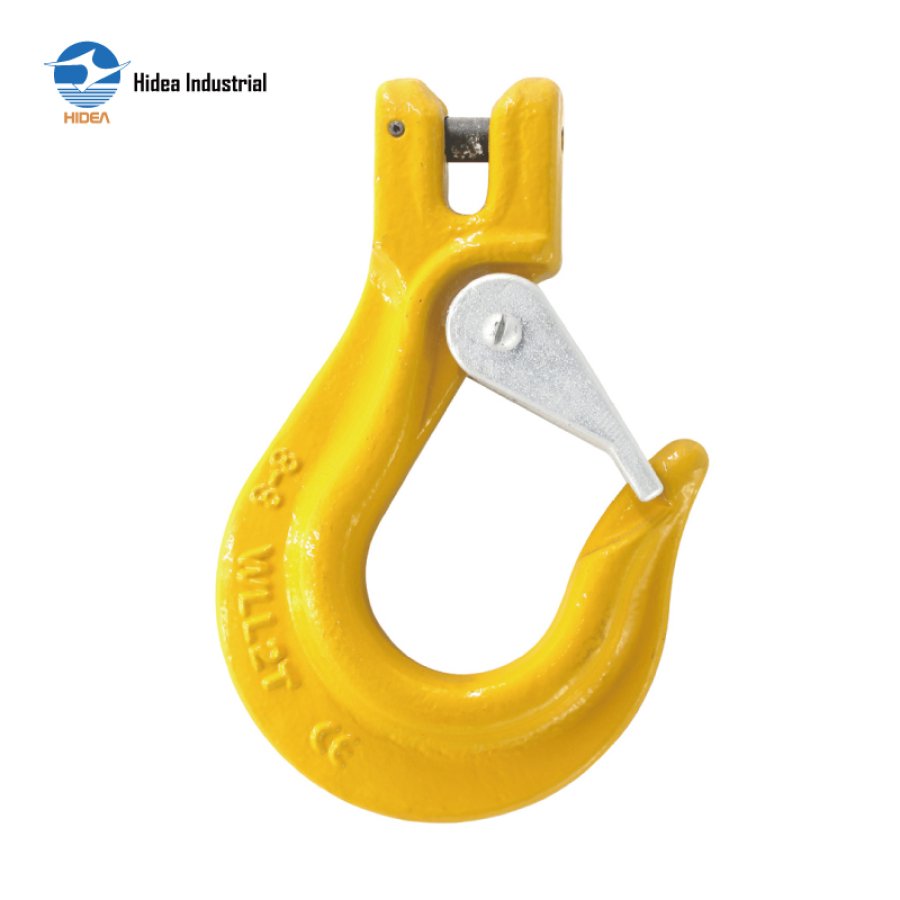

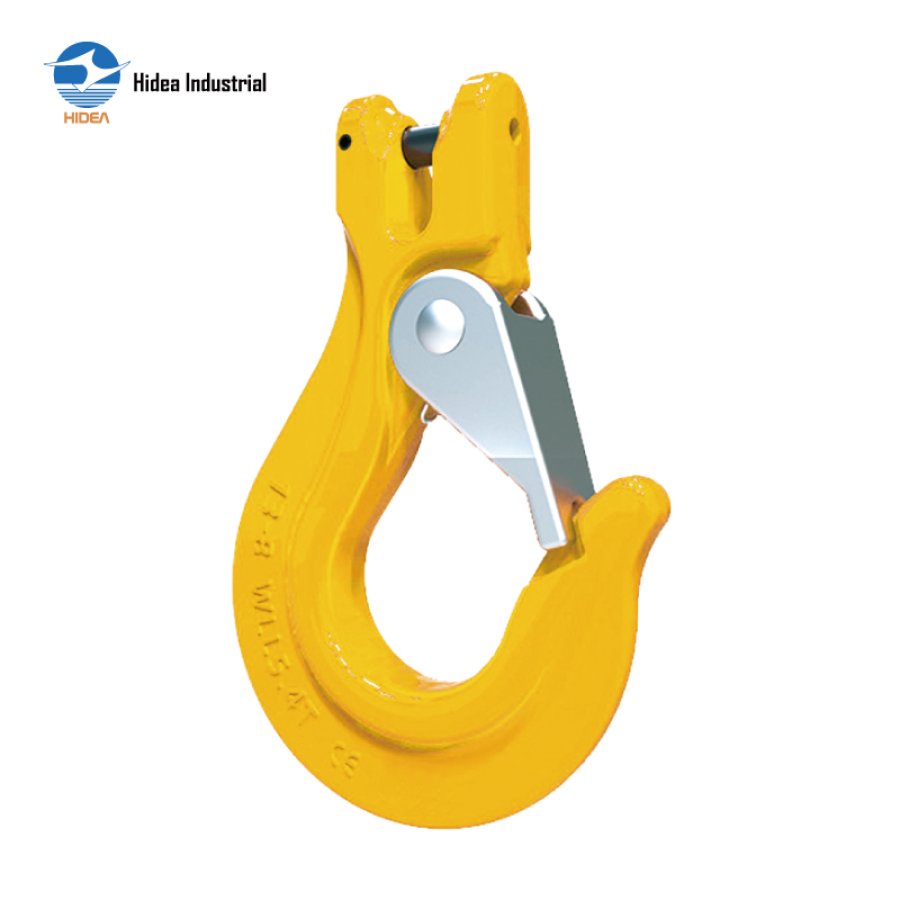

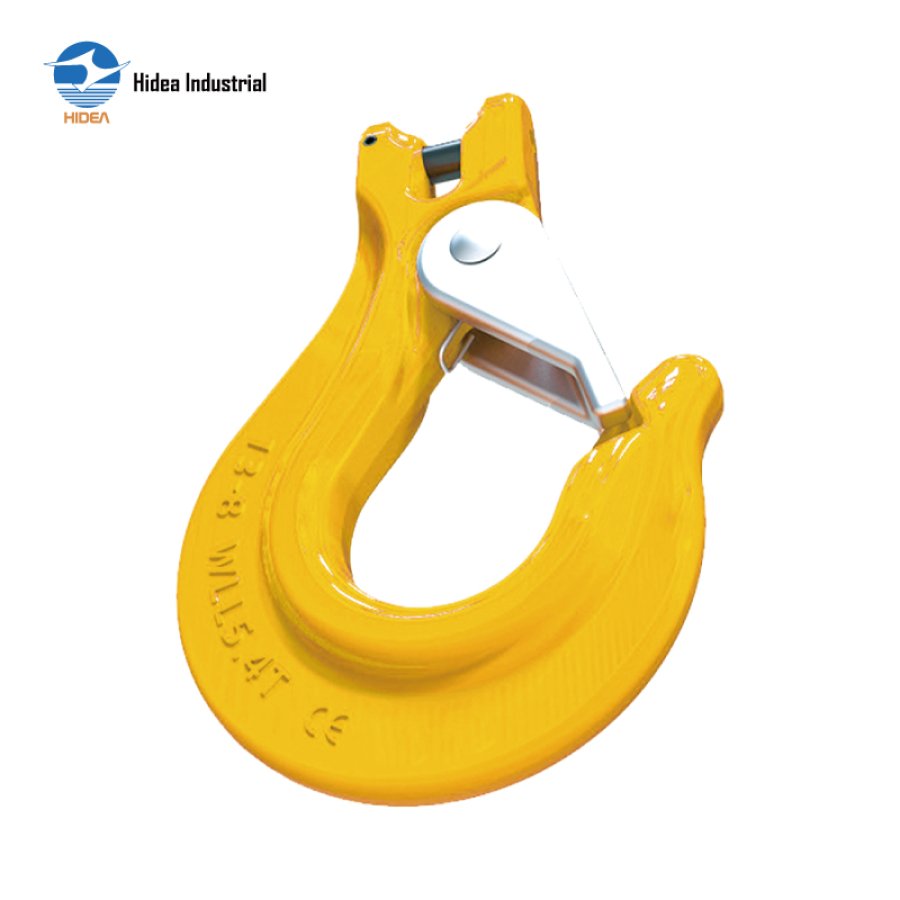

G80 CLEVIS SLING HOOK LONG VERSION

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

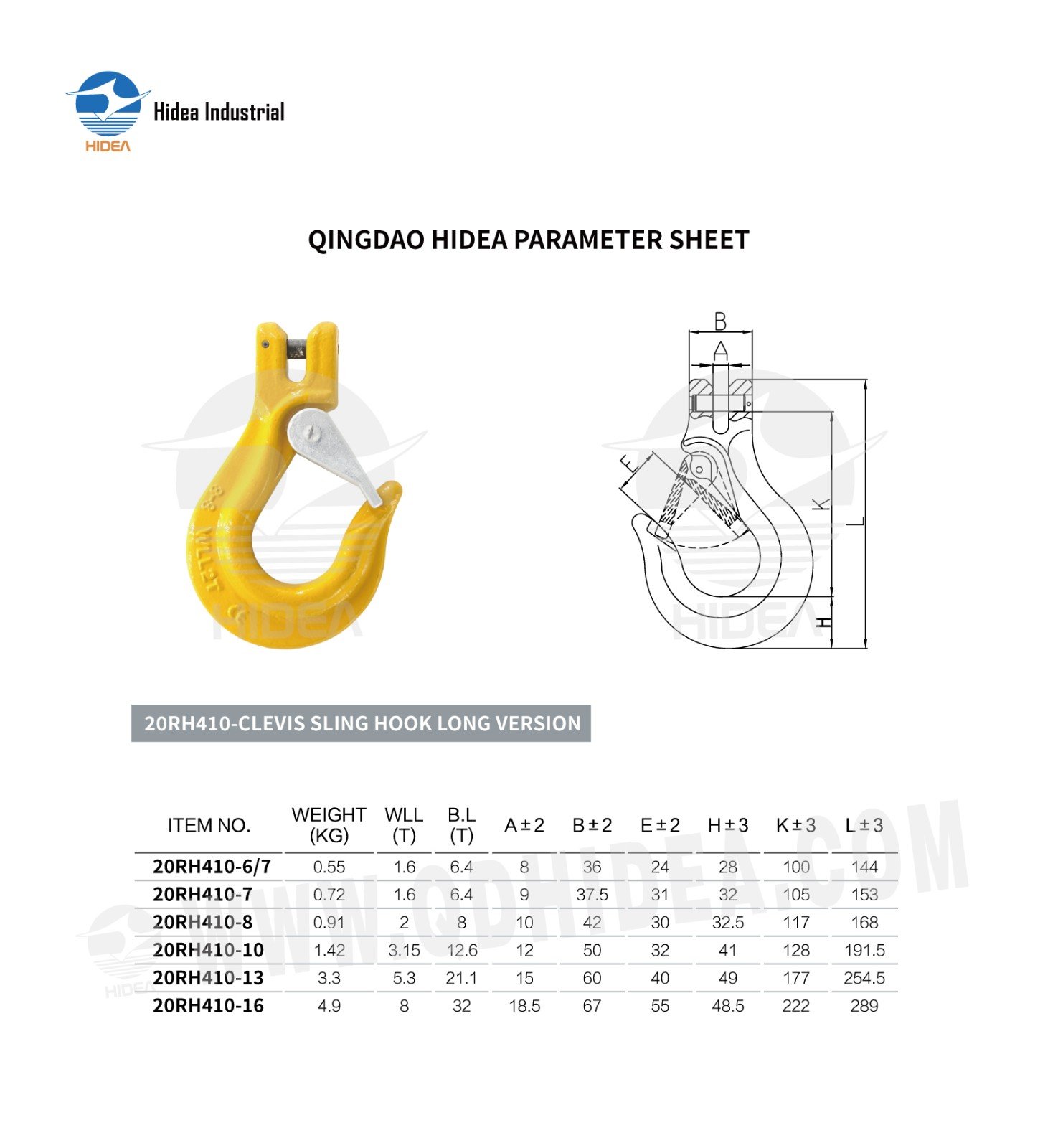

QINGDAO HIDEA PARAMETER SHEET FOR

20RH410-CLEVIS SLING HOOK LONG VERSION

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±2	B±2	E±2	H±3	K±3	L±3
20RH410-6/7	0.55	1.6	6.4	8	36	24	28	100	144
20RH410-7	0.72	1.6	6.4	9	37.5	31	32	105	153
20RH410-8	0.91	2	8	10	42	30	32.5	117	168
20RH410-10	1.42	3.15	12.6	12	50	32	41	128	191.5
20RH410-13	3.3	5.3	21.1	15	60	40	49	177	254.5
20RH410-16	4.9	8	32	18.5	67	55	48.5	222	289
