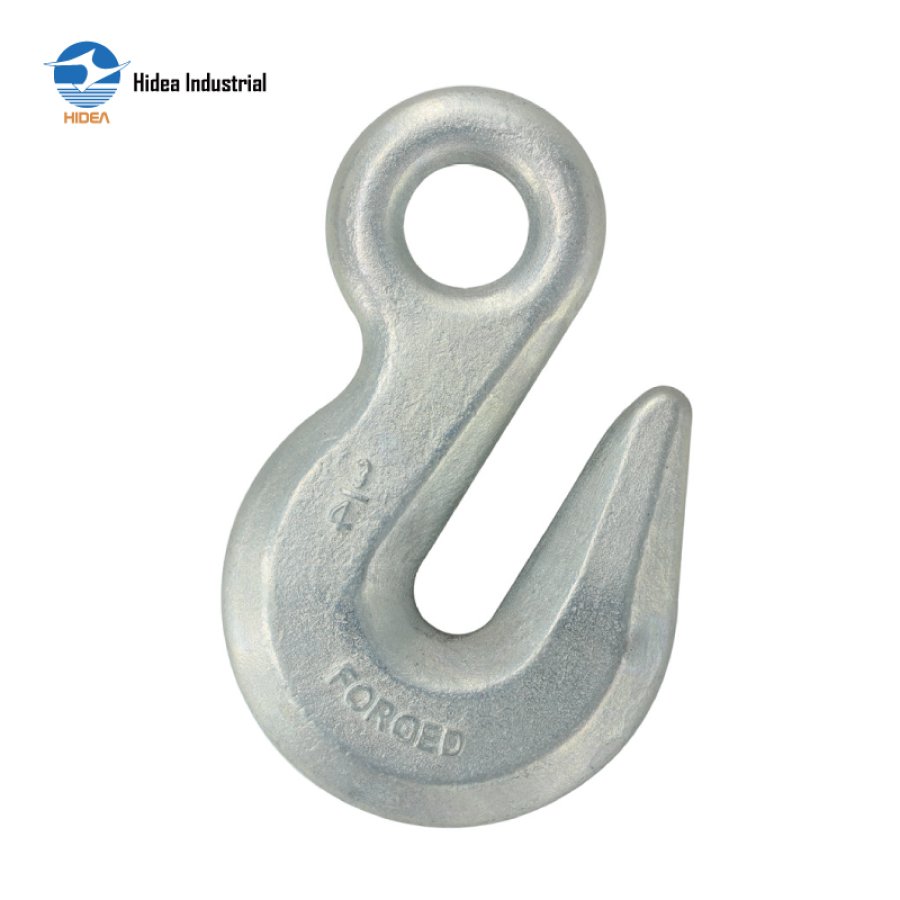

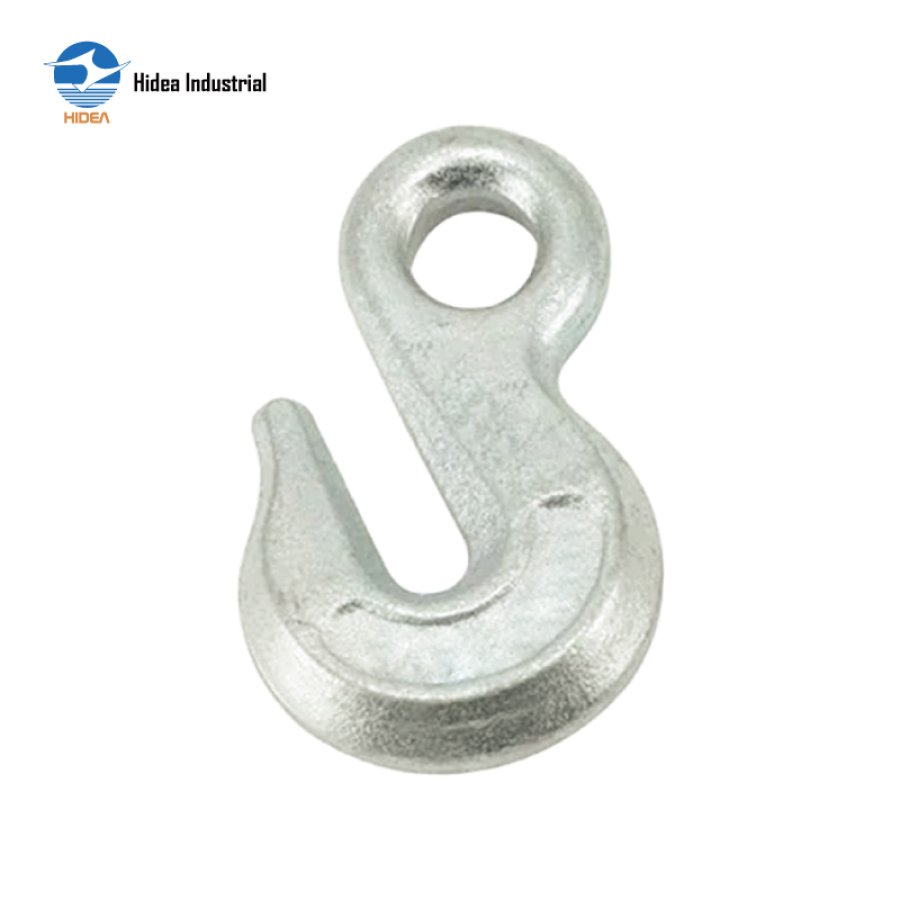

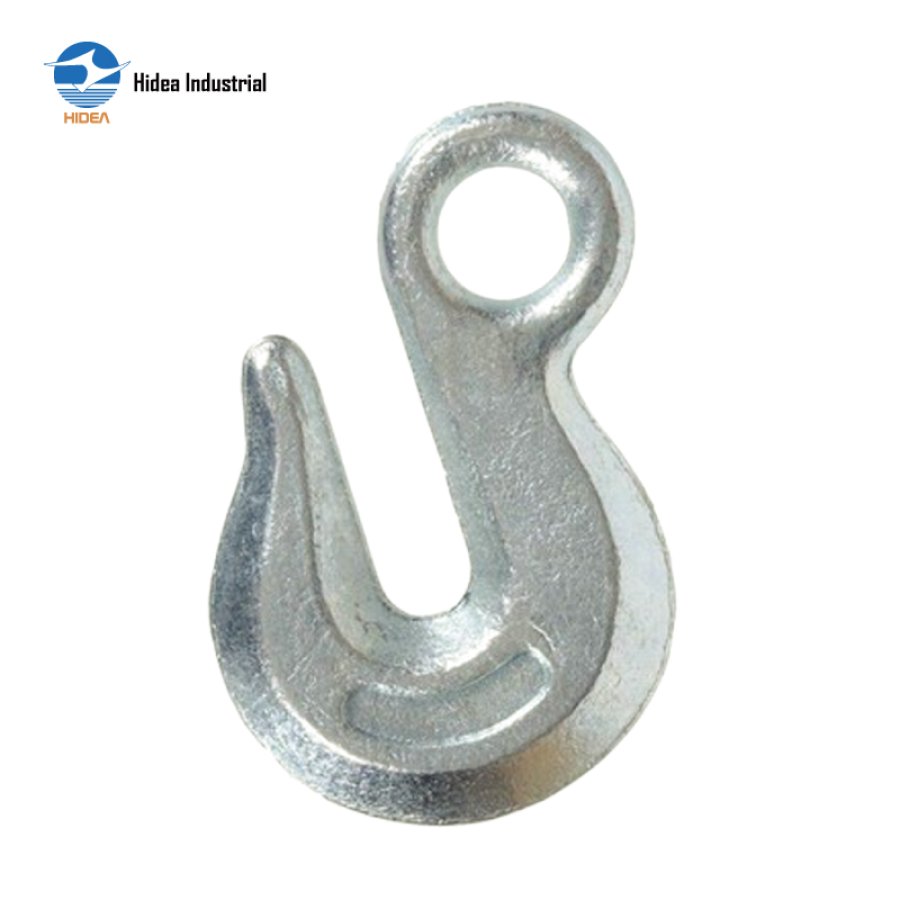

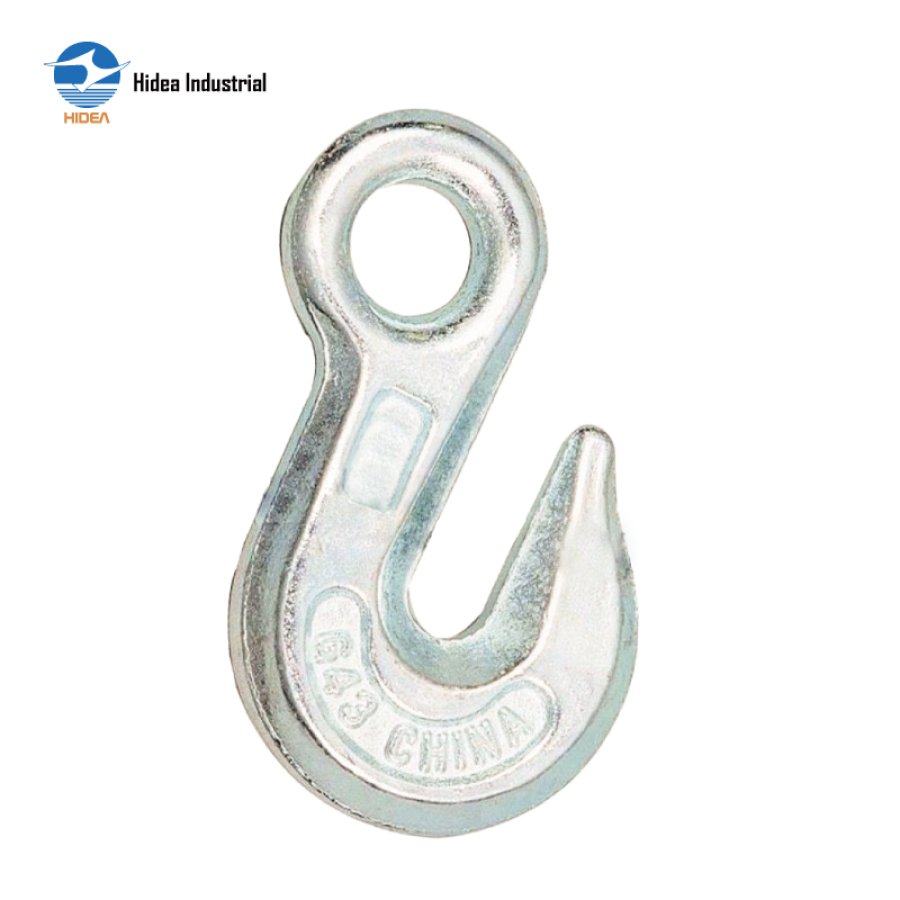

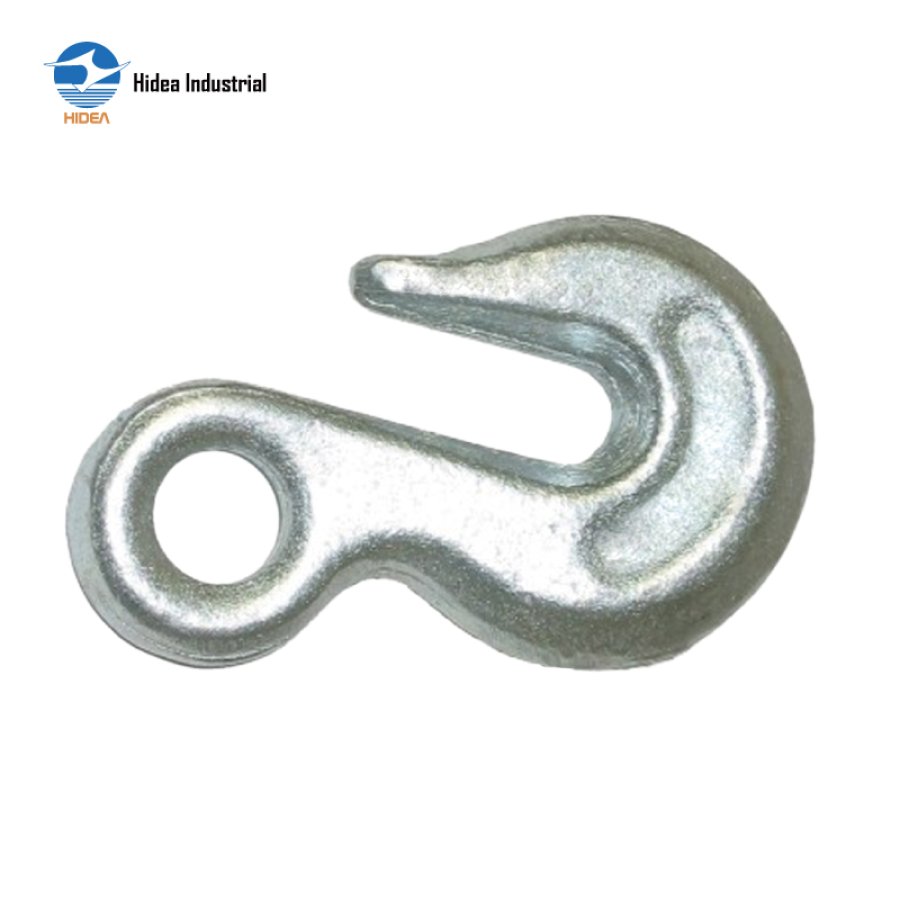

Hidea Grade 70 Eye Grab Hook: Durable and Reliable Towing Solution

G43/G70 FORGED GRAB HOOK H323/A323

Material: supper alloy steel/carbon steel rated G70/G43
Drop forged, quenched & tempered
Breakage test & magnaflux crack detection
Safety factor 4:1 & certificates available
Surface electro galvanized (EG) OR powder coated OR as requested

Inquire Now

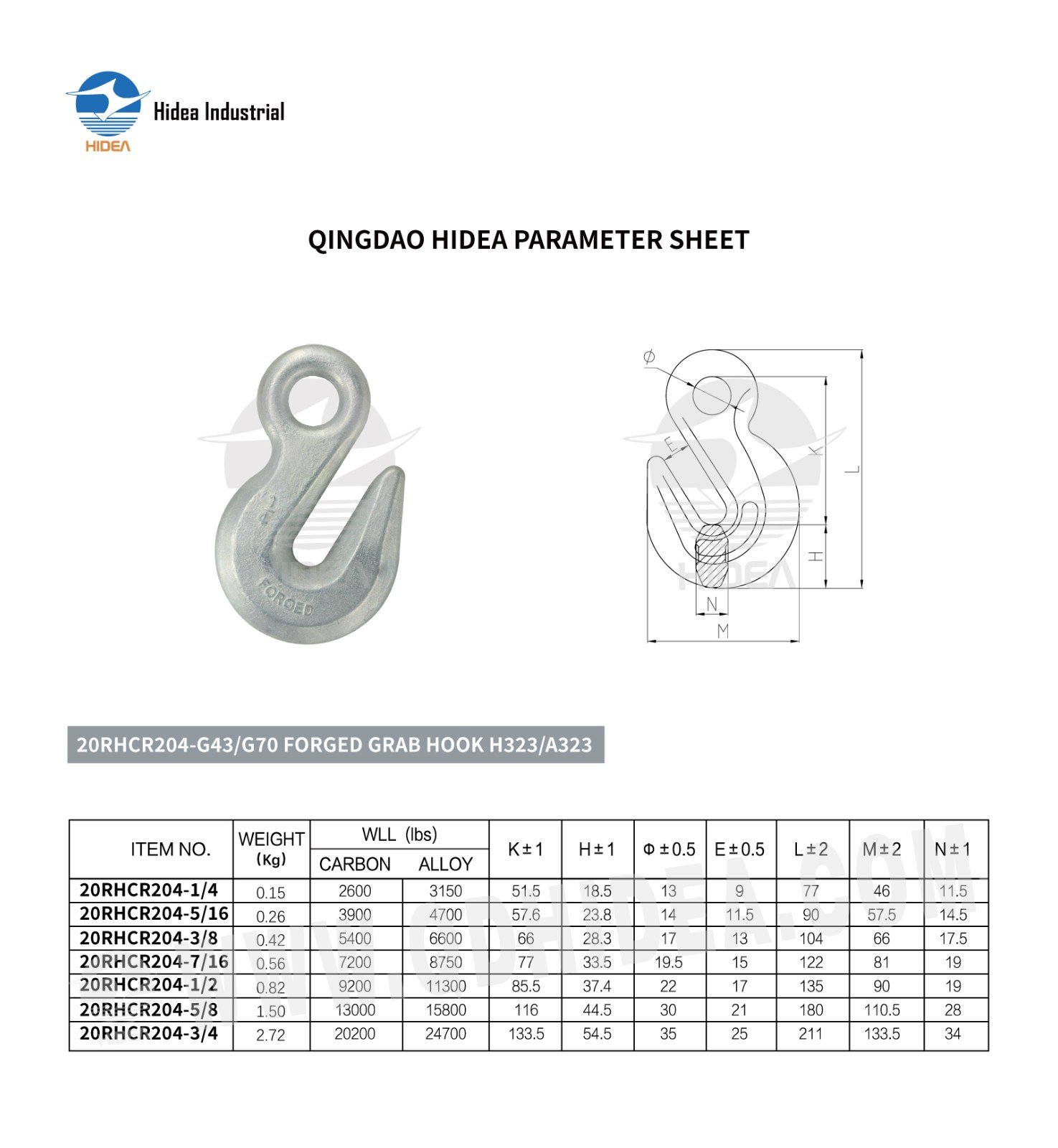

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR204-G43/G70 FORGED GRAB HOOK H323/A323

ITEM NO.	WEIGHT (Kg)	WLL (Ibs)		K±1	H±1	Φ±0.5	E±0.5	L±2	M±2	N±1
ITEM NO.	WEIGHT (Kg)	CARBON ALLOY		K±1	H±1	Φ±0.5	E±0.5	L±2	M±2	N±1
20RHCR204-1/4	0.15	2600	3150	51.5	18.5	13	9	77	46	11.5
20RHCR204-5/16	0.26	3900	4700	57.6	23.8	14	11.5	90	57.5	14.5
20RHCR204-3/8	0.42	5400	6600	66	28.3	17	13	104	66	17.5
20RHCR204-7/16	0.56	7200	8750	77	33.5	19.5	15	122	81	19
20RHCR204-1/2	0.82	9200	11300	85.5	37.4	22	17	135	90	19
20RHCR204-5/8	1.50	13000	15800	116	44.5	30	21	180	110.5	28
20RHCR204-3/4	2.72	20200	24700	133.5	54.5	35	25	211	133.5	34
