Reliable HIDEA JIS Type Wire Rope Clip – Precision Cast for Marine & Industrial Use

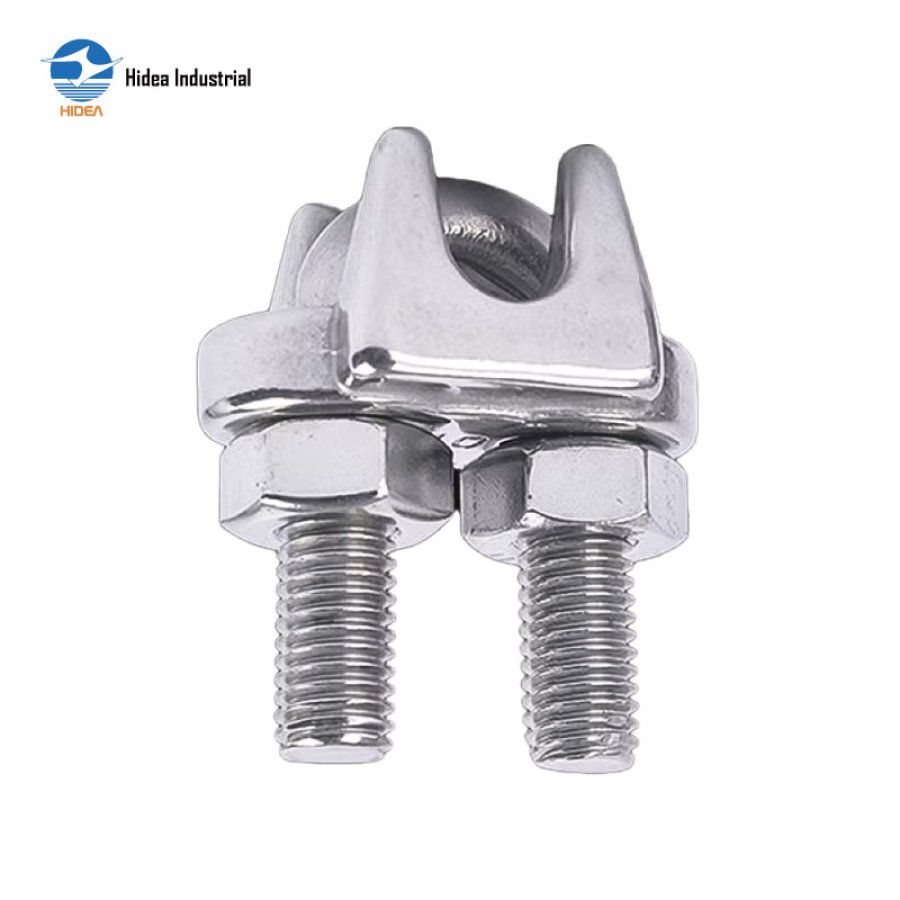

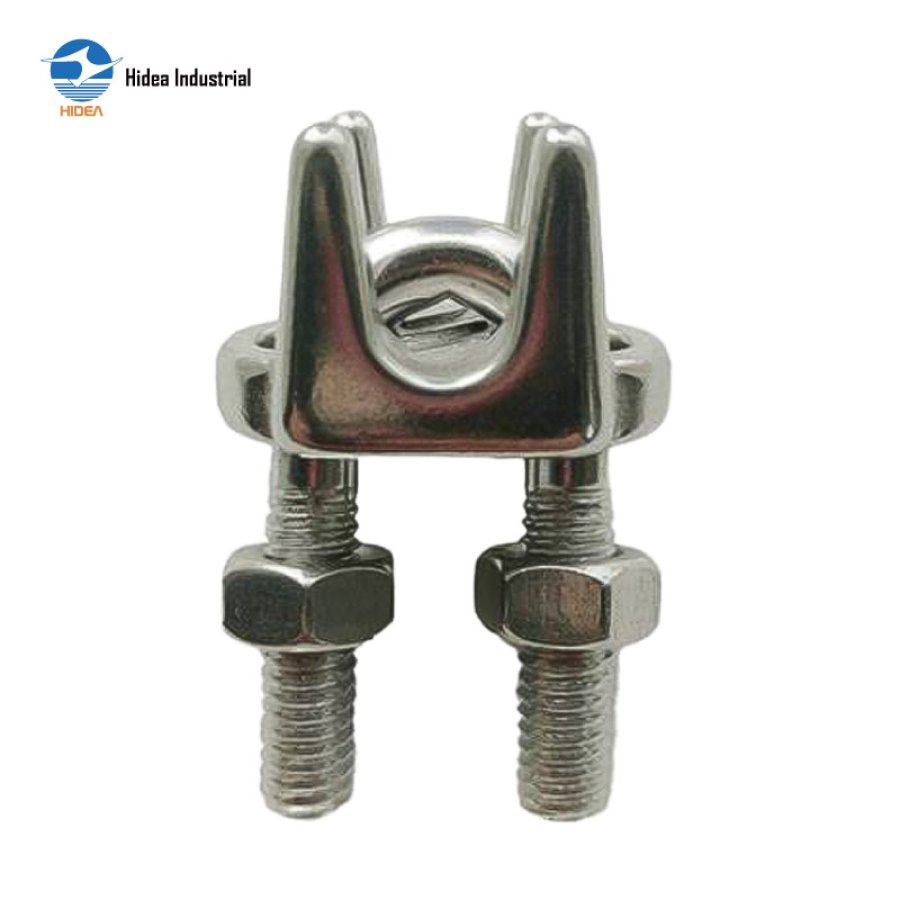

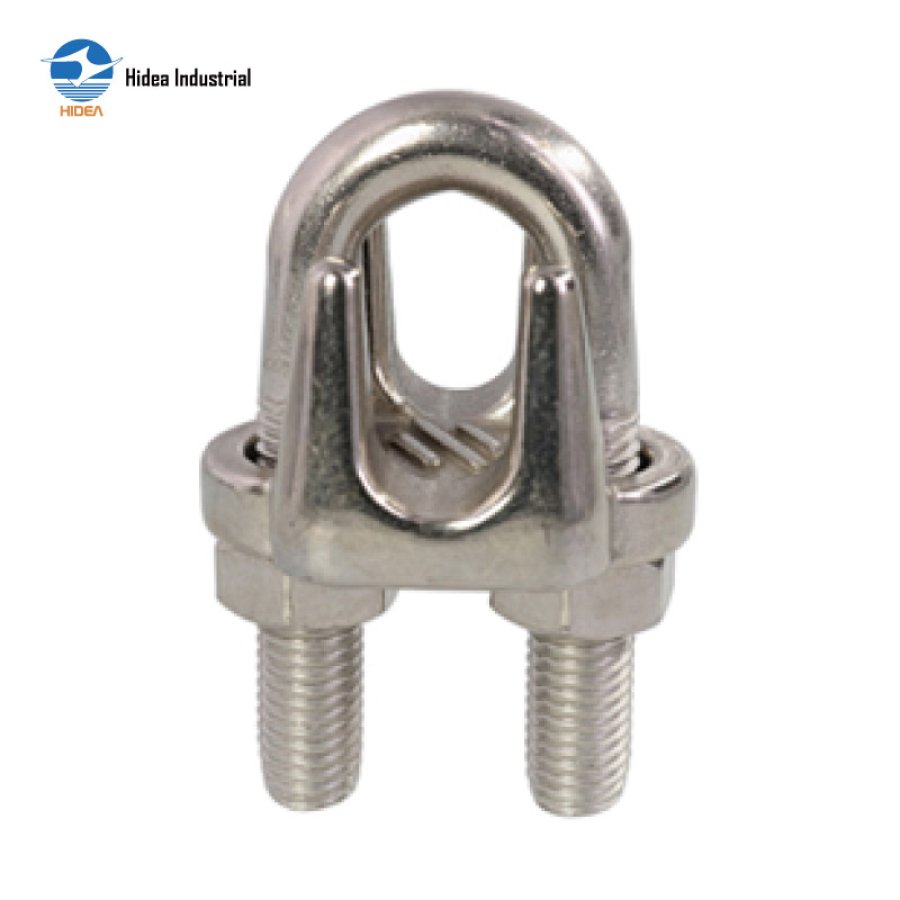

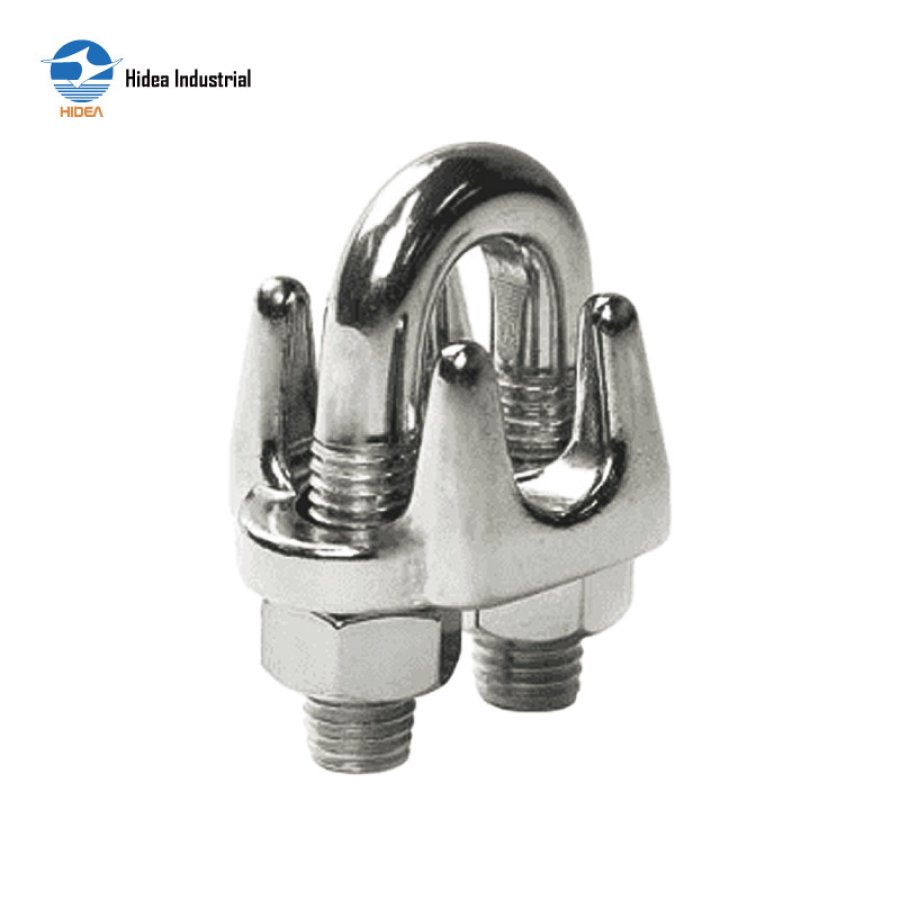

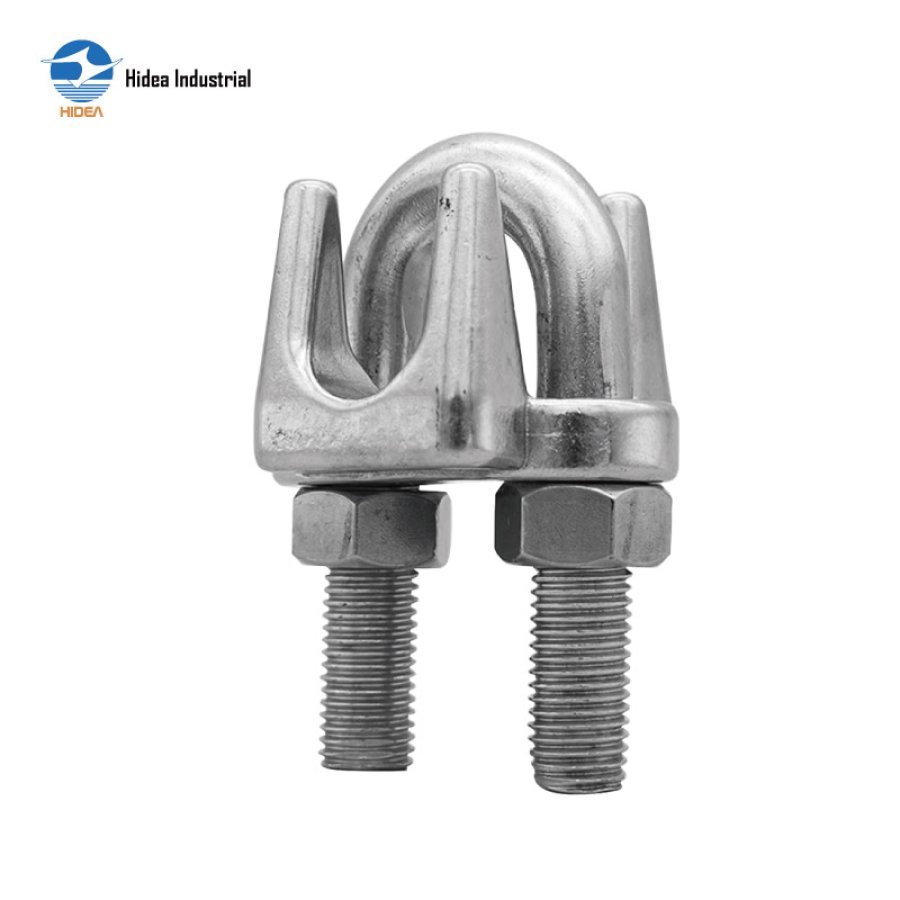

JIS TYPE WIRE ROPE CLIP

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

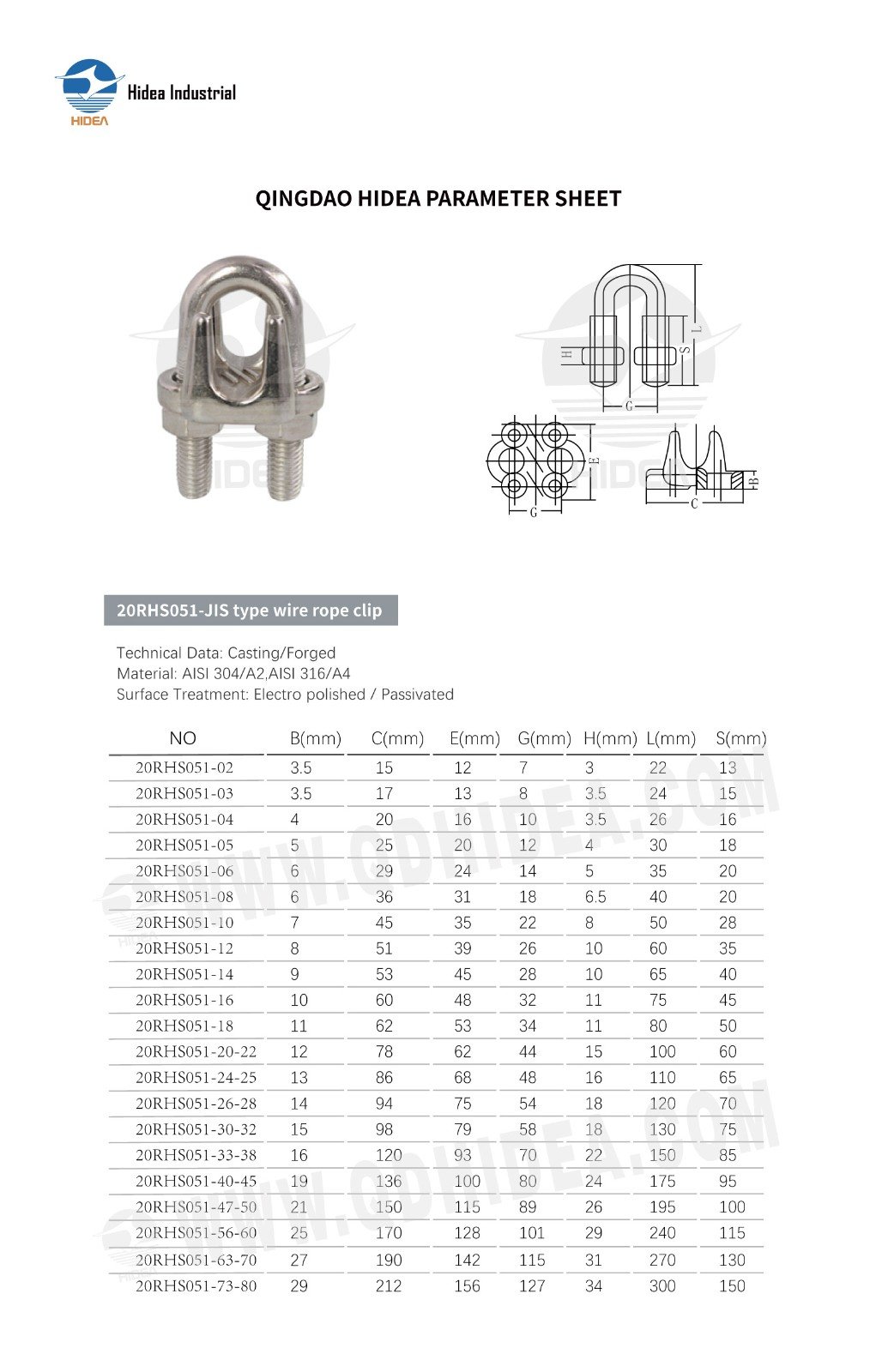

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS051-JIS type wire rope clip

NO	B(mm)	C(mm)	E(mm)	G(mm)H(mm		)L(mm)	S(mm)
20RHS051-02	3.5	15	12	7	3	22	13
20RHS051-03	3.5	17	13	8	3.5	24	15
20RHS051-04	4	20	16	10	3.5	26	16
20RHSO51-05	5	25	20	12	4	30	18
20RHSO51-06	6	29	24	14	5	35	20
20RHS051-08	6	36	31	18	6.5	40	20
20RHS051-10	7	45	35	22	8	50	28
20RHS051-12	8	51	39	26	10	60	35
20RHS051-14	9	53	45	28	10	65	40
20RHS051-16	10	60	48	32	11	75	45
20RHS051-18	11	62	53	34	11	80	50
20RHS051-20-22	12	78	62	44	15	100	60
20RHS051-24-25	13	86	68	48	16	110	65
20RHS051-26-28	14	94	75	54	18	120	70
20RHS051-30-32	15	98	79	58	18	130	75
20RHS051-33-38	16	120	93	70	22	150	85
20RHS051-40-45	19	136	100	80	24	175	95
20RHSO51-47-50	21	150	115	89	26	195	100
20RHS051-56-60	25	170	128	101	29	240	115
20RHS051-63-70	27	190	142	115	31	270	130
20RHS051-73-80	29	212	156	127	34	300	150
