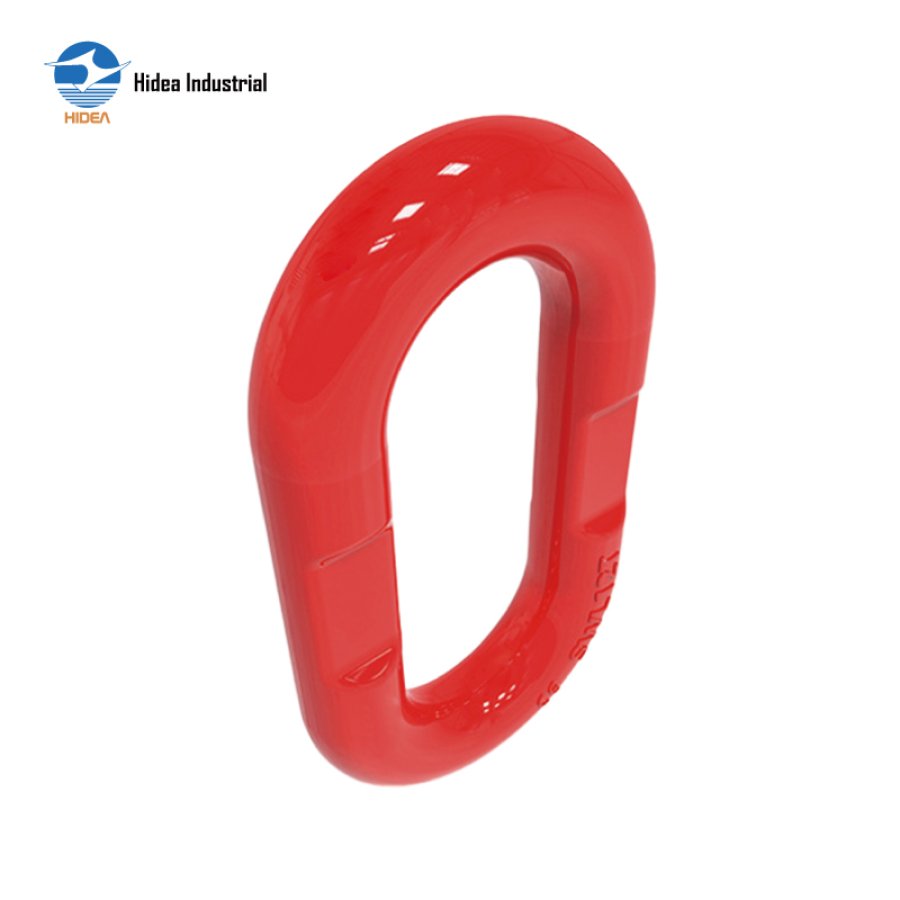

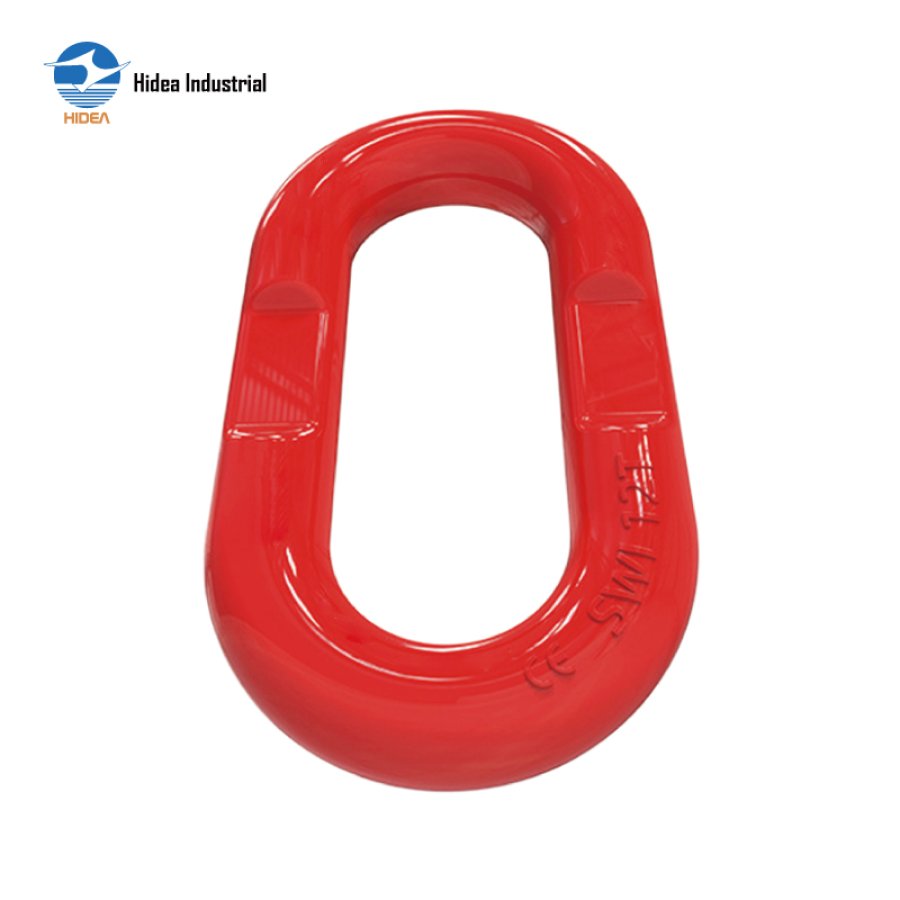

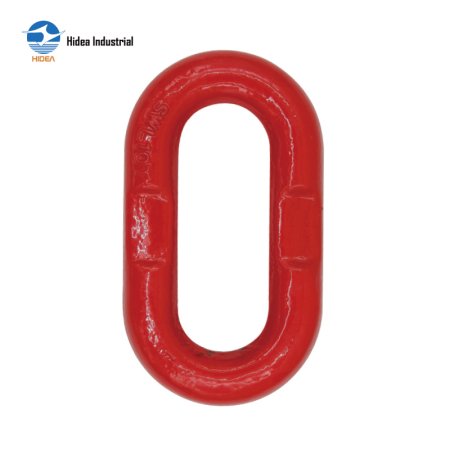

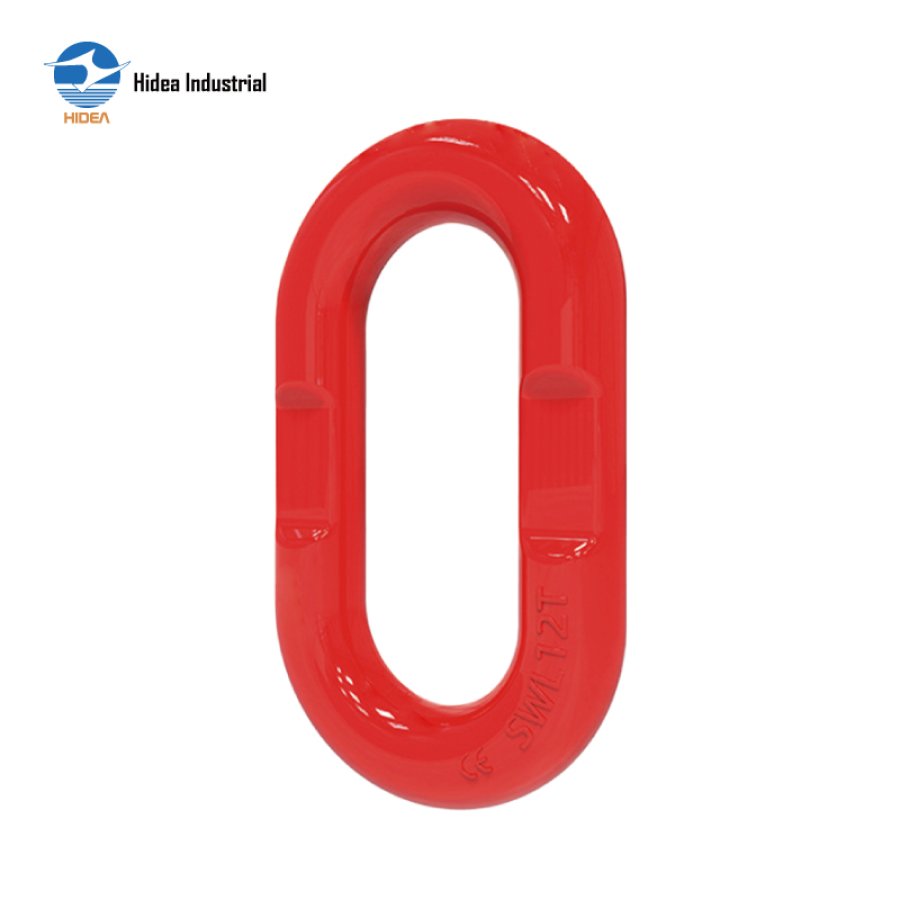

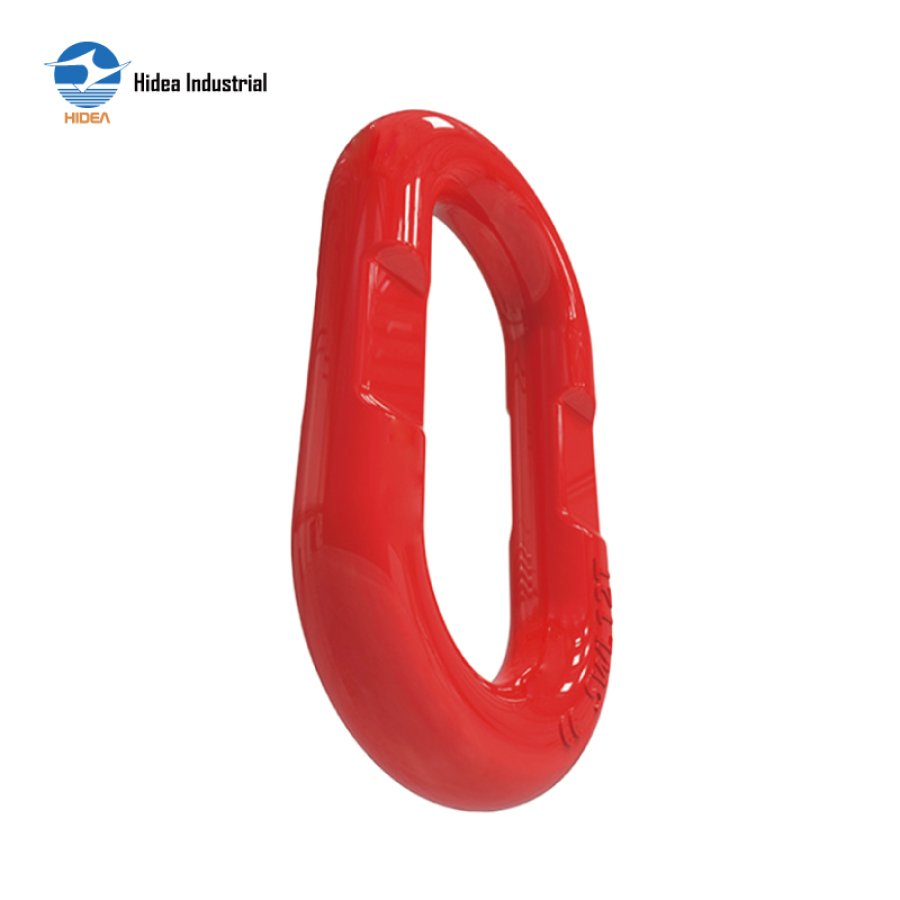

Top-Quality Hidea Grade 80 EVM Series Germany Type Forged Master Link

G80 EVM SERIES GERMANY TYPE FORGED MASTER LINK

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

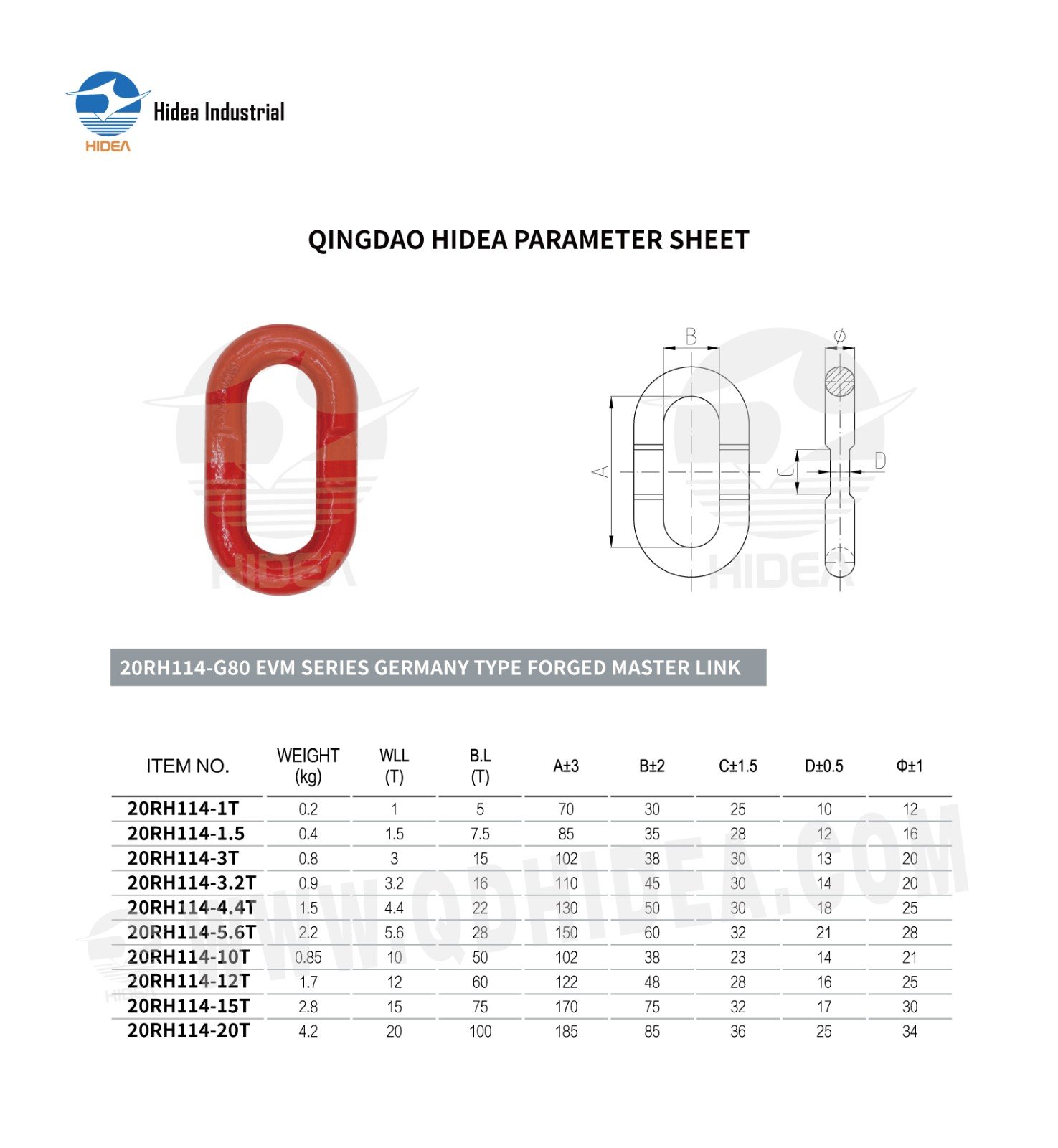

QINGDAO HIDEA PARAMETER SHEET FOR

20RH114-G80 EVM SERIES GERMANY TYPE FORGED MASTER LINK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±3	B±2	C±1.5	D±0.5	Ф±1
20RH114-1T	0.2	1	5	70	30	25	10	12
20RH114-1.5	0.4	1.5	7.5	85	35	28	12	16
20RH114-3T	0.8	3	15	102	38	30	13	20
20RH114-3.2T	0.9	3.2	16	110	45	30	14	20
20RH114-4.4T	1.5	4.4	22	130	50	30	18	25
20RH114-5.6T	2.2	5.6	28	150	60	32	21	28
20RH114-10T	0.85	10	50	102	38	23	14	21
20RH114-12T	1.7	12	60	122	48	28	16	25
20RH114-15T	2.8	15	75	170	75	32	17	30
20RH114-20T	4.2	20	100	185	85	36	25	34
