G80 Lifting Point | Swivel Hoist Ring

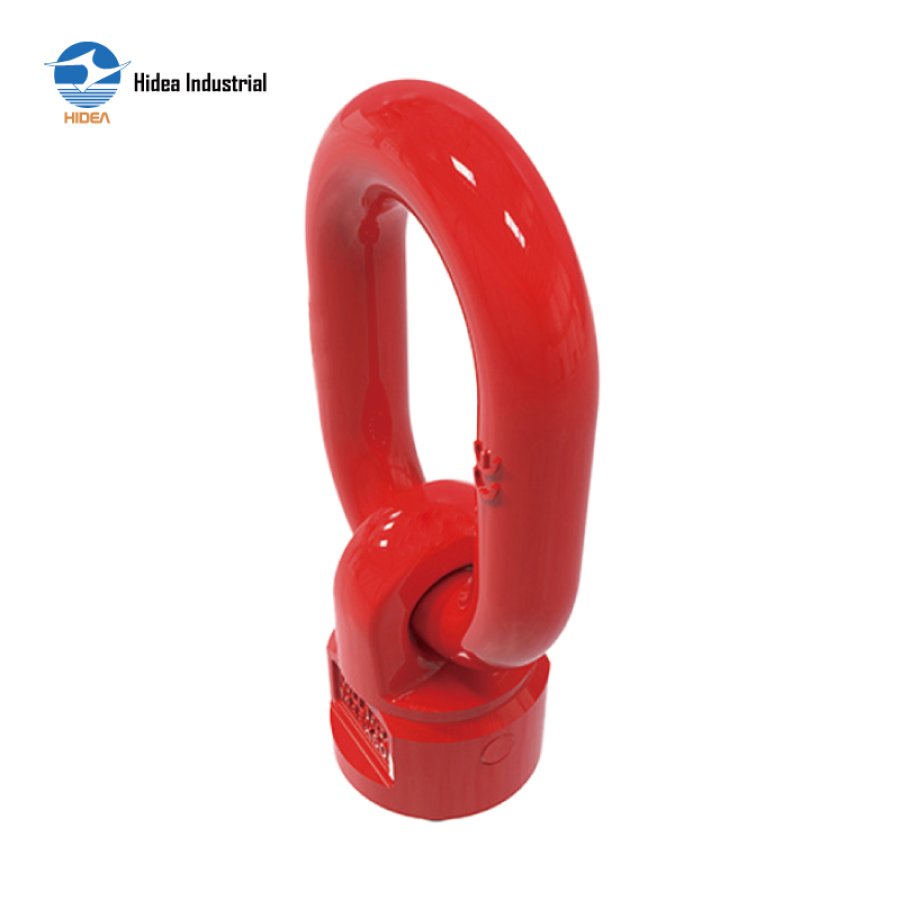

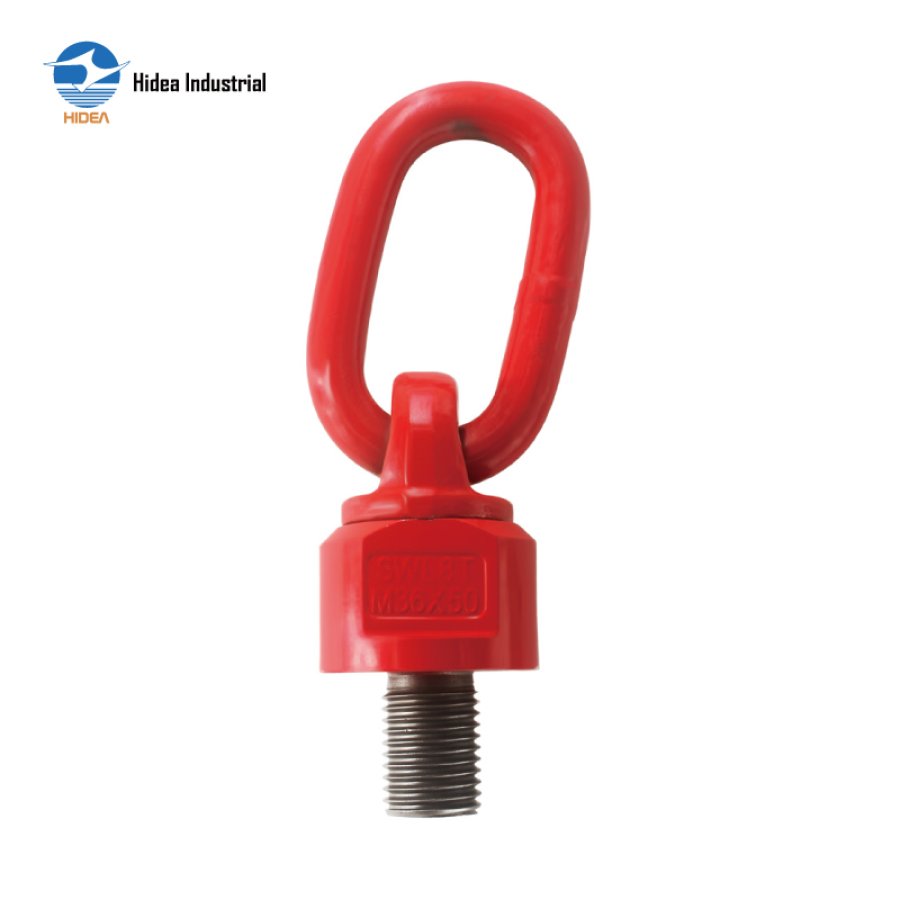

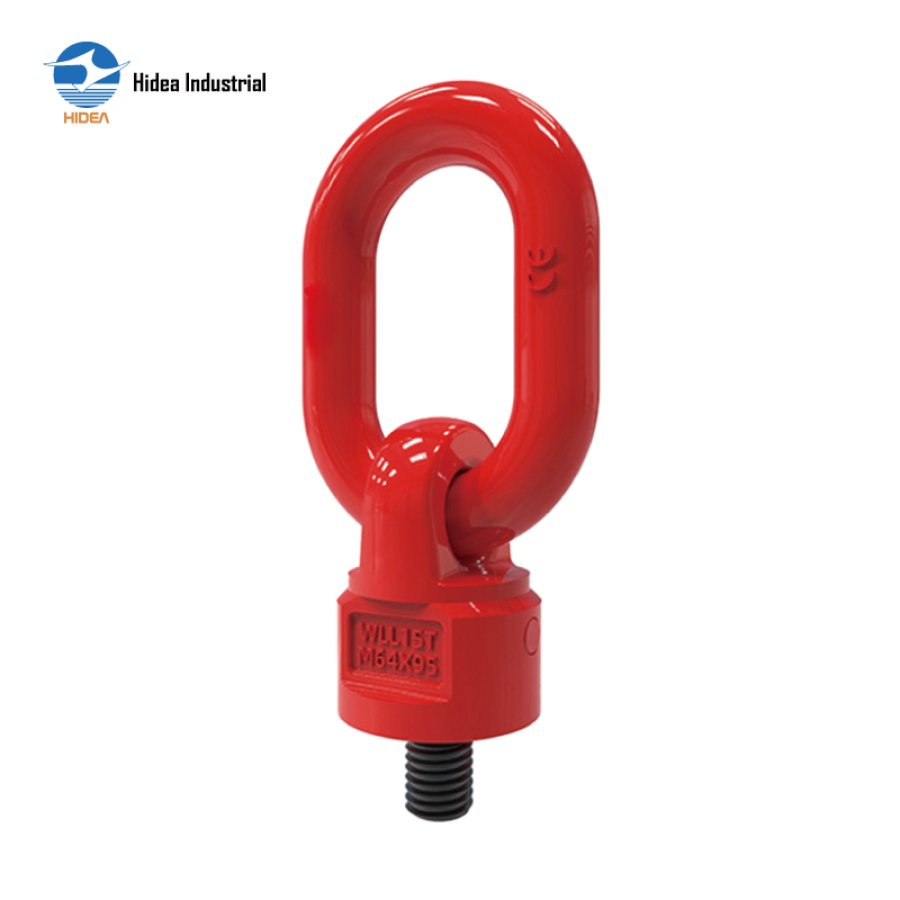

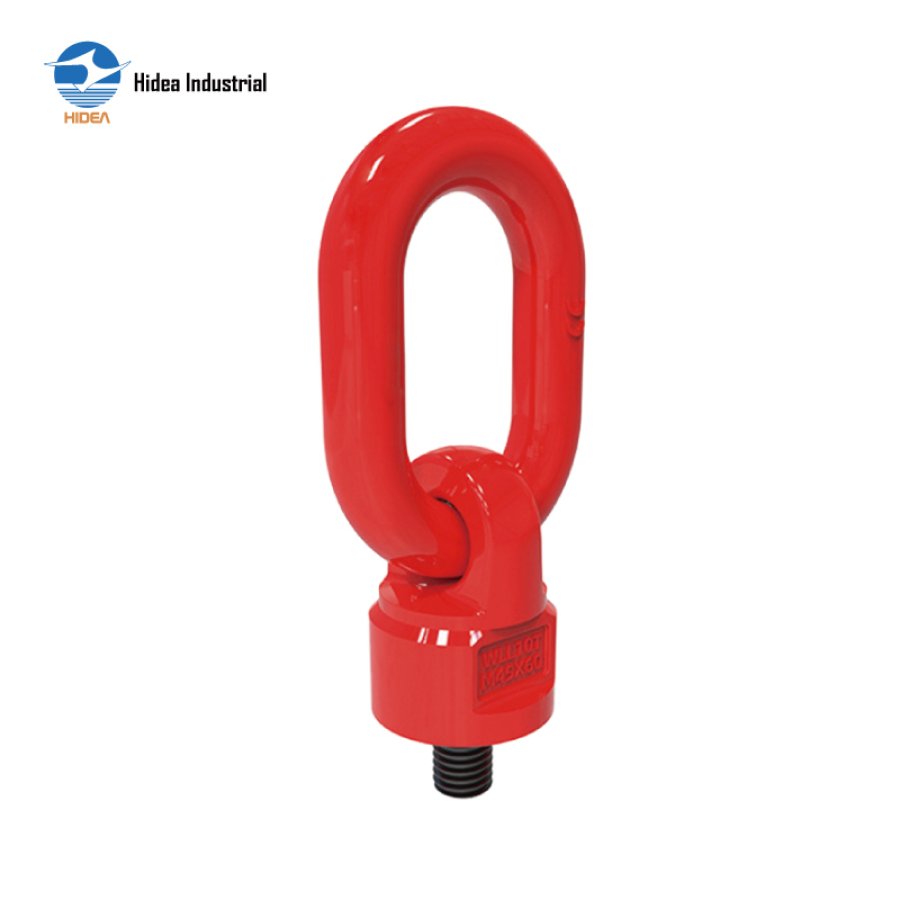

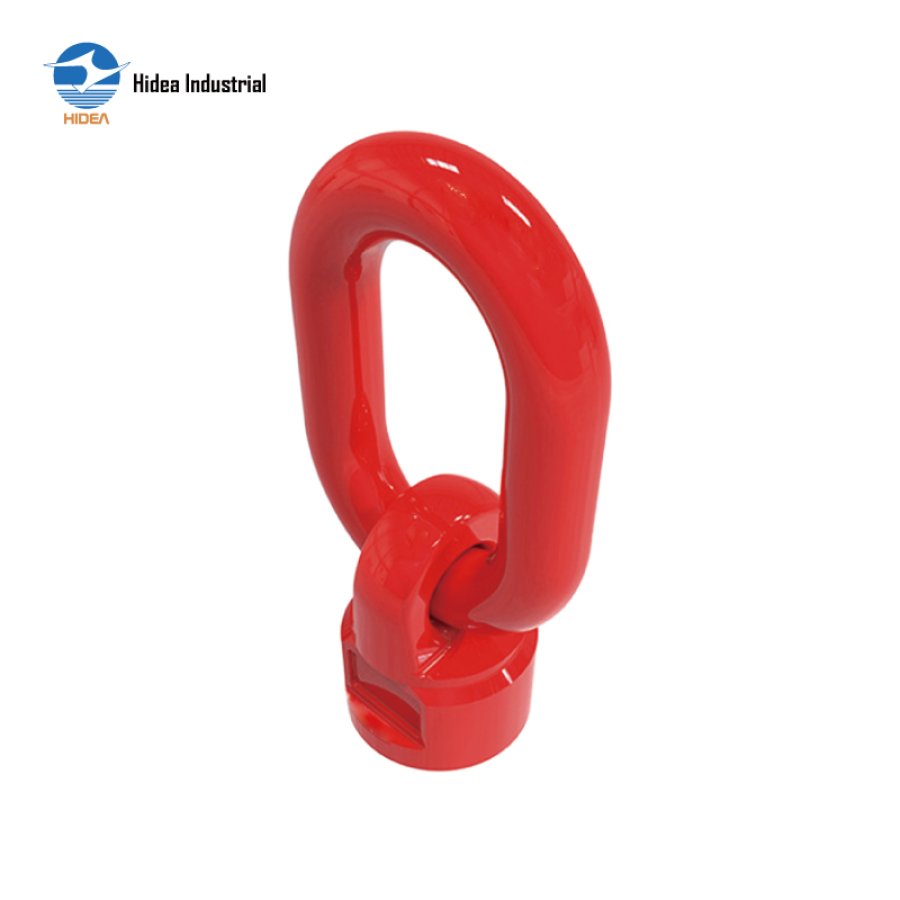

G80 MULTI-DIRECTIONAL LIFTING SWIVEL (M8-M16)

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

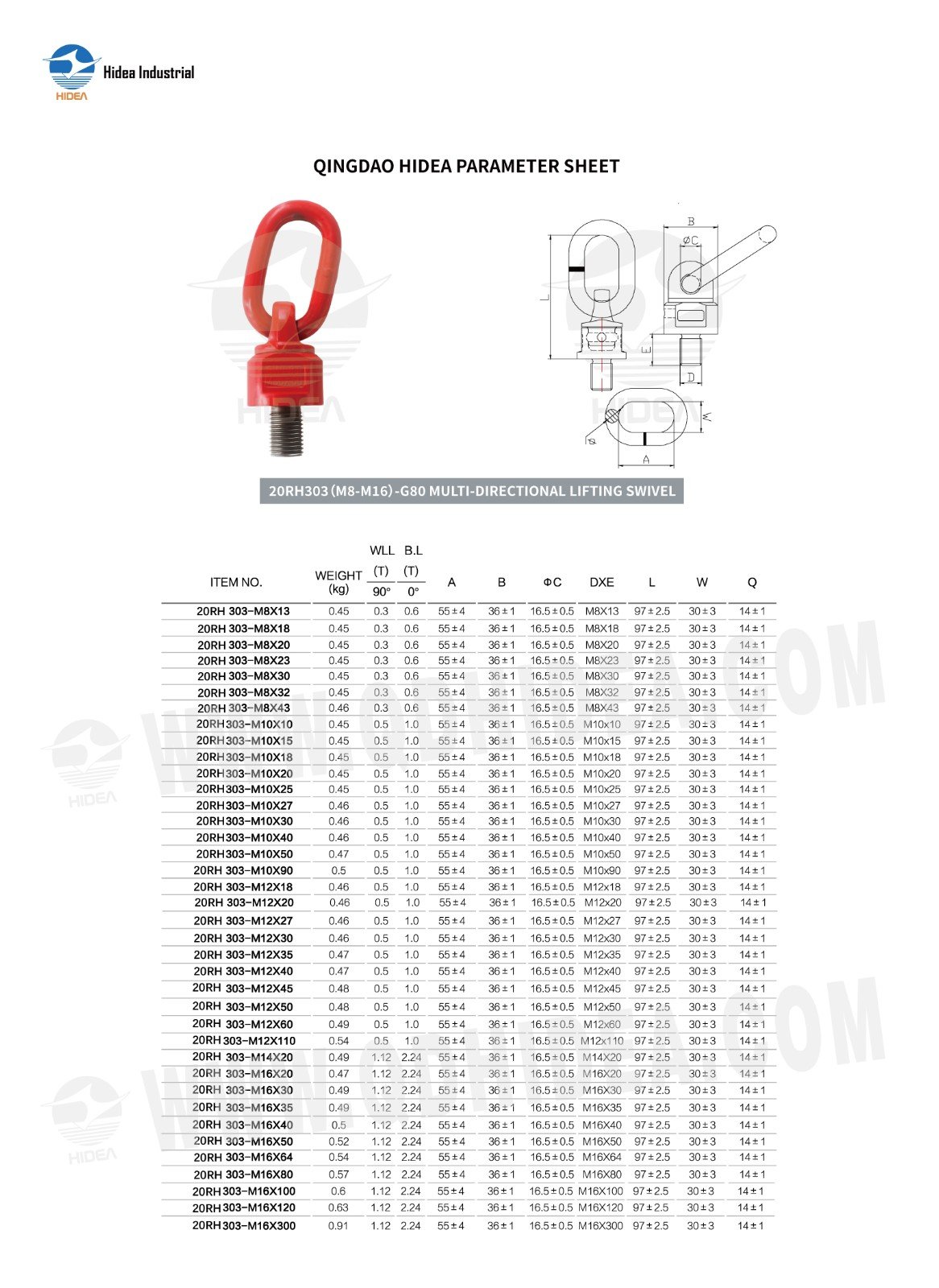

QINGDAO HIDEA PARAMETER SHEET FOR

20RH303(M8-M16)-G80 MUTI-DIRECTIONAL LIFTING SWIVEL

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A	B	ФC	DXE	L	W	Q
ITEM NO.	WEIGHT (kg)	90°	0°	A	B	ФC	DXE	L	W	Q
20RH 303-M8X13	0.45	0.3	0.6	55±4	36±1	16.5±0.5	M8X13	97±2.5	30±3	14±1
20RH 303-M8X18	0.45	0.3	0.6	55±4	36±1	16.5±0.5	M8X18	97±2.5	30±3	14±1
20RH 303-M8X20	0.45	0.3	0.6	55±4	36±1	16.5±0.5	M8X20	97±2.5	30±3	14±1
20RH 303-M8X23	0.45	0.3	0.6	55±4	36±1	16.5±0.5	M8X23	97±2.5	30±3	14±1
20RH 303-M8X30	0.45	0.3	0.6	55±4	36±1	16.5±0.5	M8X30	97±2.5	30±3	14±1
20RH 303-M8X32	0.45	0.3	0.6	55±4	36±1	16.5±0.5	M8X32	97±2.5	30±3	14±1
20RH 303-M8X43	0.46	0.3	0.6	55±4	36±1	16.5±0.5	M8X43	97±2.5	30±3	14±1
20RH303-M10X10	0.45	0.5	1.0	55±4	36±1	16.5±0.5	M10x10	97±2.5	30±3	14±1
20RH303-M10X15	0.45	0.5	1.0	55±4	36±1	16.5±0.5	M10x15	97±2.5	30±3	14±1
20RH303-M10X18	0.45	0.5	1.0	55±4	36±1	16.5±0.5	M10x18	97±2.5	30±3	14±1
20RH303-M10X20	0.45	0.5	1.0	55±4	36±1	16.5±0.5	M10x20	97±2.5	30±3	14±1
20RH303-M10X25	0.45	0.5	1.0	55±4	36±1	16.5±0.5	M10x25	97±2.5	30±3	14±1
20RH303-M10X27	0.46	05	1.0	55±4	36±1	16.5±0.5	M10x27	97±2.5	30±3	14±1
20RH303-M10X30	0.46	0.5	1.0	55±4	36±1	16.5±0.5	M10x30	97±2.5	30±3	14±1
20RH303-M10X40	0.46	0.5	1.0	55±4	36±1	16.5±0.5	M10x40	97±2.5	30±3	14±1
20RH303-M10X50	0.47	0.5	1.0	55±4	36±1	16.5±0.5	M10x50	97±2.5	30±3	14±1
20RH 303-M10X90	0.5	0.5	1.0	55±4	36±1	16.5±0.5	M10x90	97±2.5	30±3	14±1
20RH 303-M12X18	0.46	0.5	1.0	55±4	36±1	16.5±0.5	M12x18	97±2.5	30±3	14±1
20RH 303-M12X20	0.46	0.5	1.0	55±4	36±1	16.5±0.5	M12x20	97±2.5	30±3	14±1
20RH 303-M12X27	0.46	0.5	1.0	55±4	36±1	16.5±0.5	M12x27	97±2.5	30±3	14±1
20RH 303-M12X30	0.46	0.5	1.0	55±4	36±1	16.5±0.5	M12x30	97±2.5	30±3	14±1
20RH 303-M12X35	0.47	0.5	1.0	55±4	36±1	16.5±0.5	M12x35	97±2.5	30±3	14±1
20RH 303-M12X40	0.47	0.5	1.0	55±4	36±1	16.5±0.5	M12x40	97±2.5	30±3	14±1
20RH 303-M12X45	0.48	0.5	1.0	55±4	36±1	16.5±0.5	M12x45	97±2.5	30±3	14±1
20RH 303-M12X50	0.48	0.5	1.0	55±4	36±1	16.5±0.5	M12x50	97±2.5	30±3	14±1
20RH 303-M12X60	0.49	0.5	1.0	55±4	36±1	16.5±0.5	M12x60	97±2.5	30±3	14±1
20RH303-M12X110	0.54	0.5	1.0	55±4	36±1	16.5±0.5	M12x110	97±2.5	30±3	14±1
20RH 303-M14X20	0.49	1.12	2.24	55±4	36±1	16.5±0.5	M14X20	97±2.5	30±3	14±1
20RH 303-M16X20	0.47	1.12	224	55±4	36±1	16.5±0.5	M16X20	97±2.5	30±3	14±1
20RH 303-M16X30	0.49	1.12	2.24	55±4	36±1	16.5±0.5	M16X30	97±2.5	30±3	14±1
20RH 303-M16X35	0.49	1.12	2.24	55±4	36±1	16.5±0.5	M16X35	97±2.5	30±3	14±1
20RH 303-M16X40	0.5	1.12	2.24	55±4	36±1	16.5±0.5	M16X40	97±2.5	30±3	14±1
20RH 303-M16X50	0.52	1.12	2.24	55±4	36±1	16.5±0.5	M16X50	97±2.5	30±3	14±1
20RH 303-M16X64	0.54	1.12	224	55±4	36±1	16.5±0.5	M16X64	97±2.5	30±3	14±1
20RH 303-M16X80	0.57	1.12	2.24	55±4	36±1	16.5±0.5	M16X80	97±2.5	30±3	14±1
20RH303-M16X100	0.6	1.12	2.24	55±4	36±1	16.5±0.5	M16X100	97±2.5	30±3	14±1
20RH303-M16X120	0.63	1.12	2.24	55±4	36±1	16.5±0.5	M16X120	97±25	30±3	14±1
20RH303-M16X300	0.91	1.12	2.24	55±4	36±1	16.5±0.5	M16X300	97±2.5	30±3	14±1
