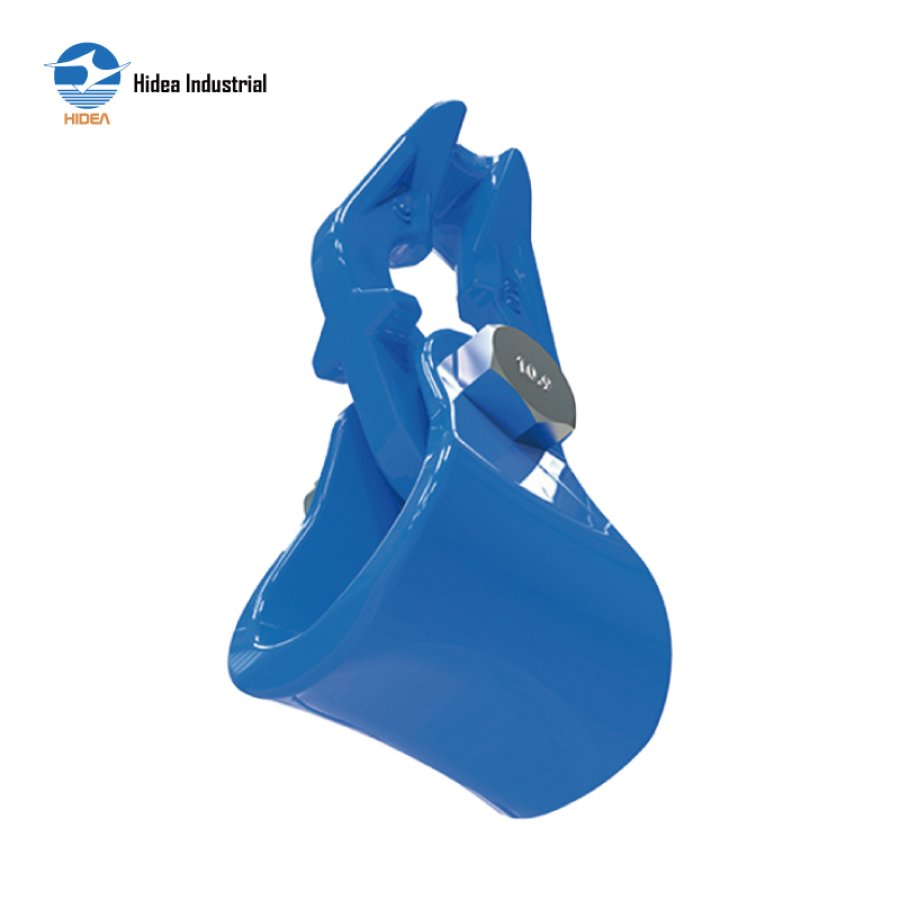

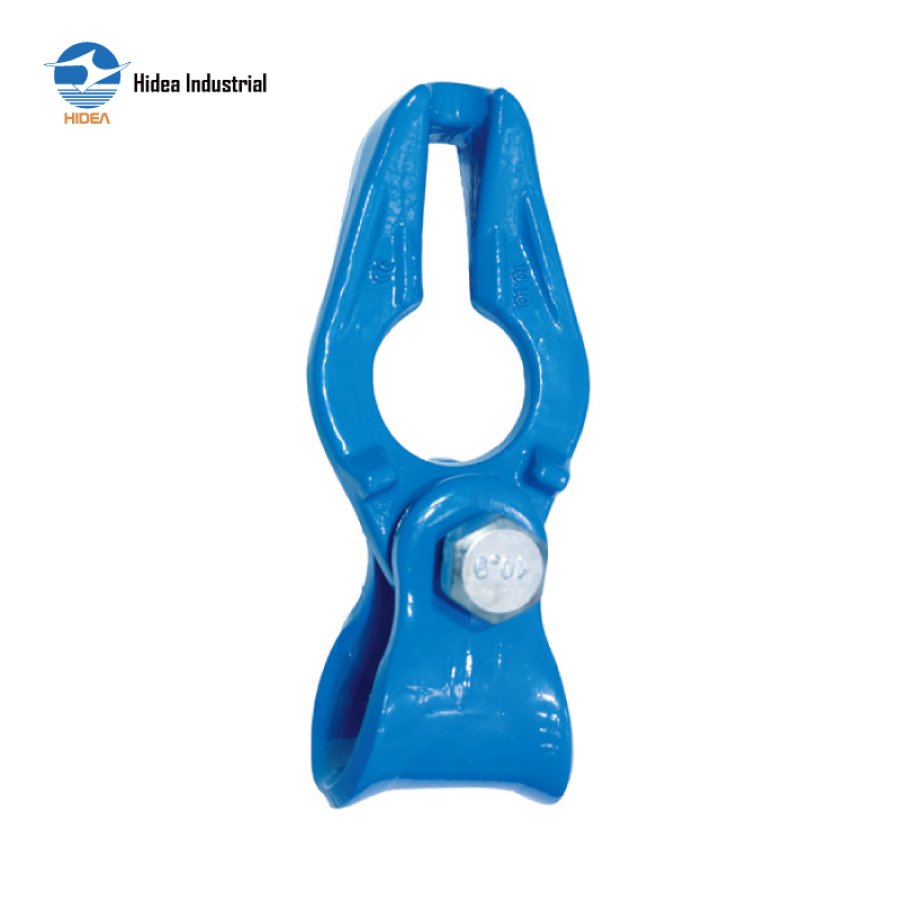

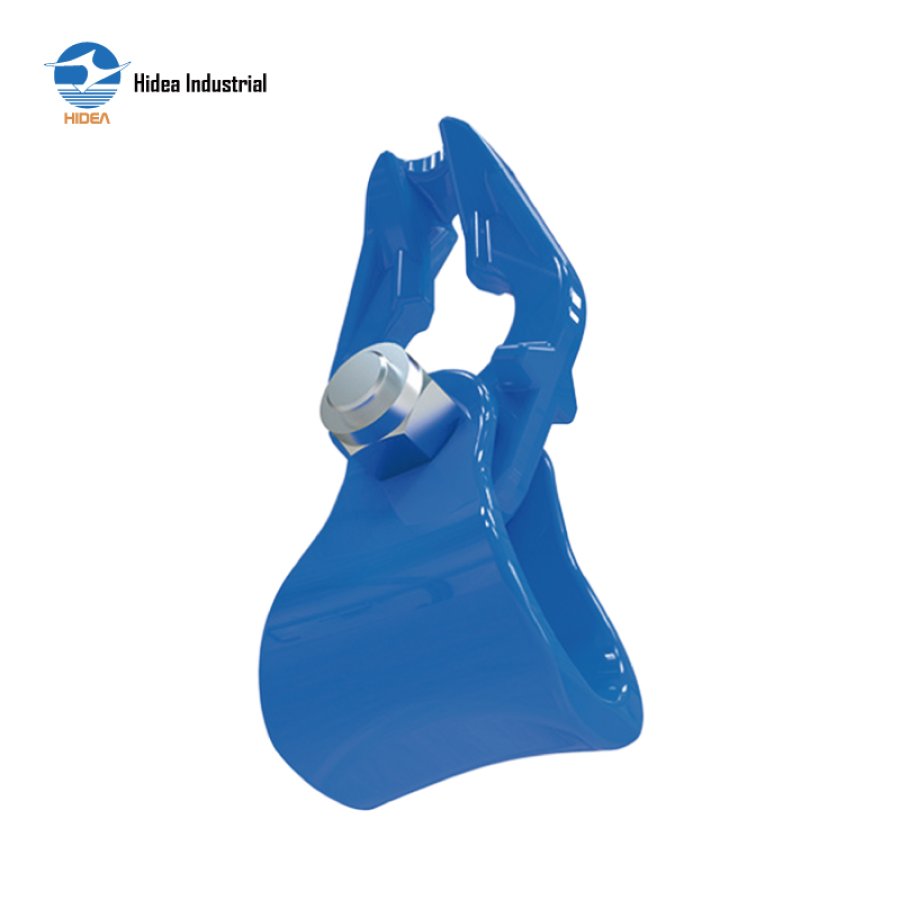

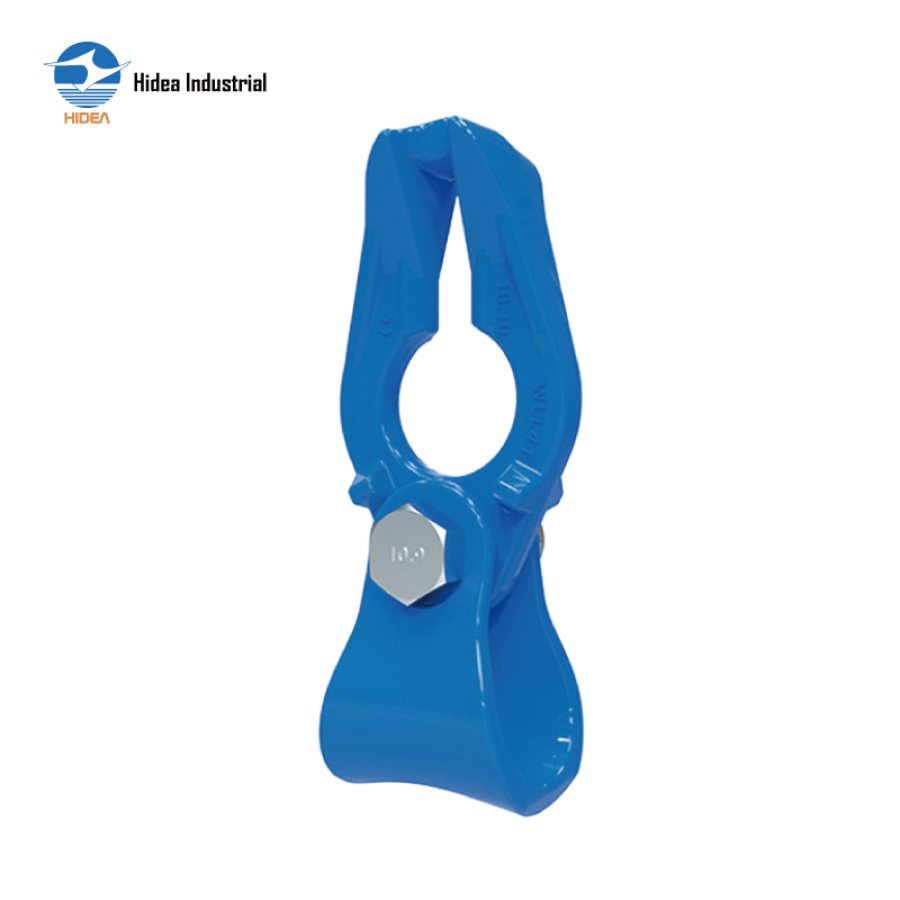

Hidea Grade 100 Chain-Rope Connector for Lifting, Transport & Rigging

G100 CHAIN-ROPE CONNECTOR

Forged super alloy steel-Quenched andTempered
25% strongerthan G80
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Color code: Blue RAL5015

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH7301-G100 CHAIN-ROPE CONNECTOR

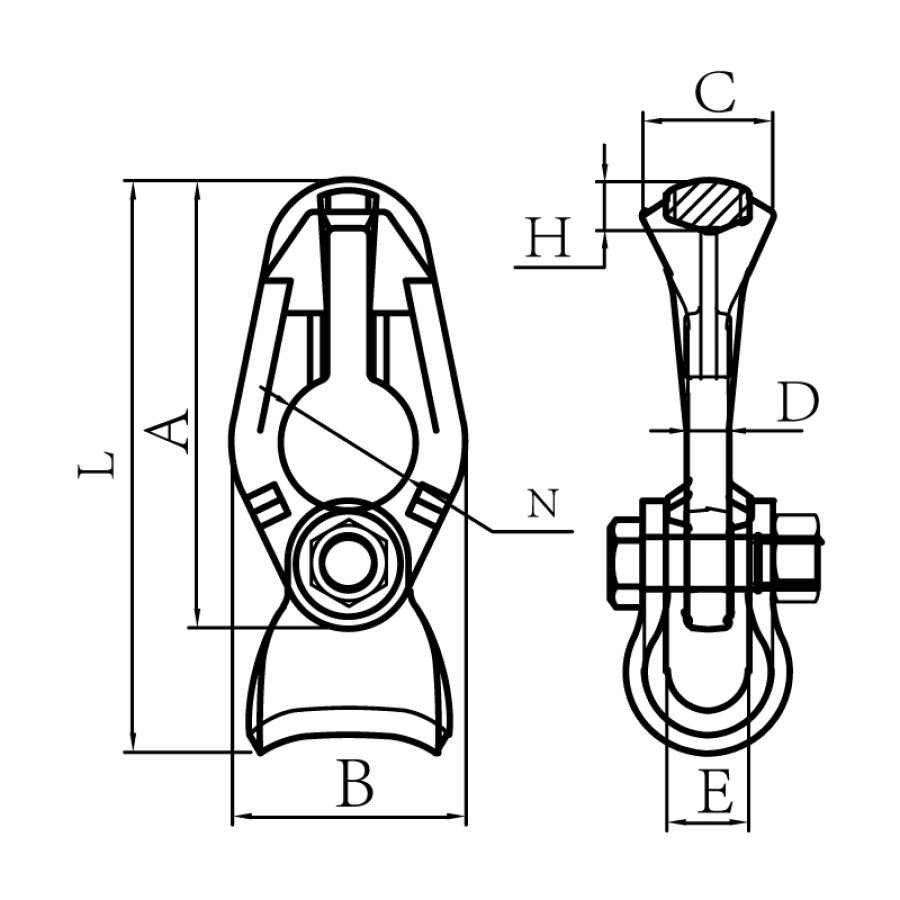

ITEM CODE	WEIGHT	WLL	B.L	A±1	B±1.5	C±1	D±1	E±1	Φ±1	H±1	L±3
ITEM CODE	(KG)	(T)	(T)	A±1	B±1.5	C±1	D±1	E±1	Φ±1	H±1	L±3
20RH7301-7/8	0.63	2	10	111	70	32	10	20	33.5	12	142
20RH7301-10	1.3	4	16	143	87.5	41	11.5	20	34	11.8	194.5
