Hidea Grade 100 Omega Link for Secure Lifting Solutions

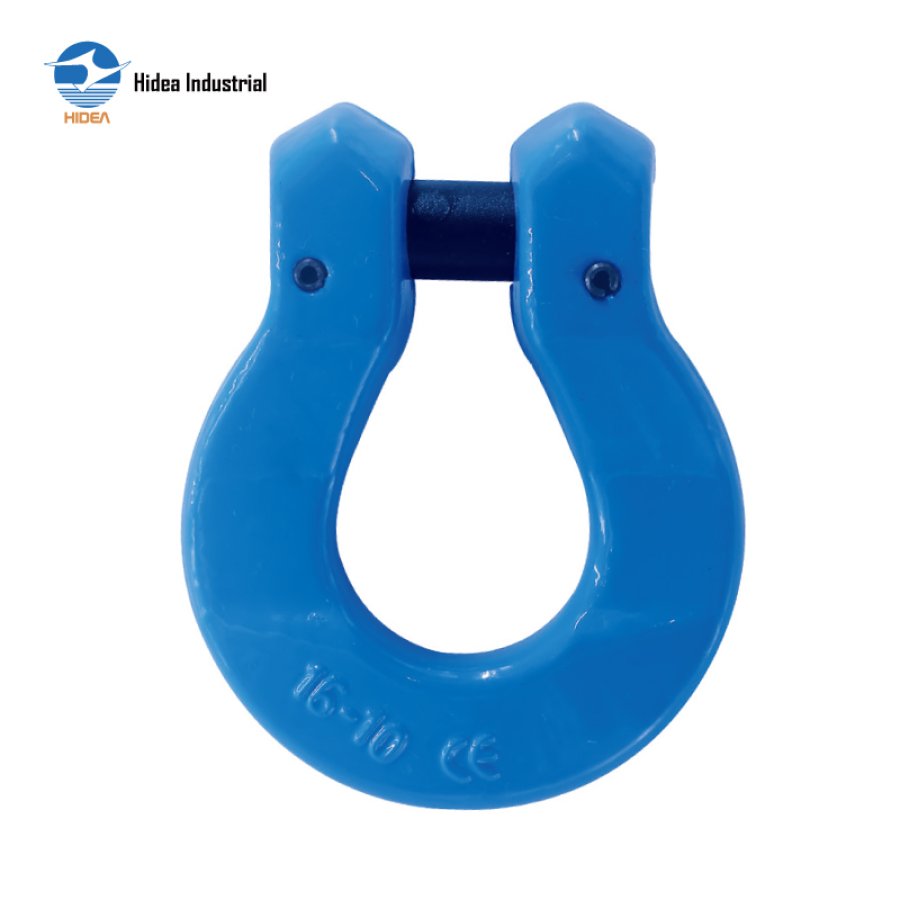

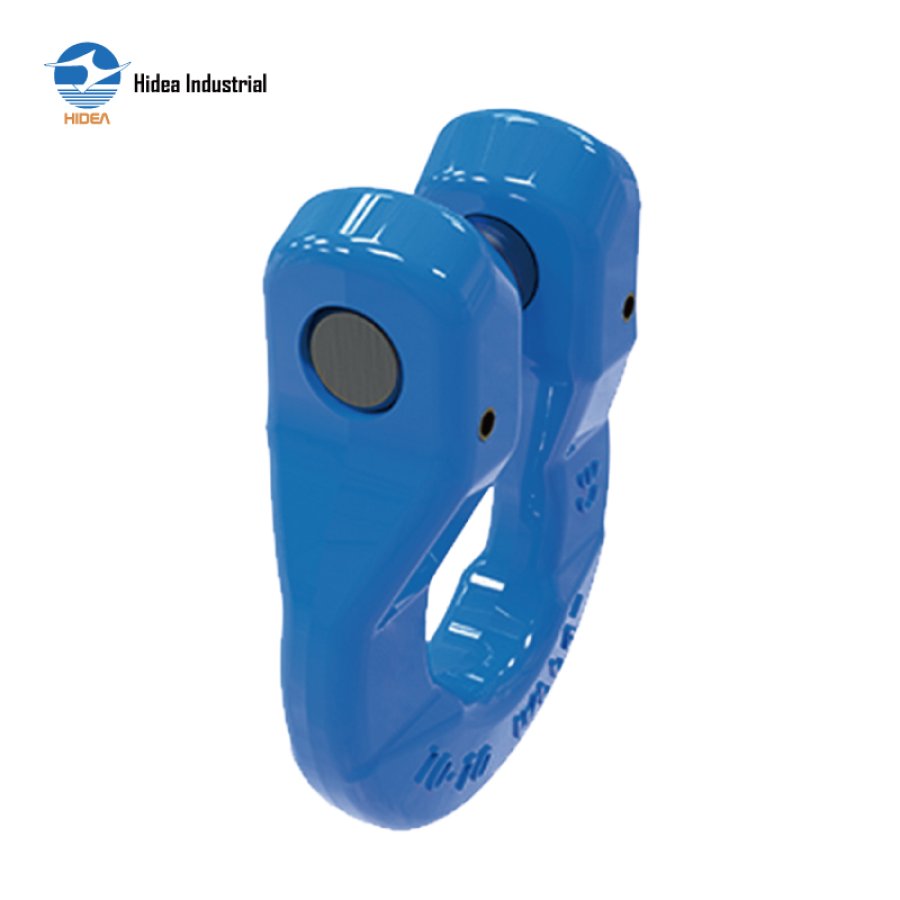

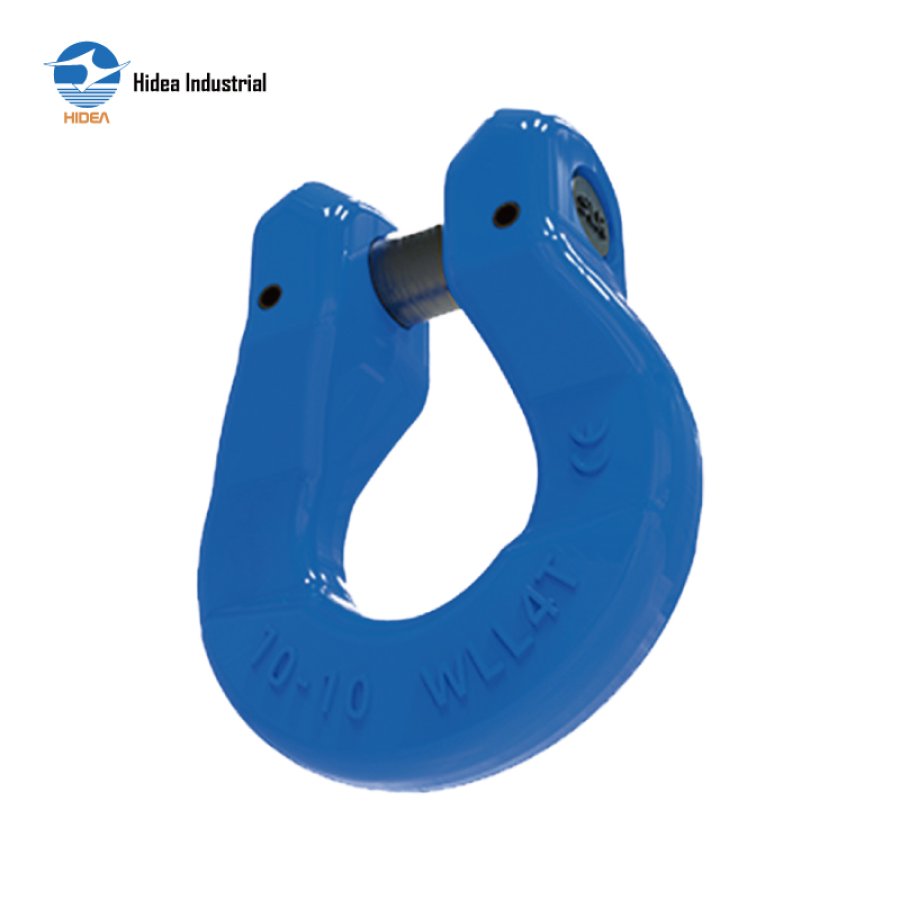

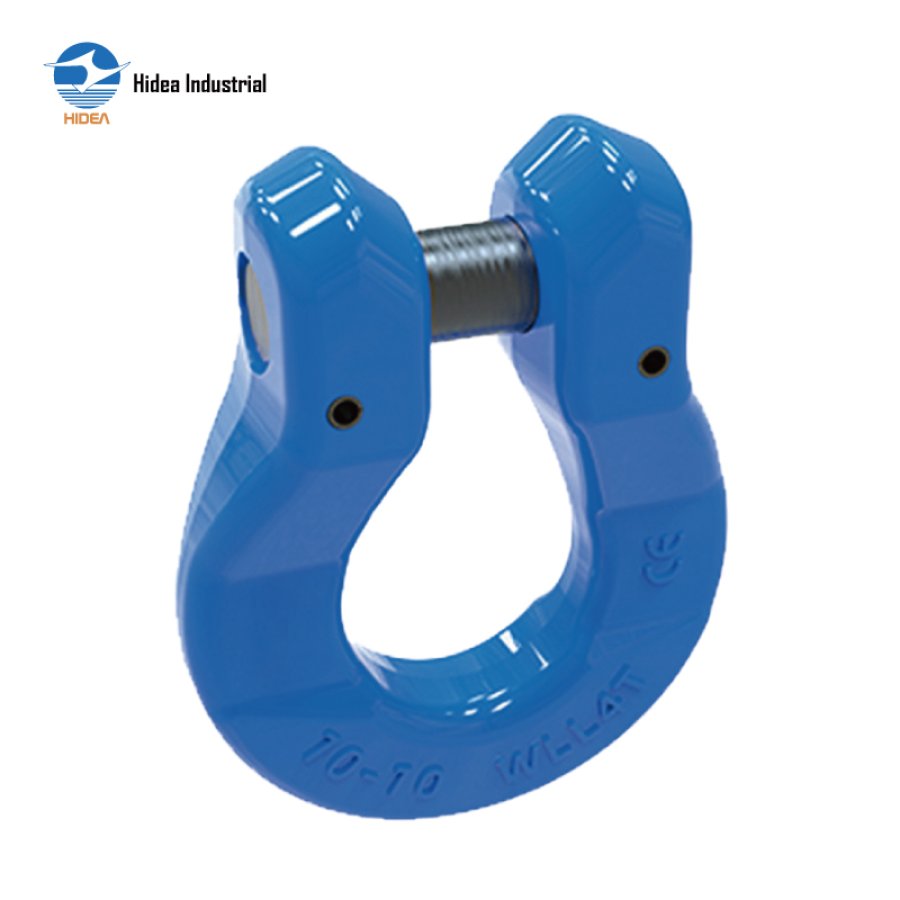

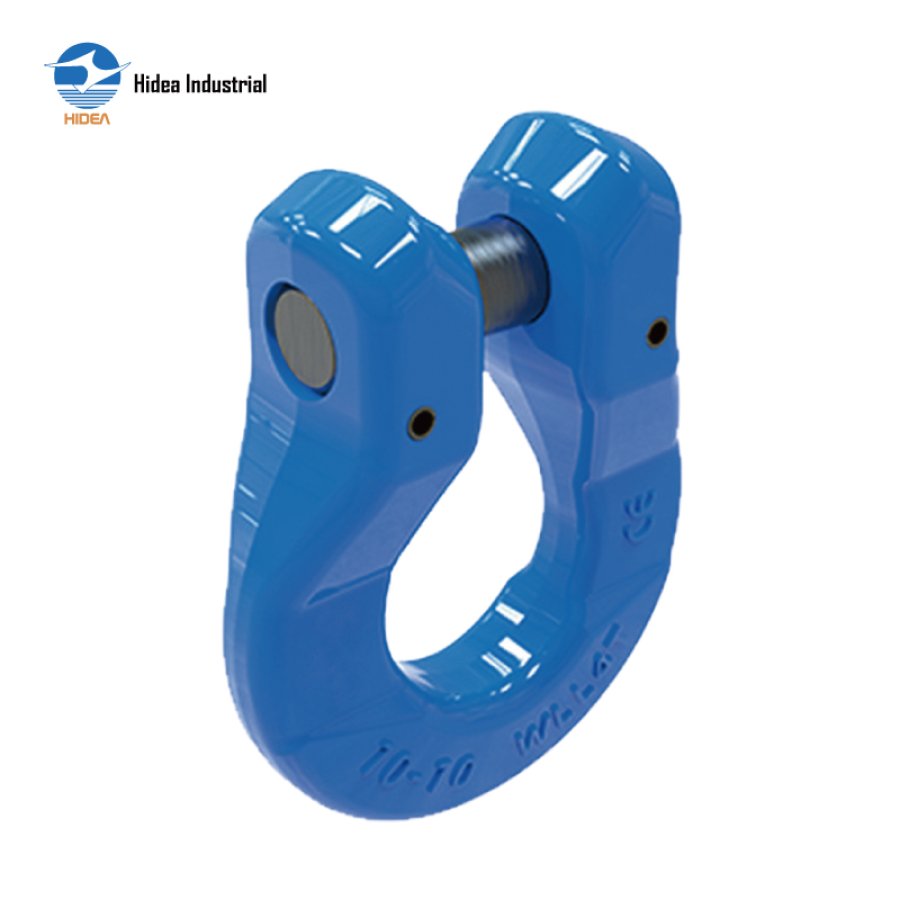

G100 OMEGA LINK

Forged super alloy steel-Quenched and Tempered
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Color code: Blue RAL5015
In accordance with EN 1677-1 and ASME B30.26
Suitable to use with Grade 80/100 chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH7201-G100 OMEGA LINK

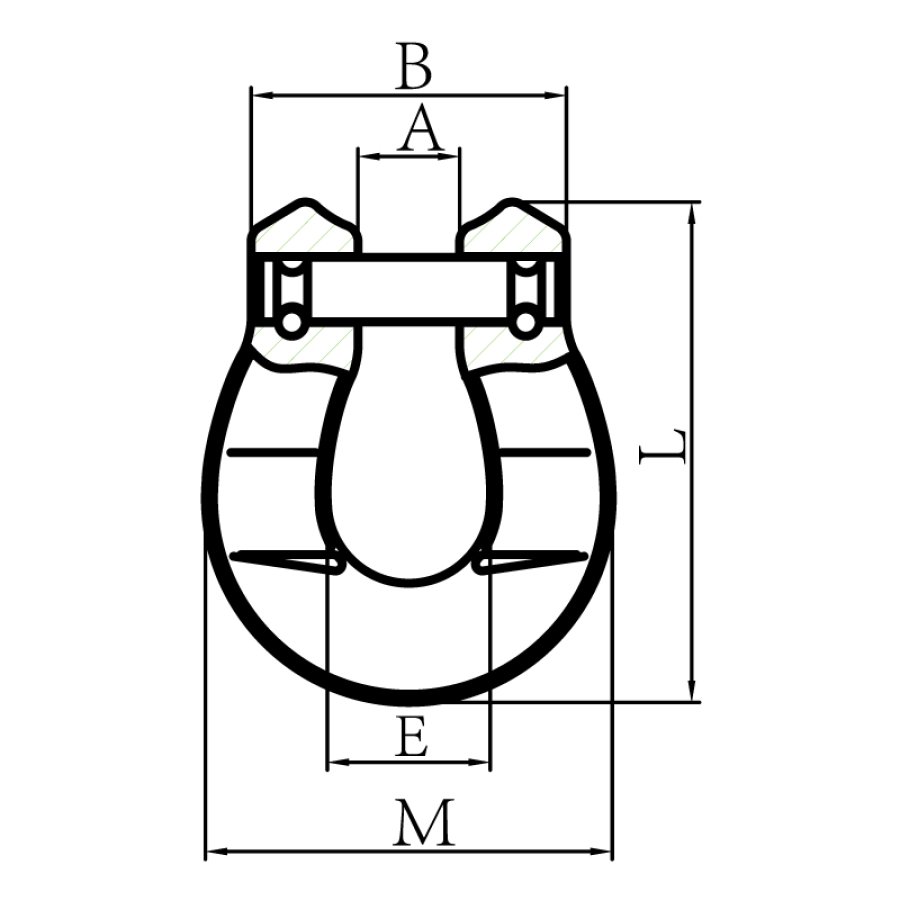

ITEM CODE	WEIGHT	WLL	B.L	A±1	B±2	E±1.5	M±2	L±2
ITEM CODE	(kg)	(T)	(T)	A±1	B±2	E±1.5	M±2	L±2
20RH7201-06	0.12	1.4	5.6	8.5	32.5	20	44	55
20RH7201-08	0.27	2.5	10	10.5	42	24	60	73.5
20RH7201-10	0.44	4	16	12.5	48.5	31	70	90
20RH7201-13	0.89	6.7	26.8	16	60	38.8	90	109
20RH7201-16	1.77	10	40	19	75.5	51	112	141.5
