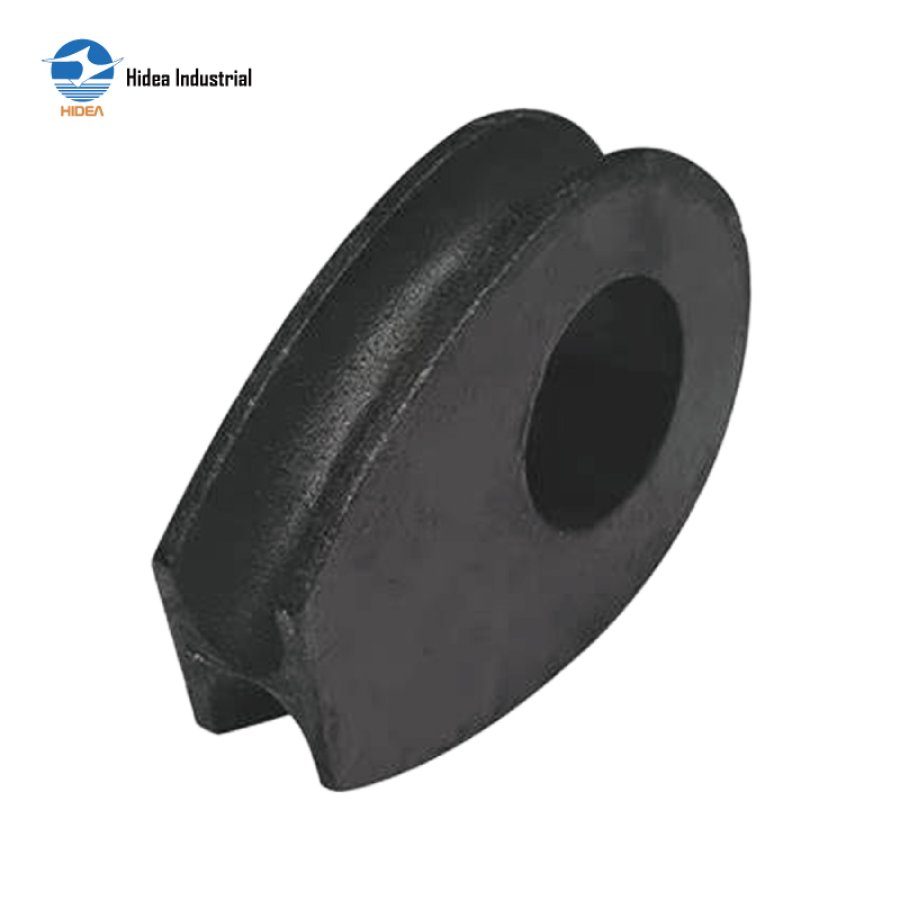

Hidea DIN 3091 Casted Solid Wire Rope Thimble – Secure and Reliable Cable Protection

DIN3091 CASTED SOLID WIRE ROPE THIMBLE

Material casted malleable steel or ductile iron
Casted, Machined & polished
Surface Self-Colored, color painted, Hot Dip Galv. Or as requested
Temperature range -20°C up to +200°C

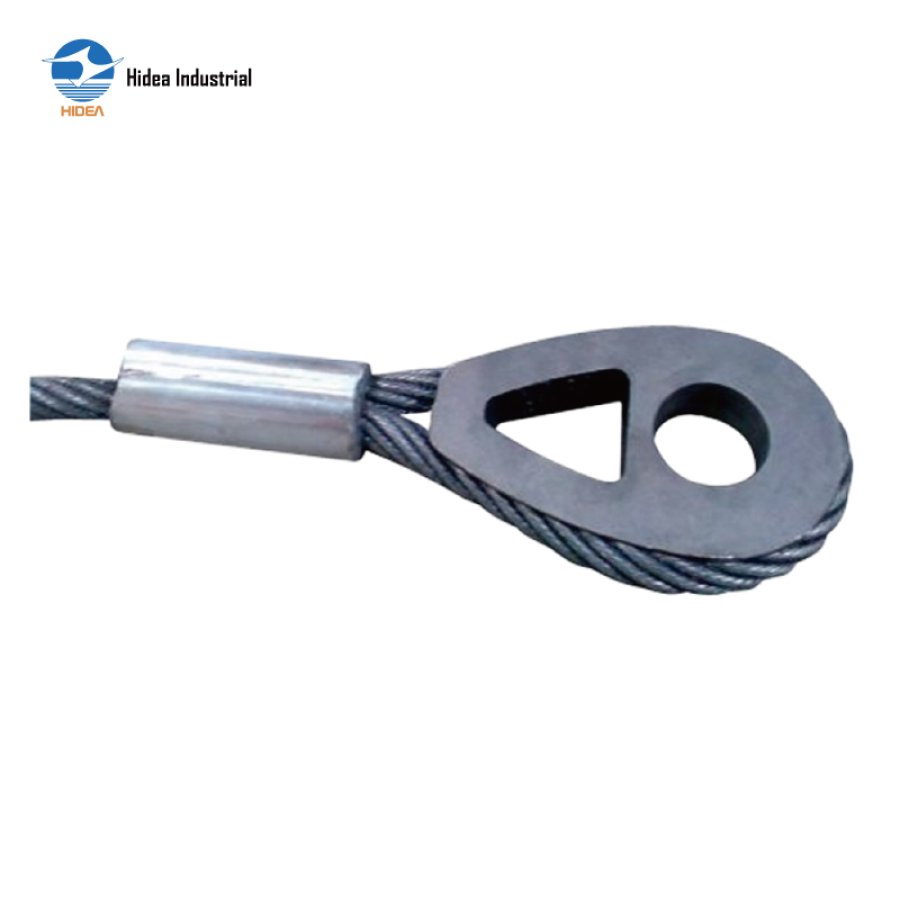

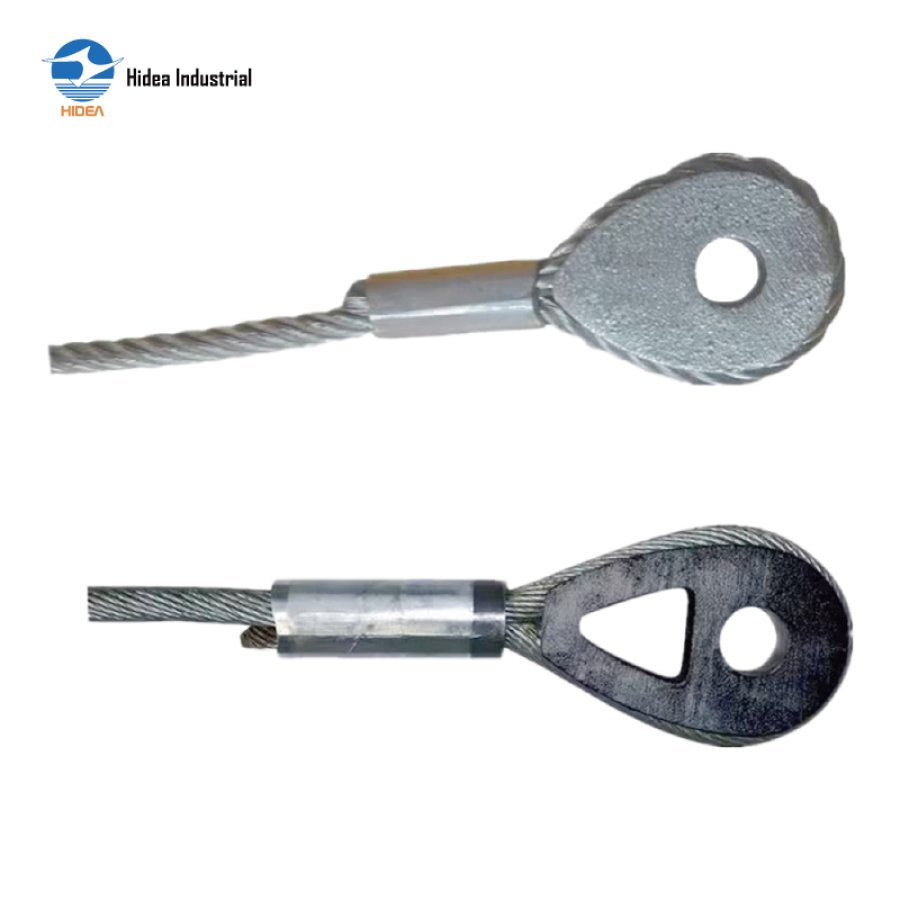

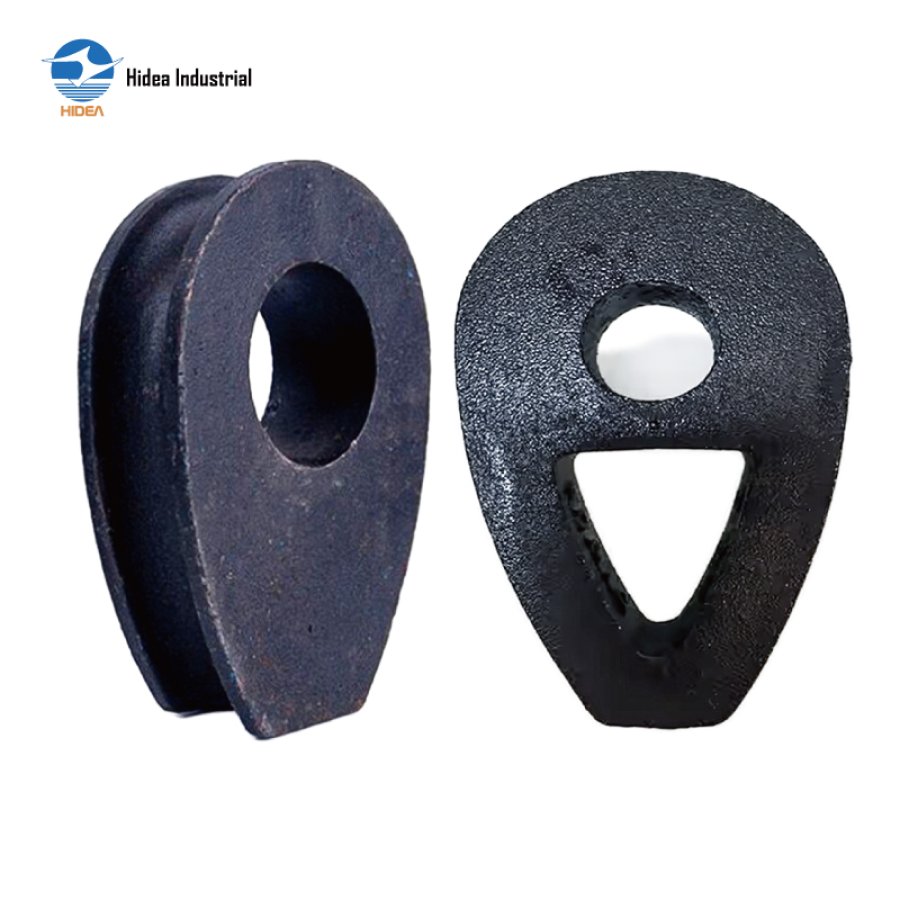

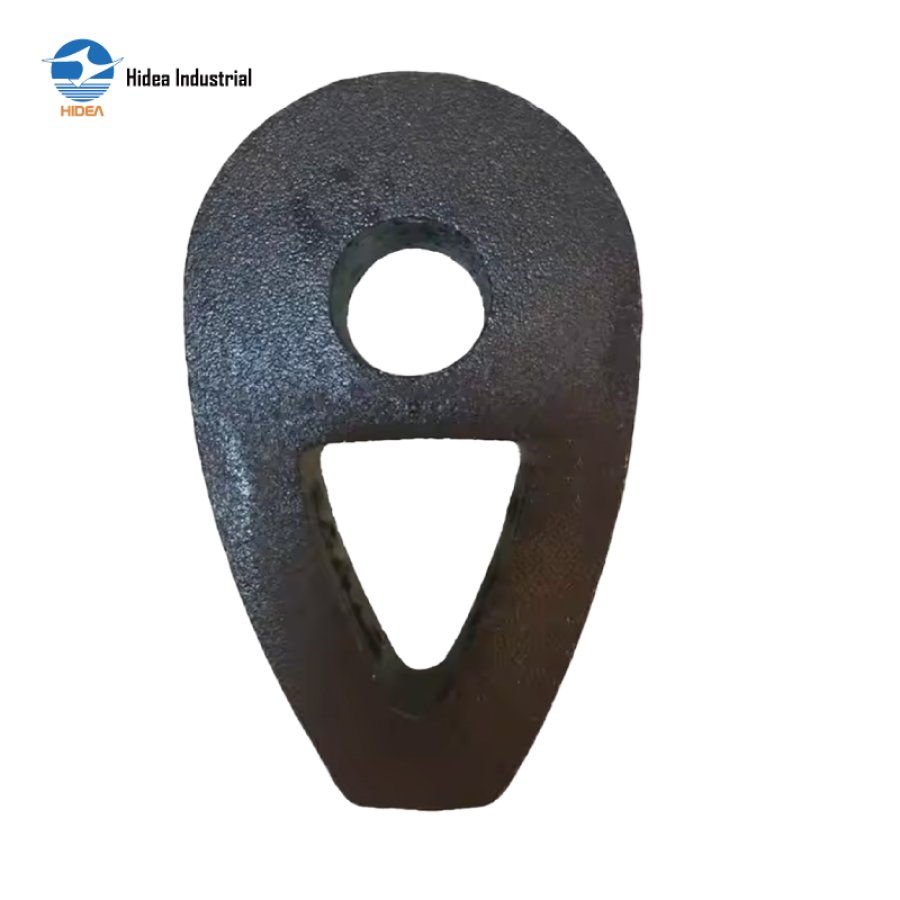

K5 Casted Solid Heavy duty Din3091 wire rope thimbles with or without lightening Delta hole

Inquire Now

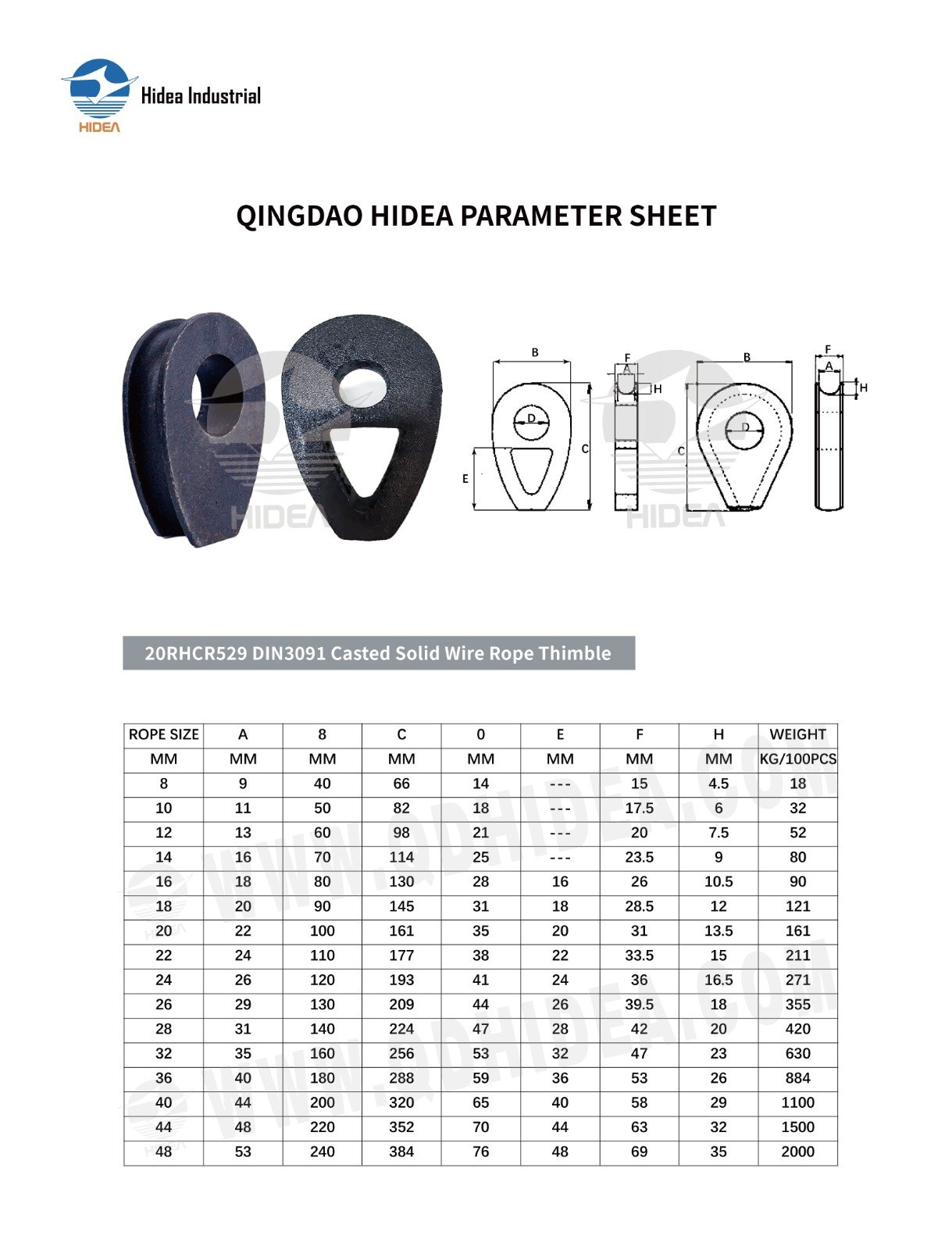

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR529 DIN3091 Casted Solid Wire Rope Thimble

ROPE SIZE	A	8	C	0	E	F	H	WEIGHT
MM	MM	MM	MM	MM	MM	MM	MM	KG/100PCS
8	9	40	66	14	---	15	4.5	18
10	11	50	82	18	---	17.5	6	32
12	13	60	98	21	---	20	7.5	52
14	16	70	114	25	---	23.5	9	80
16	18	80	130	28	16	26	10.5	90
18	20	90	145	31	18	28.5	12	121
20	22	100	161	35	20	31	13.5	161
22	24	110	177	38	22	33.5	15	211
24	26	120	193	41	24	36	16.5	271
26	29	130	209	44	26	39.5	18	355
28	31	140	224	47	28	42	20	420
32	35	160	256	53	32	47	23	630
36	40	180	288	59	36	53	26	884
40	44	200	320	65	40	58	29	1100
44	48	220	352	70	44	63	32	1500
48	53	240	384	76	48	69	35	2000
