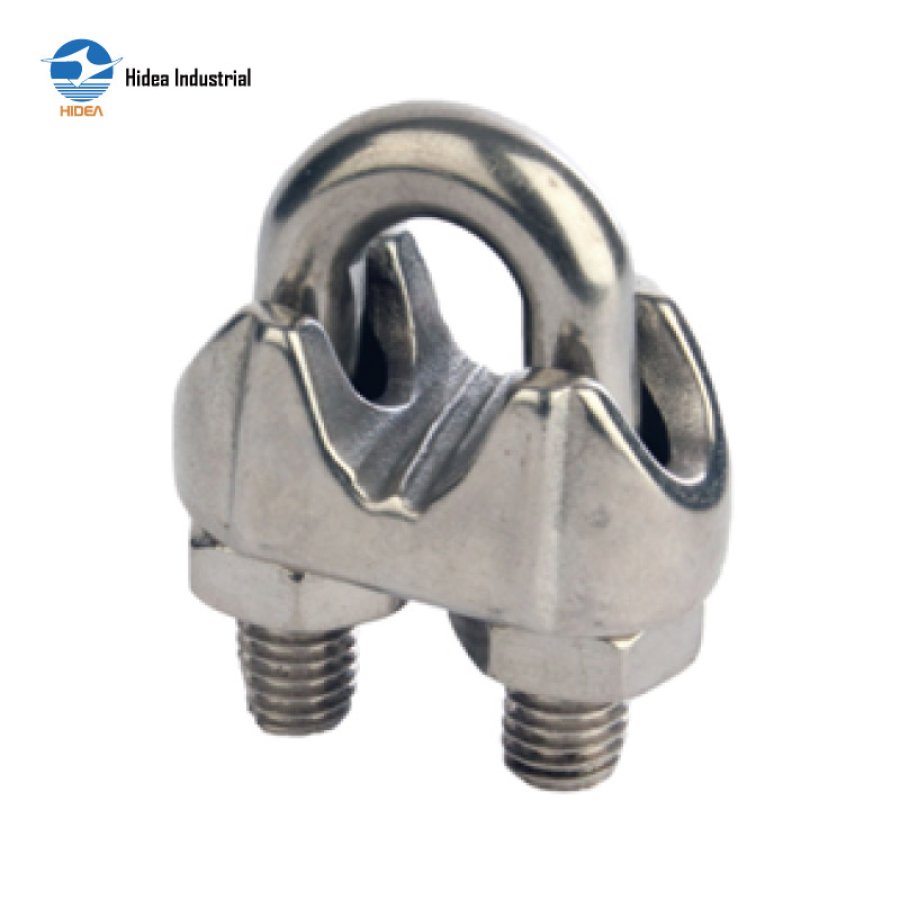

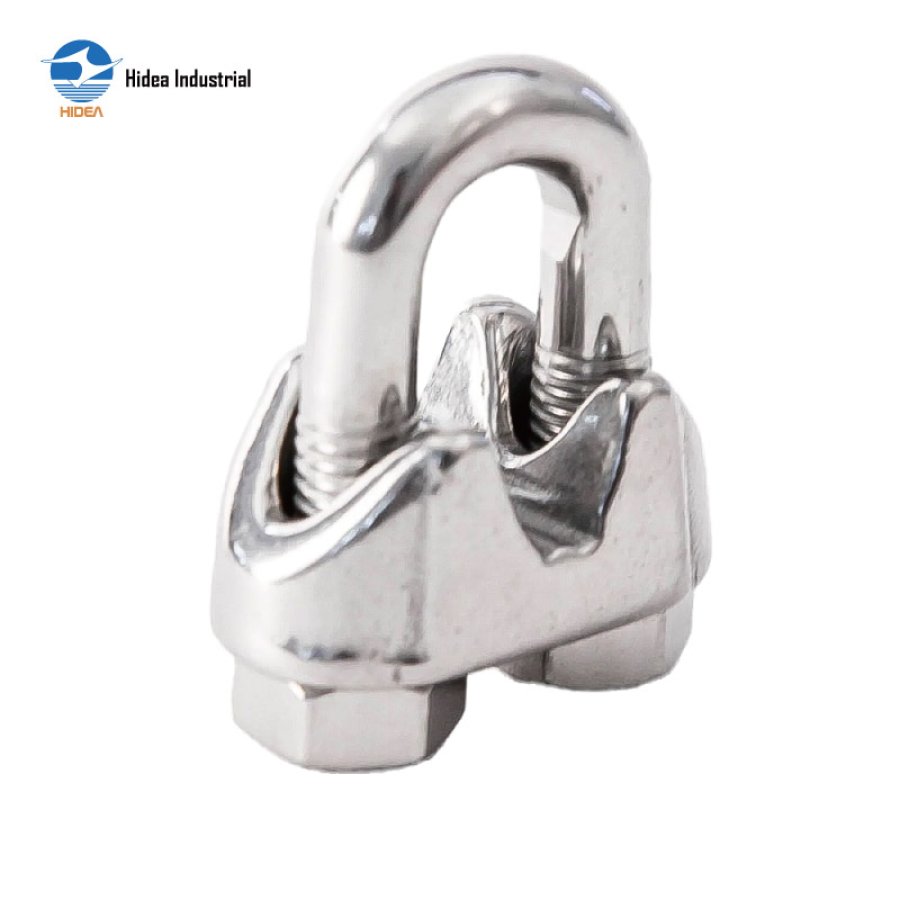

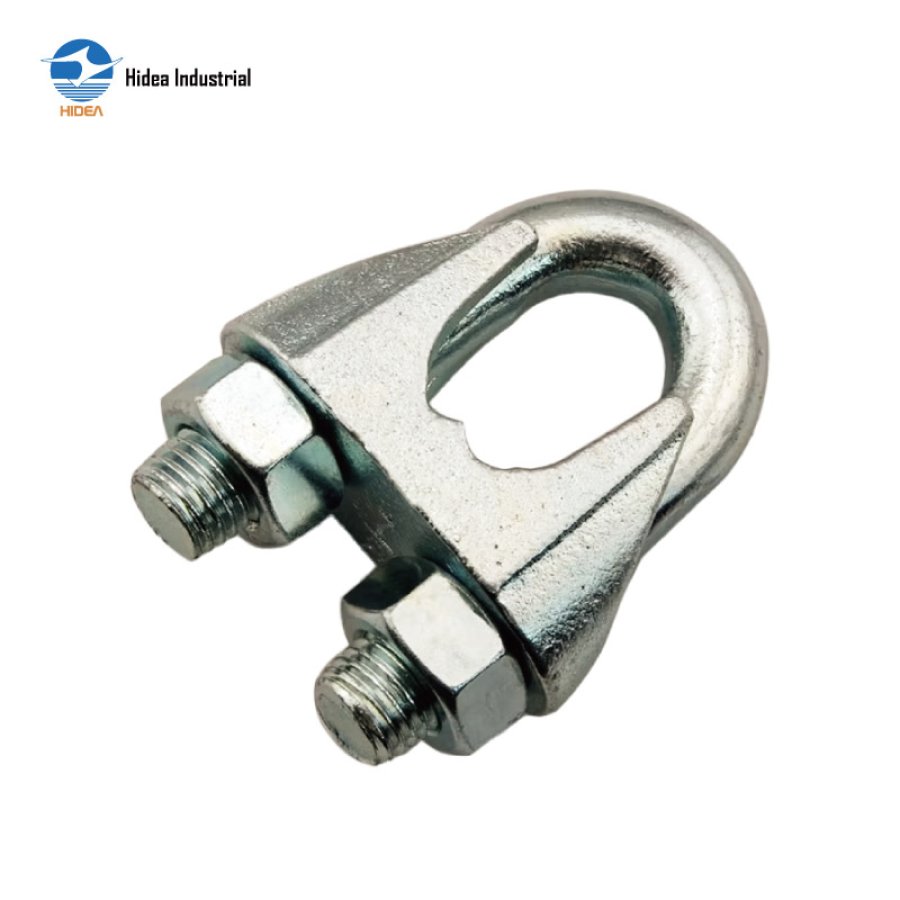

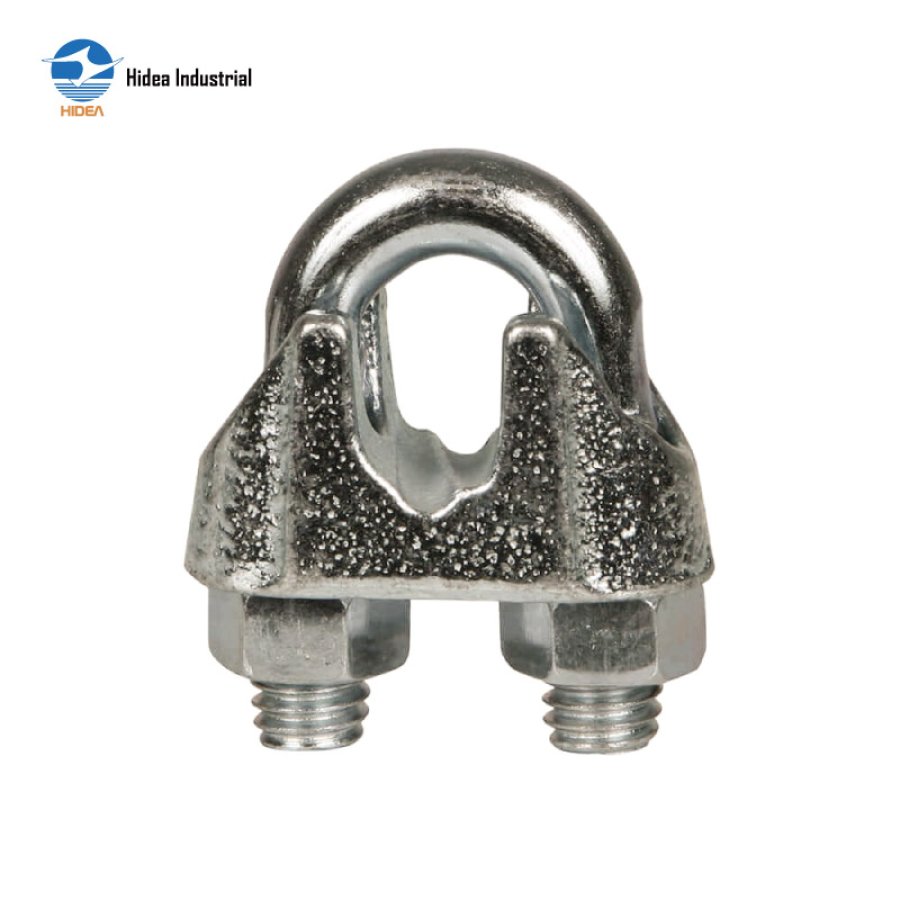

HIDEA Malleable Wire Rope Grip – Durable Solution for Wire Rope Ends

US MALLEABLE TYPE WIRE ROPE CLIP

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

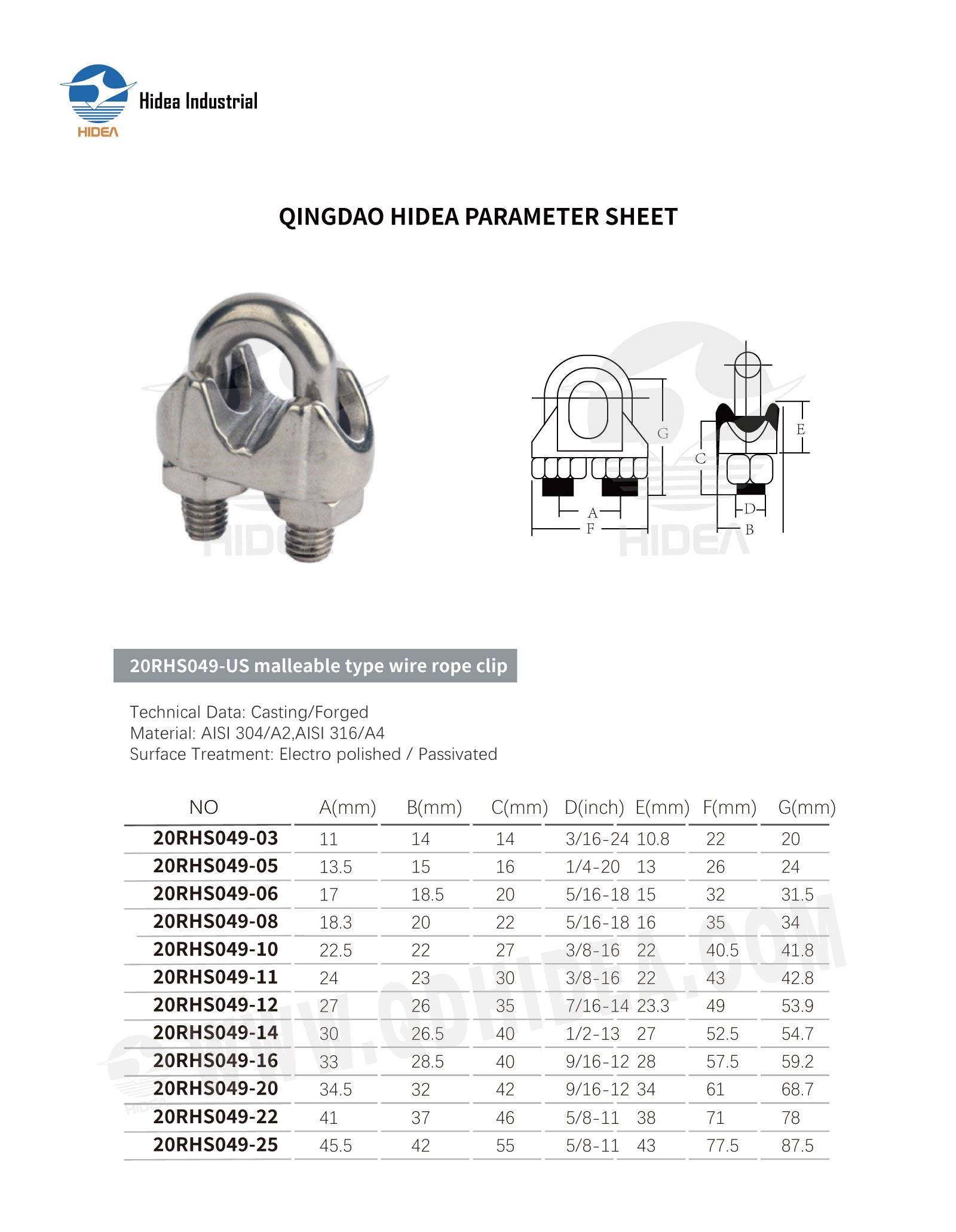

QINGDAO HIDEA PARAMETER SHEET FOR

20RHSO49-US malleable type wire rope clip

NO	A(mm)	B(mm)	C(mm)	D(inch) E(mm)	F(mm)	G(mm)
20RHS049-03	11	14	14	3/16-24 10.8	22	20
20RHS049-05	13.5	15	16	1/4-20 13	26	24
20RHS049-06	17	18.5	20	5/16-18 15	32	31.5
20RHS049-08	18.3	20	22	5/16-18 16	35	34
20RHS049-10	22.5	22	27	3/8-16 22	40.5	41.8
20RHS049-11	24	23	30	3/8-16 22	43	42.8
20RHS049-12	27	26	35	7/16-14 23.3	49	53.9
20RHS049-14	30	26.5	40	1/2-13 27	52.5	54.7
20RHS049-16	33	28.5	40	9/16-12 28	57.5	59.2
20RHS049-20	34.5	32	42	9/16-12 34	61	68.7
20RHS049-22	41	37	46	5/8-11 38	71	78
20RHS049-25	45.5	42	55	5/8-11 43	77.5	87.5
