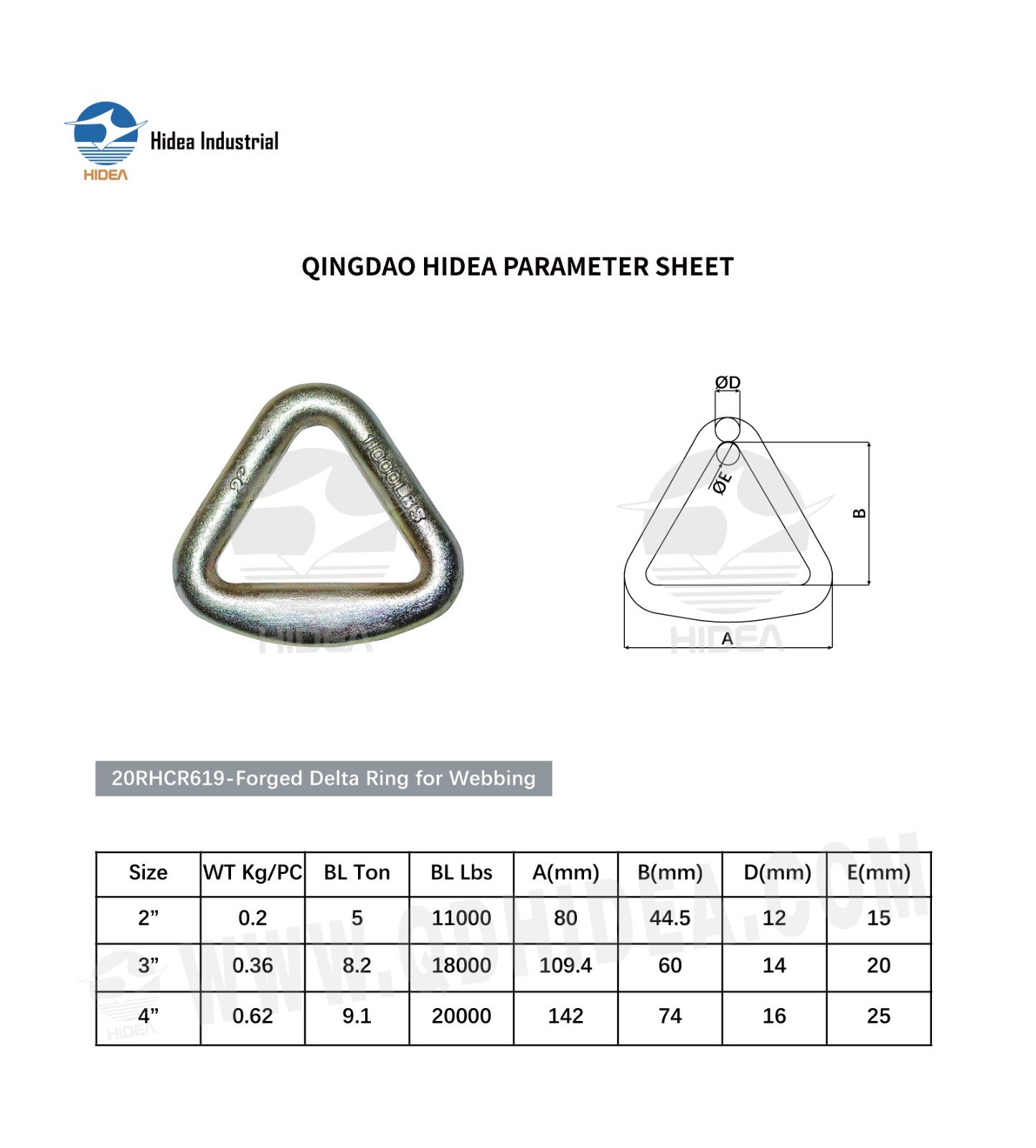

QINGDAO HIDEA PARAMETER SHEET FOR

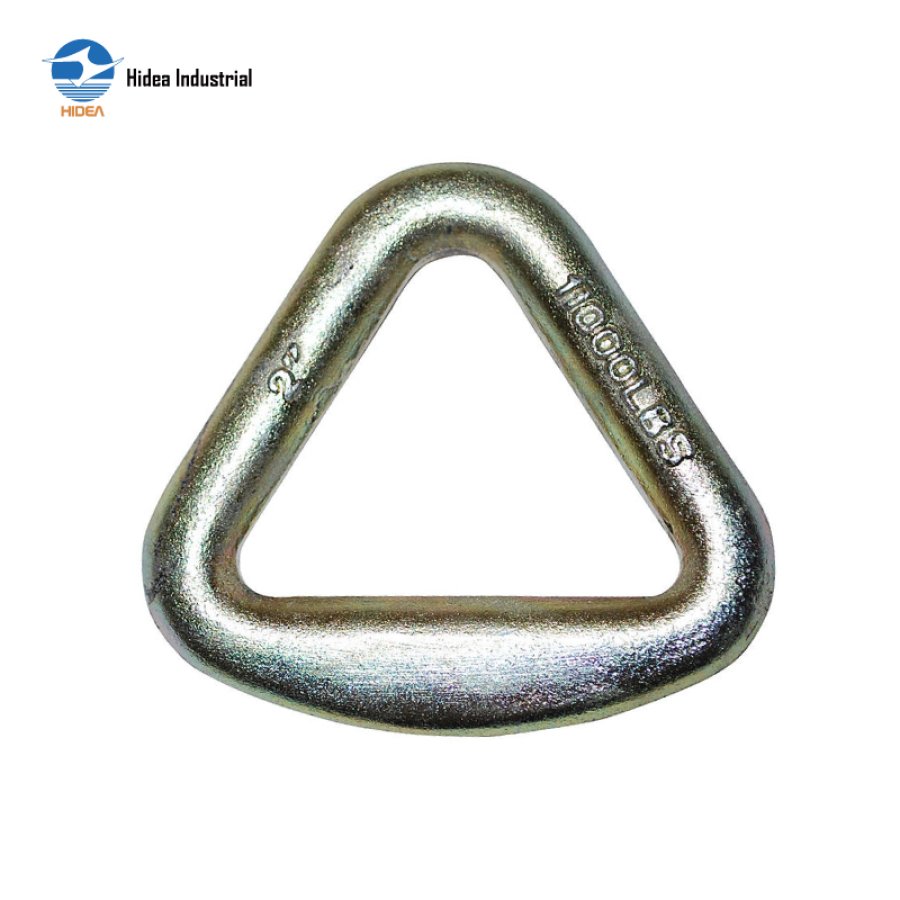

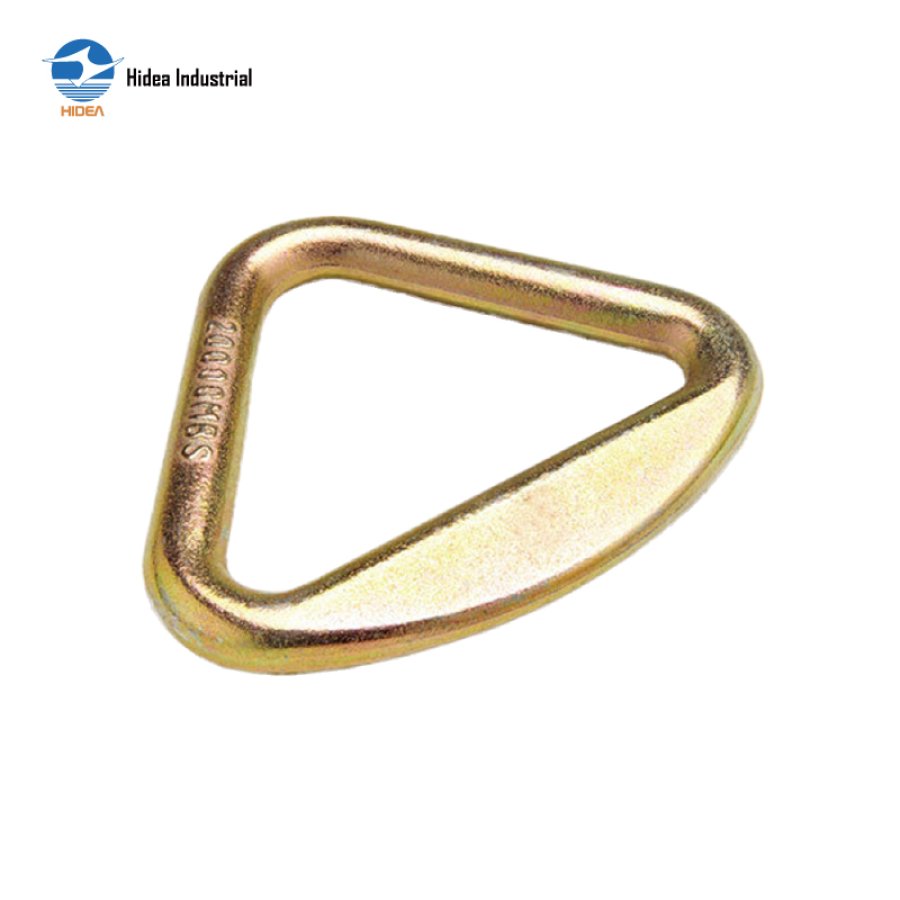

20RHCR619-Forged Delta Ring for Webbing
| Size | WT Kg/PC | BL Ton | BL Lbs | A(mm) | B(mm) | D(mm) | E(mm) | |
| 2” | 0.2 | 5 | 11000 | 80 | 44.5 | 12 | 15 | |
| 3" | 0.36 | 8.2 | 18000 | 109.4 | 60 | 14 | 20 | |
| 4" | 0.62 | 9.1 | 20000 | 142 | 74 | 16 | 25 | |
Inquire Now
-
