Hidea Grade 80 Eye Self-Locking Safety Hook with Grip for Safe and Secure Cargo Lifting

G80 EYE SELF-LOCKING SAFETY HOOK WITH GRIP

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

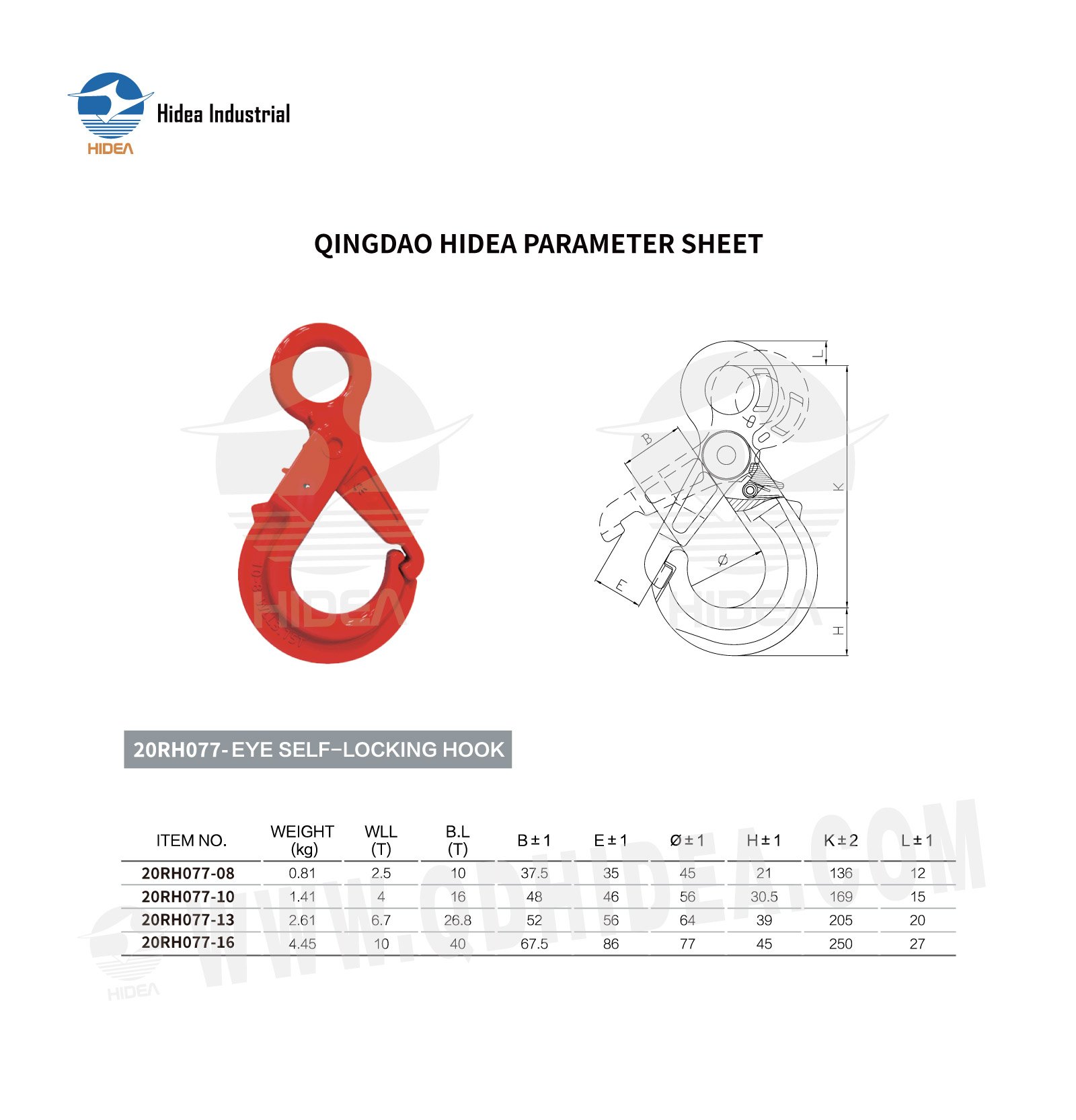

QINGDAO HIDEA PARAMETER SHEET FOR

20RH077-EYE SELF-LOCKING HOOK

ITEM NO	WEIGHT (kg)	WLL (T)	B.L (T)	B±1	E±1	Ø±1	H±1	K±2	L±1
20RH077-08	0.81	2.5	10	37.5	35	45	21	136	12
20RH077-10	1.41	4	16	48	46	56	30.5	169	15
20RH077-13	2.61	6.7	26.8	52	56	64	39	205	20
20RH077-16	4.45	10	40	67.5	86	77	45	250	27
