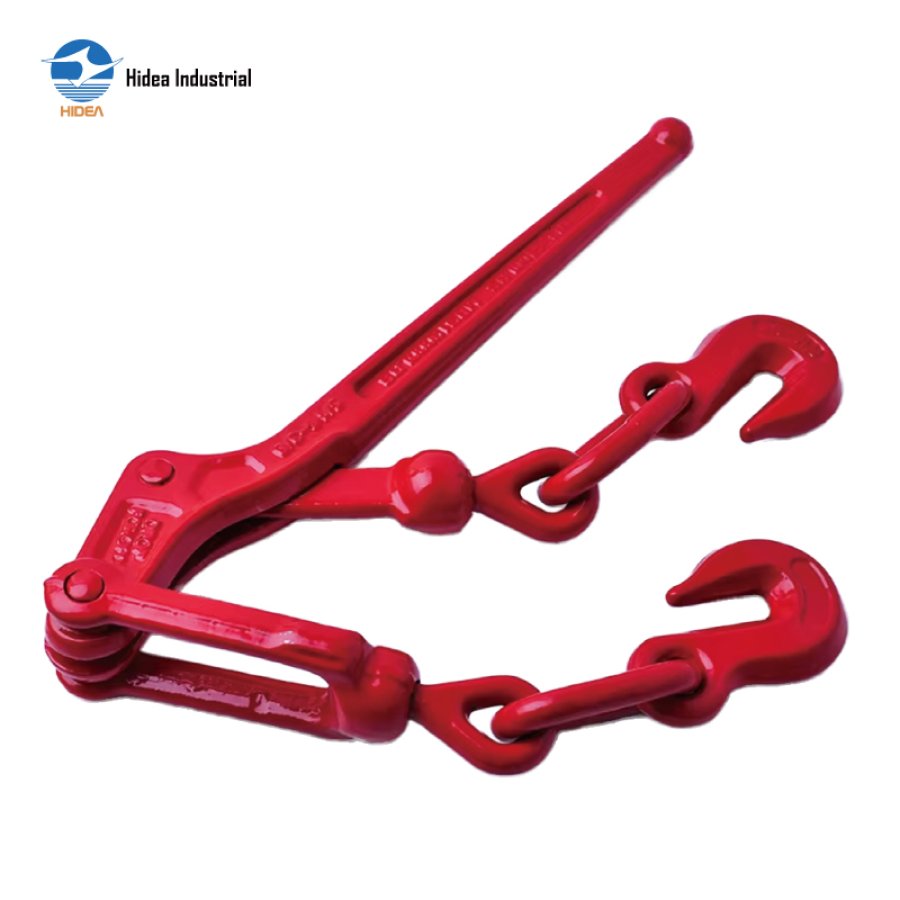

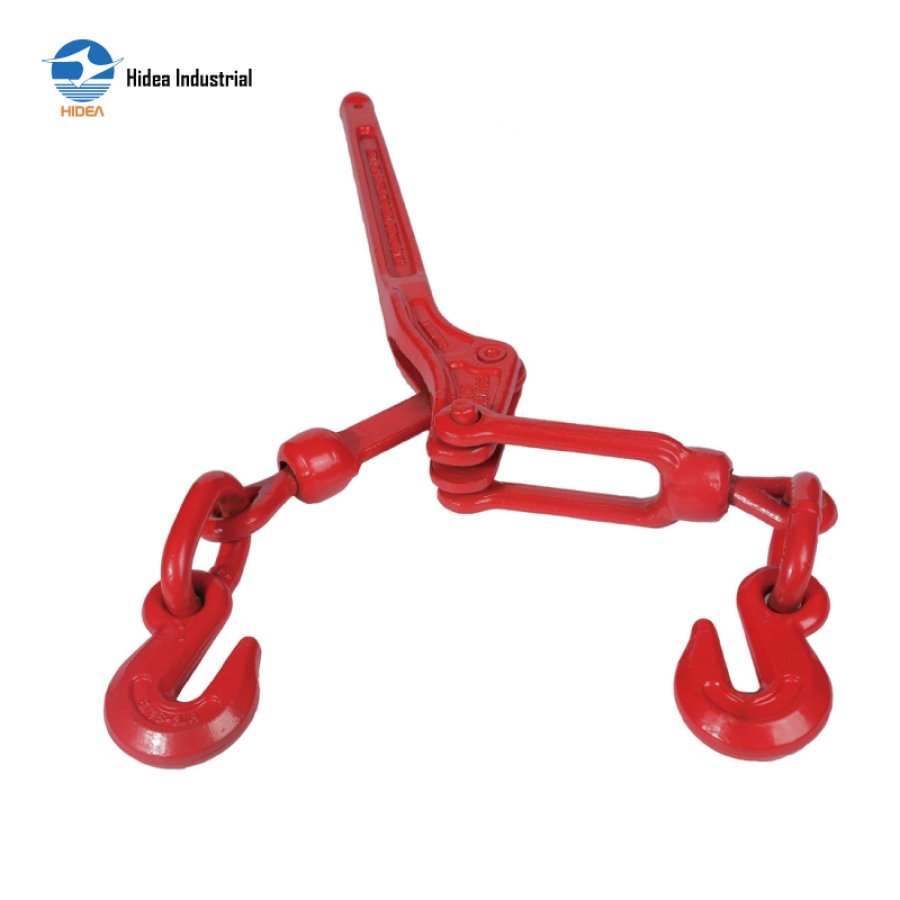

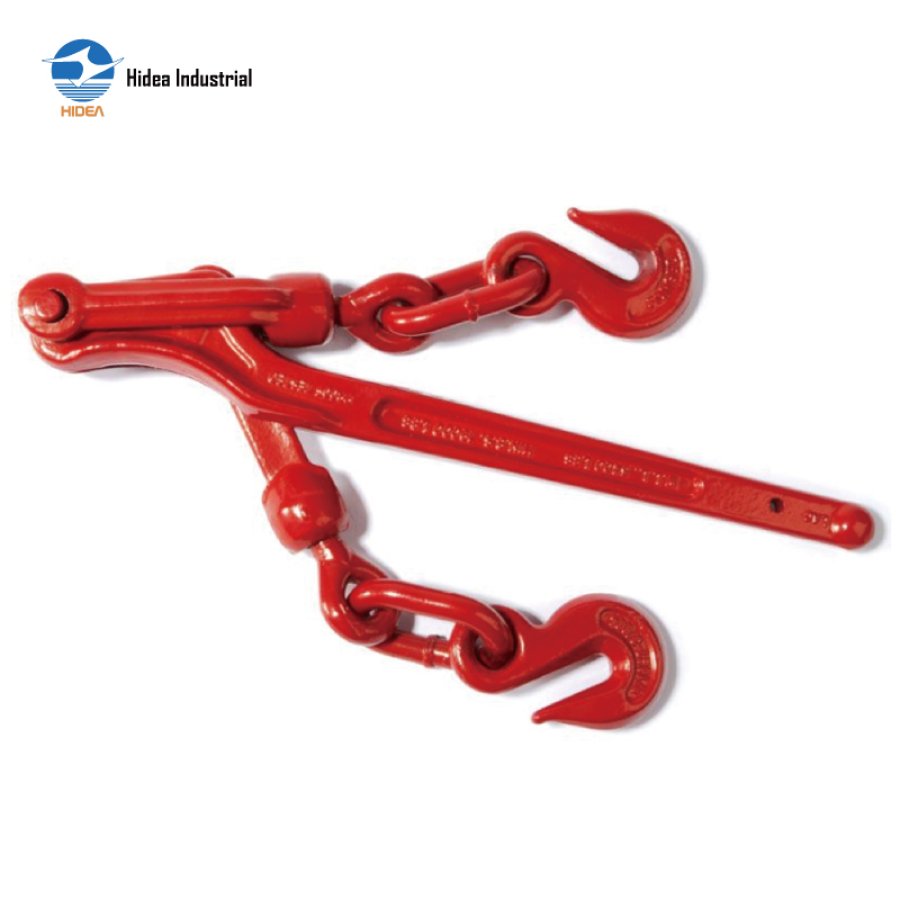

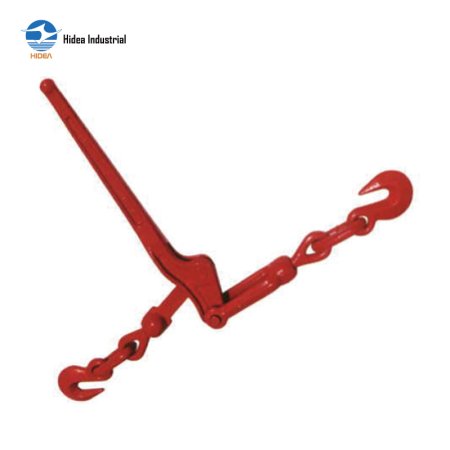

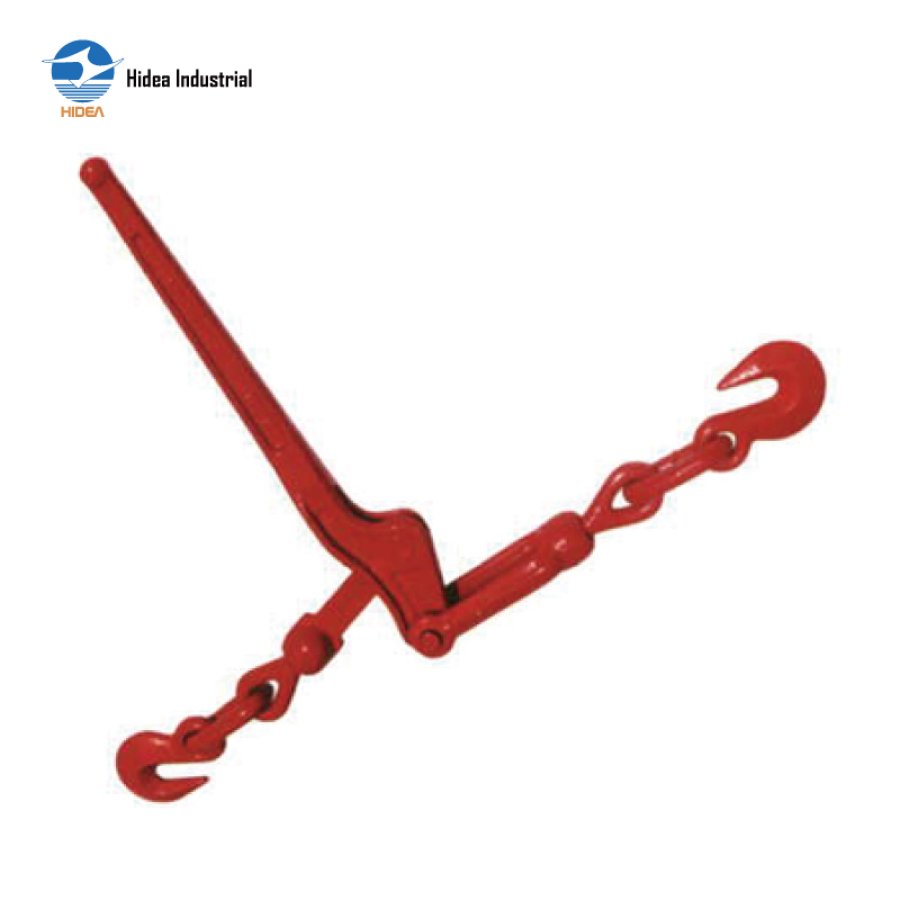

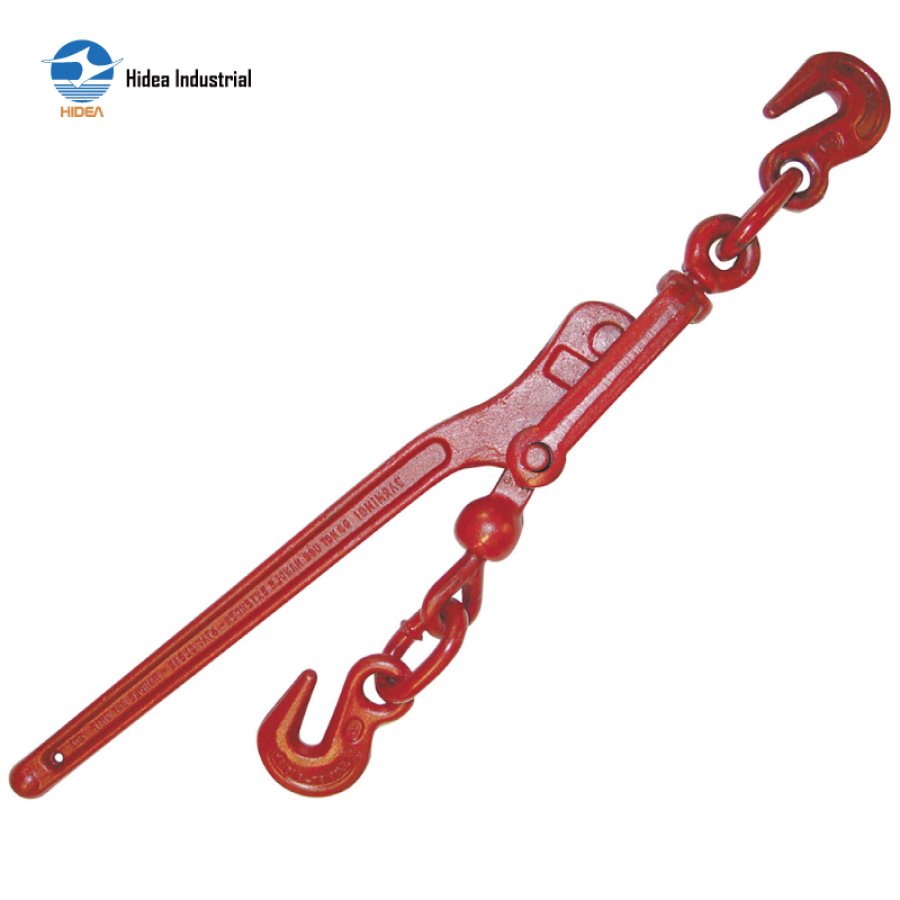

Hidea G70 Standard Lever Type Load Binder for Safe Handling

DROP FORGED STANDARD LEVER TYPE LOAD BINDER

High tensile steel rated G70+
Drop forged, quenched & tempered
Proof tested individually
Surface: Powder coated OR as requested
Meets or exceeds requirements of US DOT FMGSA Part 393 Subpart I

Inquire Now

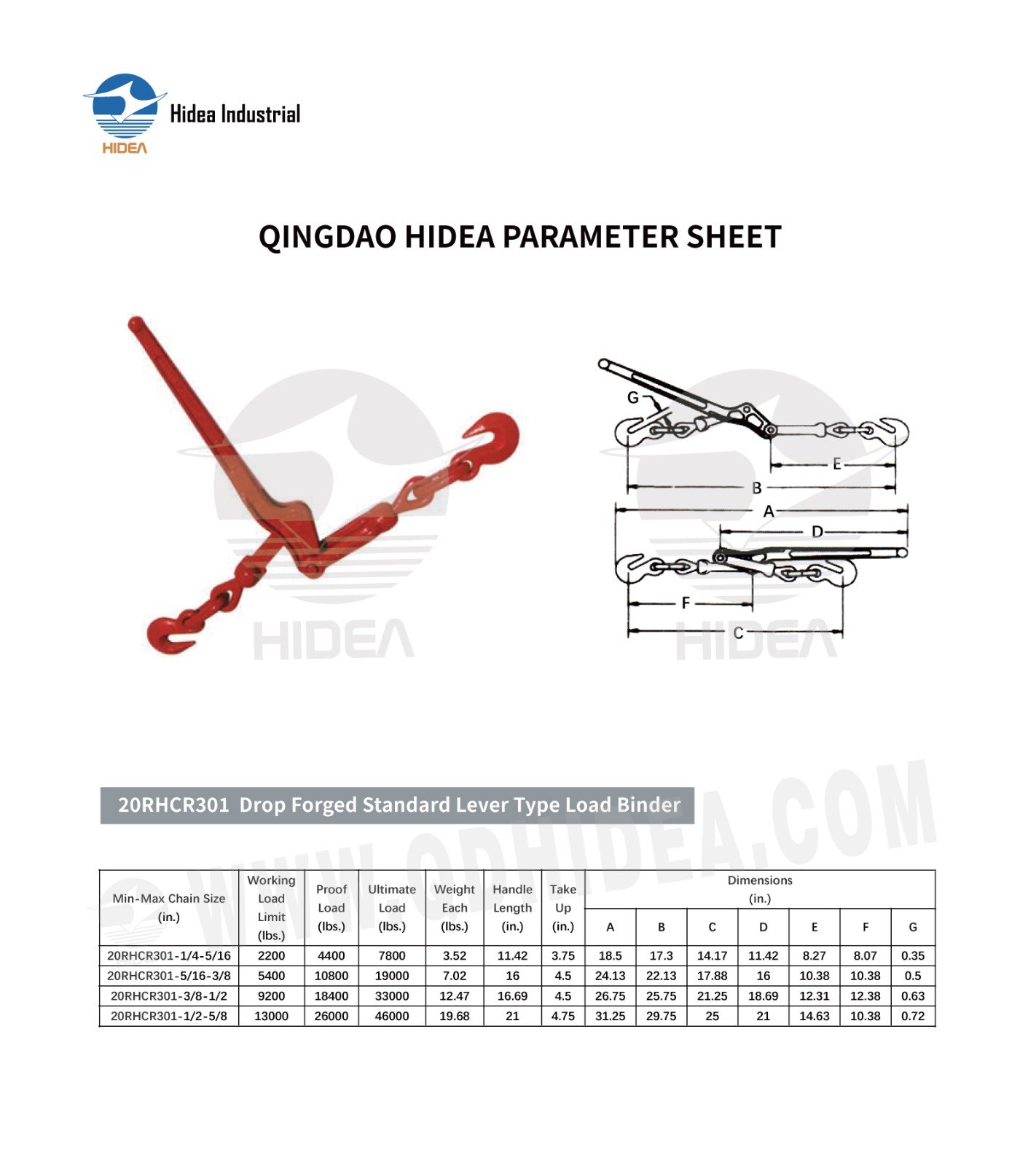

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR301 Drop Forged Standard Lever Type Load Binder

Min-Max Chain Size
(in.)

Working
Load
Limit
(Ibs.)

Proof
Load
(Ibs.)

Ultimate
Load
(Ibs.)

Weight
Each
(Ibs.)

Handle
Length
(in.)

Take
Up
(in.)

Dimensions
(in.)

A

B

C

D

E

F

G

20RHCR301-1/4-5/16

2200

4400

7800

3.52

11.42

3.75

18.5

17.3

14.17

11.42

8.27

8.07

0.35

20RHCR301-5/16-3/8

5400

10800

19000

7.02

16

4.5

24.13

22.13

17.88

16

10.38

10.38

0.5

20RHCR301-3/8-1/2

9200

18400

33000

12.47

16.69

4.5

26.75

25.75

21.25

18.69

12.31

12.38

0.63

20RHCR301-1/2-5/8

13000

26000

46000

19.68

21

4.75

31.25

29.75

25

21

14.63

10.38

0.72
