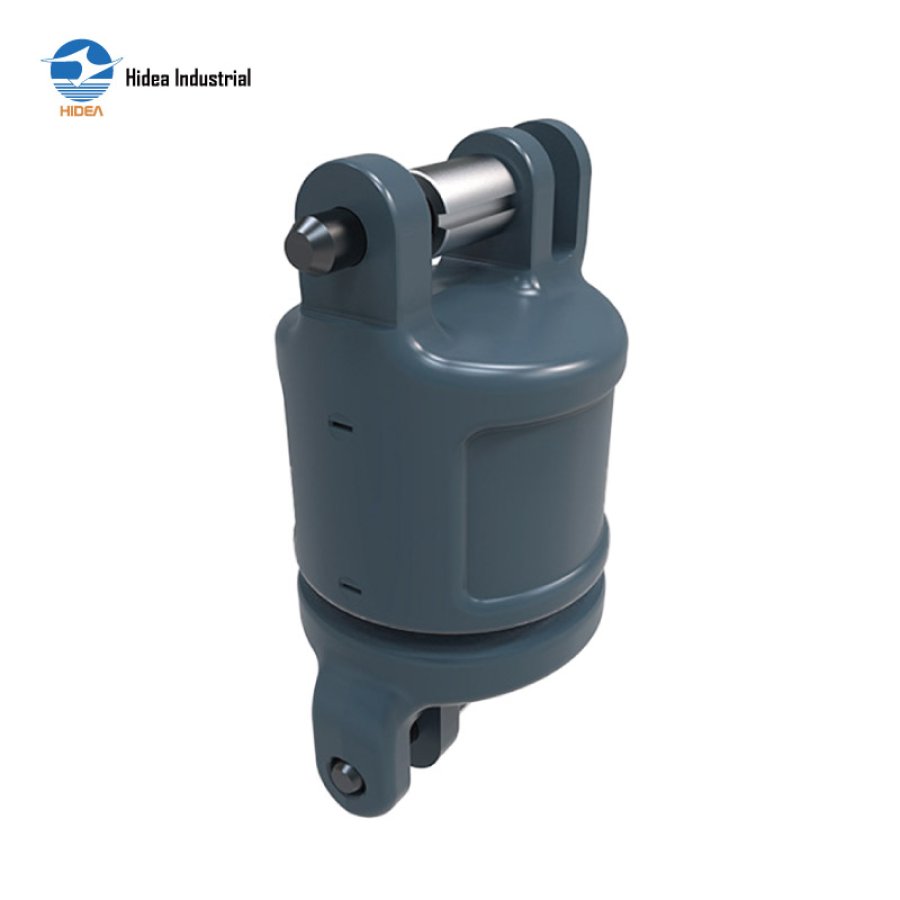

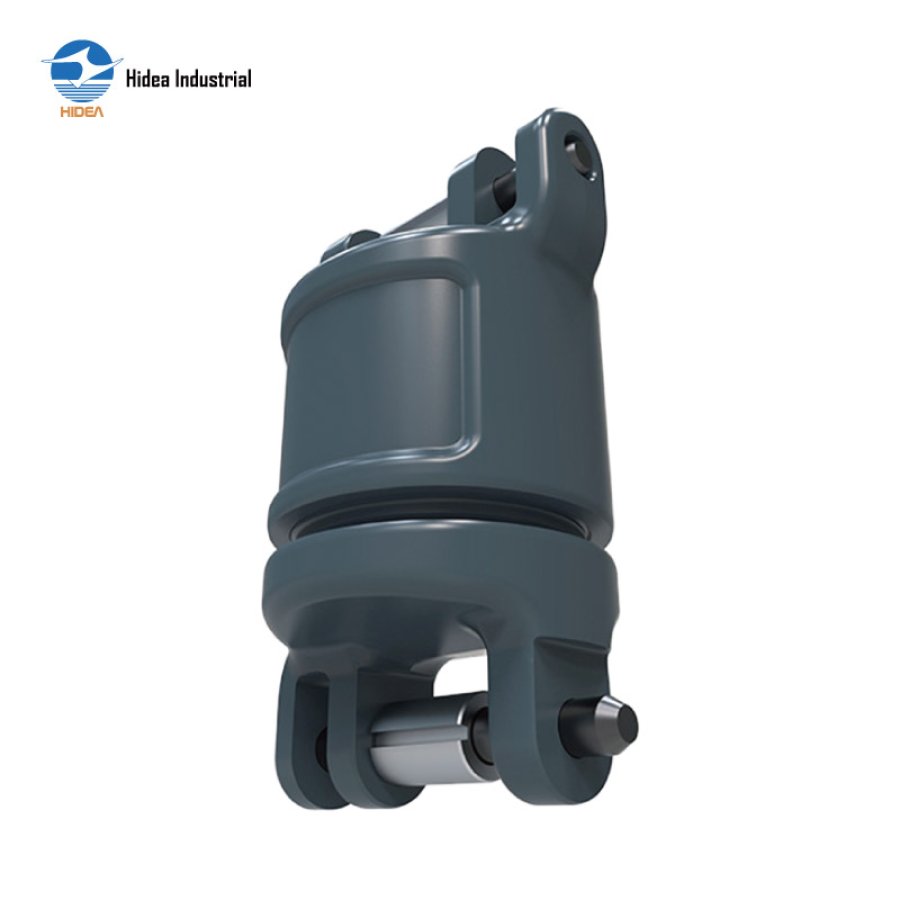

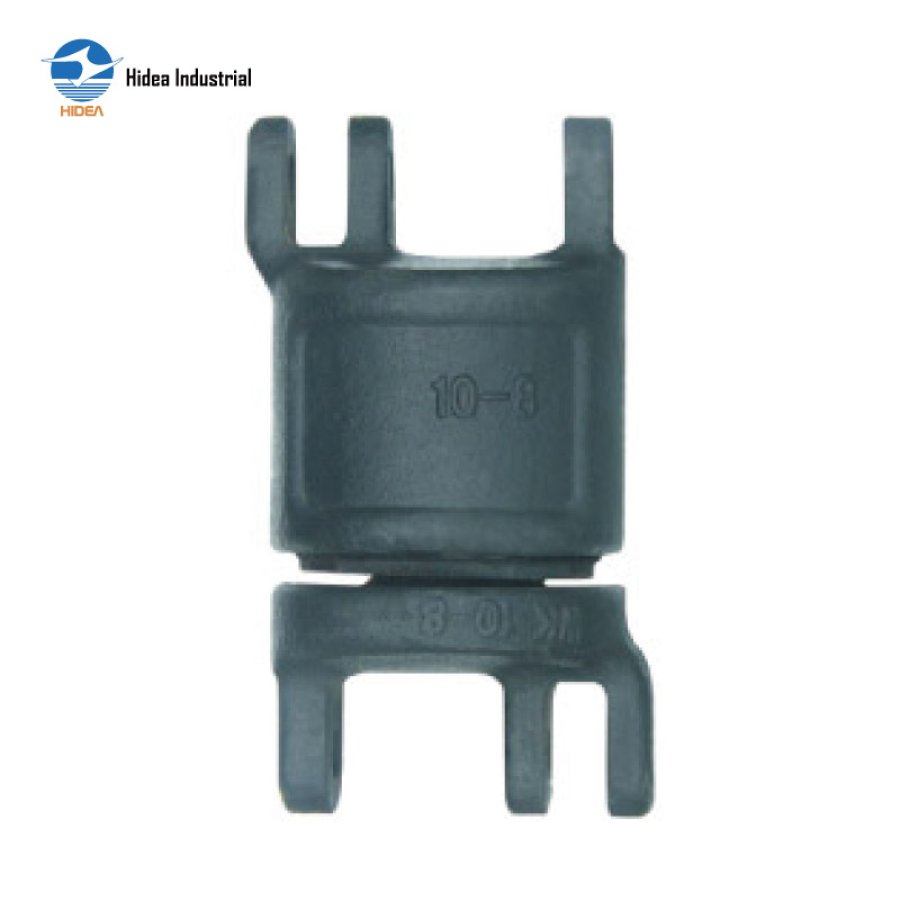

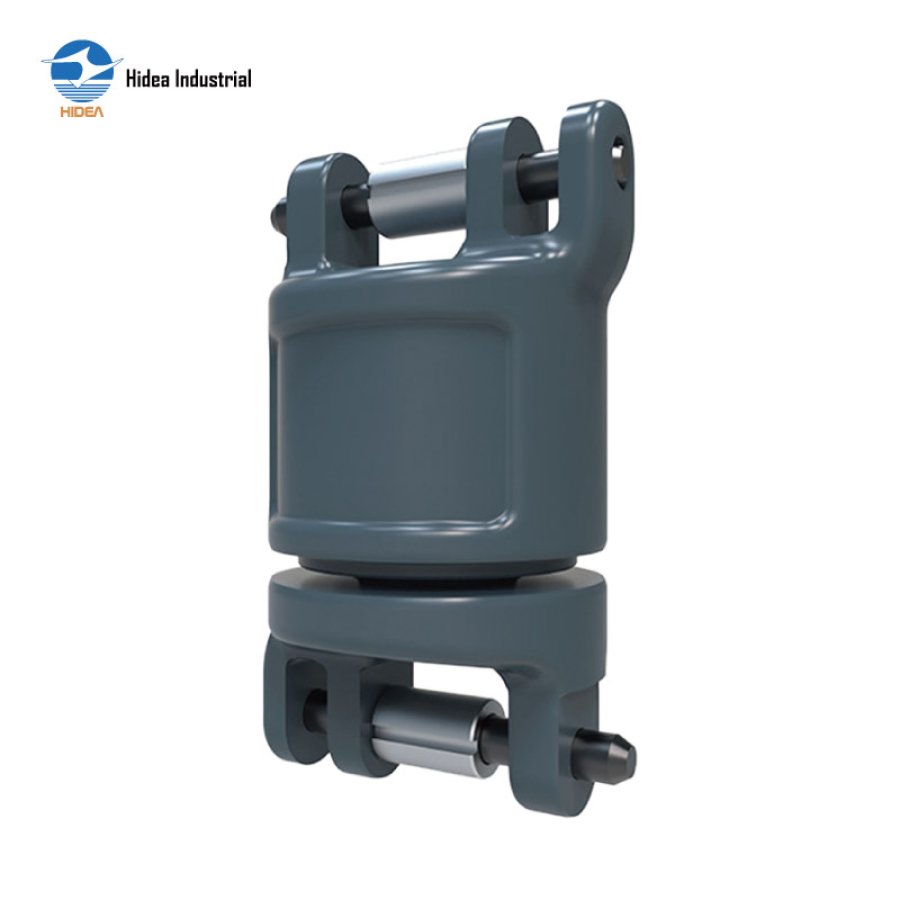

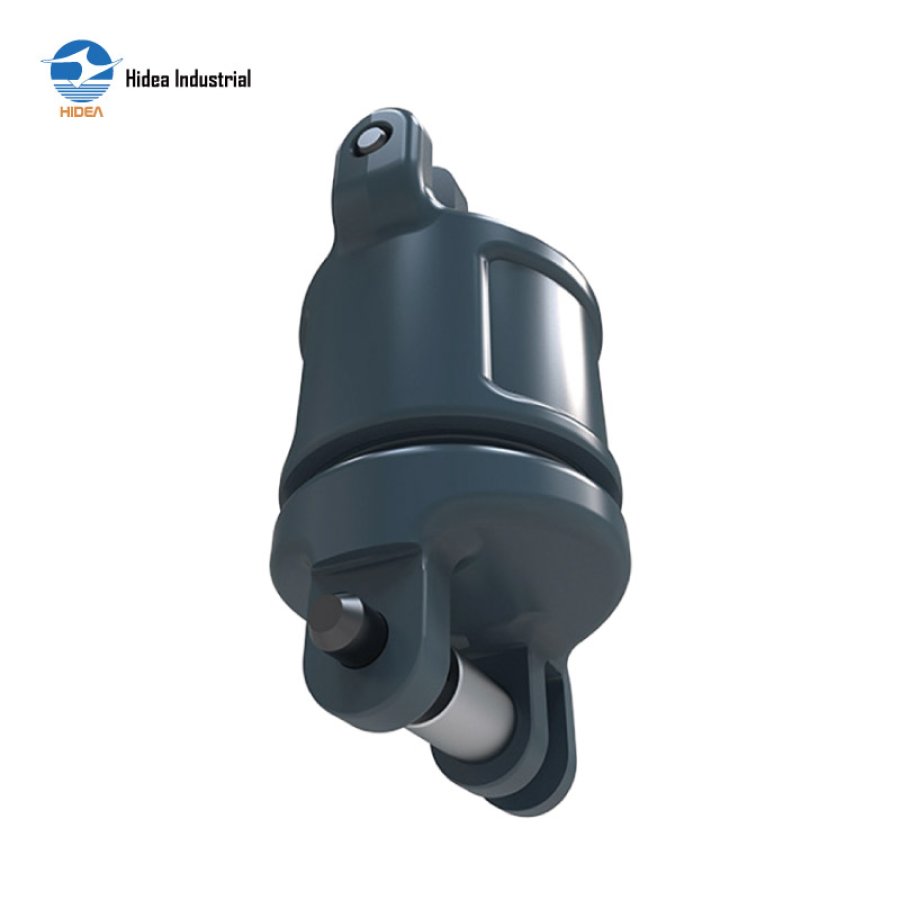

High-Performance Hidea Grade 80 Forged Alloy Steel Insulated Rotary Connector: For the Protection of Overhead Crane

G80 INSULATED ROTARY CONNECTOR

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

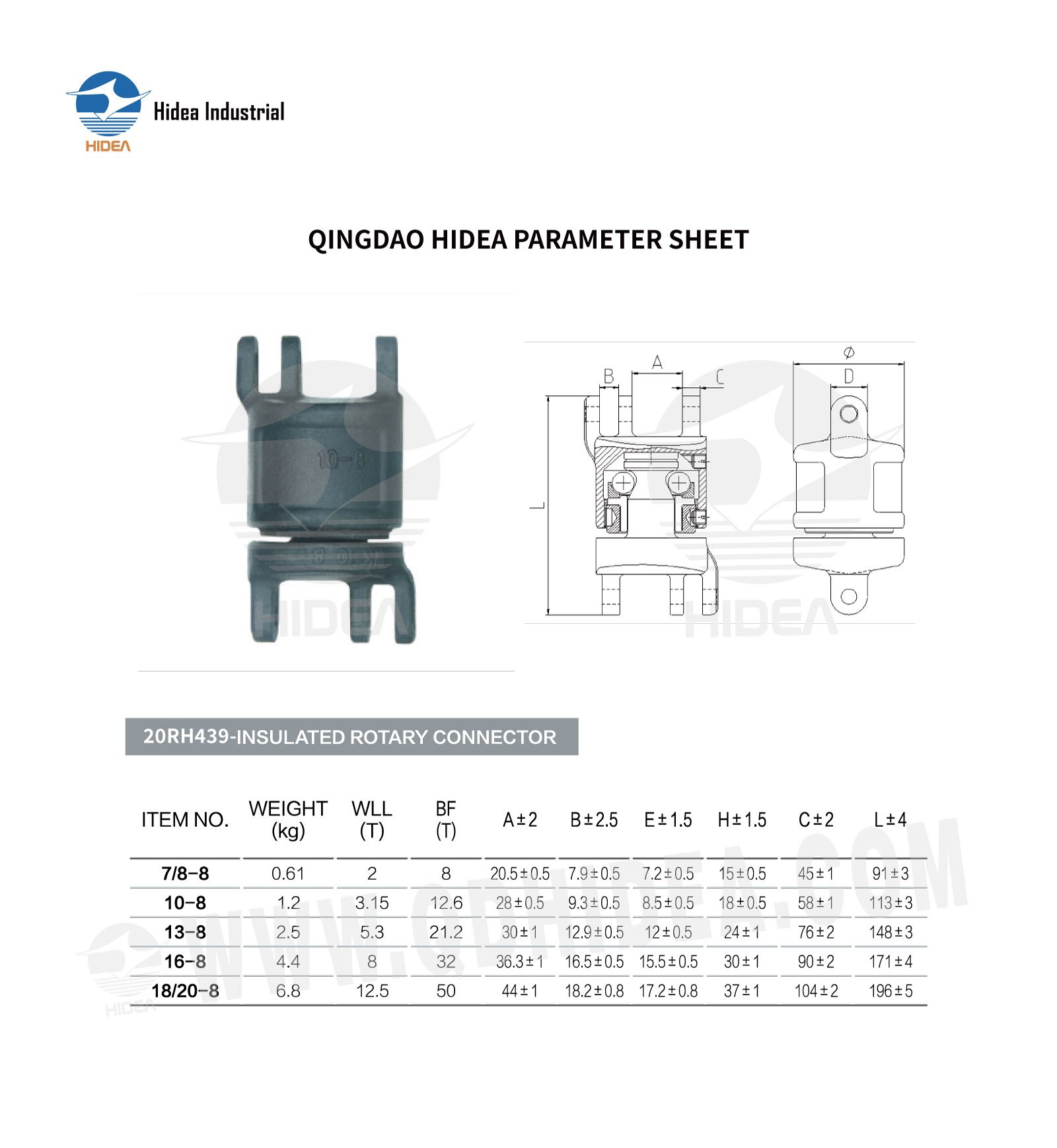

QINGDAO HIDEA PARAMETER SHEET FOR

20RH439-INSULATED ROTARY CONNECTOR

ITEM NO.	WEIGHT (kg)	WLL (T)	BF (T)	A±2	B±2.5	E±1.5	H±1.5	C±2	L±4
ITEM NO.	WEIGHT (kg)	WLL (T)	BF (T)	A±2	B±2.5	E±1.5	H±1.5	C±2	L±4
7/8-8	0.61	2	8	20.5±0.5	7.9±0.5	7.2±0.5	15±0.5	45±1	91±3
10-8	1.2	3.15	12.6	28±0.5	9.3±0.5	8.5±0.5	18±0.5	58±1	113±3
13-8	2.5	5.3	21.2	30±1	12.9±0.5	12±0.5	24±1	76±2	148±3
16-8	4.4	8	32	36.3±1	16.5±0.5	15.5±0.5	30±1	90±2	171±4
18/20-8	6.8	12.5	50	44±1	18.2±0.8	17.2±0.8	37±1	104±2	196±5
