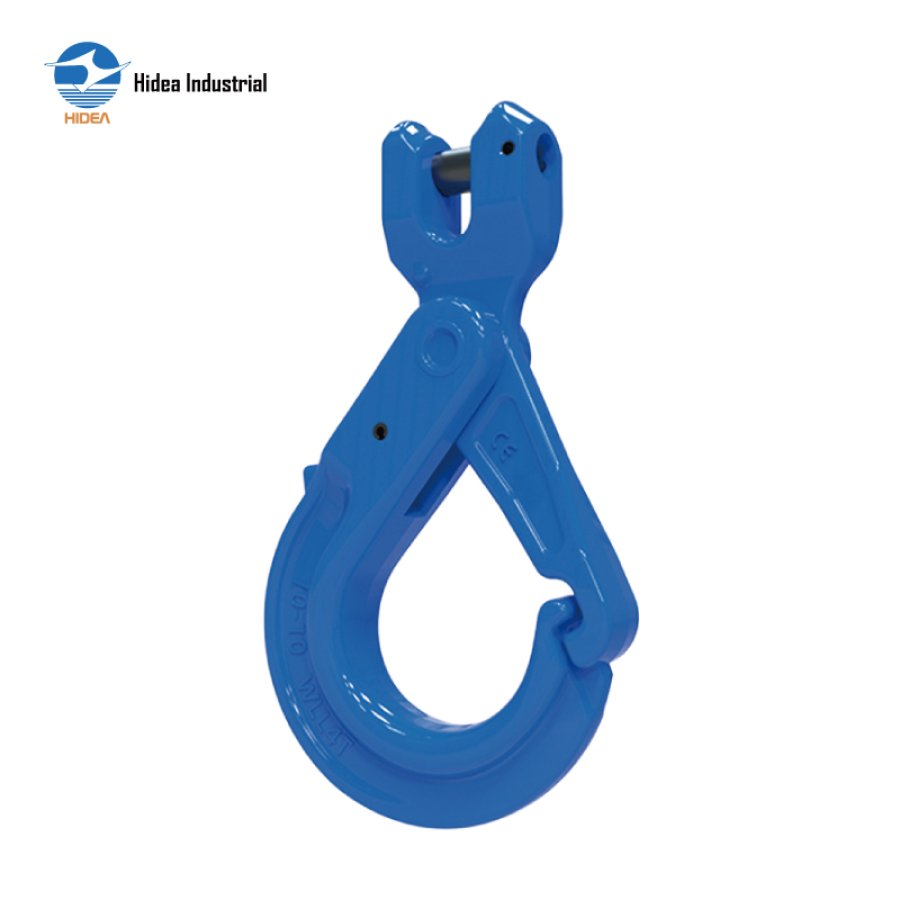

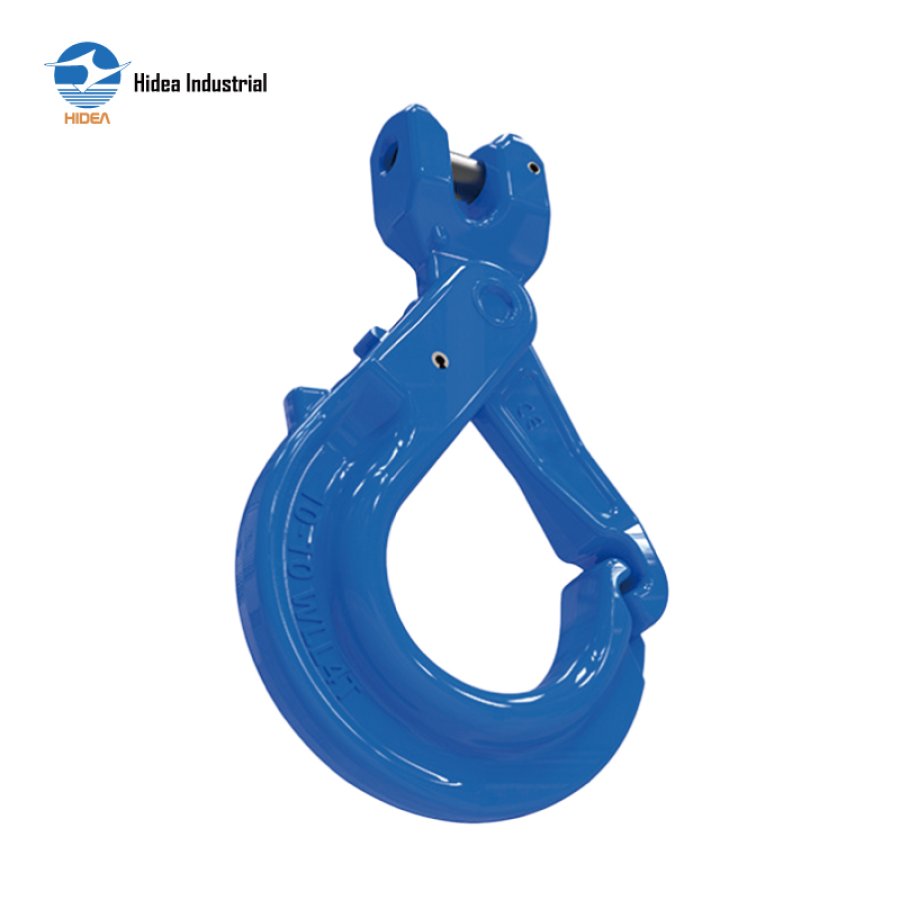

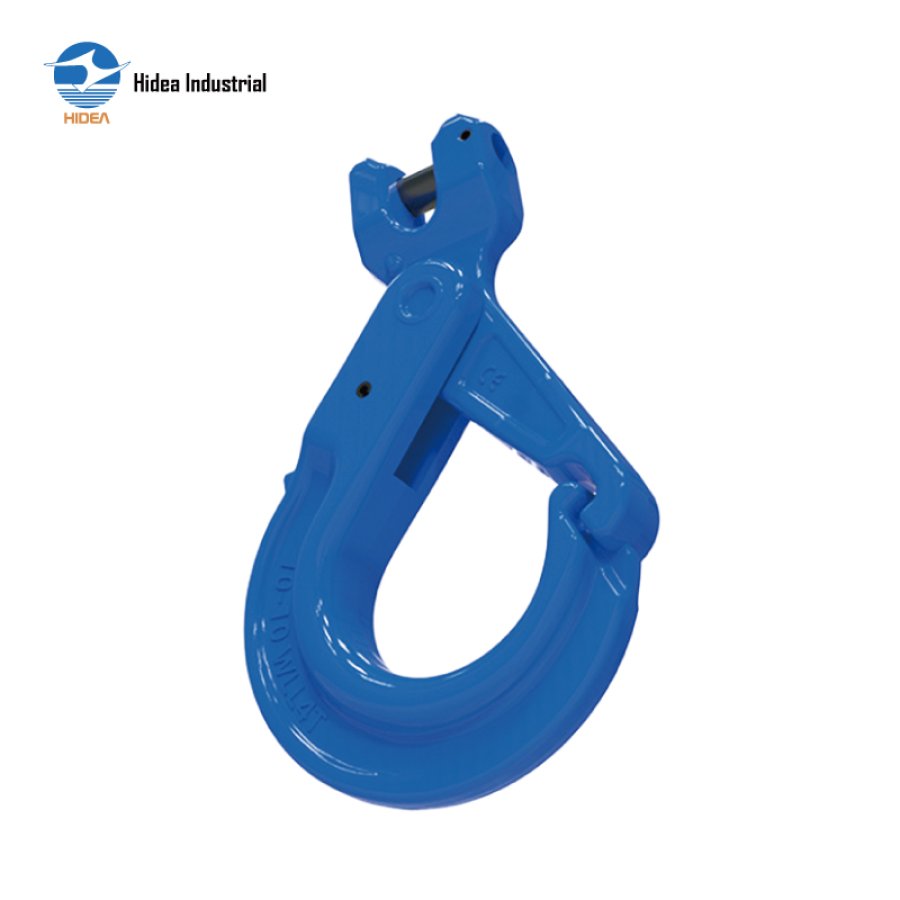

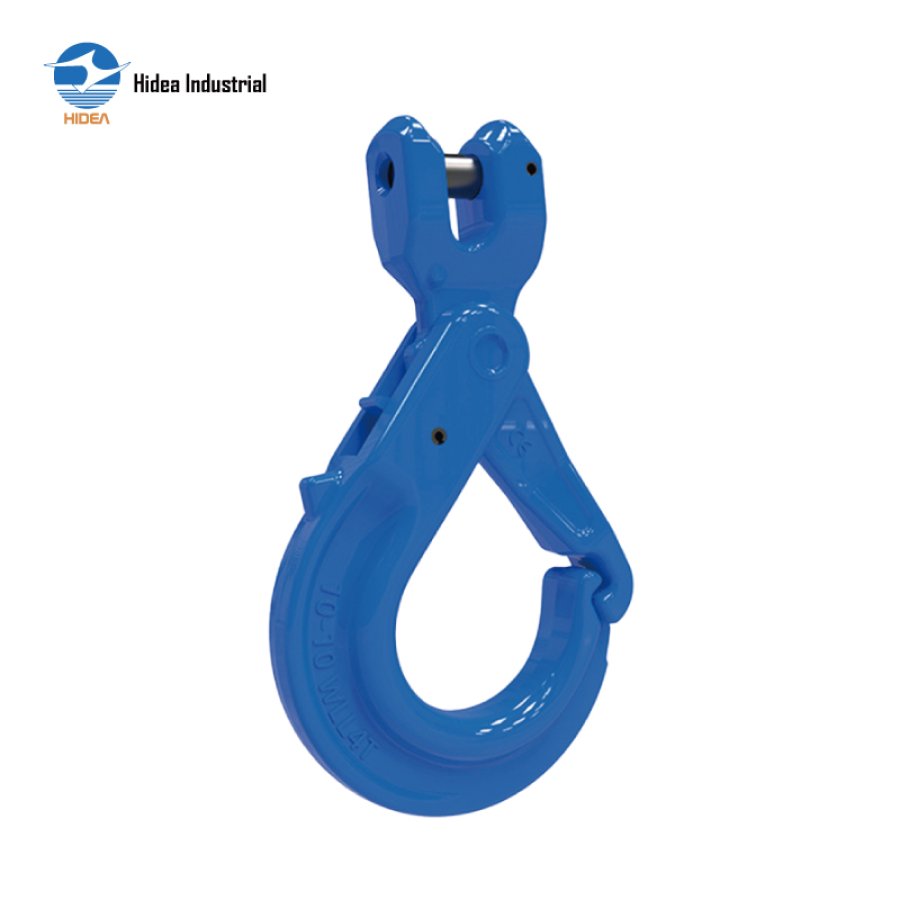

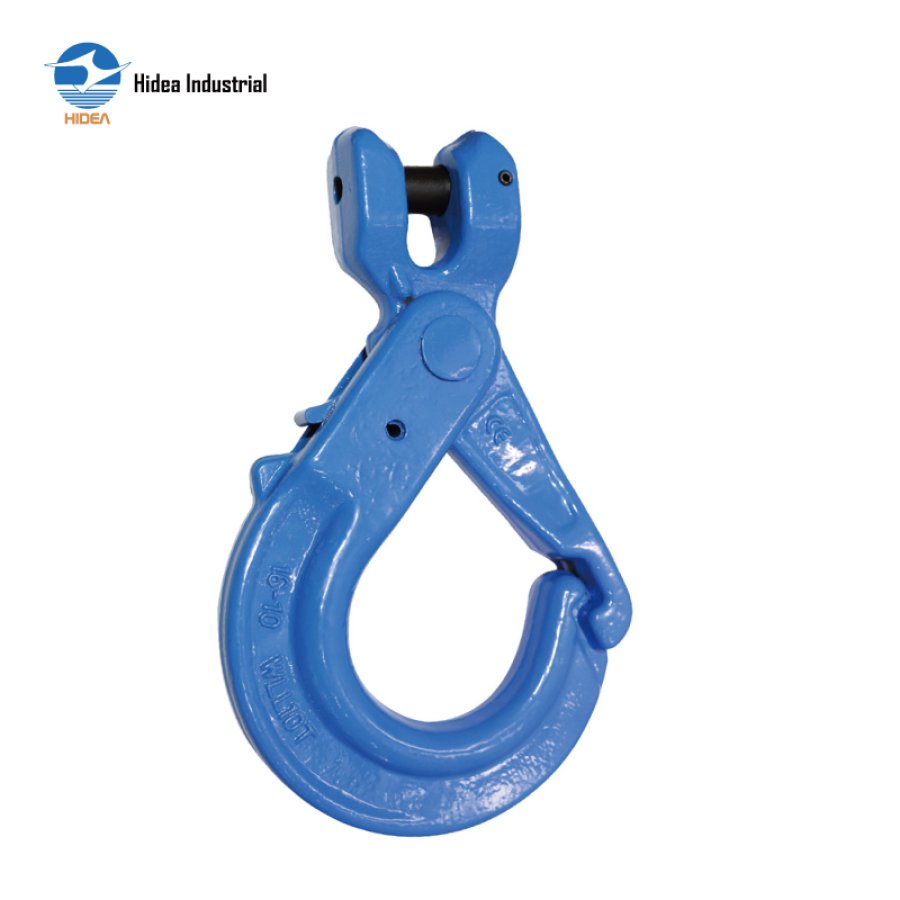

High-Strength Hidea Grade 100 Special Clevis Self-Locking Hook with Grip

G100 SPECIAL CLEVIS SELF-LOCKING HOOK WITH GRIP

Forged super alloy steel-Quenched and Tempered
Suitable for G80-100 chain
25% strong than G80
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Wording Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Color code: Blue RAL5015
Positive lock latch is selflocking when hook is loaded

Inquire Now

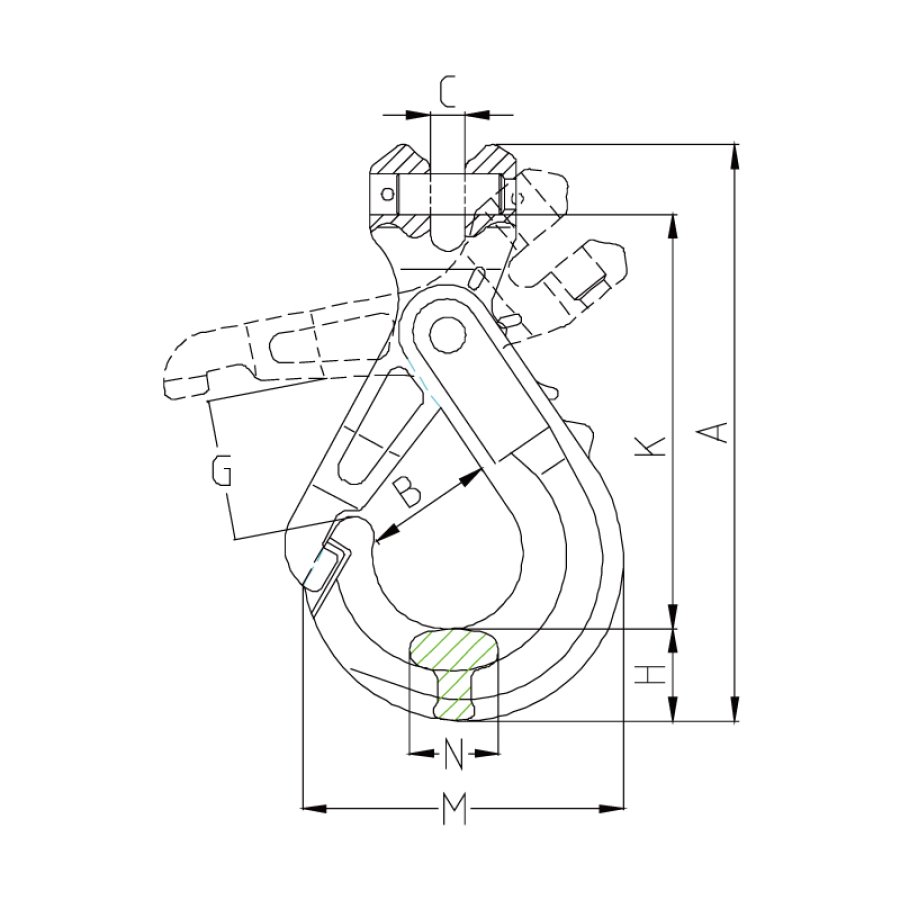

QINGDAO HIDEA PARAMETER SHEET FOR

20RH7101-G100 SPECIAL CLEVIS SELF-LOCKING HOOK WITH GRIP

ITEM NO.	WEIGHT	WLL	B.L	A	B	C	H	G	N	M	K
ITEM NO.	(kg)	(T)	(T)	A	B	C	H	G	N	M	K
20RH7101-08	0.78	2.5	10	165	37.5	9.5	21	38	21.5	91	118
20RH7101-10	1.42	4	16	204	48	12.5	30.5	45	23	113	150
20RH7101-13	2.56	6.7	26.8	244	52.5	15	39	57	30	135	176
20RH7101-16	4.21	10	40	288	68	18.5	49.5	59	32	168	250
