Forged super alloy steel-Quenched and Tempered
Suitable to use with Grade 80/100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Color code: Blue RAL5015
With cast latch
QINGDAO HIDEA PARAMETER SHEET FOR

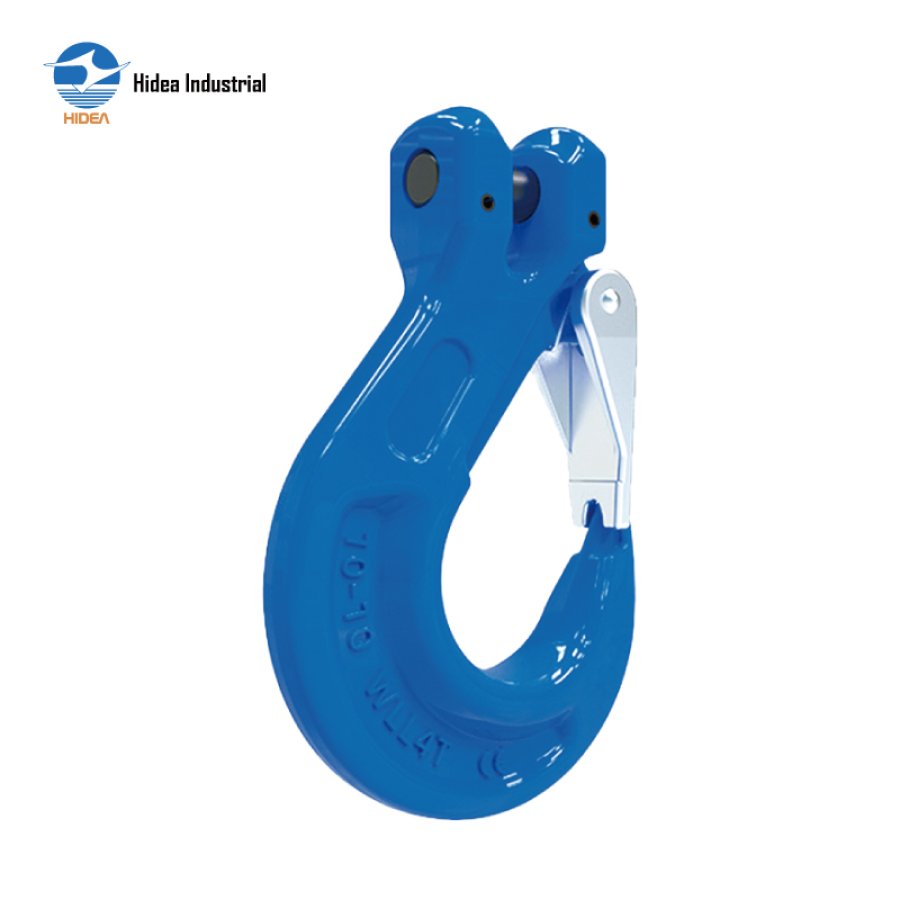

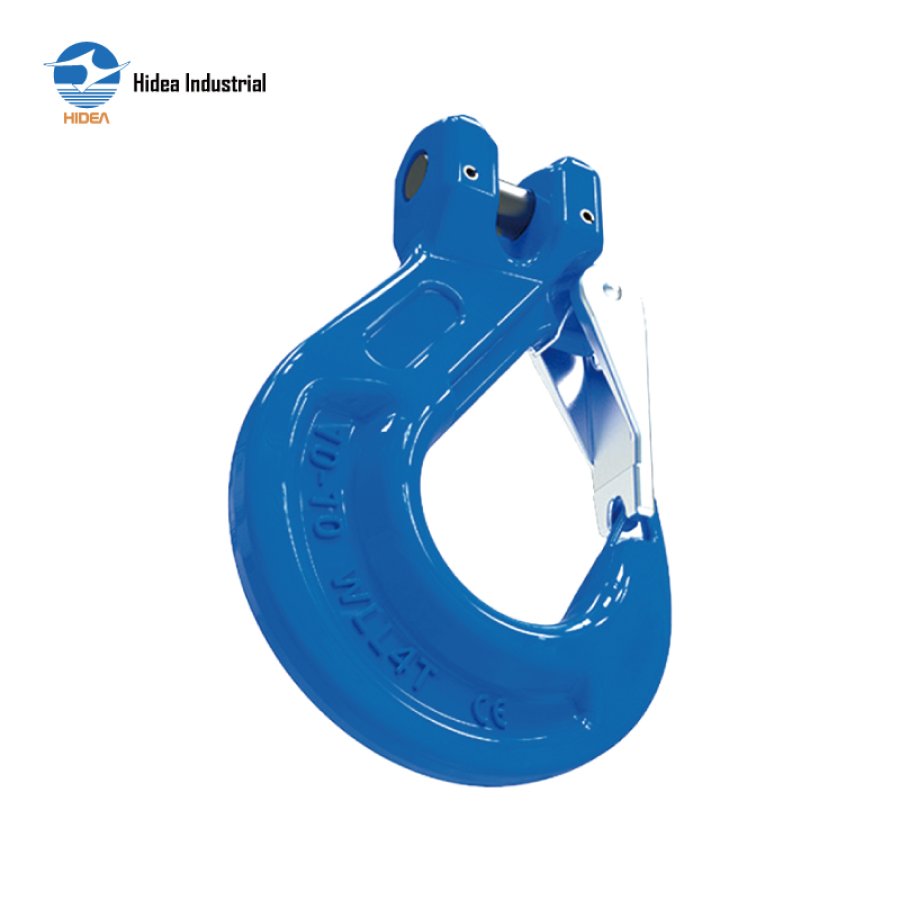

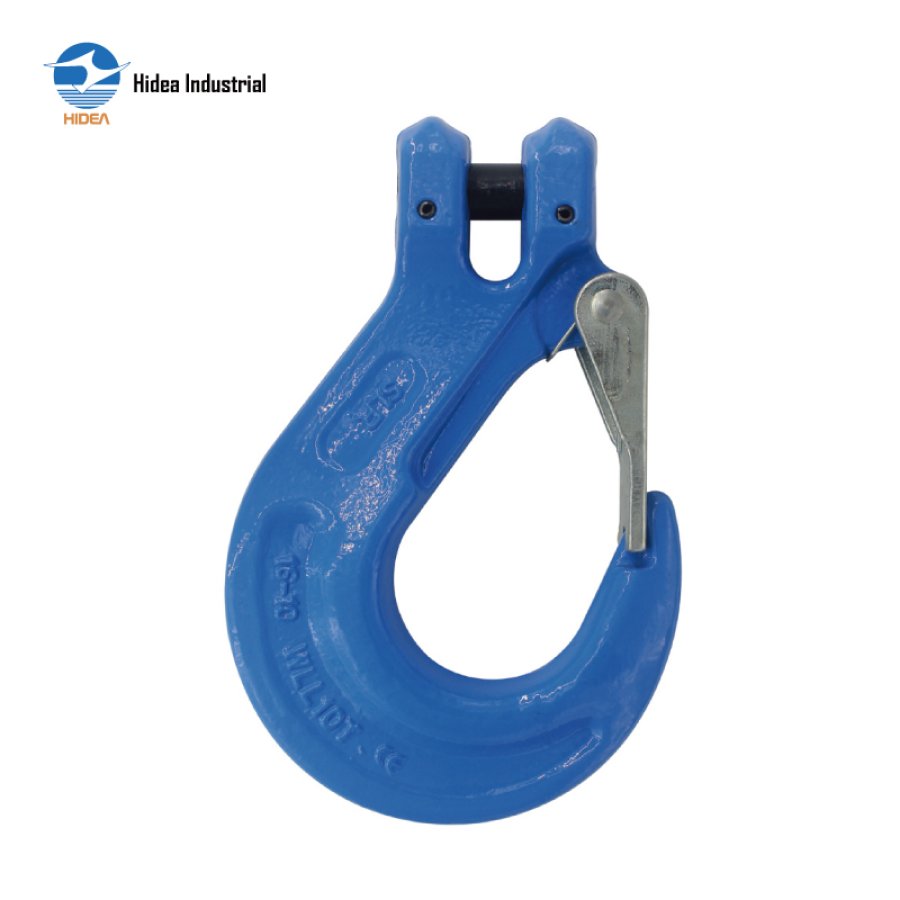

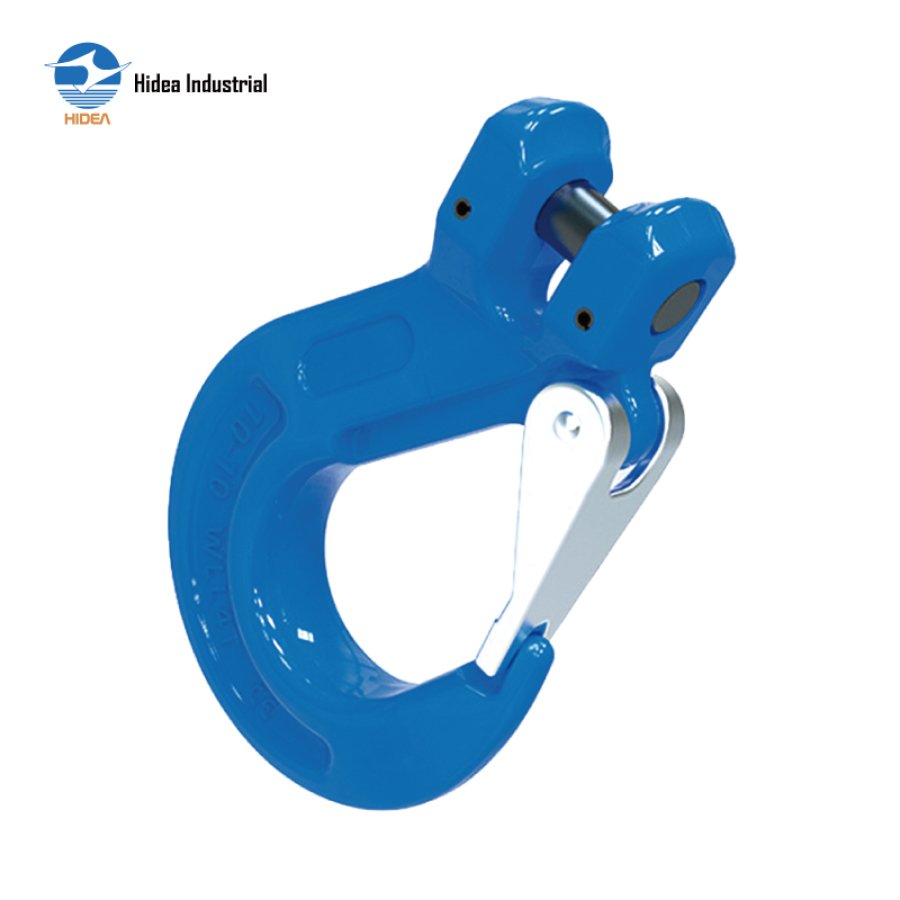

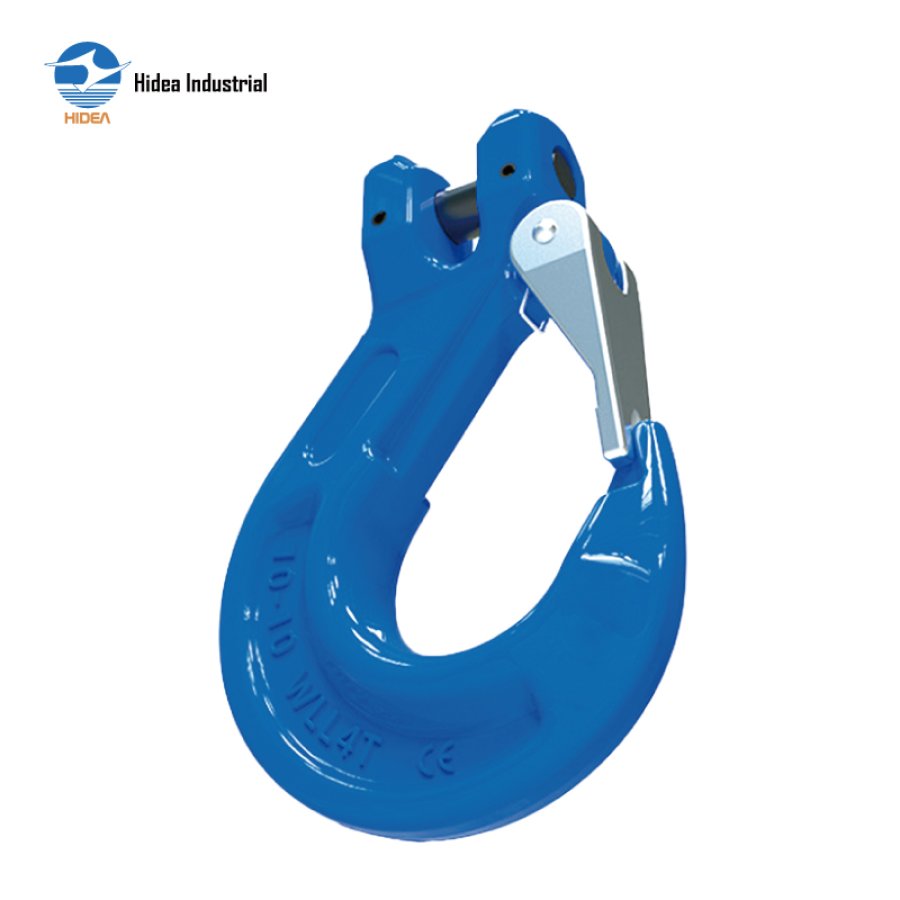

20RH4001-G100 CLEVIS SLING HOOK WITH CAST LATCH

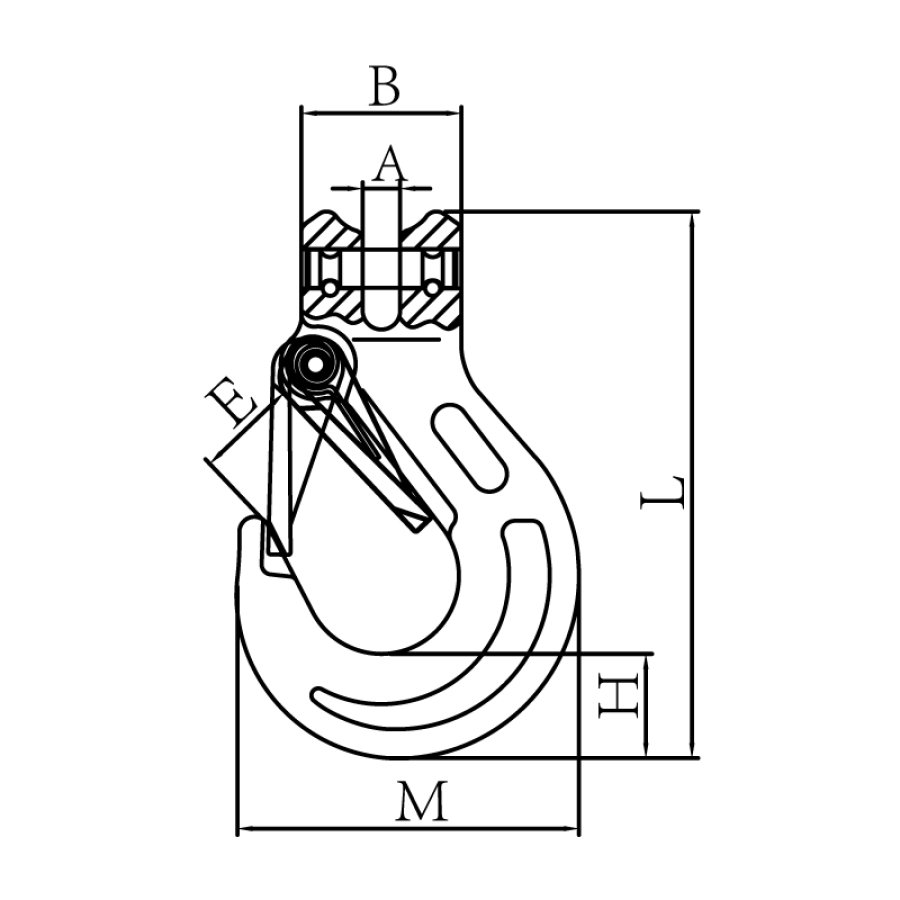

| ITEM CODE | WEIGHT | WLL | B.L | A±0.5 | B±1 | E±1.5 | H±1 | M±2 | L±2.5 |
| (kg) | (T) | (T) | |||||||
| 20RH4001-06 | 0.33 | 1.4 | 5.6 | 7.5 | 32 | 18.5 | 21 | 68.5 | 109 |
| 20RH4001-08 | 0.7 | 2.5 | 10 | 9.5 | 37 | 25 | 27.5 | 55 | 134 |
| 20RH4001-10 | 1.3 | 4 | 16 | 12 | 48 | 28 | 33.5 | 105.5 | 161.5 |
| 20RH4001-13 | 2.3 | 6.7 | 26.8 | 15 | 59 | 38 | 42 | 134 | 203 |
| 20RH4001-16 | 3.6 | 10 | 40 | 18.5 | 70 | 44 | 50 | 160.5 | 248 |
| 20RH4001-20 | 7 | 16 | 64 | 25 | 85 | 52 | 56 | 190.5 | 297 |
| 20RH4001-22 | 12.1 | 19 | 76 | 27 | 100 | 66 | 62 | 214.5 | 326 |
