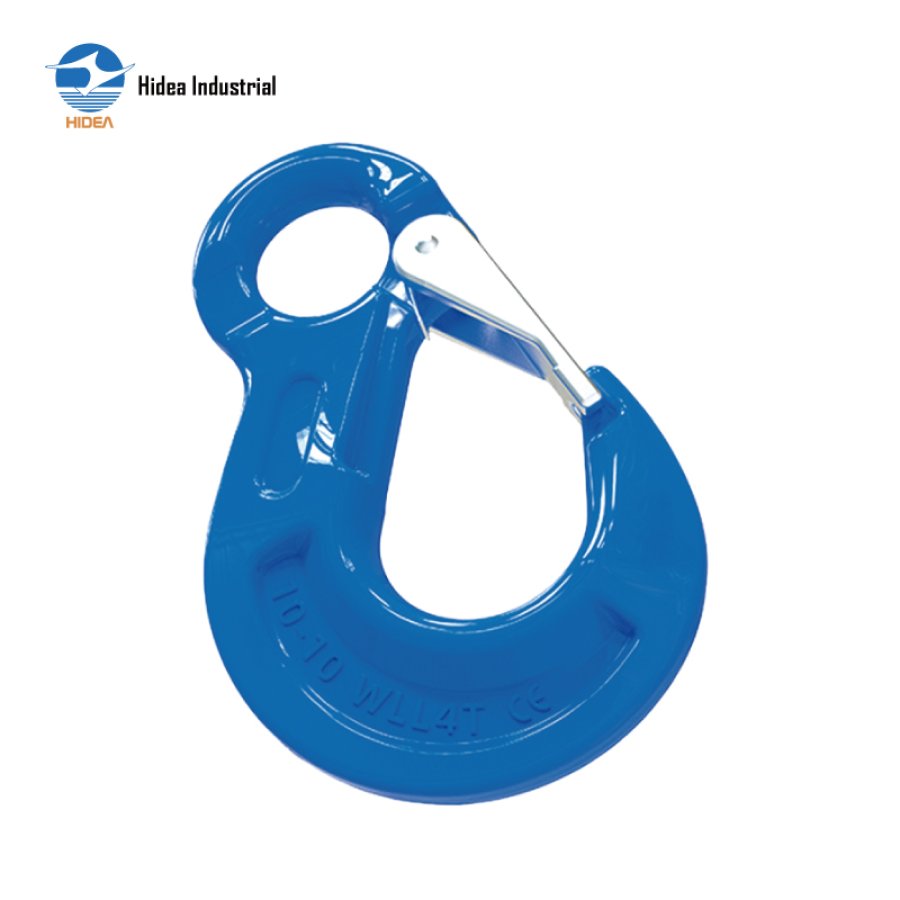

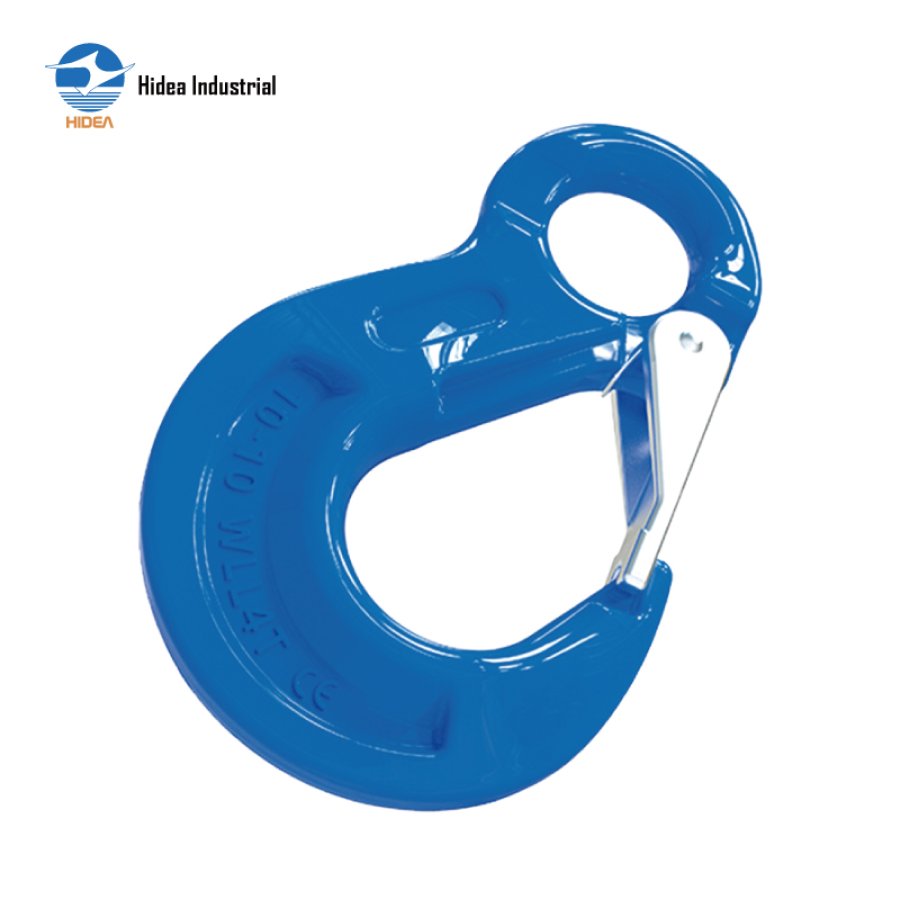

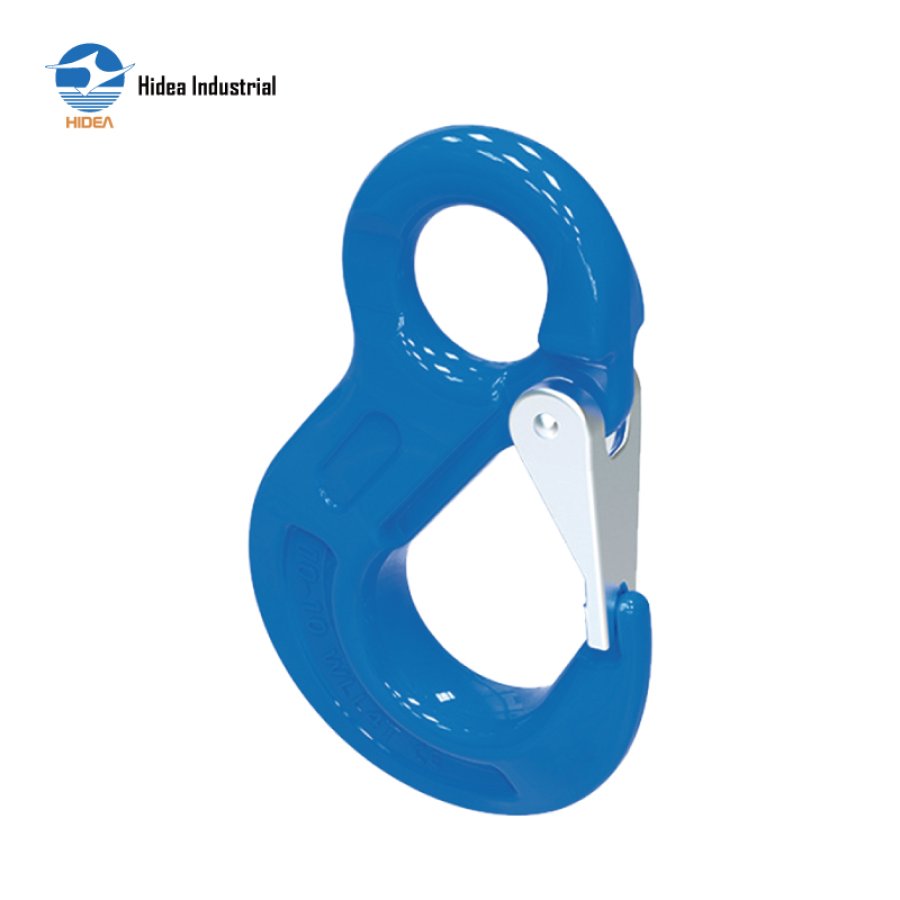

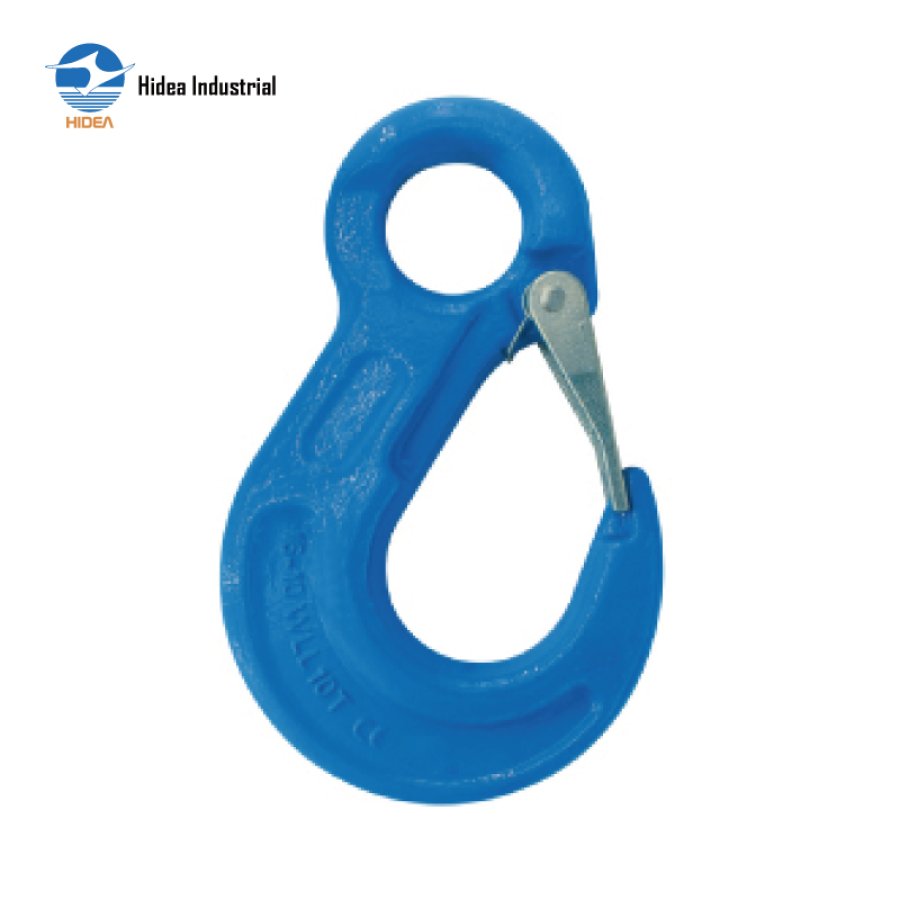

Hidea Grade 100 Eye Slip Hook with Cast Latch for Safe and Reliable Rigging

G100 EYE SLIP HOOK WITH CAST LATCH

Forged super alloy steel- Quenched and Tempered
Suitable for G100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Sample tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
With cast latch

Inquire Now

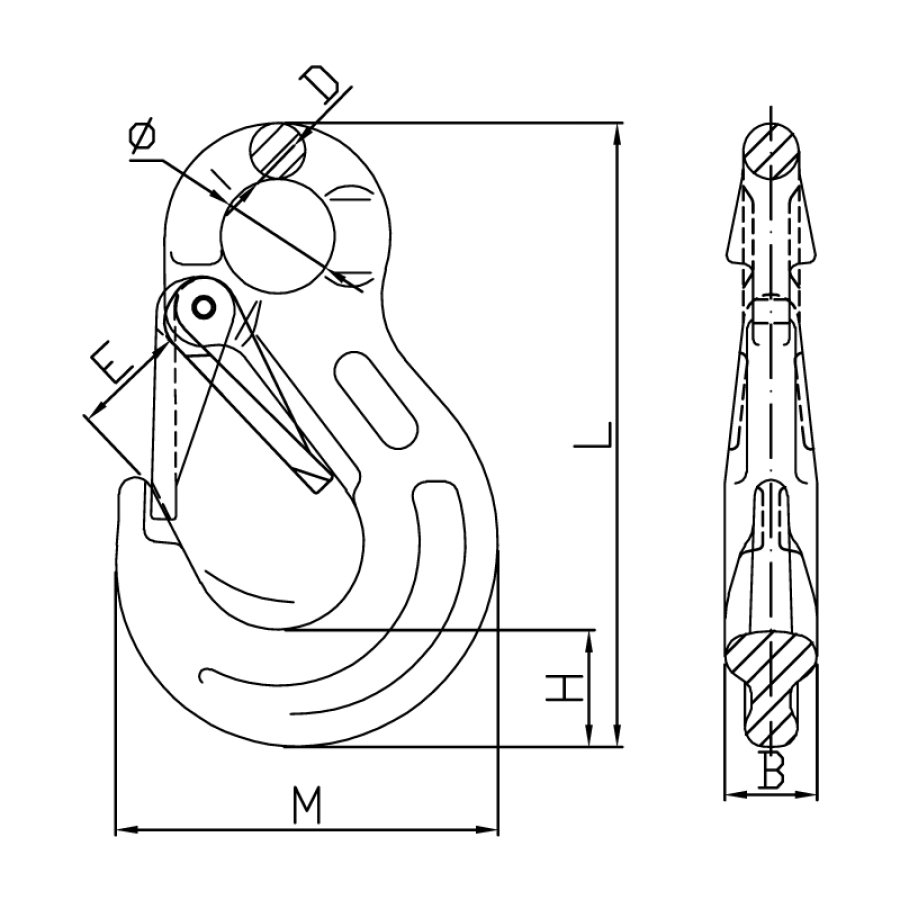

QINGDAO HIDEA PARAMETER SHEET FOR

20RH3001-G100 EYE SLIP HOOK WITH CAST LATCH

ITEM NO.	WEIGHT	WLL	B.L	B±1	D±1	E±2	H±1	Ø±1	M±2	L±2.5
ITEM NO.	(kg)	(T)	(T)	B±1	D±1	E±2	H±1	Ø±1	M±2	L±2.5
20RH3001-06	0.32	1.4	5.6	16.5	10	18.5	21	20.5	68	111
20RH3001-07	0.4	1.9	7.6	15	11	25.5	26	25	86.9	137
20RH3001-08	0.6	2.5	10	19	11	25	27.5	25	87.6	137
20RH3001-10	1.2	4	16	26	16	29.5	32	35	106.4	171.5
20RH3001-13	2.2	6.7	26.8	33	19	38	43.5	43	134	219
20RH3001-16	3.5	10	40	40	24.5	46	50	51	158	260
20RH3001-20	6.2	16	64	48	27	52	56	55	190	298
20RH3001-22	11.5	19	76	50	29	66	62	60	214	330
20RH3001-26	12.2	26.5	106	60	35	73	75	70	245	376
20RH3001-32	17.5	39.3	157.2	71	39	87	89	81.5	270	458
