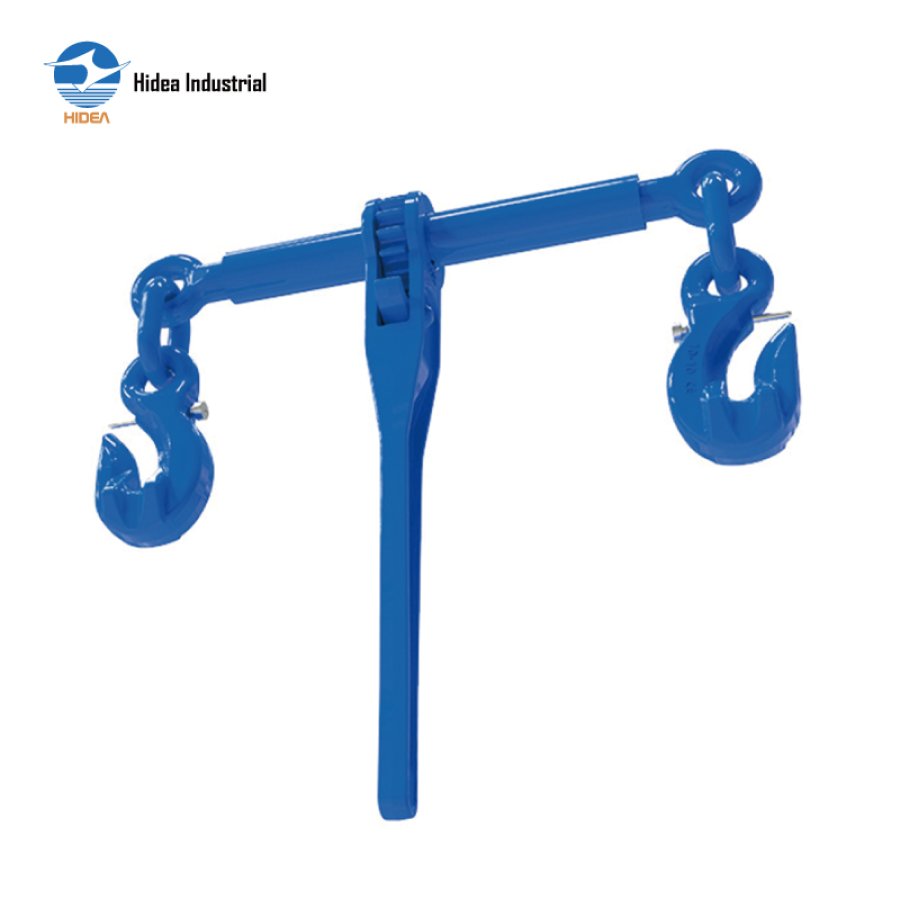

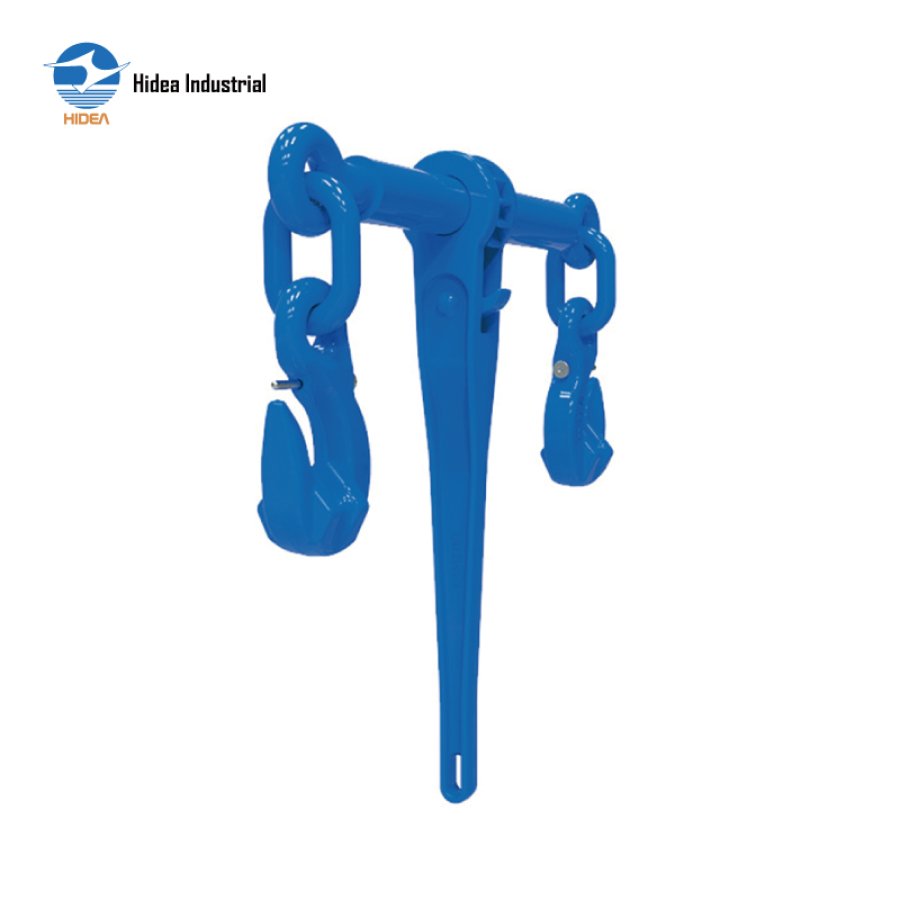

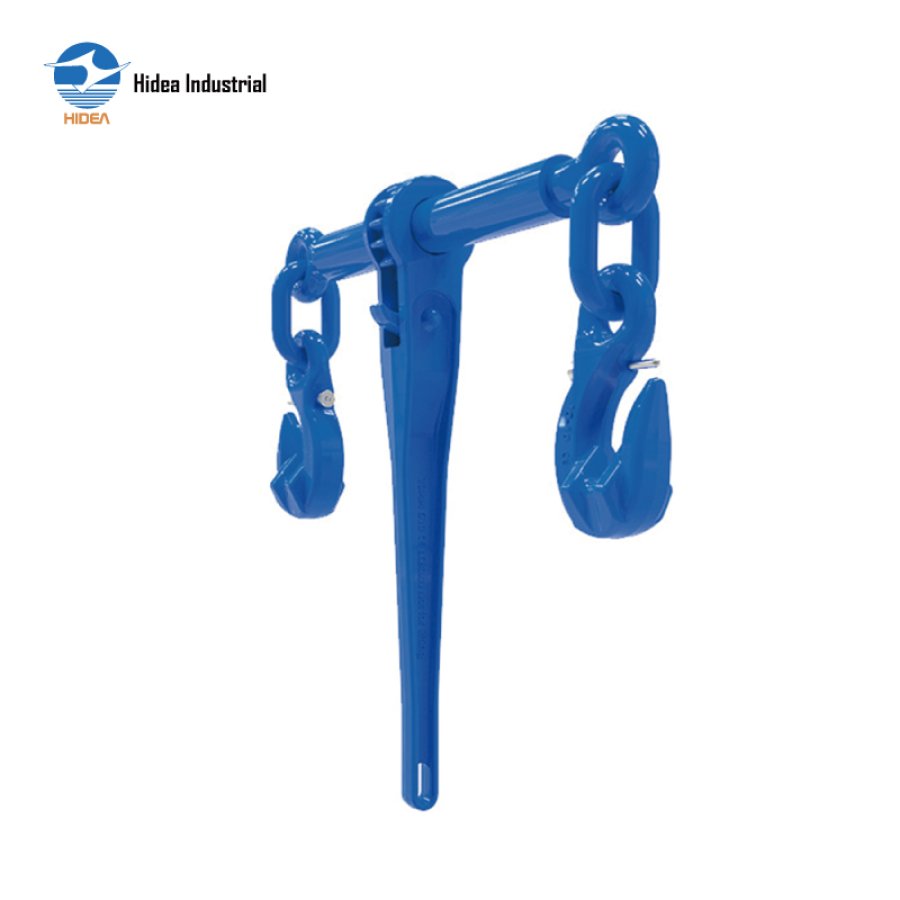

Hidea Grade 100 Ratchet Binder with Safety Hooks for Secure Load Securing & Transport

G100 RATCHET BINDER WITH SAFETY HOOKS

According to EN12195-3 standard
Handle: forged
Suitable for G100 chain
With G100 eye grab hook with safety pin
Not for lifting, only for lashing
Surface finish: Powder plastified
Color code: Blue RAL5015

Inquire Now

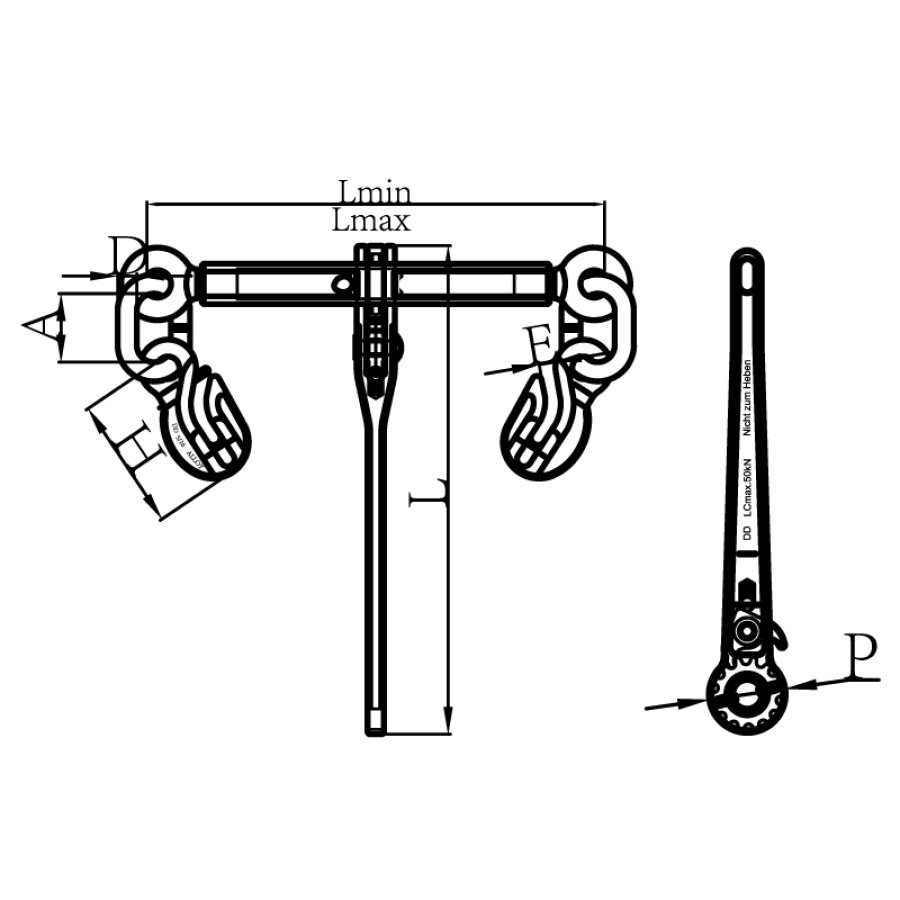

QINGDAO HIDEA PARAMETER SHEET FOR

20RH0301-G100 RATCHET BINDER WITH SAFETY HOOKS

ITEM CODE	WEIGHT	LC	BF	A±4	D±1.5	H±2	E±2	L±3	P±1	Lmin±4	Lmax±4
ITEM CODE	(KG)	(KN)	(KN)	A±4	D±1.5	H±2	E±2	L±3	P±1	Lmin±4	Lmax±4
20RH0301-08	3.71	50	100	50	12	98	10.5	383	56	340	500
20RH0301-10	5.85	80	160	50	14	121.5	13	390	65	365	525
20RH0301-13	9.34	134	268	72	20	159.5	15.5	392.5	69	365	525
