Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

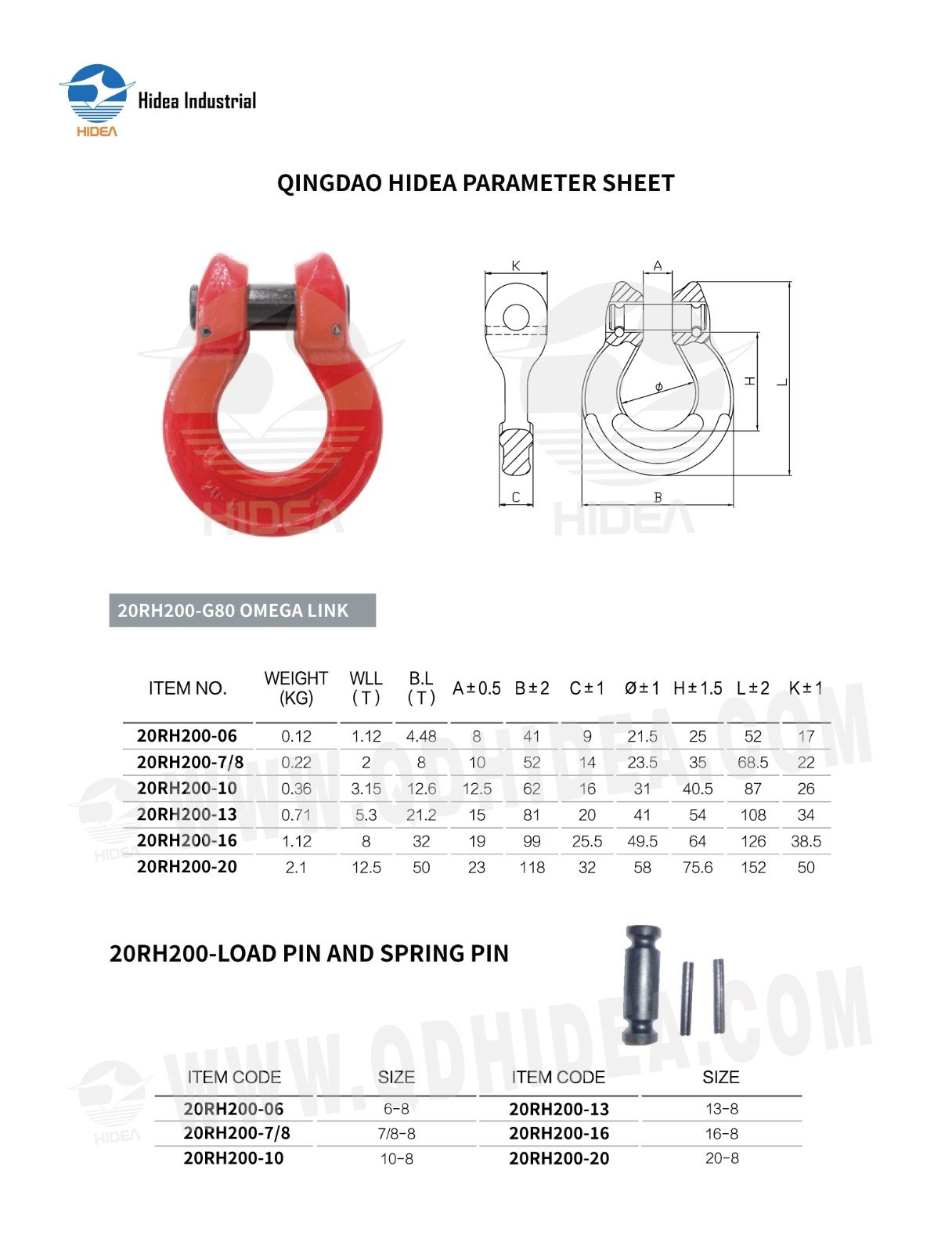

QINGDAO HIDEA PARAMETER SHEET FOR
20RH200-G80 OMEGA LINK
| ITEM NO. | WEIGHT (KG) | WLL (T) | B.L (T) | A±0.5 | B±2 | C±1 | ر1 | H±1.5 | L±2 | K±1 | |||||
| 20RH200-06 | 0.12 | 1.12 | 4.48 | 8 | 41 | 9 | 21.5 | 25 | 52 | 17 | |||||
| 20RH200-7/8 | 0.22 | 2 | 8 | 10 | 52 | 14 | 23.5 | 35 | 68.5 | 22 | |||||
| 20RH200-10 | 0.36 | 3.15 | 12.6 | 12.5 | 62 | 16 | 31 | 40.5 | 87 | 26 | |||||
| 20RH200-13 | 0.71 | 5.3 | 21.2 | 15 | 81 | 20 | 41 | 54 | 108 | 34 | |||||
| 20RH200-16 | 1.12 | 8 | 32 | 19 | 99 | 25.5 | 49.5 | 64 | 126 | 38.5 | |||||
| 20RH200-20 | 2.1 | 12.5 | 50 | 23 | 118 | 32 | 58 | 75.6 | 152 | 50 | |||||
