Secure Lifting and Towing with Hidea Square Sunken Hole Dee Shackle

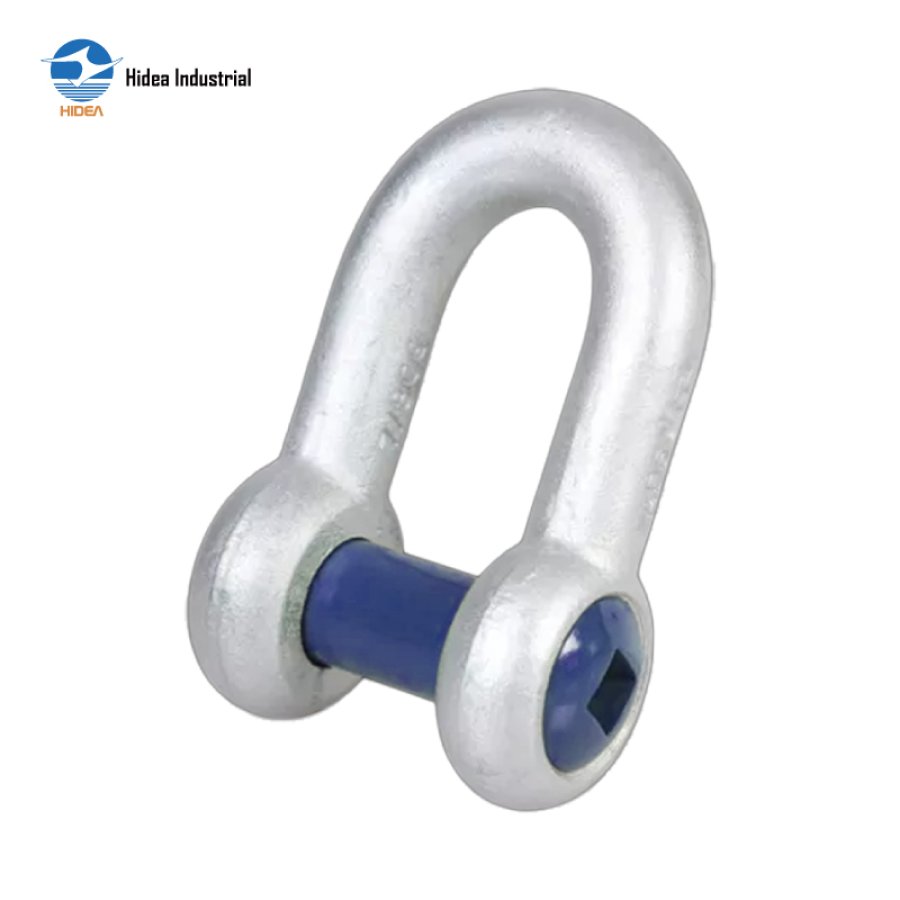

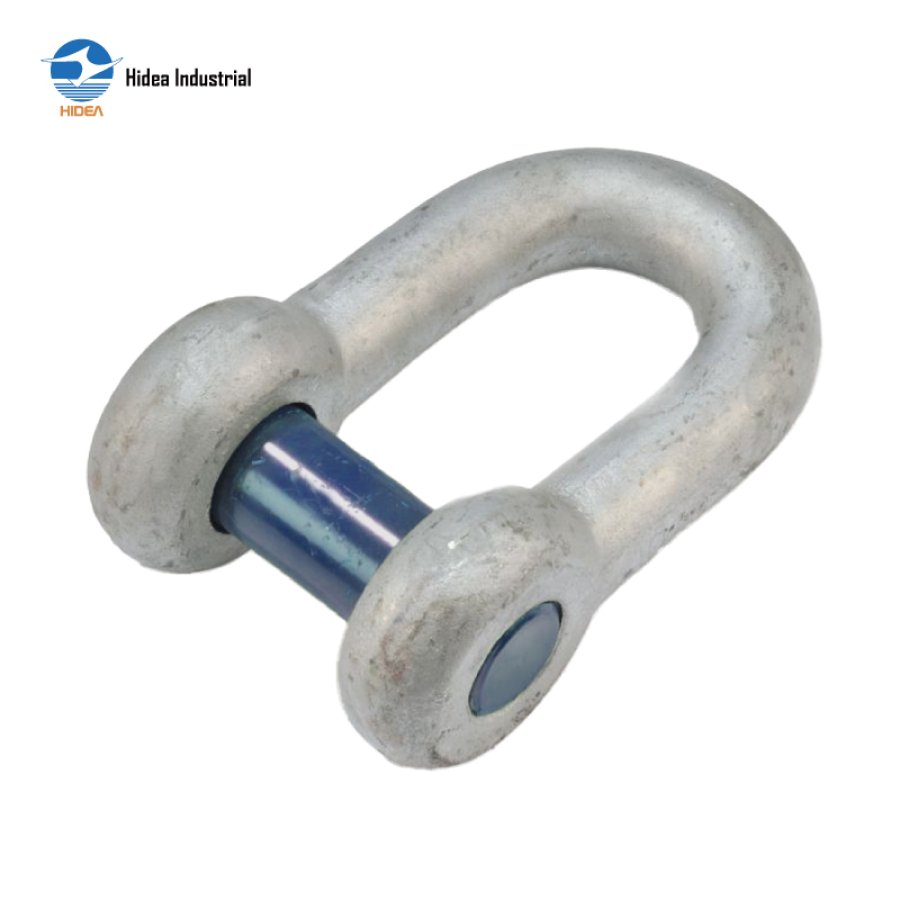

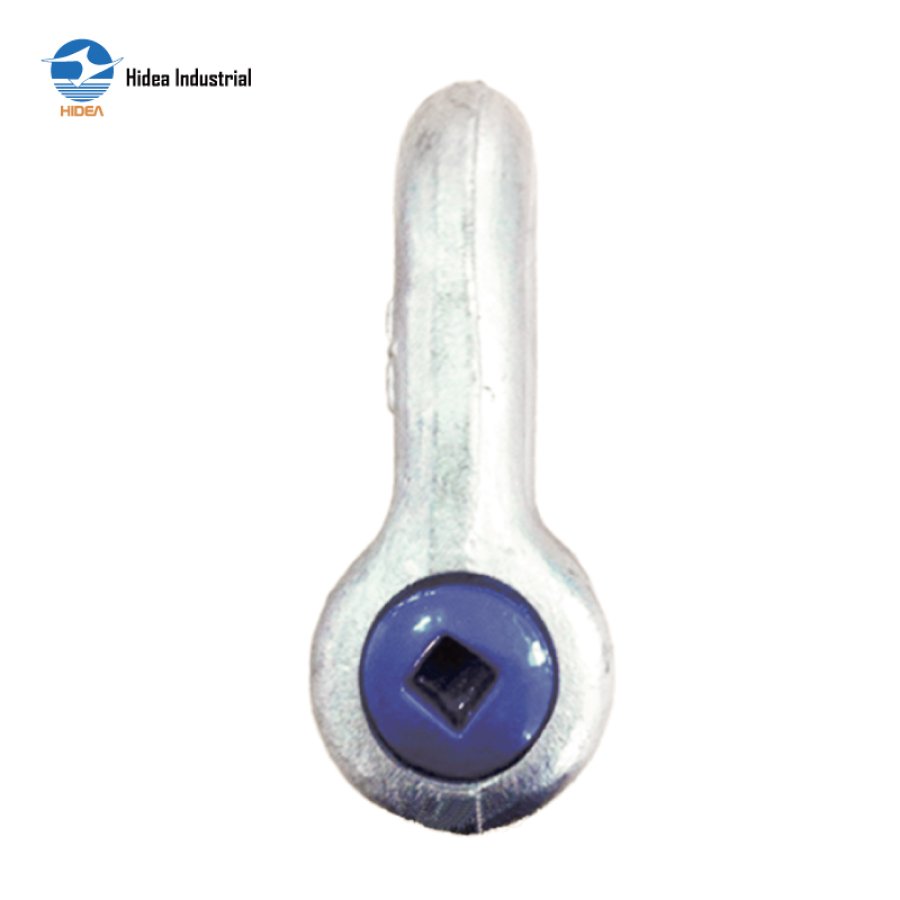

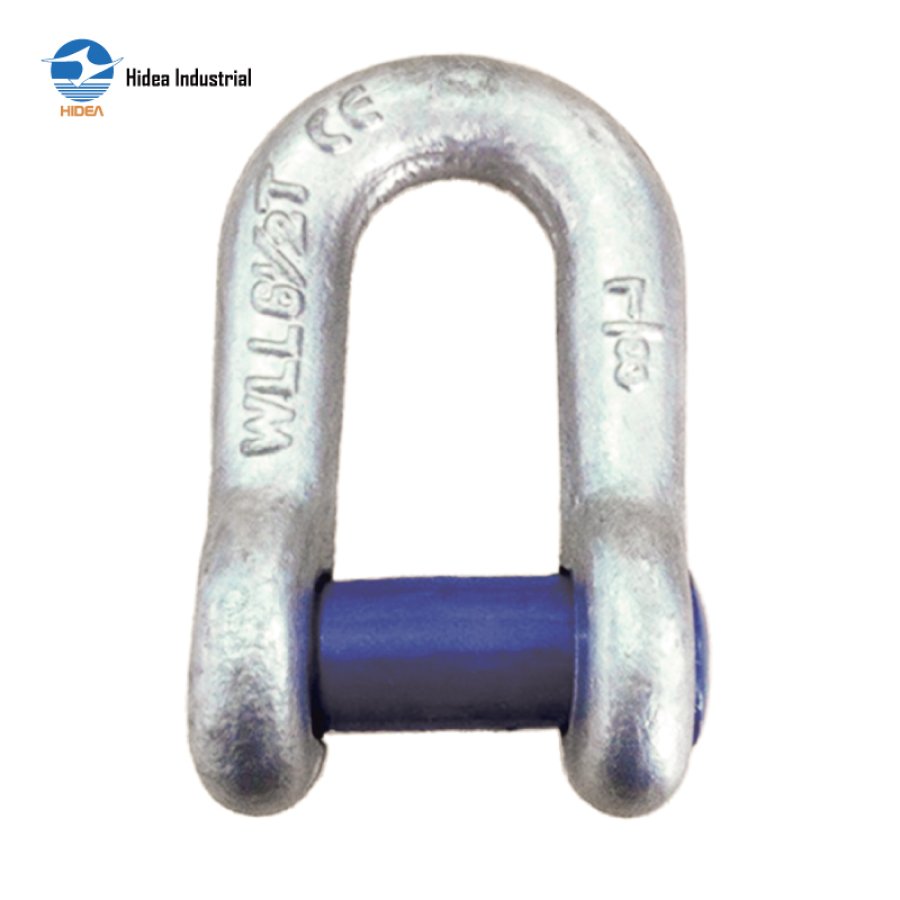

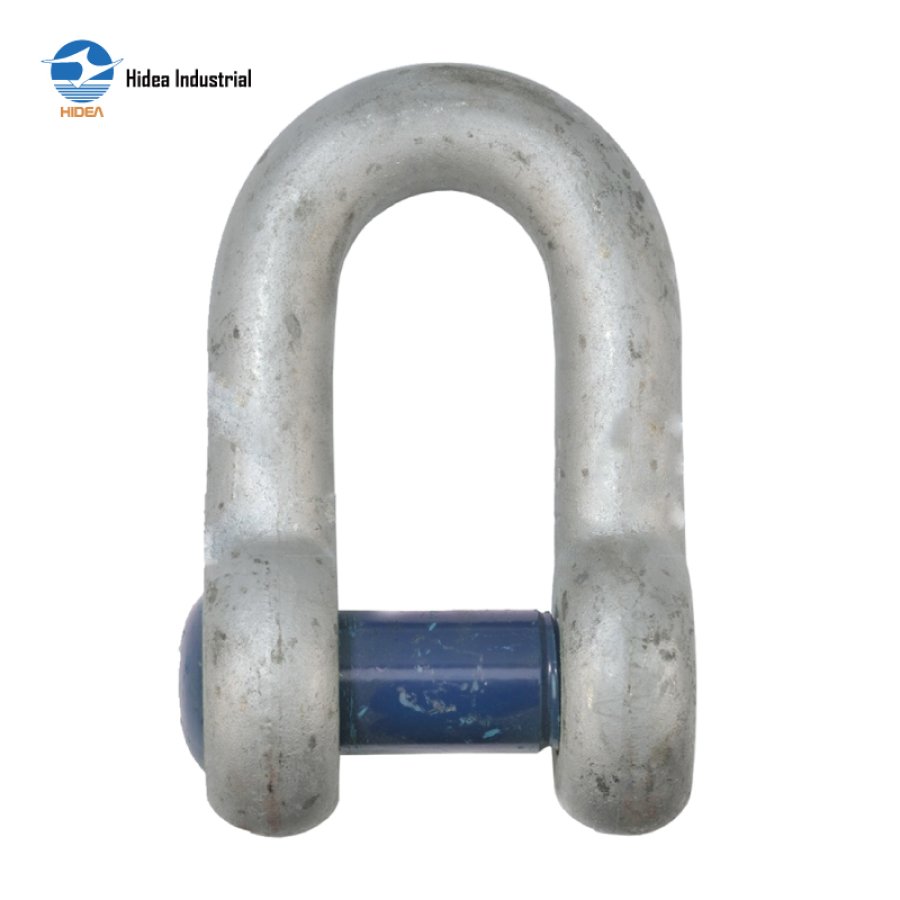

D SHACKLE WITH SUNKEN HEAD PIN

Material: body, carbon steel; pin, alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271, Grade A

Inquire Now

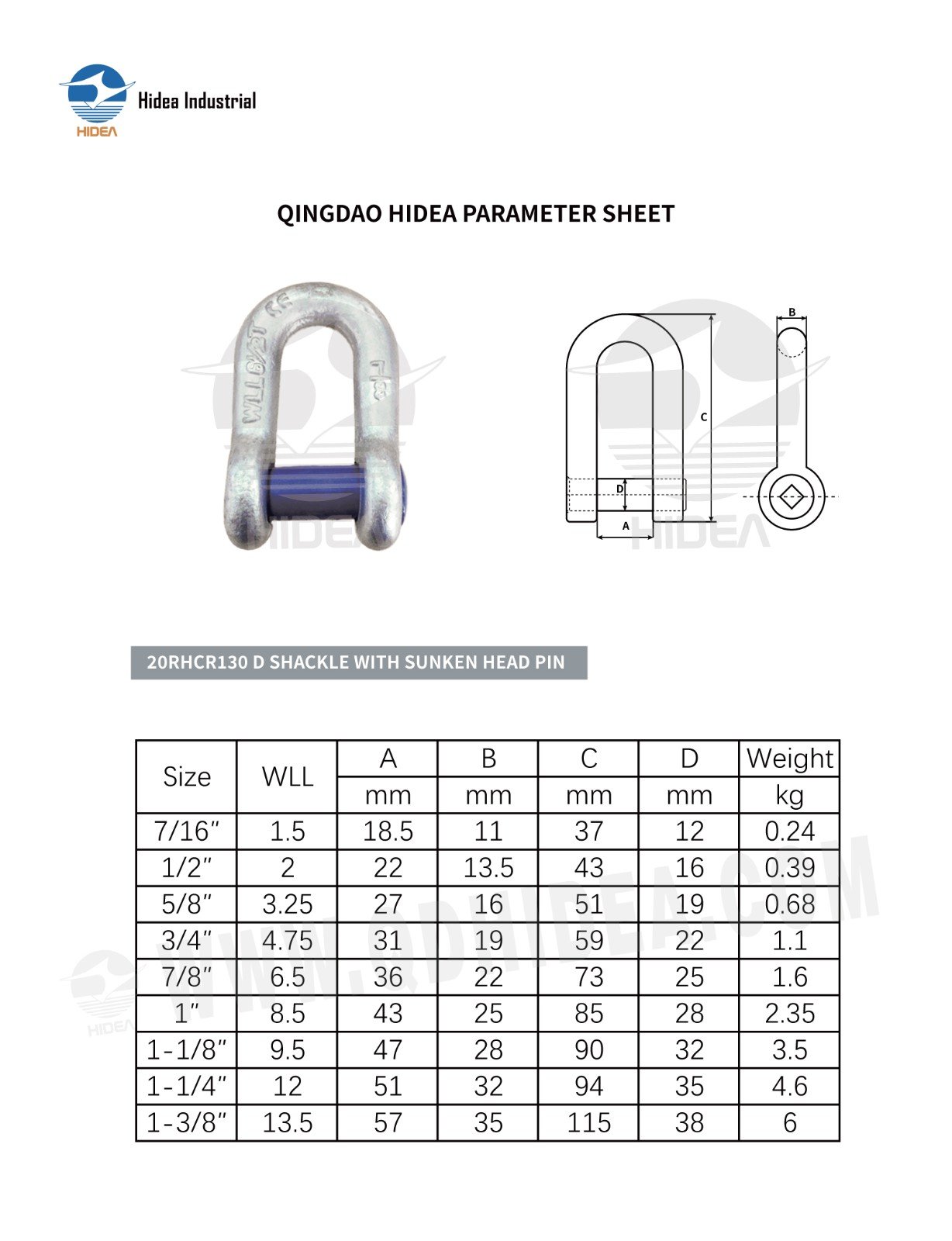

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR130 D SHACKLE WITH SUNKEN HEAD PIN

Size	WLL	A	B	C	D	Weight
Size	WLL	mm	mm	mm	mm	kg
7/16"	1.5	18.5	11	37	12	0.24
1/2"	2	22	13.5	43	16	0.39
5/8"	3.25	27	16	51	19	0.68
3/4"	4.75	31	19	59	22	1.1
7/8"	6.5	36	22	73	25	1.6
1"	8.5	43	25	85	28	2.35
1-1/8"	9.5	47	28	90	32	3.5
1-1/4"	12	51	32	94	35	4.6
1-3/8"	13.5	57	35	115	38	6
