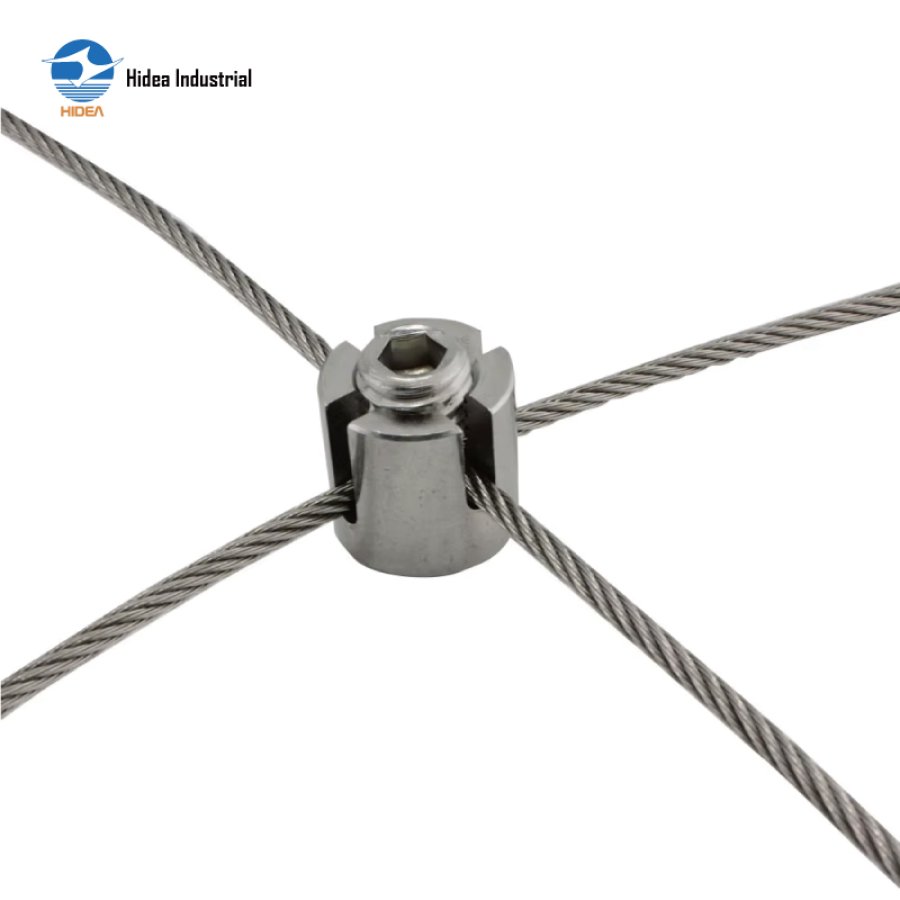

Durable Hidea Stainless Steel Wire Rope Net Clip – Ideal for Espalier & Trellis Wire Systems

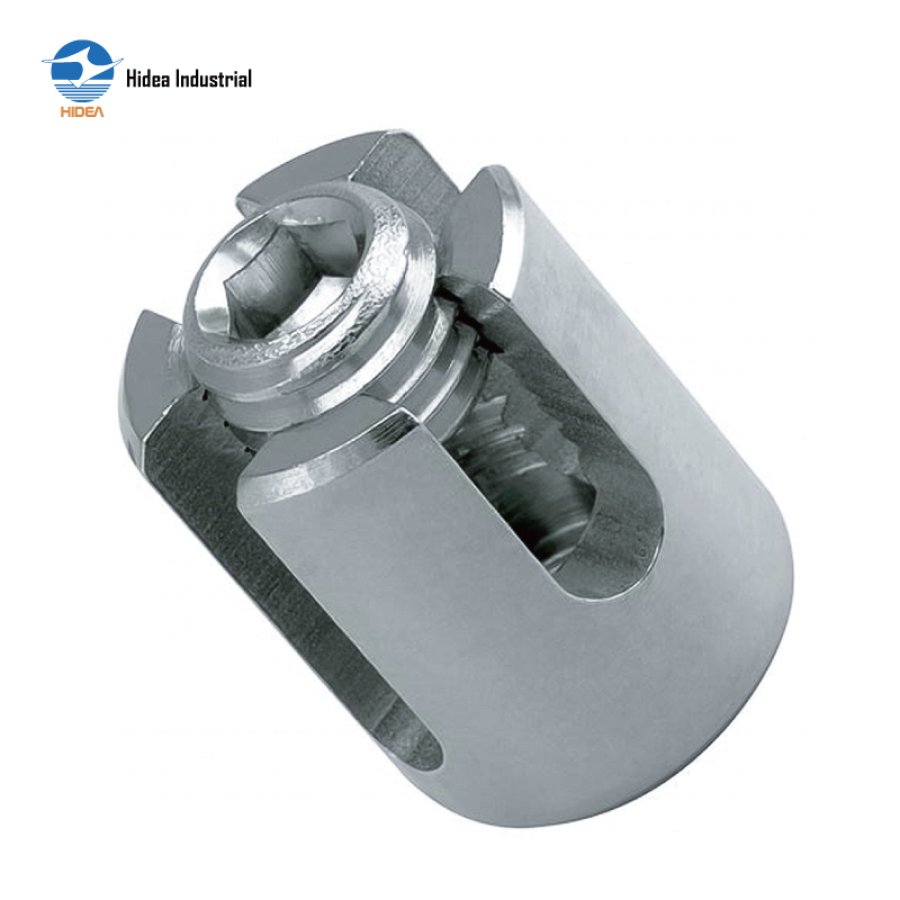

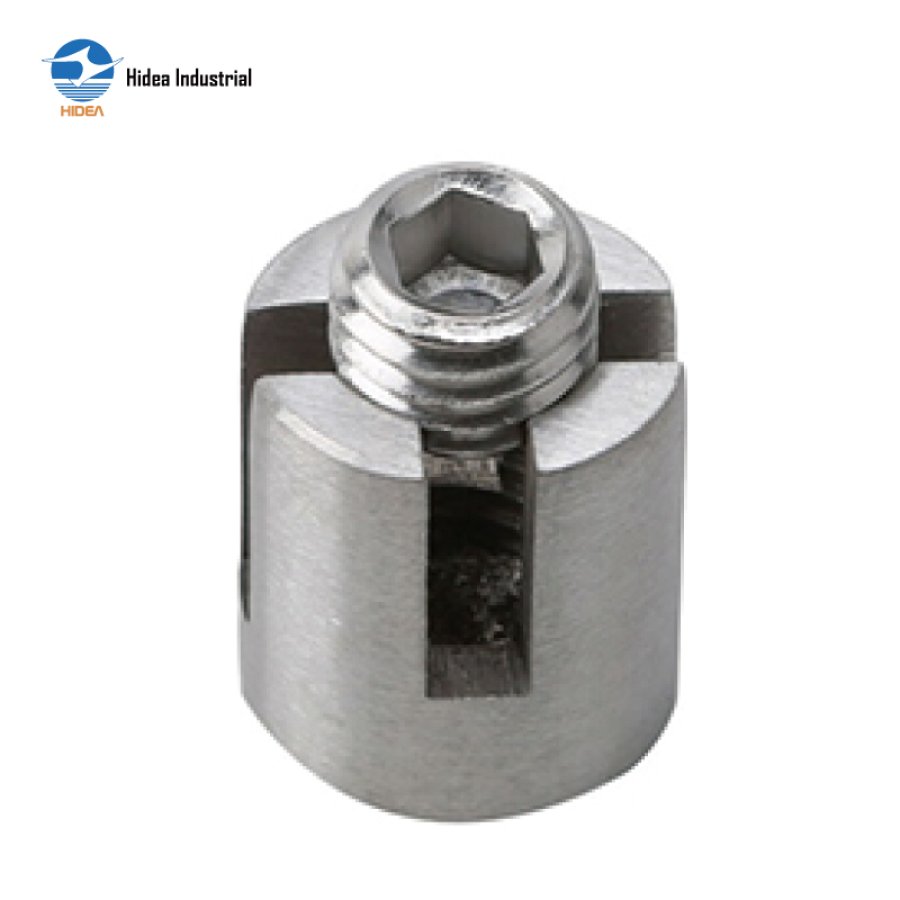

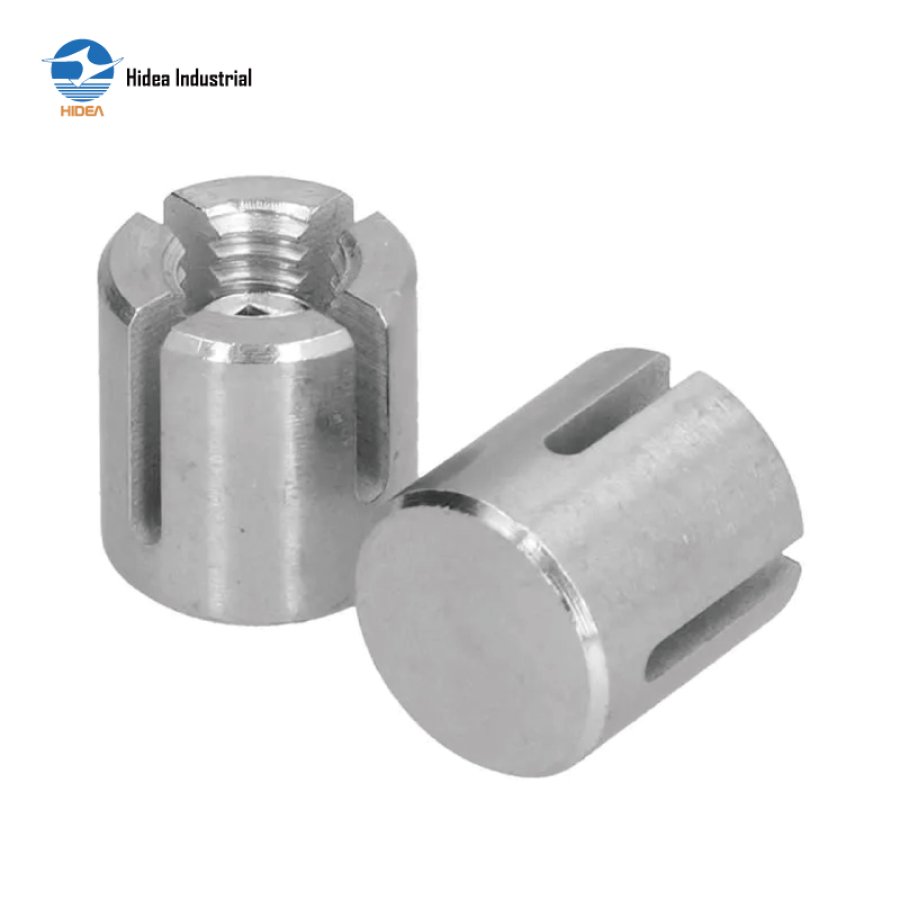

CROSS WIRE CLAMPS NET CLIPS

Technical Data: Machining
Material: SS304/SS316

Inquire Now

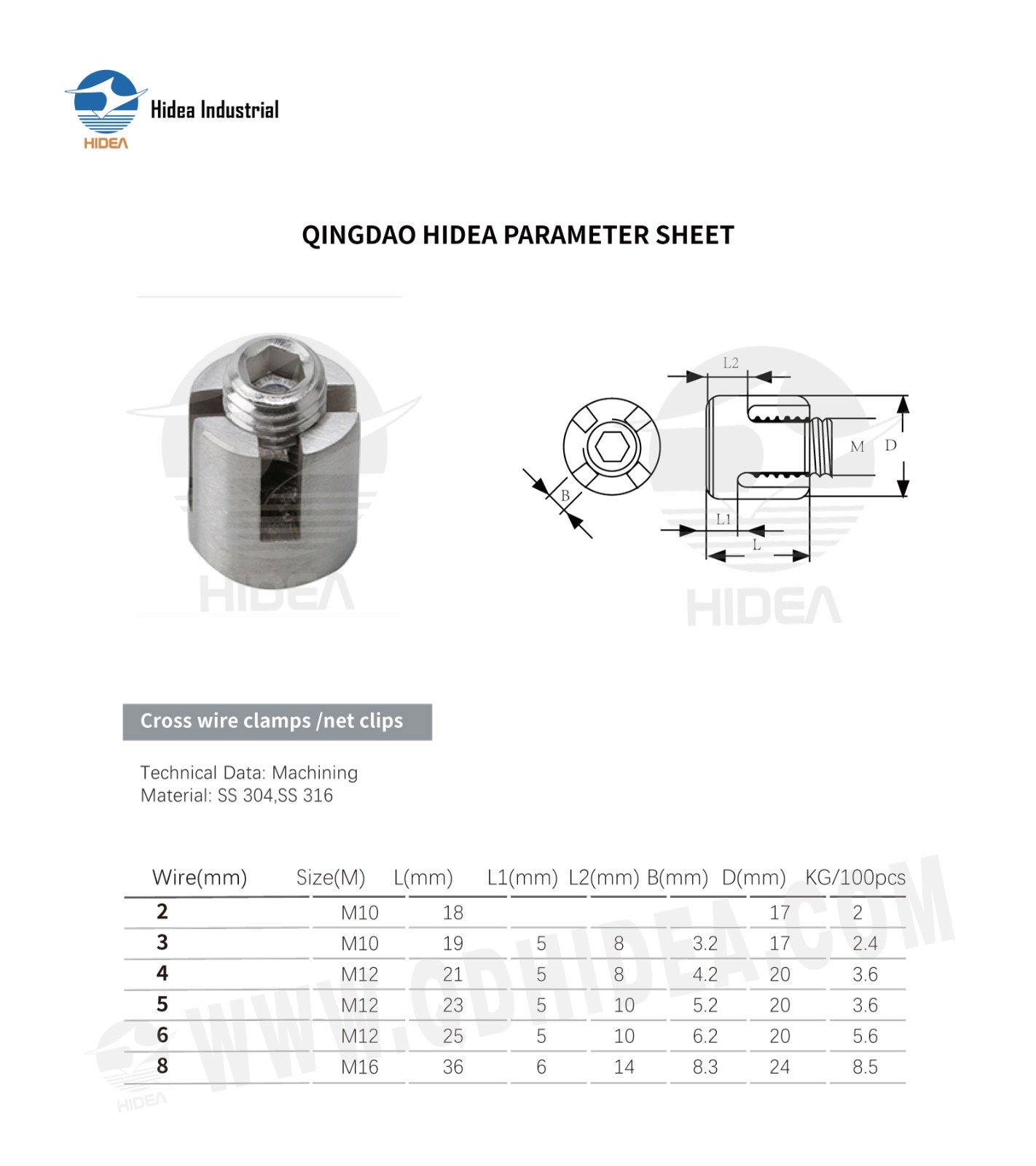

QINGDAO HIDEA PARAMETER SHEET FOR

Cross wire clamps/net clips

Wire(mm)	Size(M)	L(mm)	L1(mm)	L2(mm)	B(mm)	D(mm)	KG/100pcs
2	M10	18				17	2
3	M10	19	5	8	3.2	17	2.4
4	M12	21	5	8	4.2	20	3.6
5	M12	23	5	10	5.2	20	3.6
6	M12	25	5	10	6.2	20	5.6
8	M16	36	6	14	8.3	24	8.5
