Maximize Safety and Strength with Hidea G80 Special Weld-On Hook

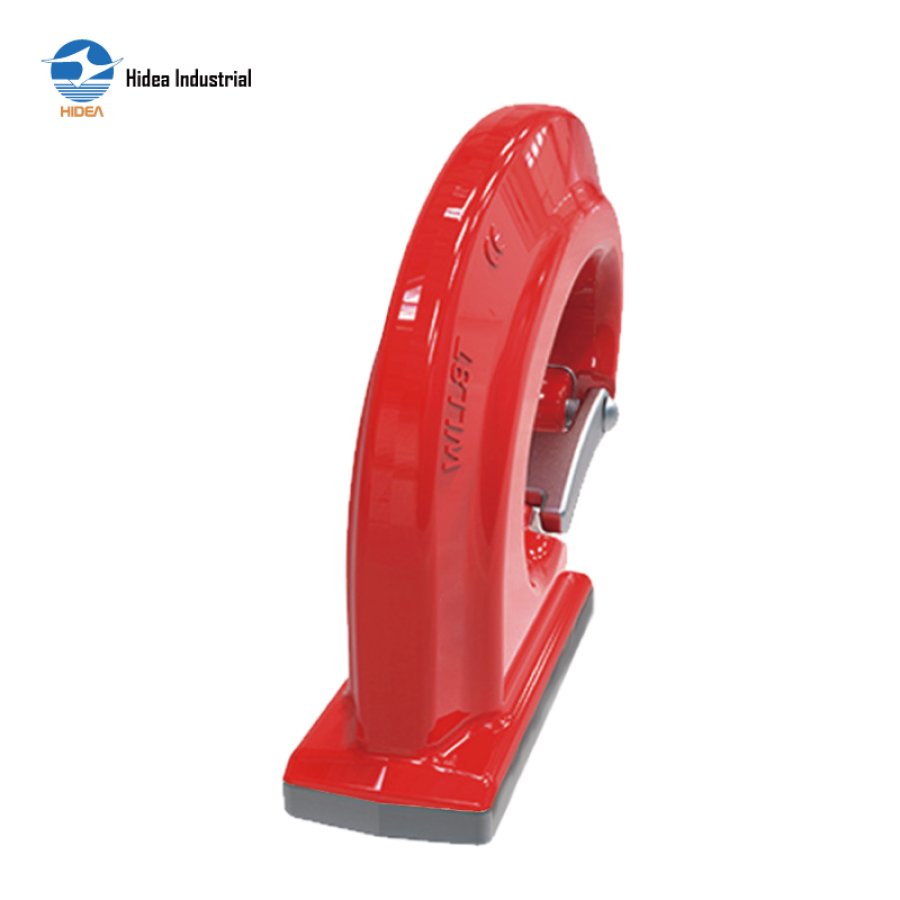

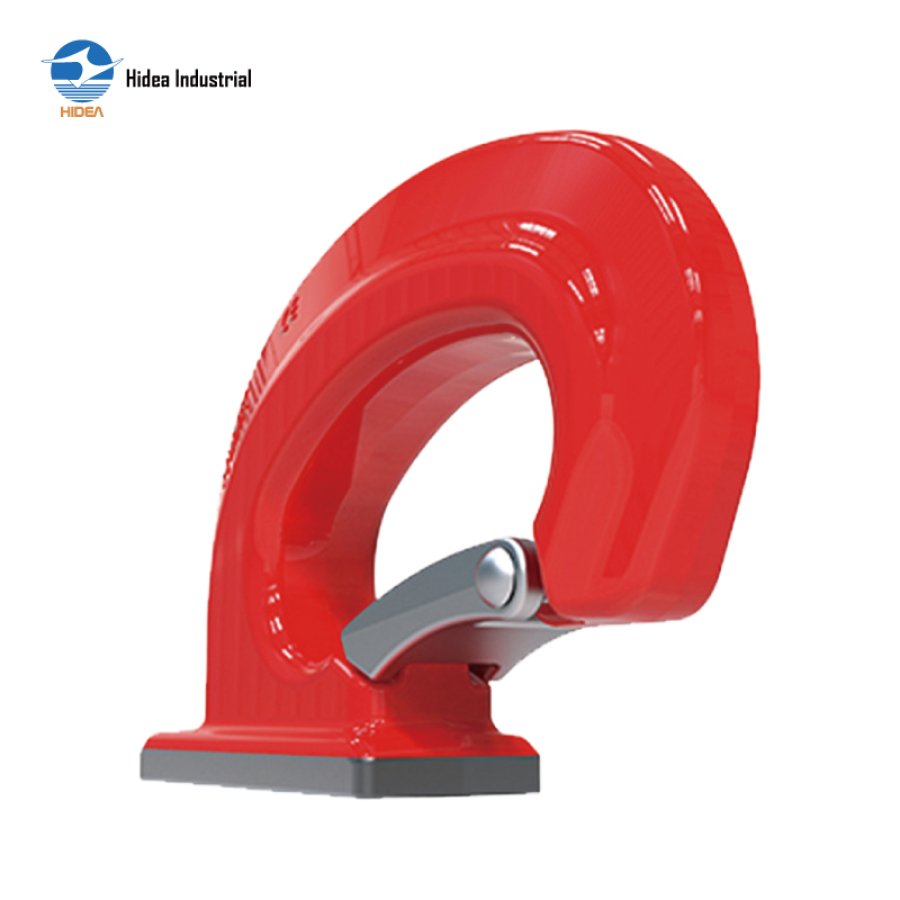

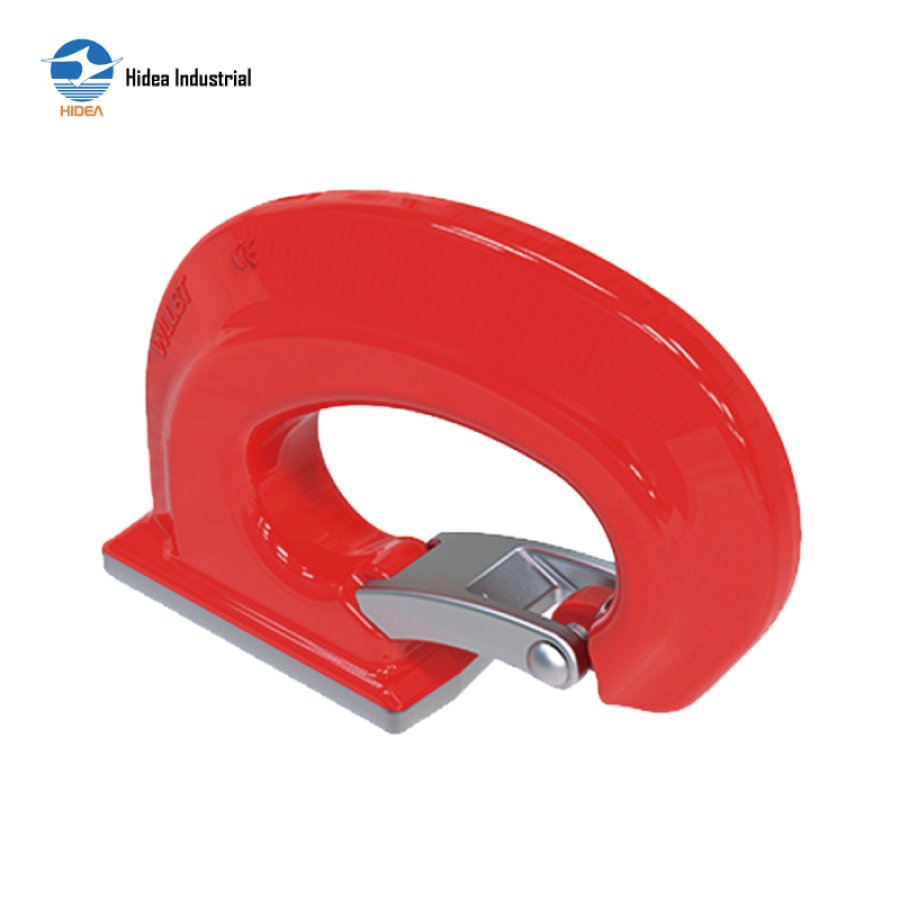

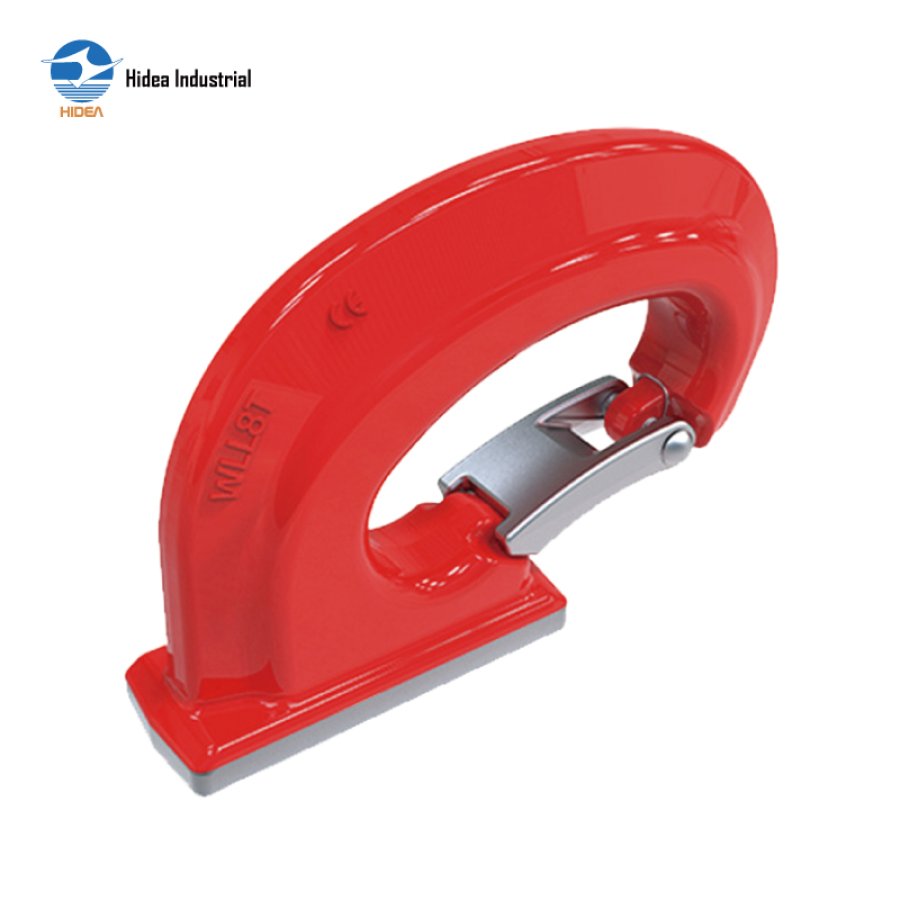

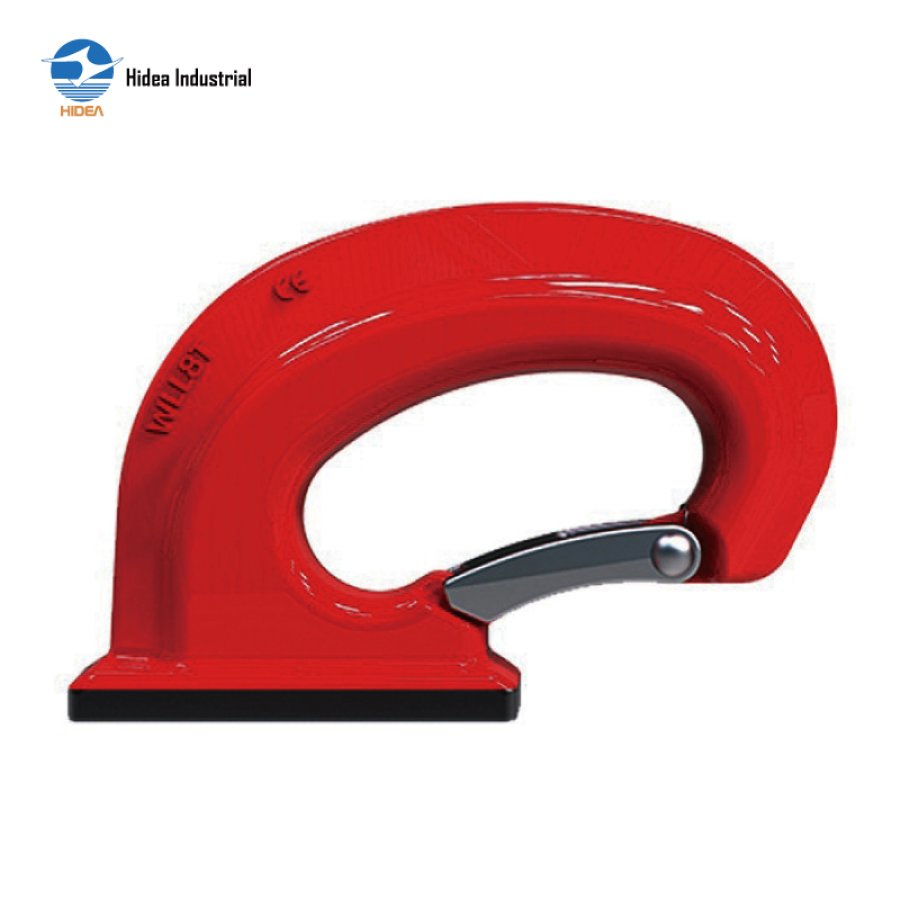

G80 SPECIAL WELD ON HOOK

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

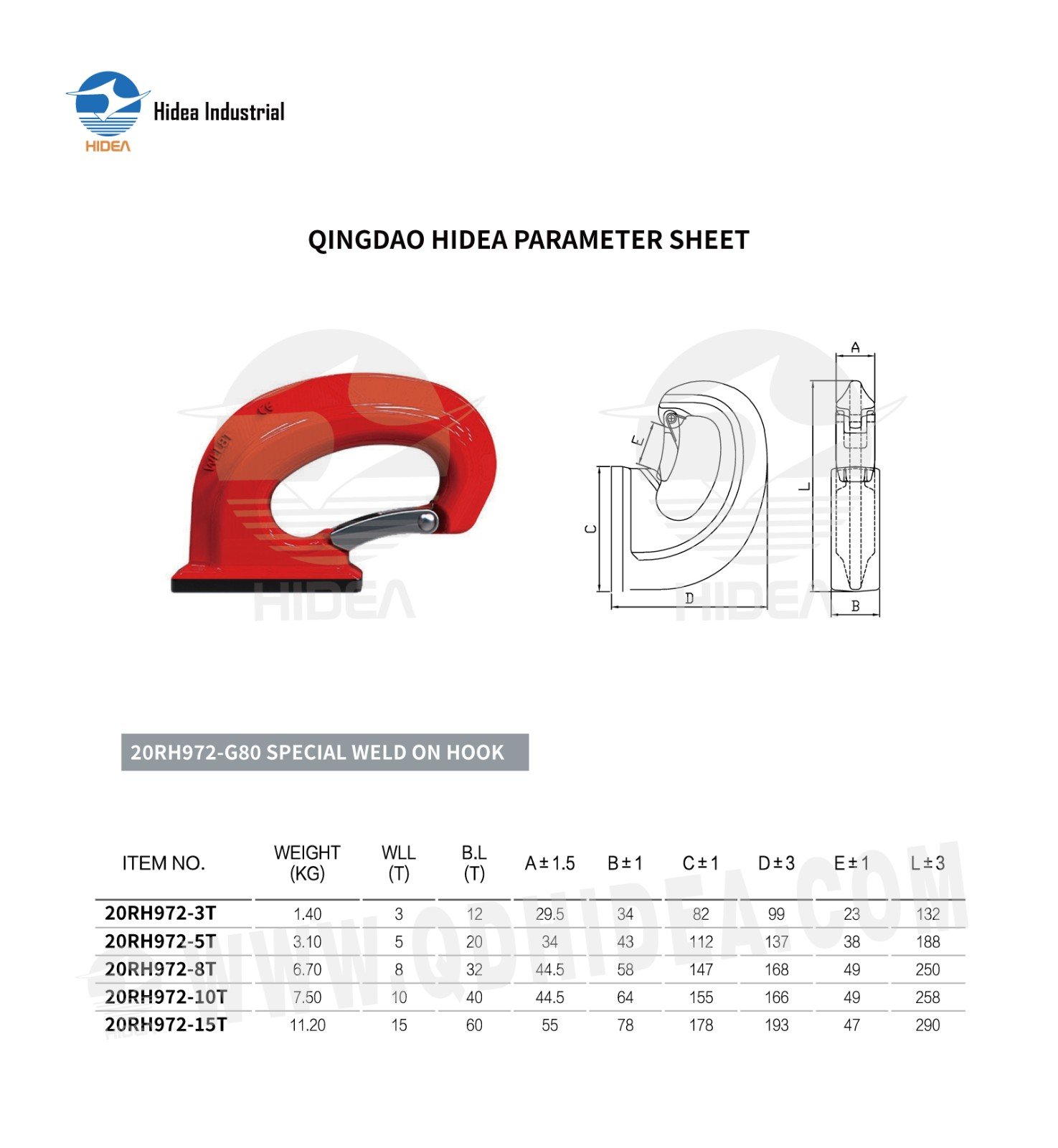

QINGDAO HIDEA PARAMETER SHEET FOR

20RH972-G80 SPECIAL WELD ON HOOK

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±1.5	B±1	C±1	D±3	E±1	L±3
20RH972-3T	1.40	3	12	29.5	34	82	99	23	132
20RH972-5T	3.10	5	20	34	43	112	137	38	188
20RH972-8T	6.70	8	32	44.5	58	147	168	49	250
20RH972-10T	7.50	10	40	44.5	64	155	166	49	258
20RH972-15T	11.20	15	60	55	78	178	193	47	290
