HIDEA Precast Lifting Ring Clutch: Reliable Handling for Precast Components

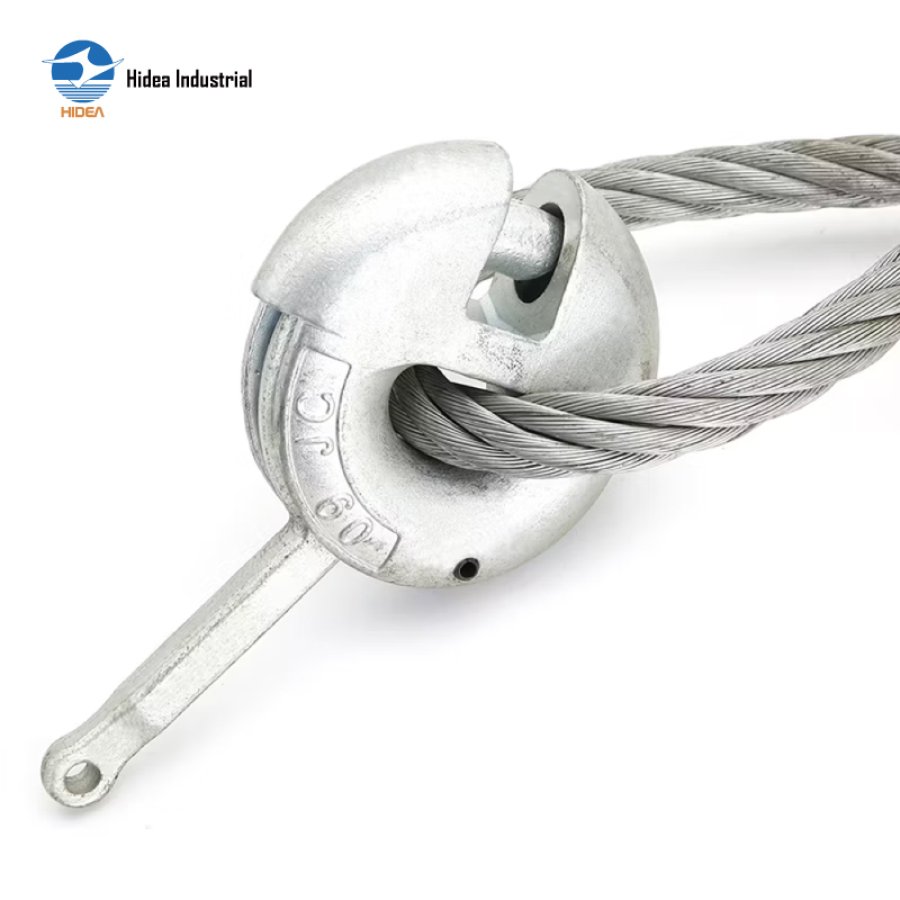

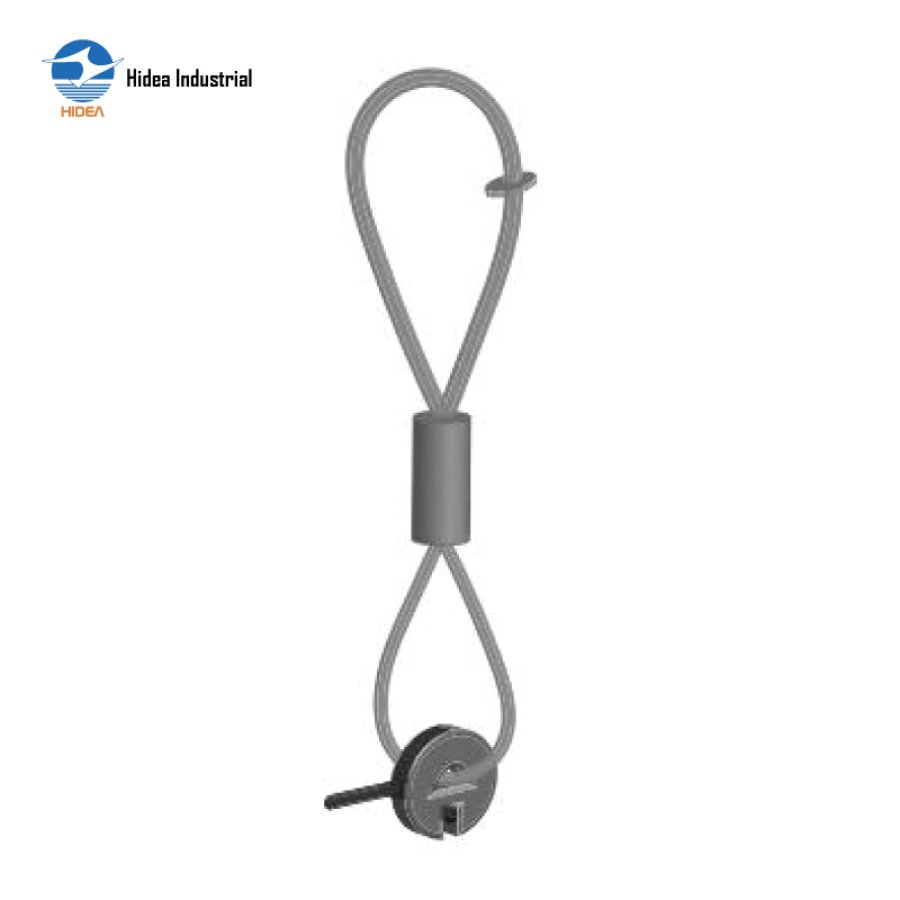

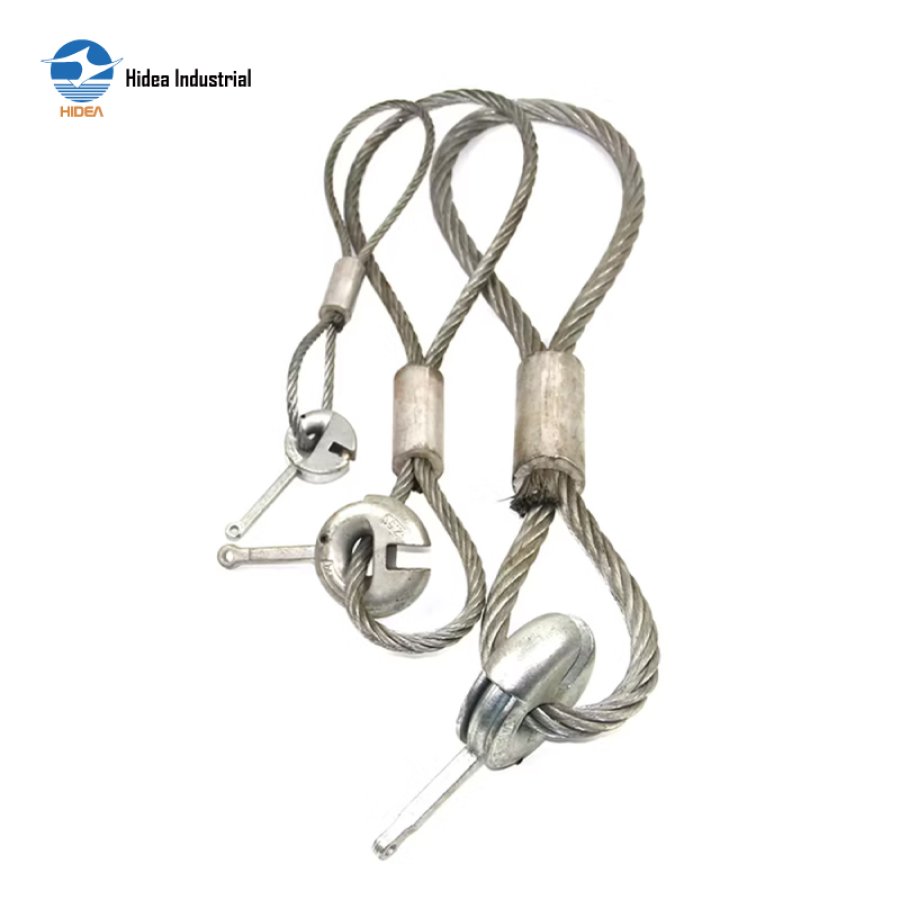

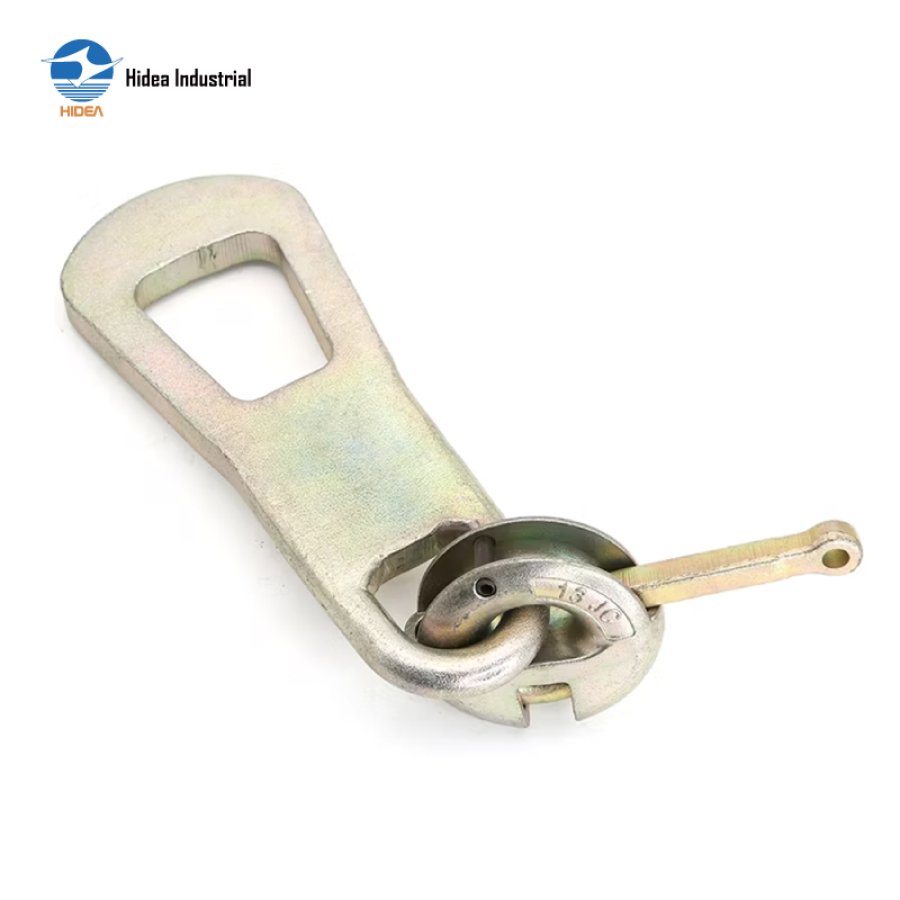

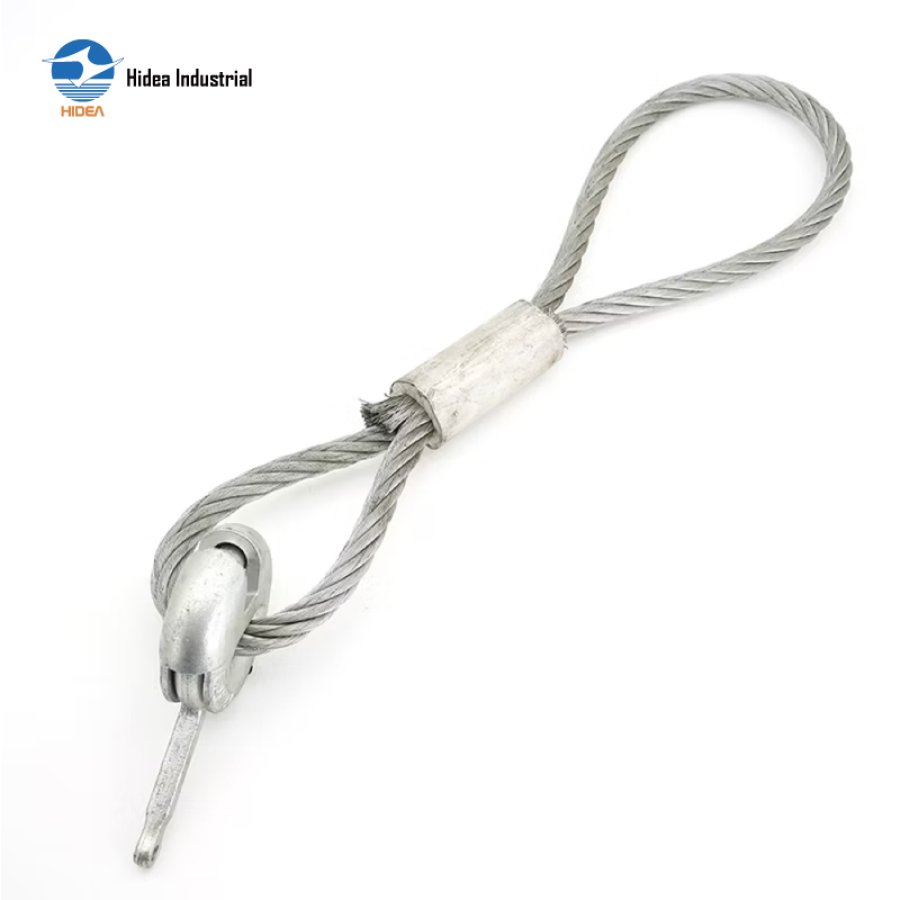

PRECAST CONCRETE LIFTING RING CLUTCH

Prestressed / precast concrete elements lifting device Lifting Ring Clutch
The Cable lifting ring clutch is an efficient & fast lifting system method in a connect/disconnect allowing precast concrete elements to be handled safetly and used repeatedly.
The high quality, engineered ring clutch is dimensionally measured, mechanically load tested and magnaflux crack detection made to meet / or exceed minimum design requirements.

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

PRESTRESSED/PRECAST CONCRETE ELEMENTS LIFTING DEVICE

Dimensions of the Loop
	Loop										Label
Load (t)	d (mm)		H (mm)		LB (mm)		L1 (mm)		D (mm)		d (mm)	Φ (mm)
1.25	8		355		160		50		37		23	20
2.5	14		385		160		95		37		23	20
5.0	10		470		160		120		37		23	20
10.0	12		550		170		130		37		23	20
26	16		590		250		190		37		23	20
Dimensions of the Clutch
Clutch
Load (t)		Load (KN)		DrV (mm)		Hr1 (mm)		Er1 (mm)		DrE (mm)		Lr1 (mm)	D1v (mm)	Rr1 (mm)
1.25-1.3		13		8		8		8		52		70	8	52
1.5-2.5		25		14		16		14		80		67	10	60
3.0-5.0		50		18		22		18		105		75	12.5	83
6.0-10.0		100		22		30		23		150		75	16	113
12.5-26.0		260		32		35		34		206		80	18	151
