Hidea G80 Forged D-Ring – Perfect for Construction, Rigging, and Industrial Lifting

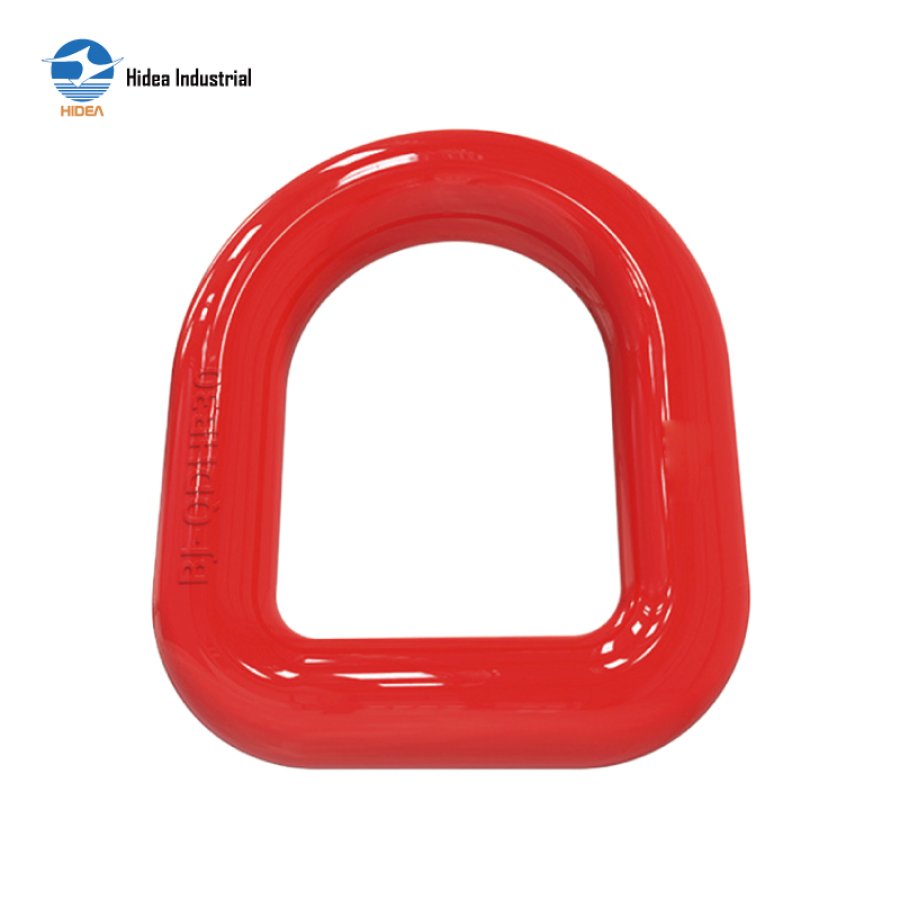

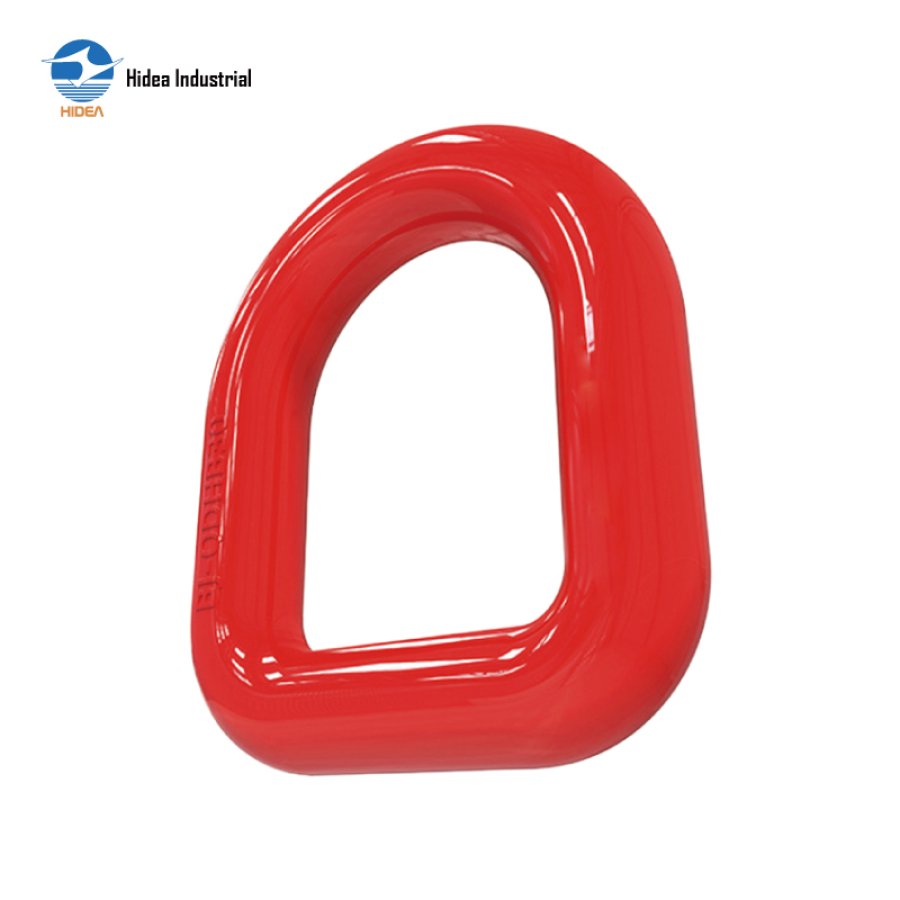

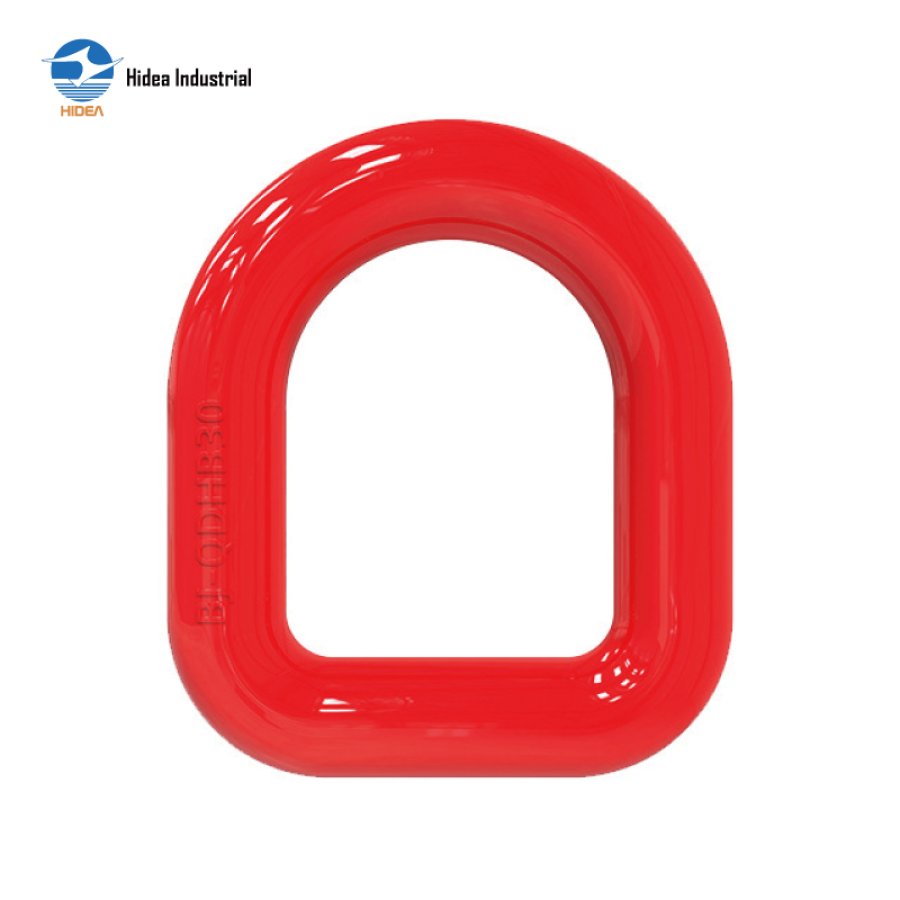

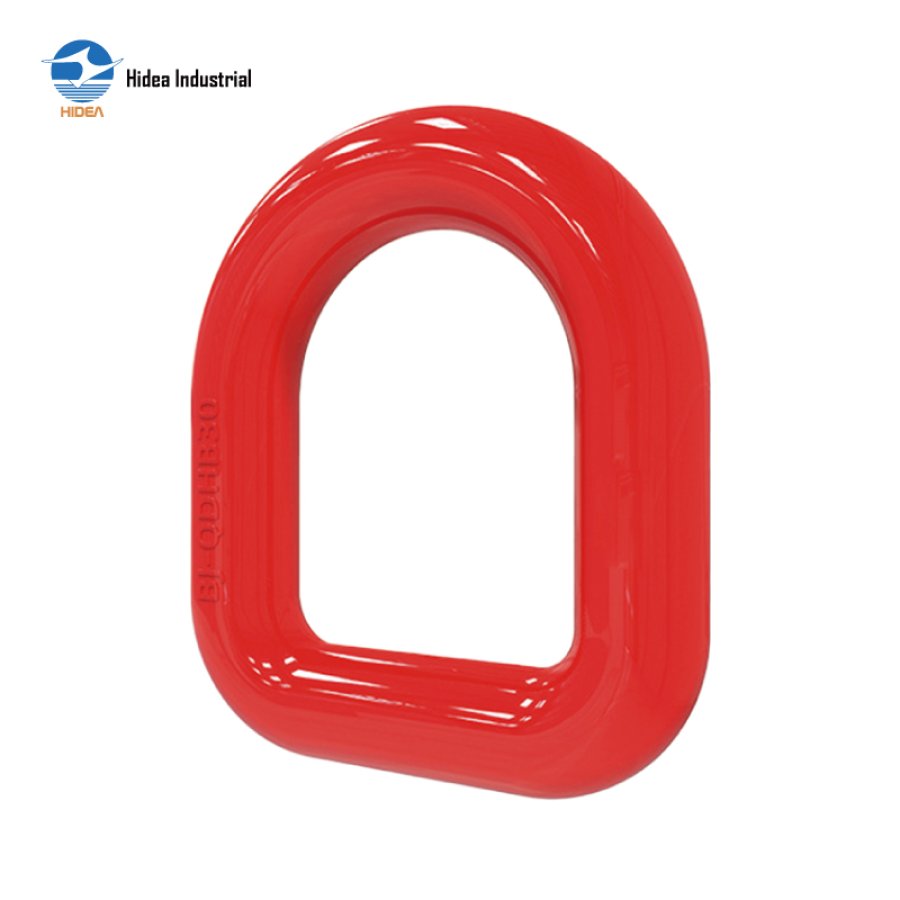

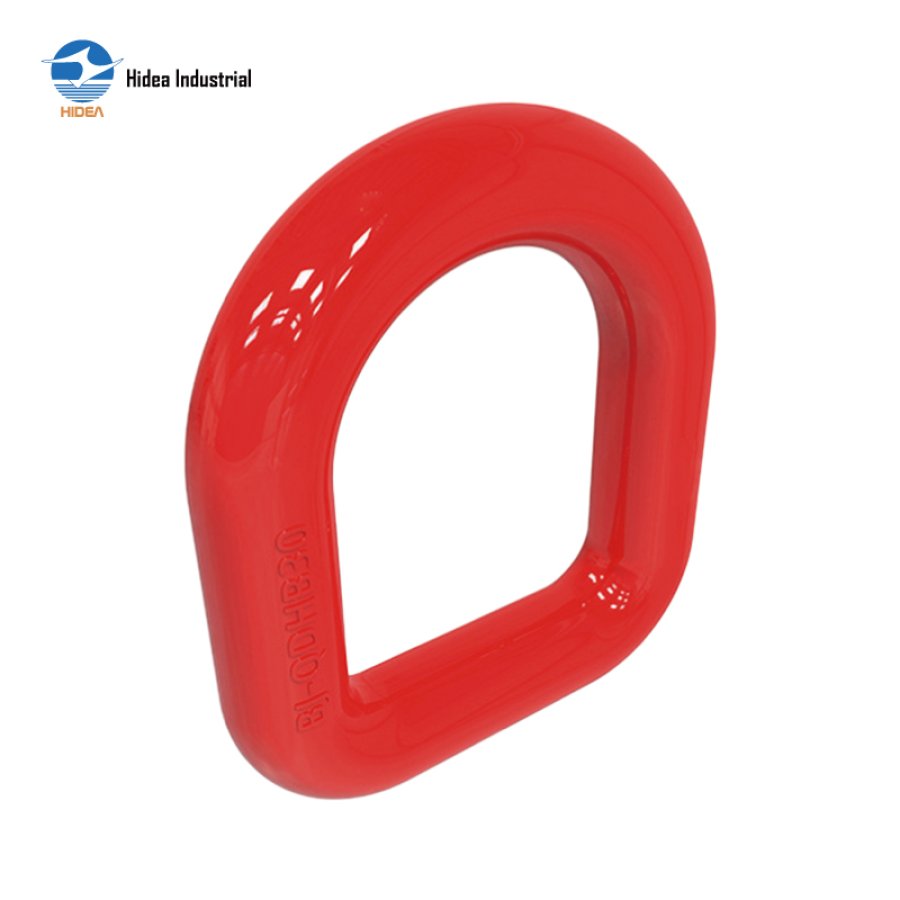

G80 FORGED D RING

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection

Inquire Now

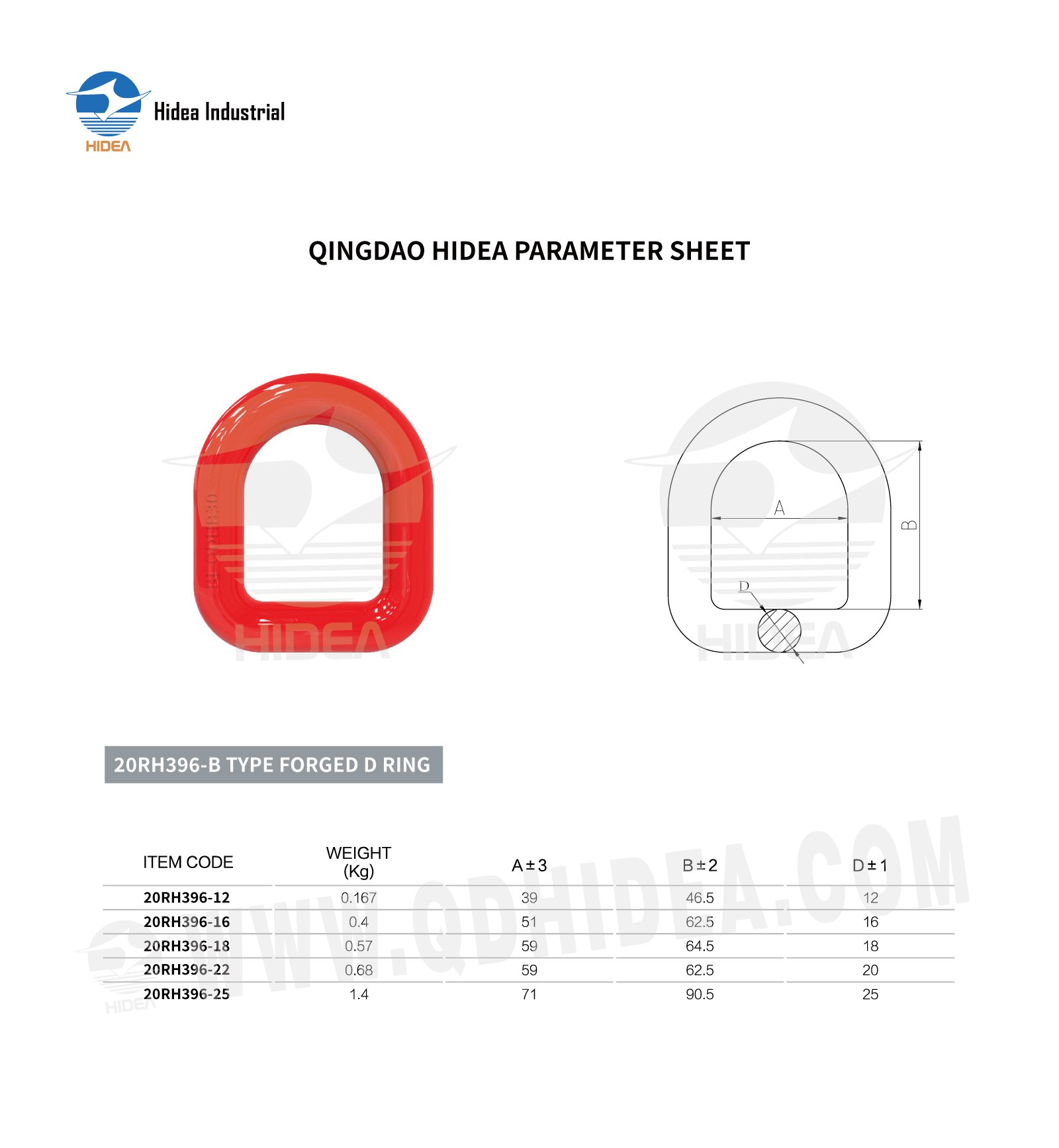

QINGDAO HIDEA PARAMETER SHEET FOR

20RH396-B TYPE FORGED D RING

ITEM CODE	WEIGHT (Kg)	A±3	B±2	D±1
20RH396-12	0.167	39	46.5	12
20RH396-16	0.4	51	62.5	16
20RH396-18	0.57	59	64.5	18
20RH396-22	0.68	59	62.5	20
20RH396-25	1.4	71	90.5	25
