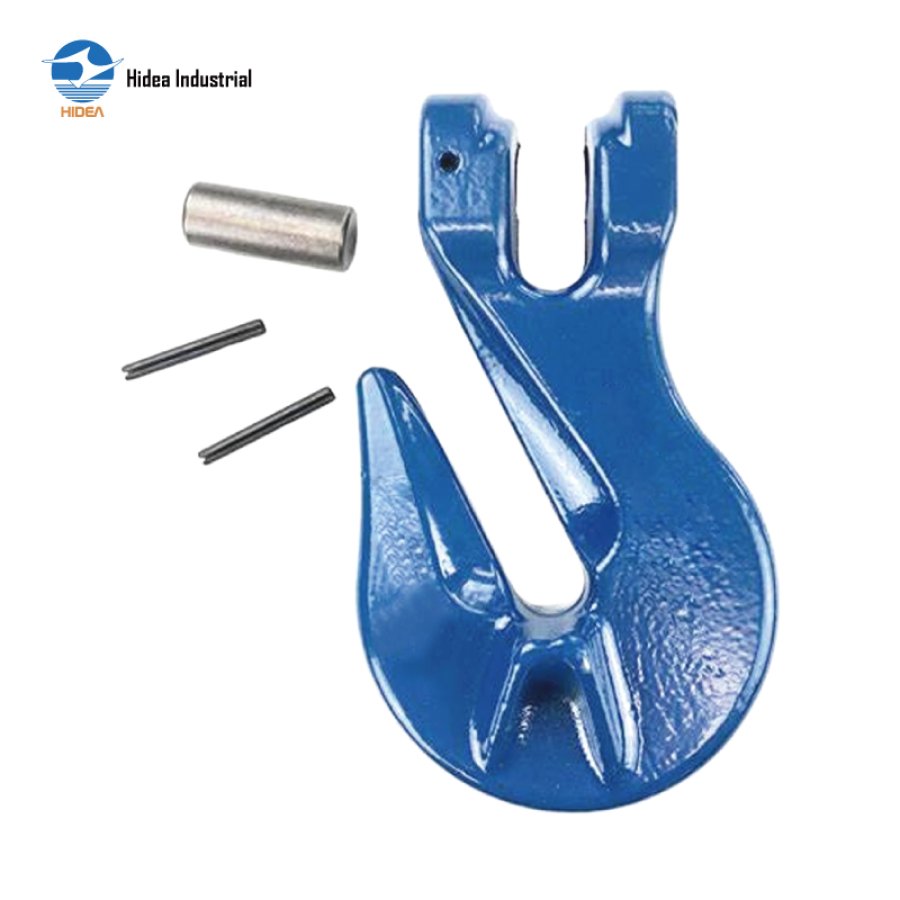

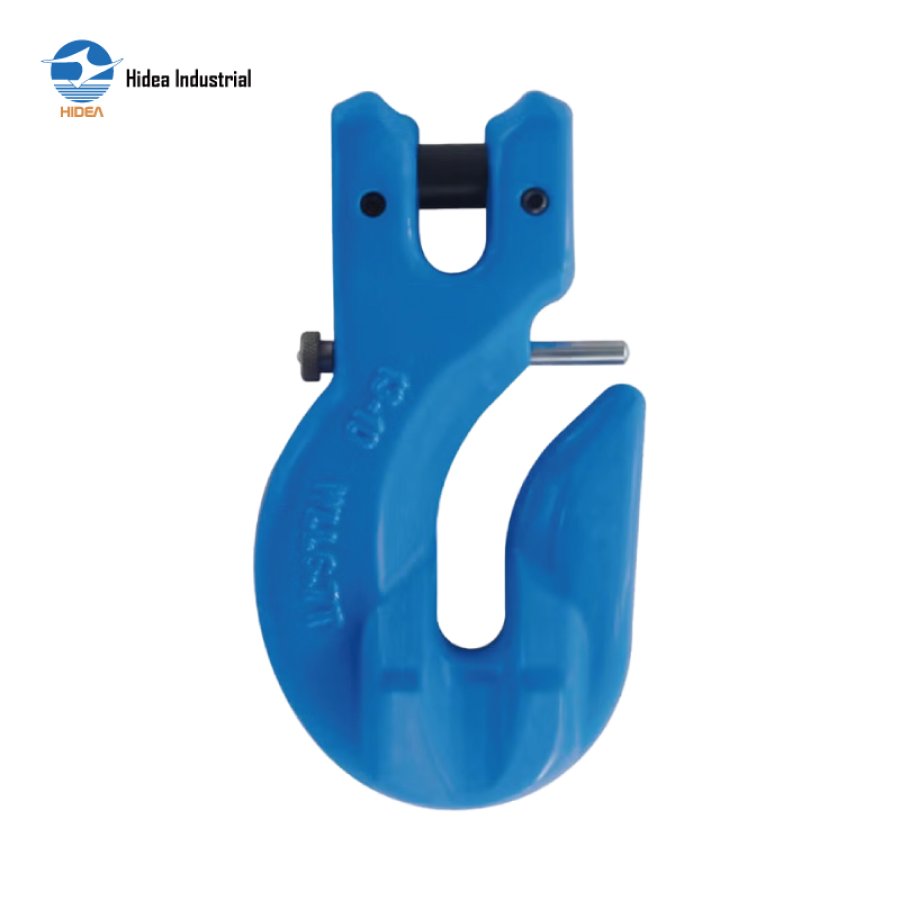

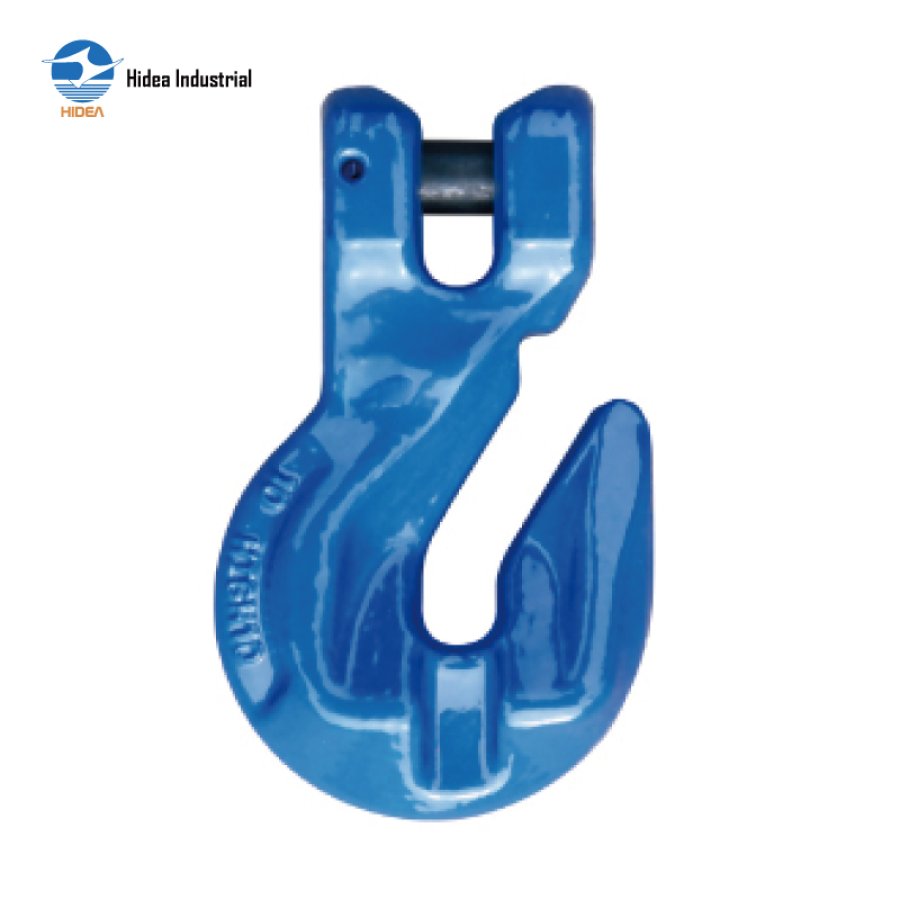

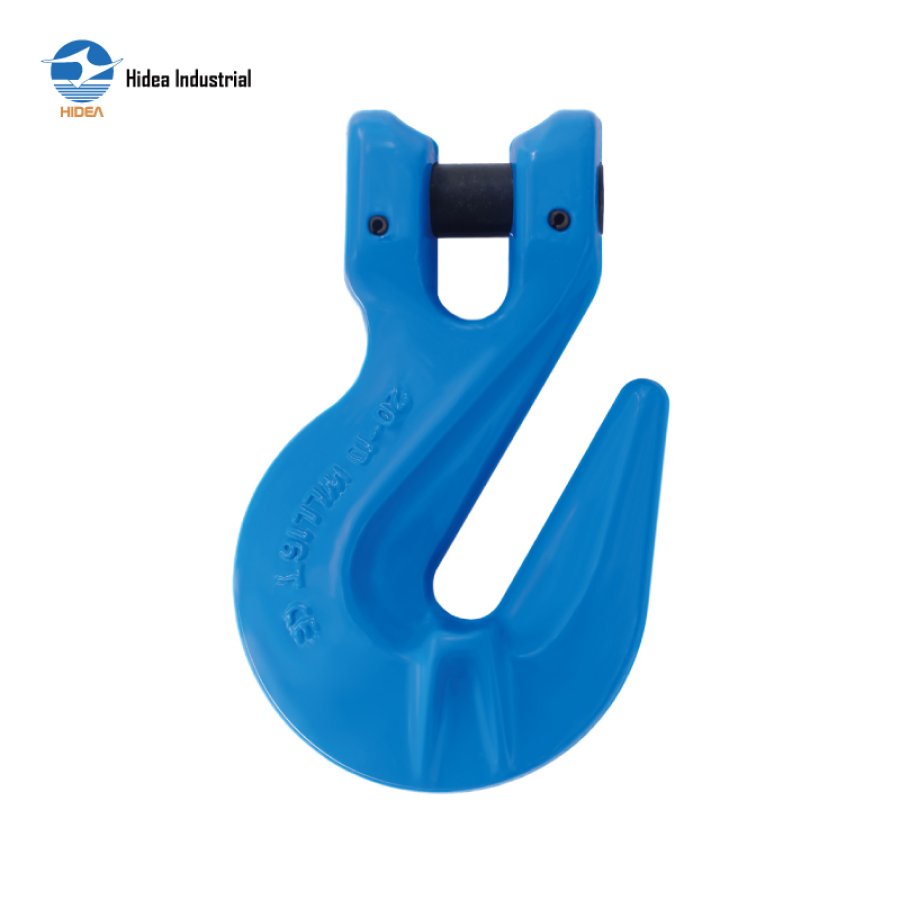

Hidea Grade 100 Clevis Cradle Grab Hook: Built for Maximum Load Capacity

G100 CLEVIS GRAB HOOK

Forged super alloy steel-Quenched and Tempered
Suitable to use with Grade 80/100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Sample tested at 1.5 times Working Load for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder coating
Colour code: Blue RAL5015
Crade design reduces wear on slings and chains

Inquire Now

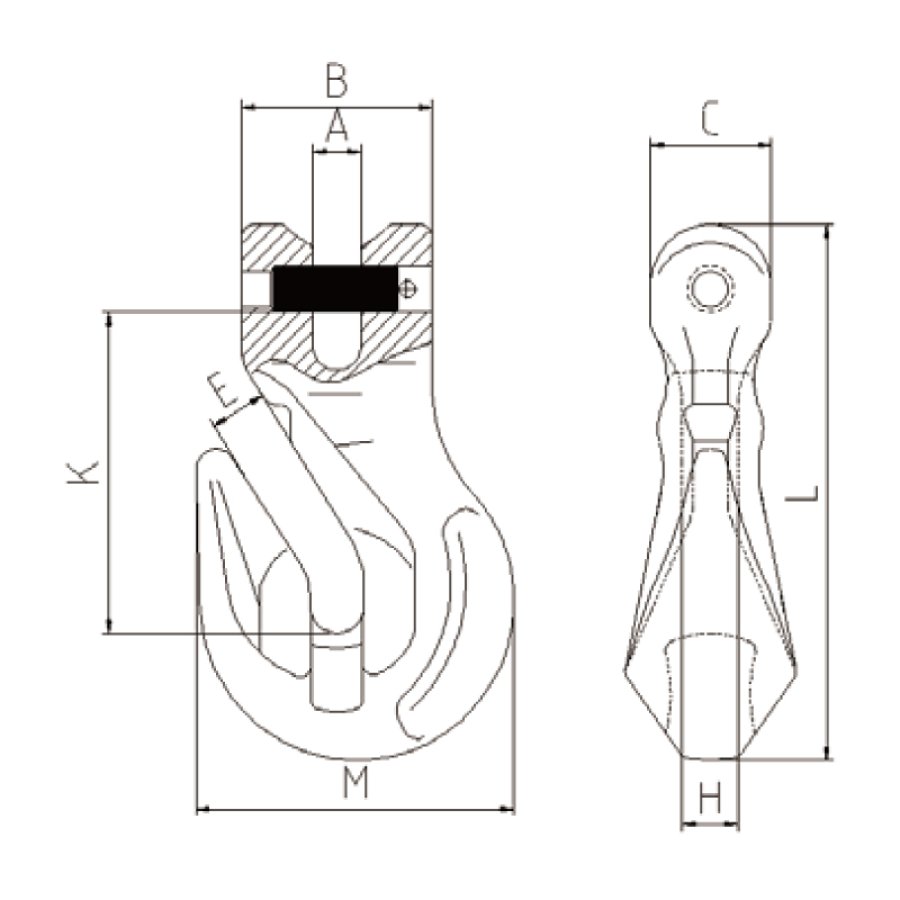

QINGDAO HIDEA PARAMETER SHEET FOR

20RH1901-G100 CLEVIS GRAB HOOK

ITEM NO.	WEIGHT	WLL	B.L	A	B	C	E	M	H	L
ITEM NO.	(kg)	(T)	(T)	A	B	C	E	M	H	L
20RH1901-06	0.265	1.4	5.6	8	32	18	8.3	51	9	81
20RH1901-08	0.58	2.5	10	9.5	38	24	10.5	62.5	11	105
20RH1901-13	2.4	6.7	26.8	15	60	37	15.5	101	16	173
20RH1901-20	7	16	64	23	85	51	24	149	26	257
