Standard: EN1677-4 (Supersedes DIN5688-3)
Super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003
Suitable for 1 or 2 legs G80 chain sling as per EN818-4
BLUE AREA: WELDED
YELLOW AREA: FORGED

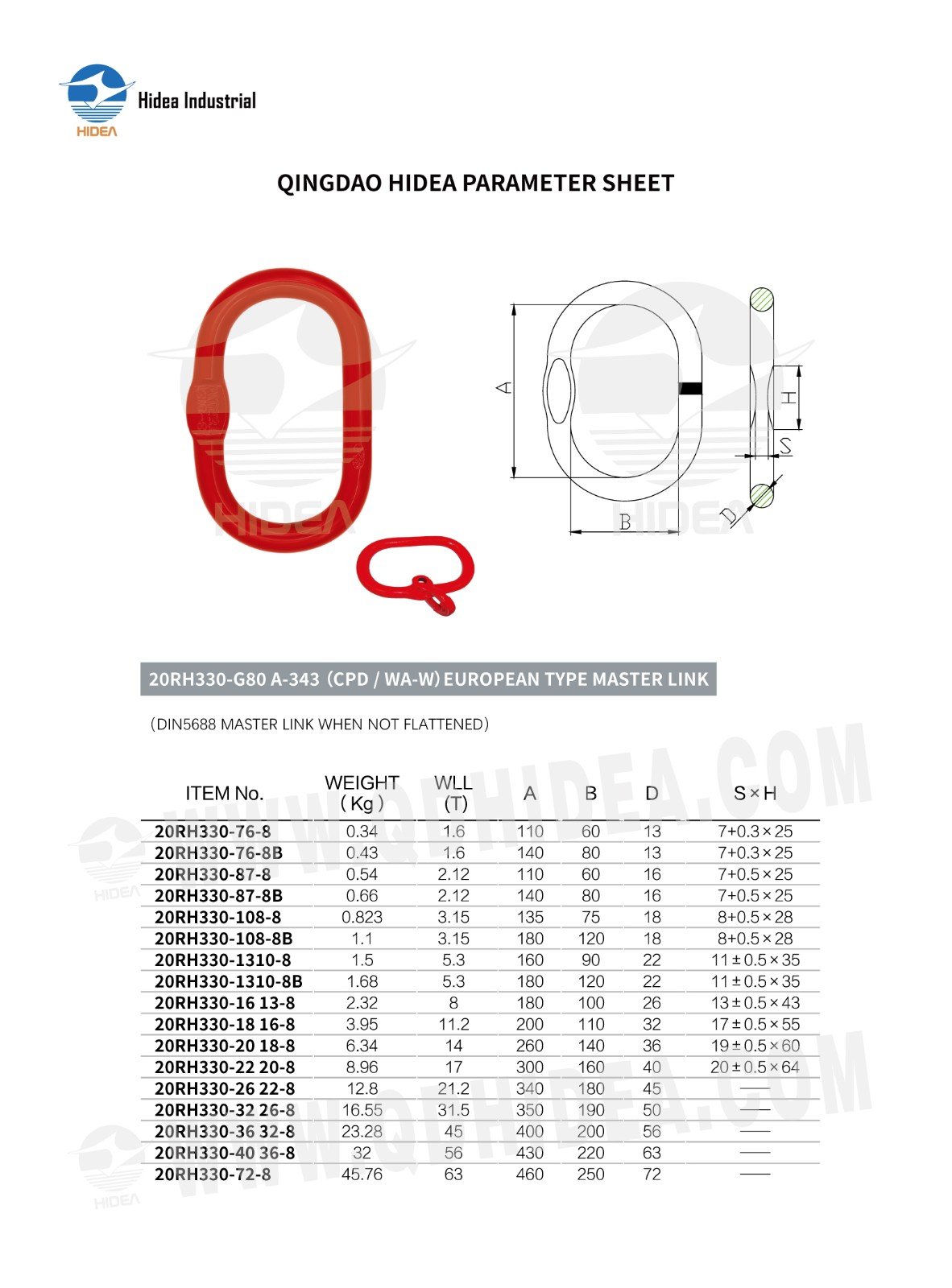

QINGDAO HIDEA PARAMETER SHEET FOR

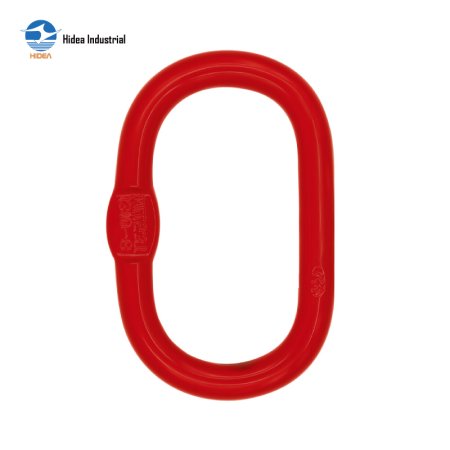

20RH330-G80 A-343(CPD/WA-W)EUROPEAN TYPE MASTER LINK
| ITEM No | WEIGHT (Kg) | WLL (T) | A | B | D | S×H | |
| 20RH330-76-8 | 0.34 | 1.6 | 110 | 60 | 13 | 7+0.3×25 | |
| 20RH330-76-8B | 0.43 | 1.6 | 140 | 80 | 13 | 7+0.3×25 | |
| 20RH330-87-8 | 0.54 | 2.12 | 110 | 60 | 16 | 7+0.5×25 | |
| 20RH330-87-8B | 0.66 | 2.12 | 140 | 80 | 16 | 7+0.5×25 | |
| 20RH330-108-8 | 0.823 | 3.15 | 135 | 75 | 18 | 8+0.5×28 | |
| 20RH330-108-8B | 1.1 | 3.15 | 180 | 120 | 18 | 8+0.5×28 | |
| 20RH330-1310-8 | 1.5 | 5.3 | 160 | 90 | 22 | 11±0.5×35 | |
| 20RH330-1310-8B | 1.68 | 5.3 | 180 | 120 | 22 | 11±0.5×35 | |
| 20RH330-1613-8 | 2.32 | 8 | 180 | 100 | 26 | 13±0.5×43 | |
| 20RH330-1816-8 | 3.95 | 11.2 | 200 | 110 | 32 | 17±0.5×55 | |
| 20RH330-2018-8 | 6.34 | 14 | 260 | 140 | 36 | 19±0.5×60 | |
| 20RH330-2220-8 | 8.96 | 17 | 300 | 160 | 40 | 20±0.5×64 | |
| 20RH330-2622-8 | 12.8 | 21.2 | 340 | 180 | 45 | —— | |
| 20RH330-3226-8 | 16.55 | 31.5 | 350 | 190 | 50 | —— | |
| 20RH330-3632-8 | 23.28 | 45 | 400 | 200 | 56 | —— | |
| 20RH330-4036-8 | 32 | 56 | 430 | 220 | 63 | —— | |
| 20RH330-72-8 | 45.76 | 63 | 460 | 250 | 72 | —— | |
