Hidea Forged Fist Grip Clip – Reliable Solution for Heavy-Duty Wire Rope Connections

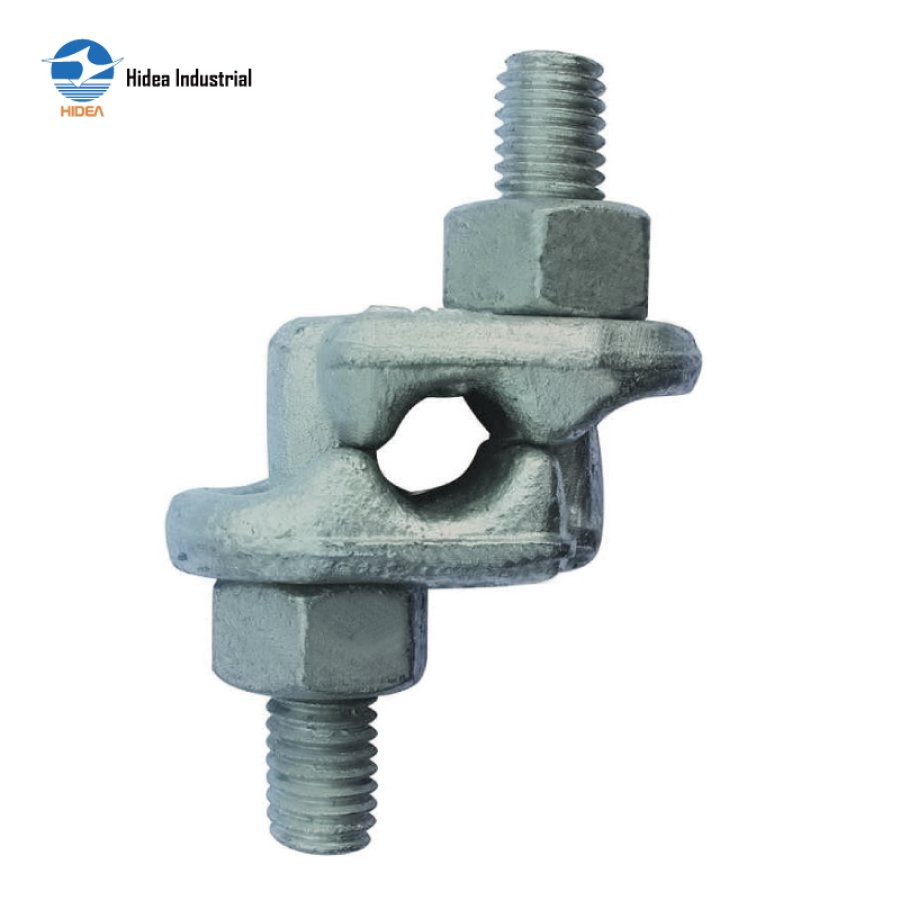

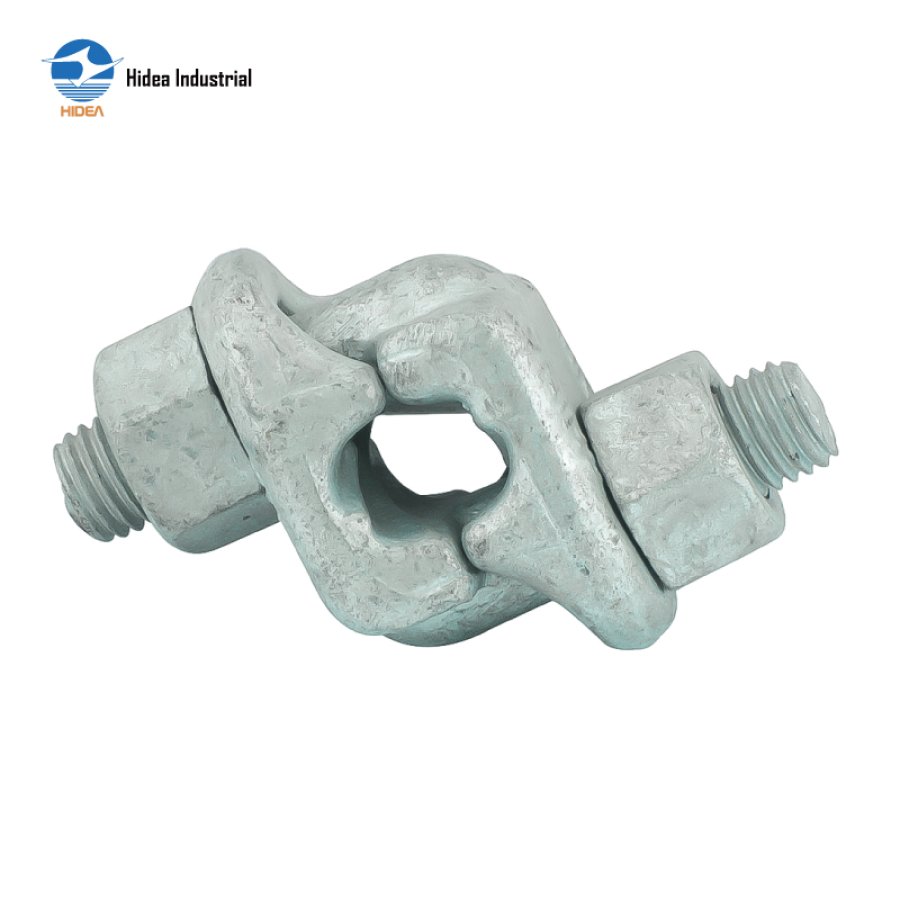

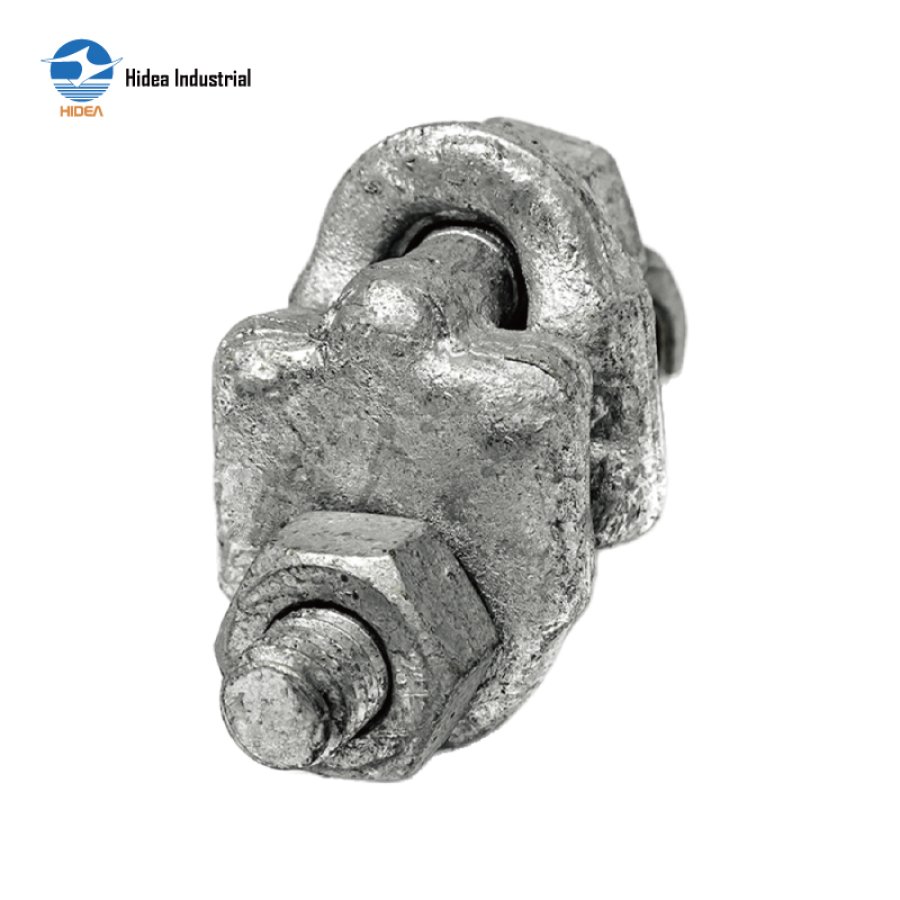

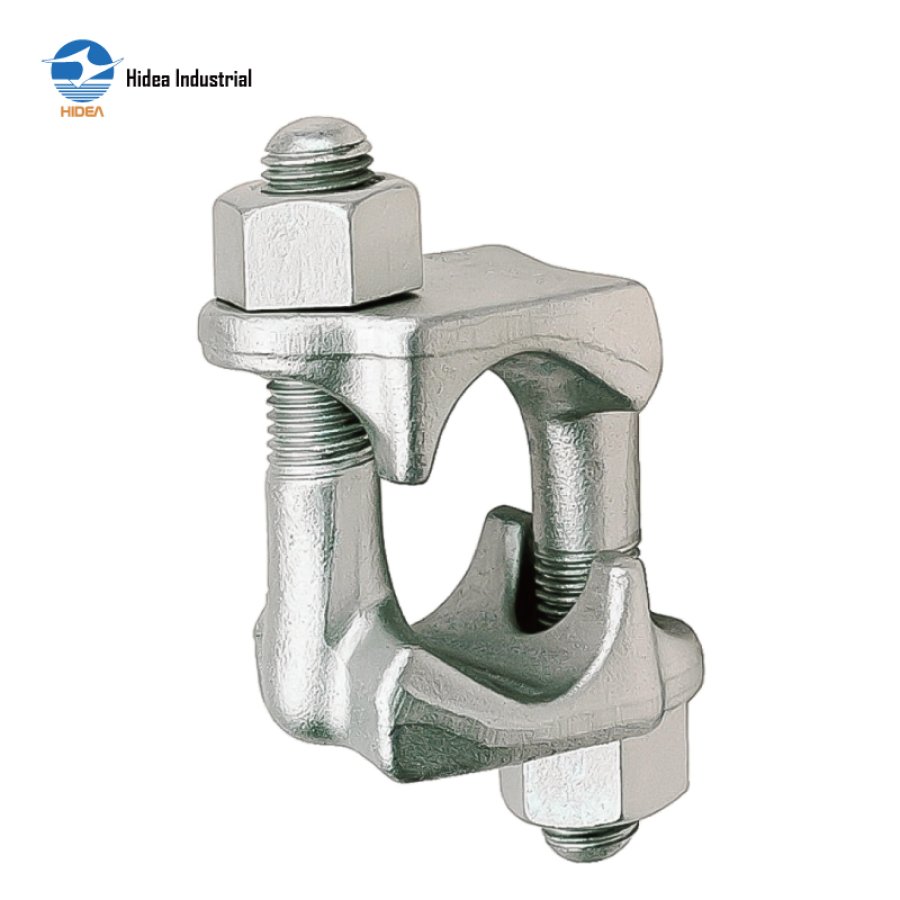

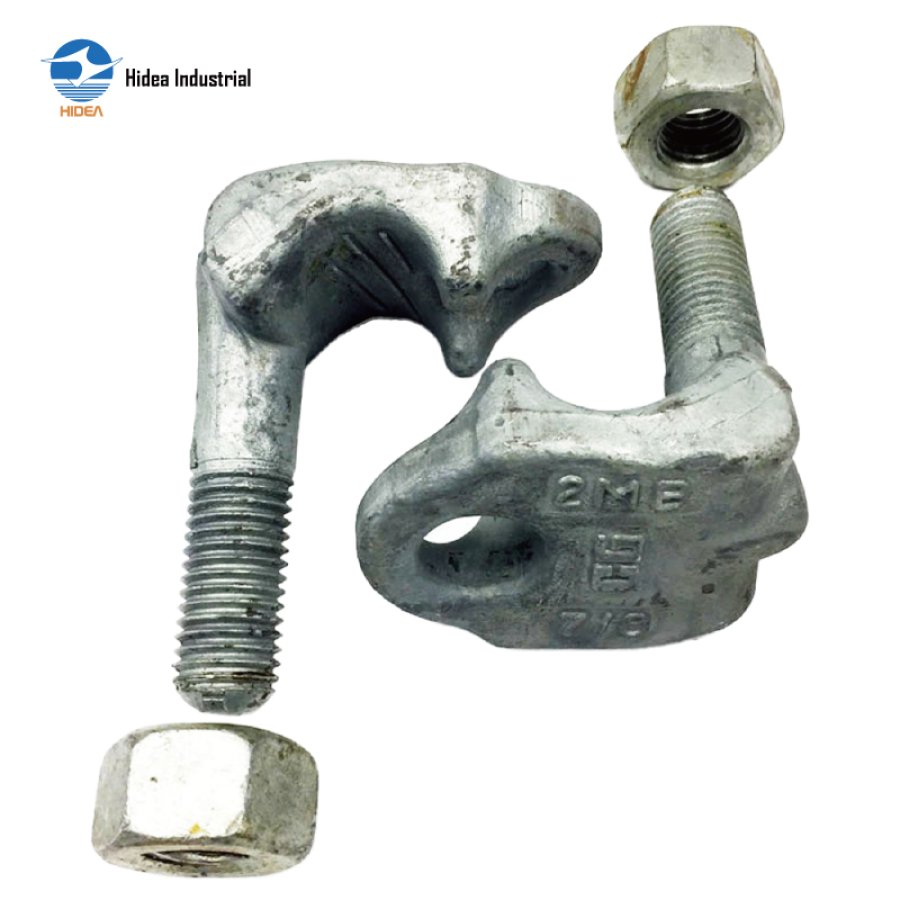

FIST GRIP CLIPS

High Tensile Carbon Steel
Drop Forged,quenched & tempered
Surface Hot Dip Galvanized OR as requested
Heavy Duty forged Wire Rope Clips G-429, Federal Specification FF-C-450 Type III, Class 1; Meets or exceeds all performance requirements of ASME B30.26

Inquire Now

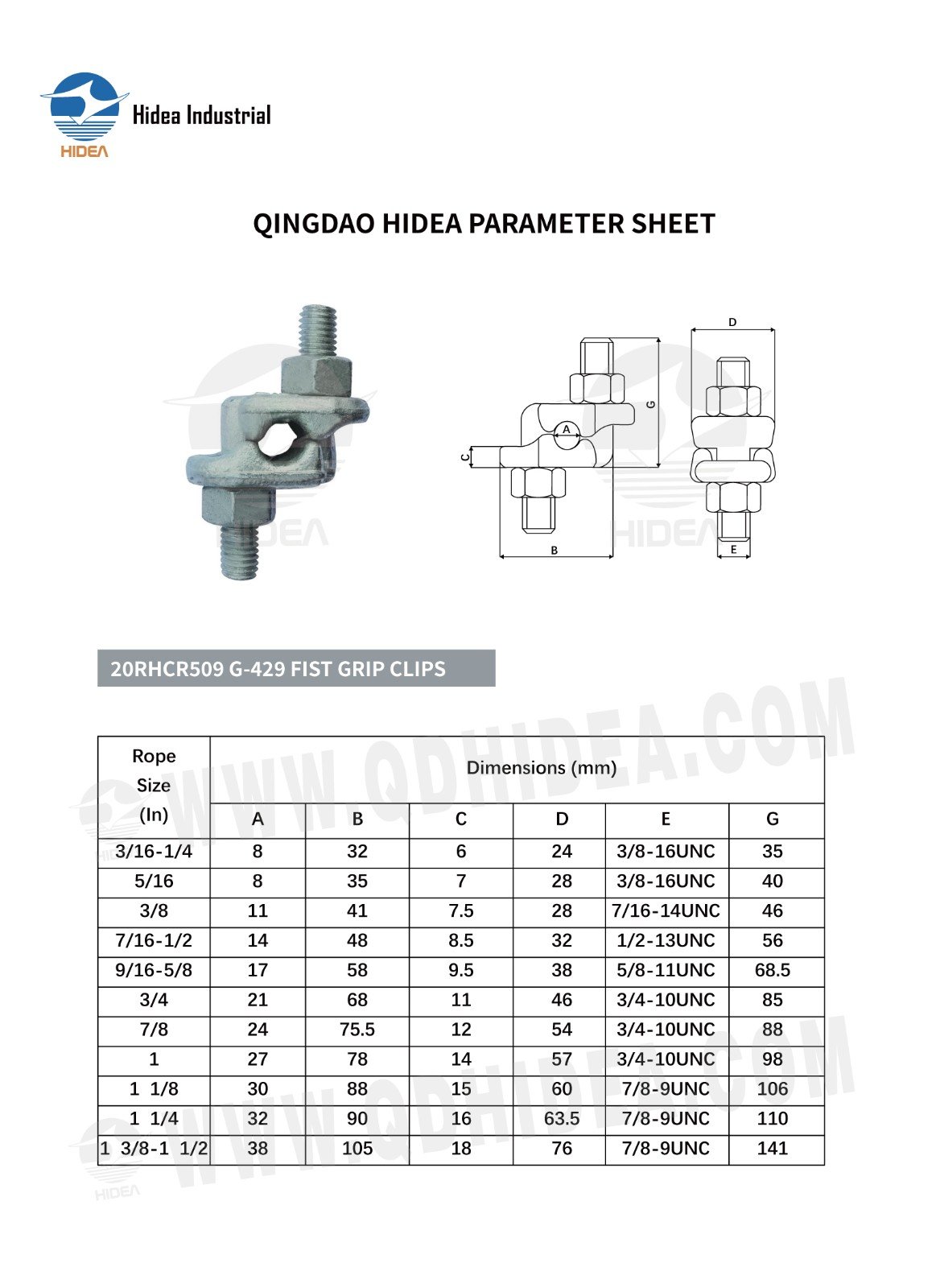

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR509 G-429 FIST GRIP CLIPS

Rope Size (In)	Dimensions (mm)
Rope Size (In)	A	B	C	D	E	G
3/16-1/4	8	32	6	24	3/8-16UNC	35
5/16	8	35	7	28	3/8-16UNC	40
3/8	11	41	7.5	28	7/16-14UNC	46
7/16-1/2	14	48	8.5	32	1/2-13UNC	56
9/16-5/8	17	58	9.5	38	5/8-11UNC	68.5
3/4	21	68	11	46	3/4-10UNC	85
7/8	24	75.5	12	54	3/4-10UNC	88
1	27	78	14	57	3/4-10UNC	98
11/8	30	88	15	60	7/8-9UNC	106
11/4	32	90	16	63.5	7/8-9UNC	110
13/8-11/2	38	105	18	76	7/8-9UNC	141
