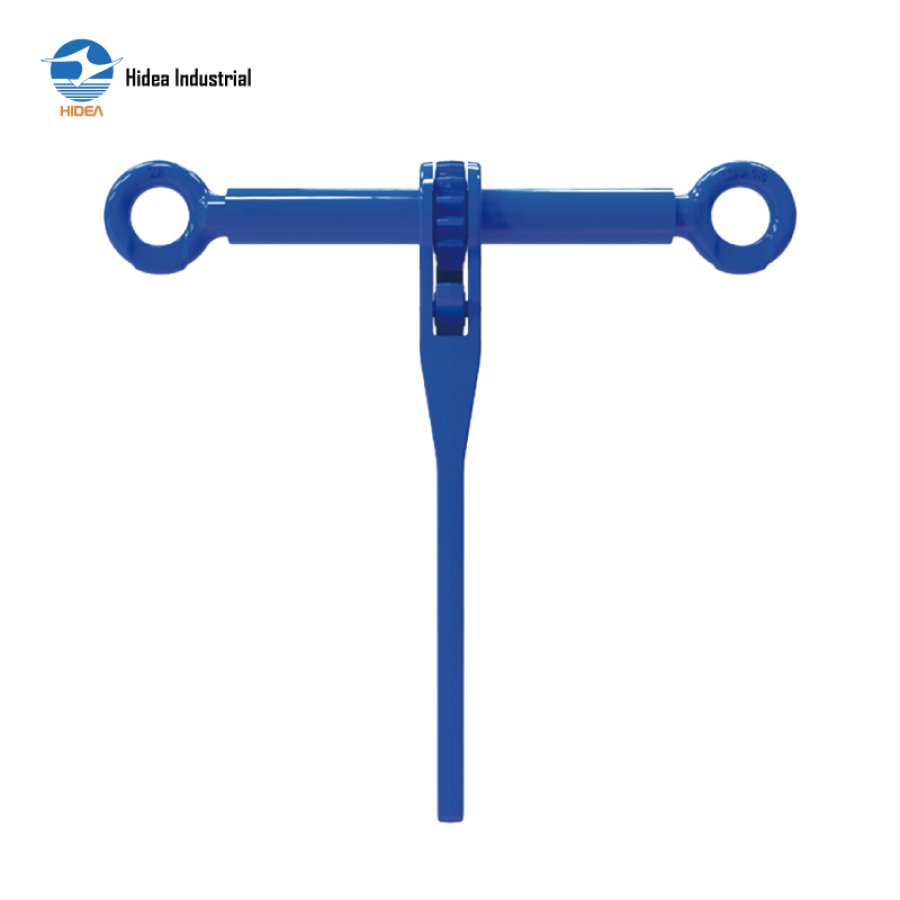

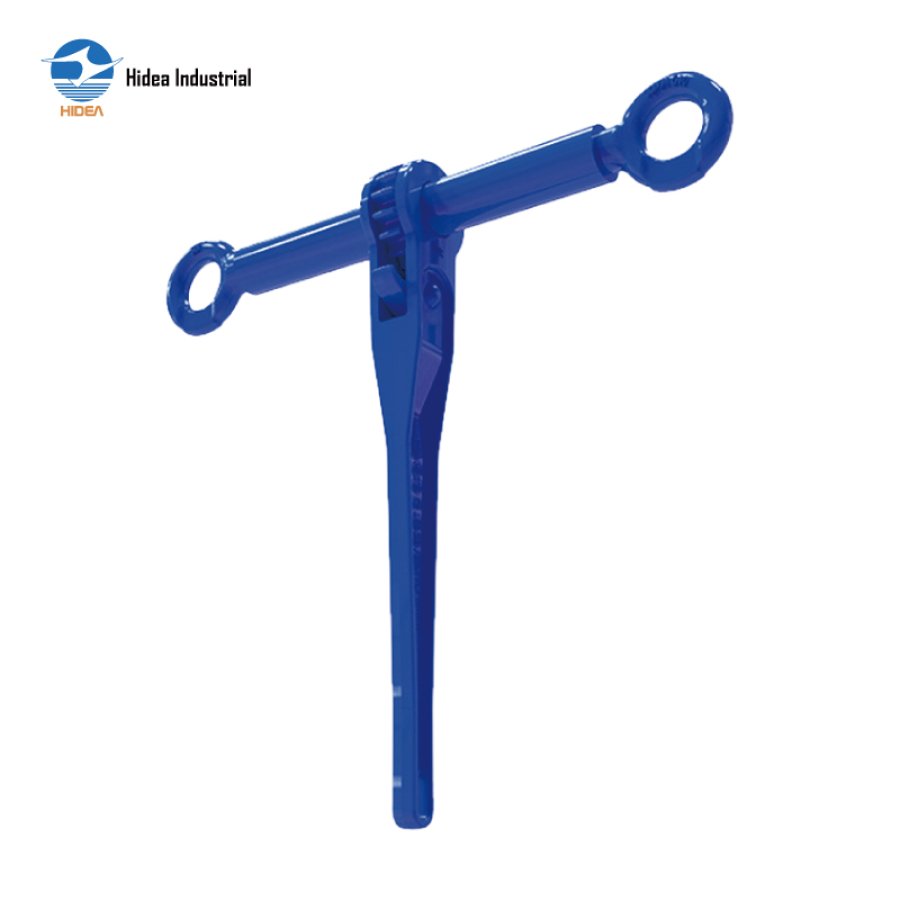

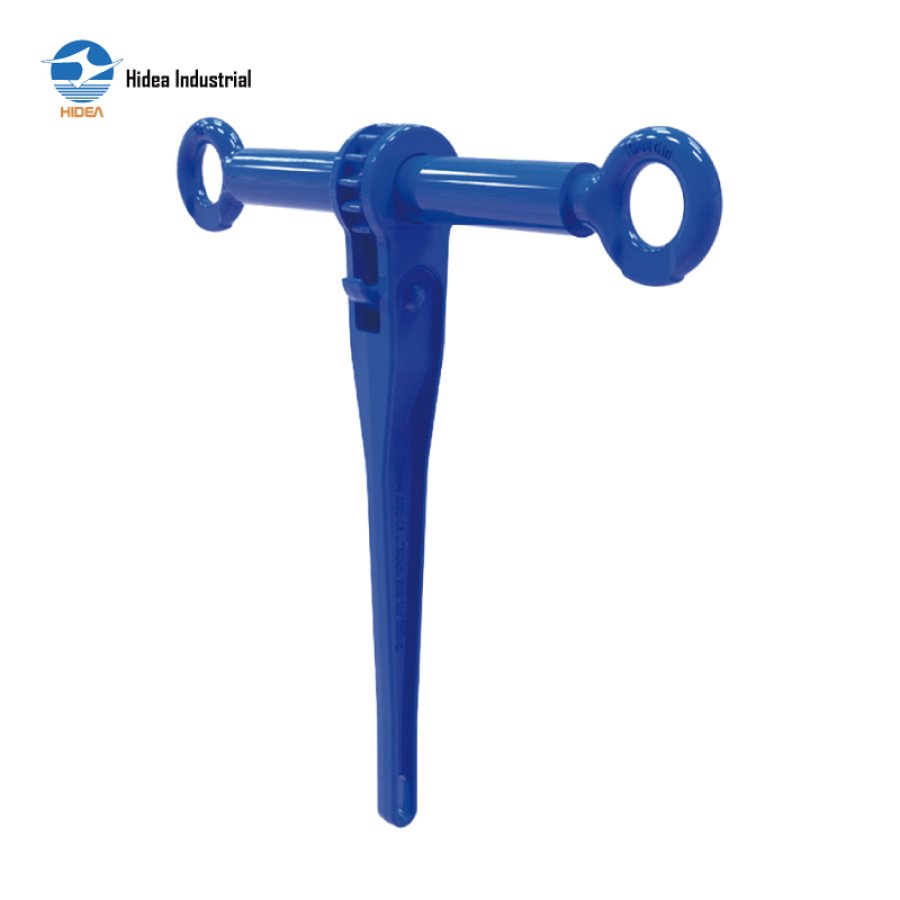

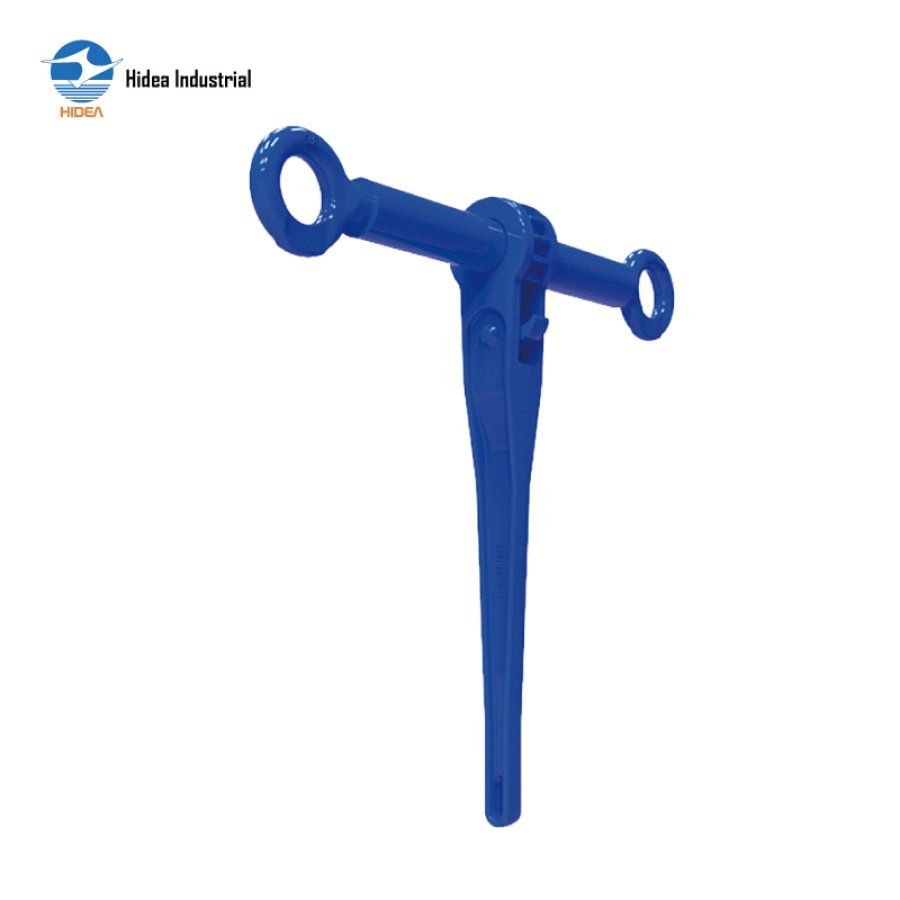

Hidea Grade 100 Ratchet Binder without Links and Hooks for Secure Load Securing & Transport

G100 RATCHET BINDER WITHOUT LINKS AND HOOKS

According to EN12195-3 standard
Handle: forged
Suitable for G100 chain
Not for lifting, only for lashing
Surface finish: Powder plastified
Color code: Blue RAL5015

Inquire Now

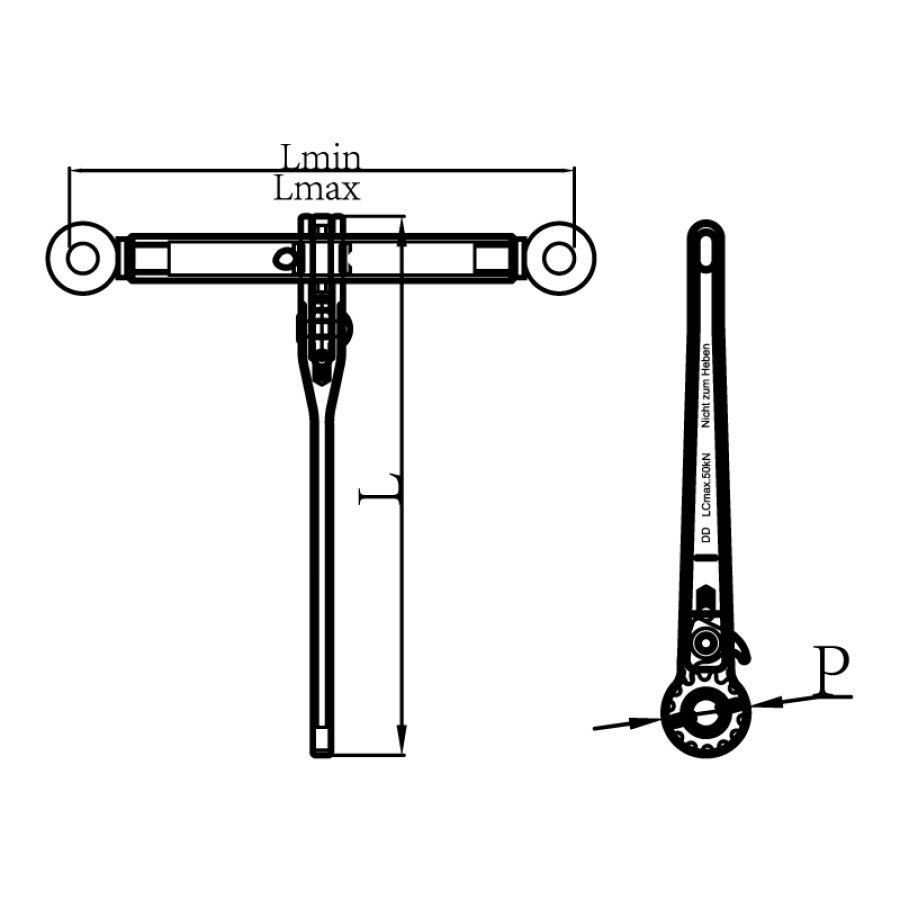

QINGDAO HIDEA PARAMETER SHEET FOR

20RH1301-G100 RATCHET BINDER WITHOUT LINKS AND HOOKS

ITEM CODE	WEIGHT	LC	BF
ITEM CODE	(KG)	(KN)	(KN)
20RH1301-08	2.6	50	100
20RH1301-10	4.3	80	160
20RH1301-13	5.0	134	268
