Get the Best Deals on Hidea G80 Lifting Clutch for Precast Concrete Lifting

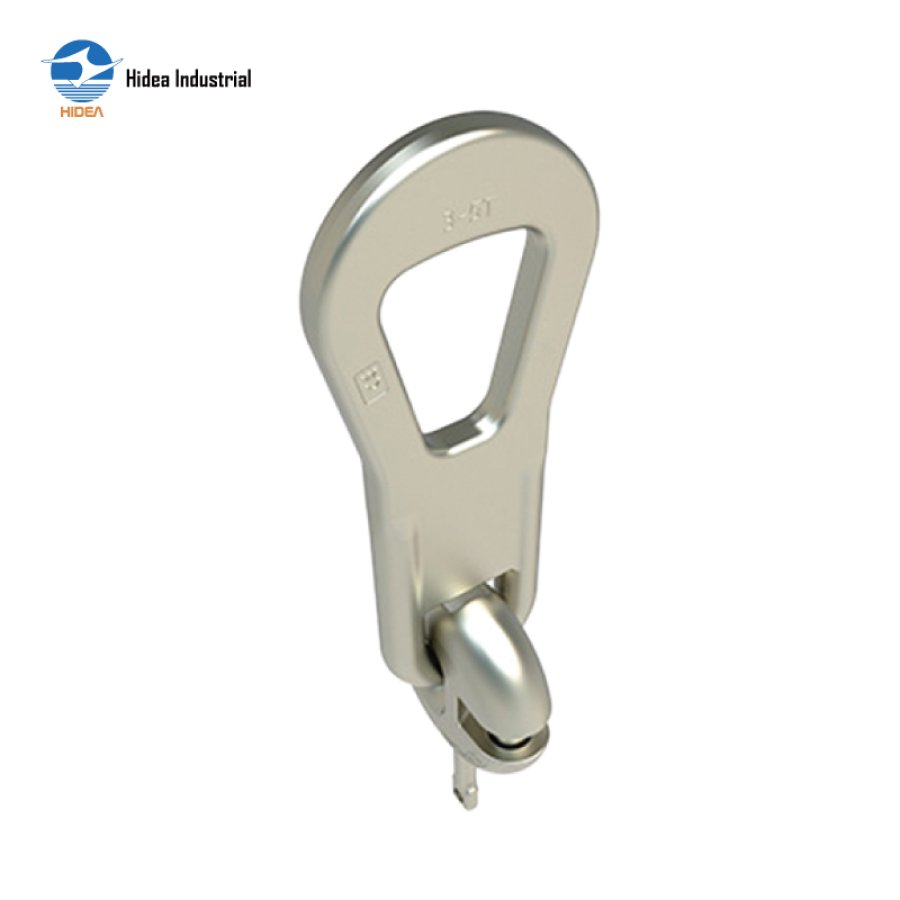

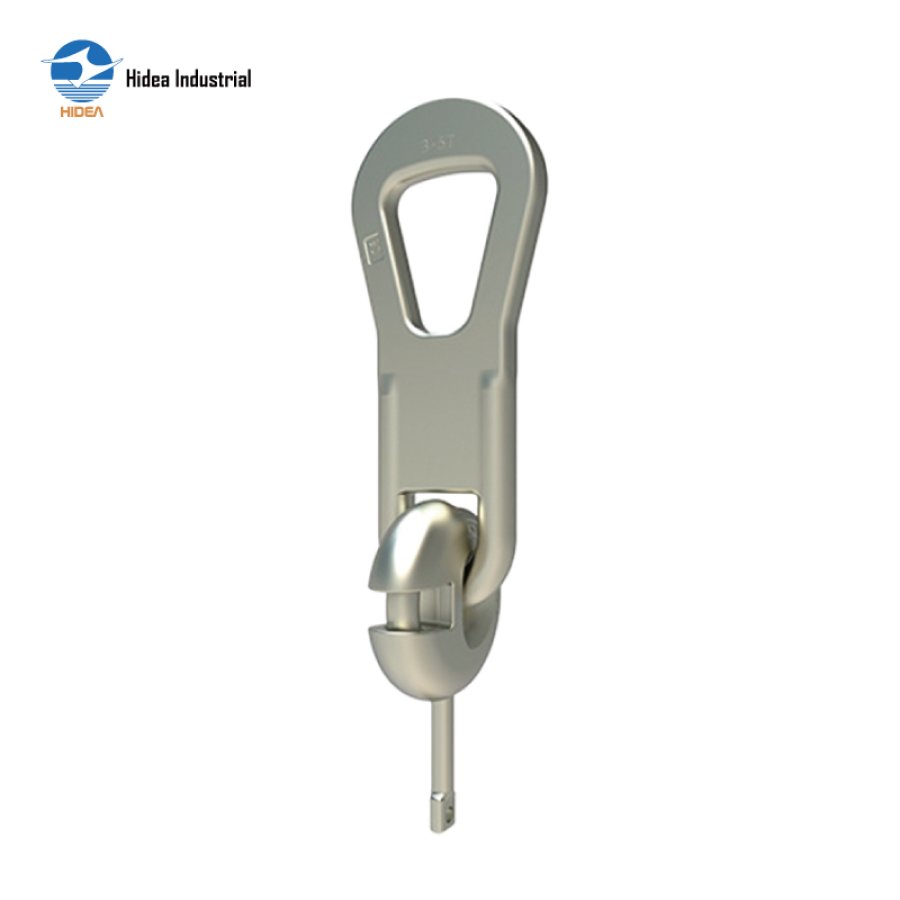

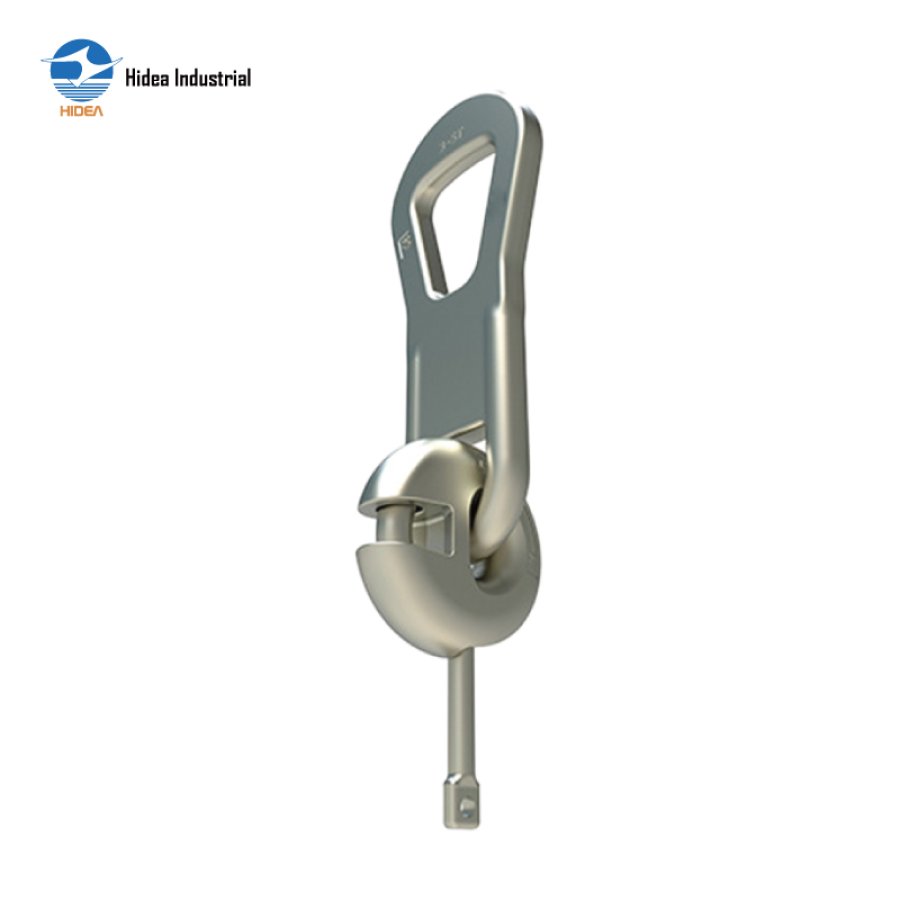

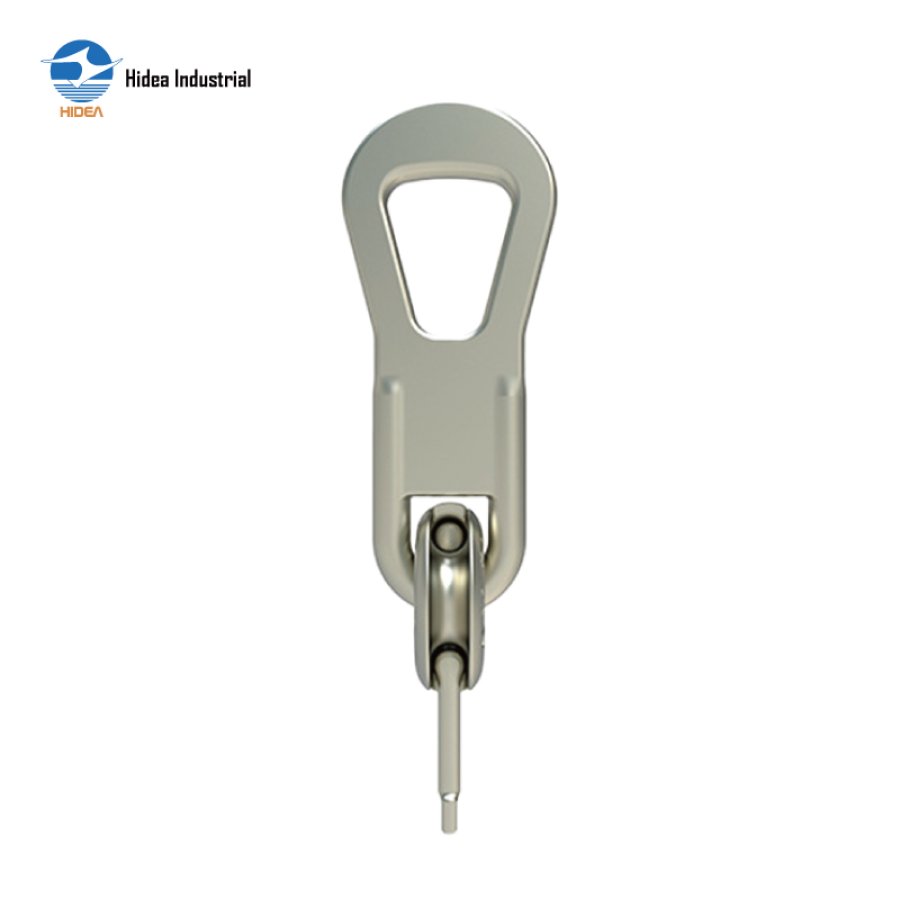

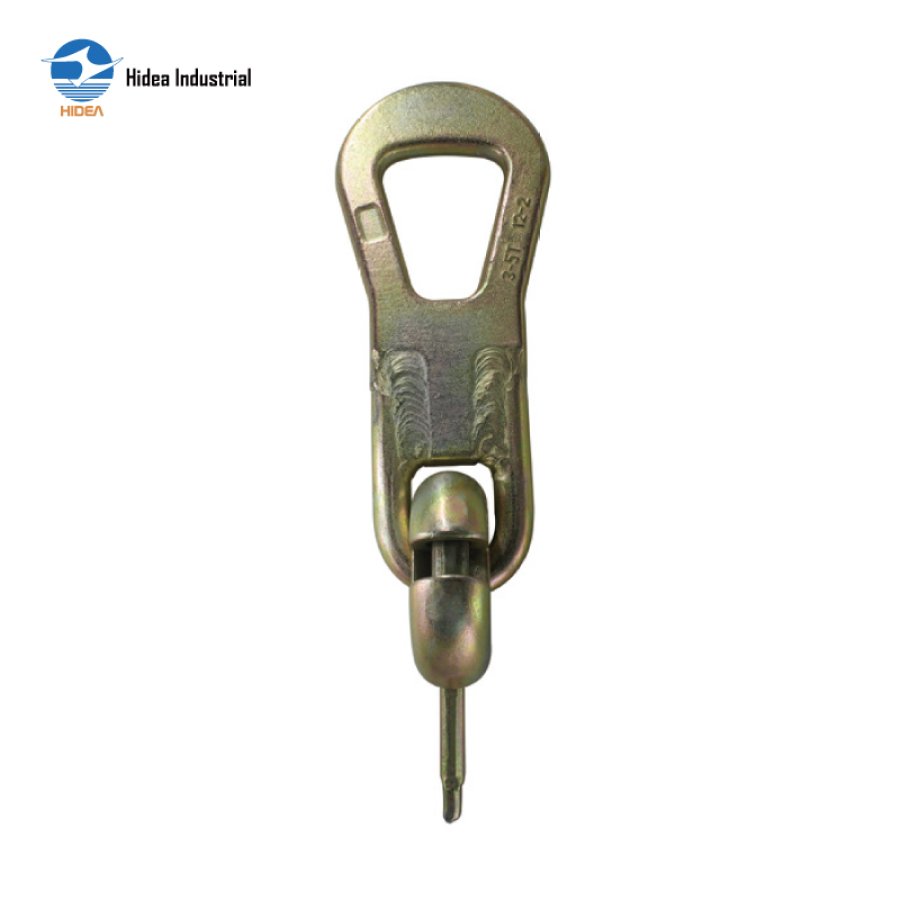

LIFTING CLUTCH FOR CONCRETE LIFTING

Component A: cast super alloy
Component B: Forged alloy steel
100% magnaflux crack detection
Breakage test
Surface finish: Electro-galvanizng/Powder plastifed

Inquire Now

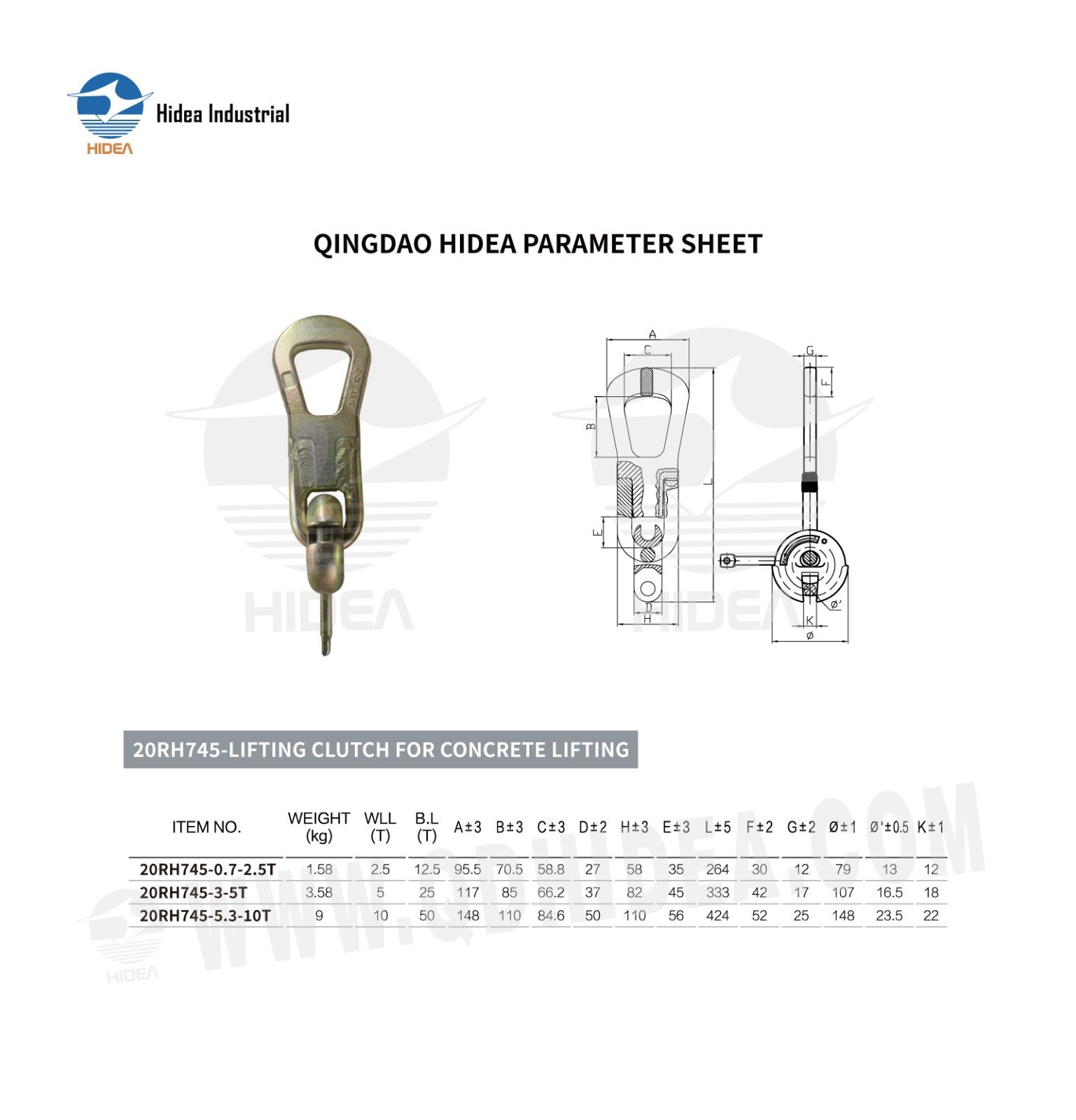

QINGDAO HIDEA PARAMETER SHEET FOR

20RH745-LIFTING CLUTCH FOR CONCRETE LIFTING

ITEM NO.

WEIGHT

WLL

B.L

A±3

B±3

C±3

D±2

H±3

E±3

L±5

F±2

G±2

Ø±1

Ø'±0.5

K±1

(kg)

(T)

(T)

20RH745-0.7-2.5T

1.58

2.5

12.5

95.5

70.5

58.8

27

58

35

264

30

12

79

13

12

20RH745-3-5T

3.58

5

25

117

85

66.2

37

82

45

333

42

17

107

16.5

18

20RH745-5.3-10T

9

10

50

148

110

84.6

50

110

56

424

52

25

148

23.5

22
