High-Quality HIDEA Bow Nut – Compliant with BS3974 Standards for Reliable Use

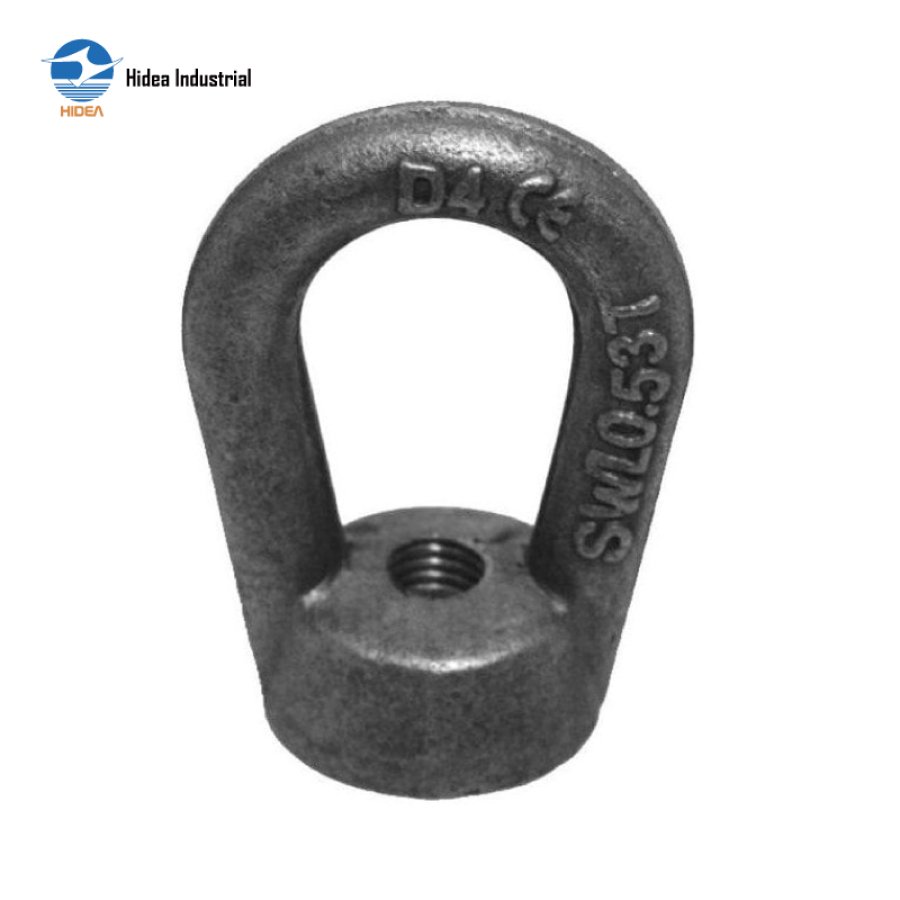

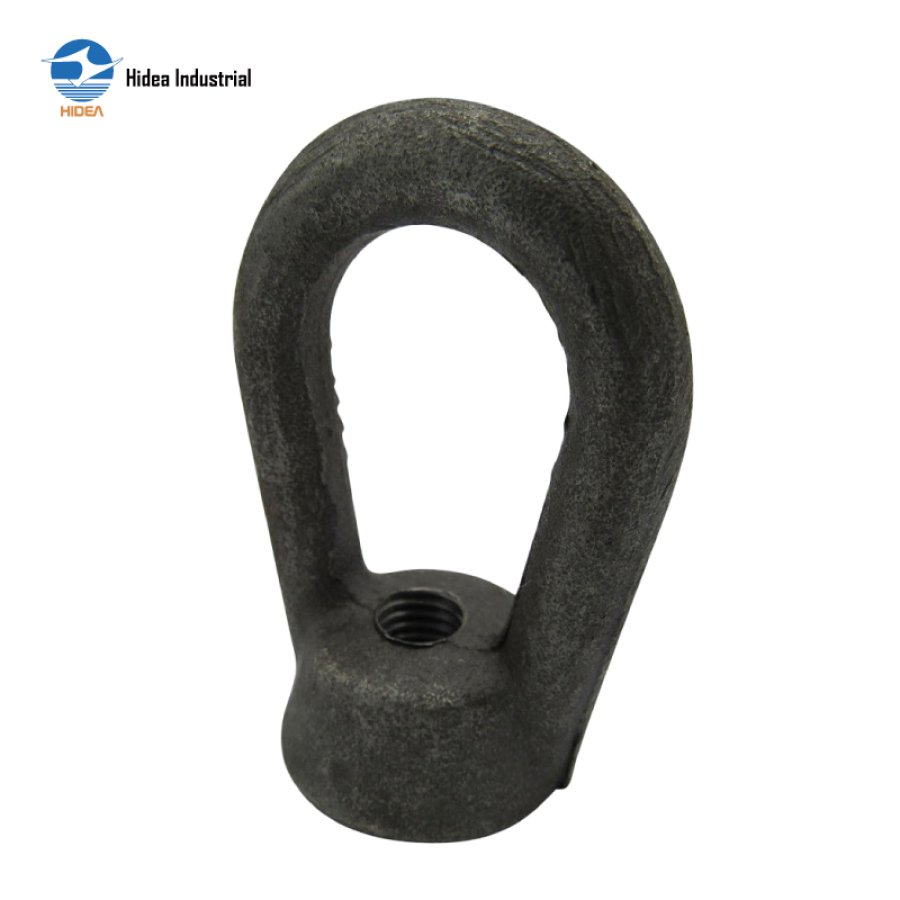

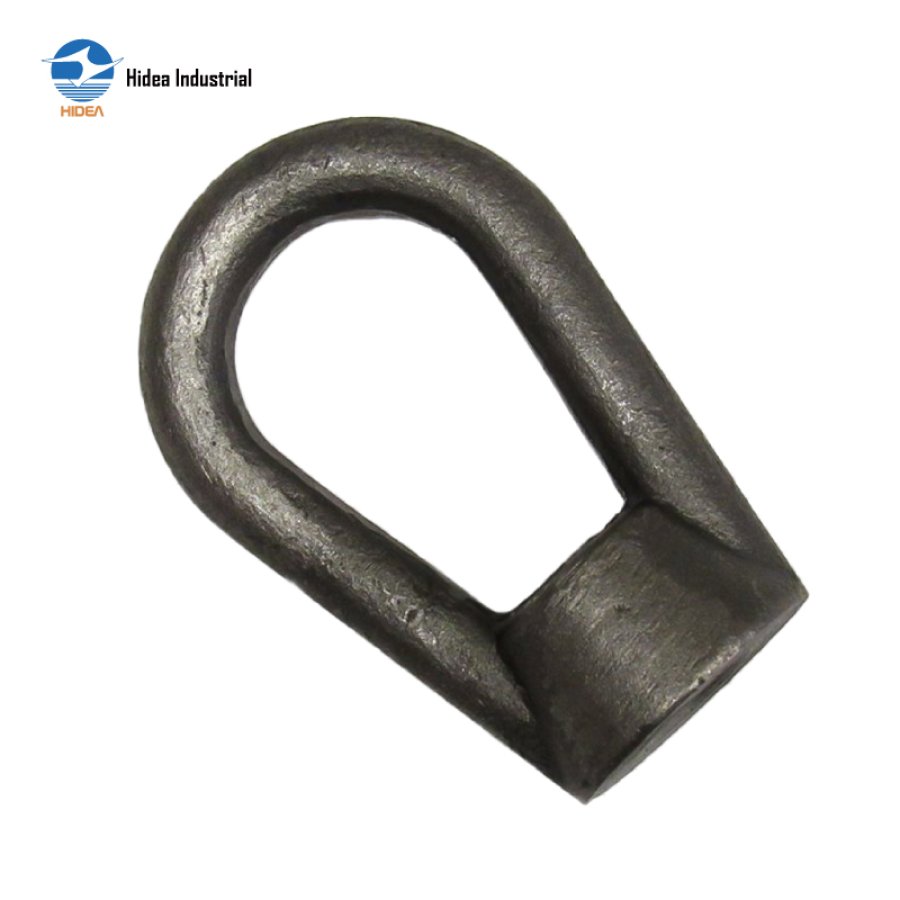

BS3974 BOW NUT

High tensile carbon steel
Forged, quenched & tempered
Proof tested & certificate available

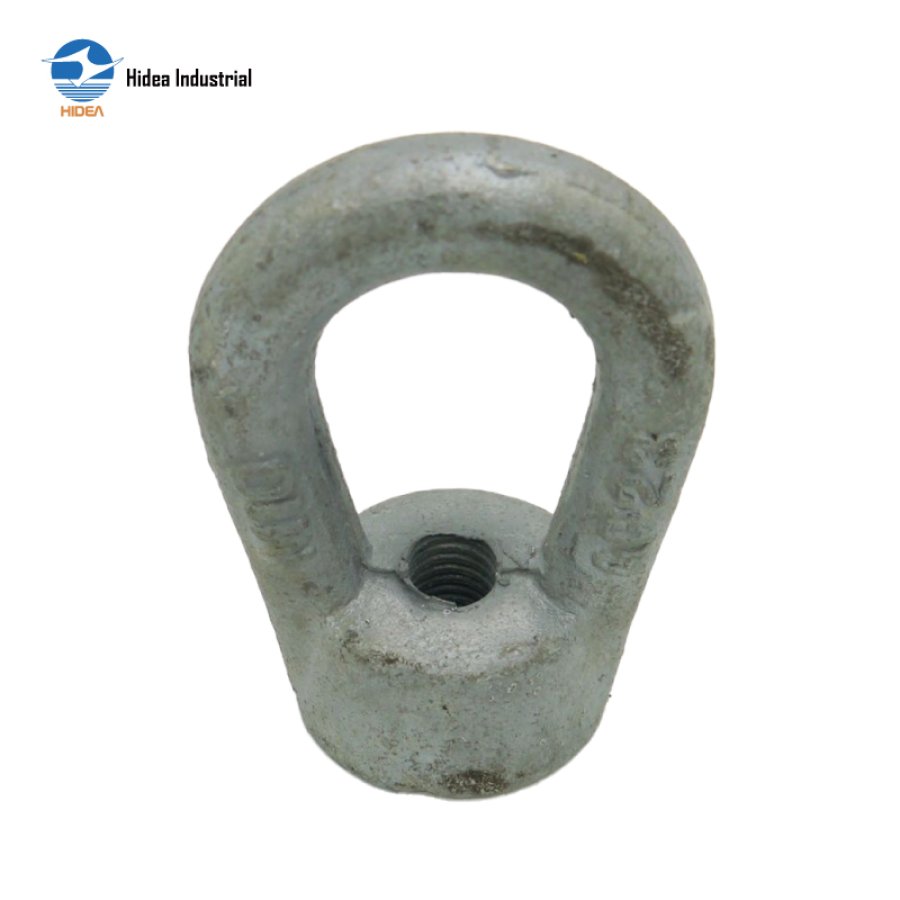

Surface self-colored, Electro Galv. / zinc plated OR as requested
BS3974 Bow Nut

Inquire Now

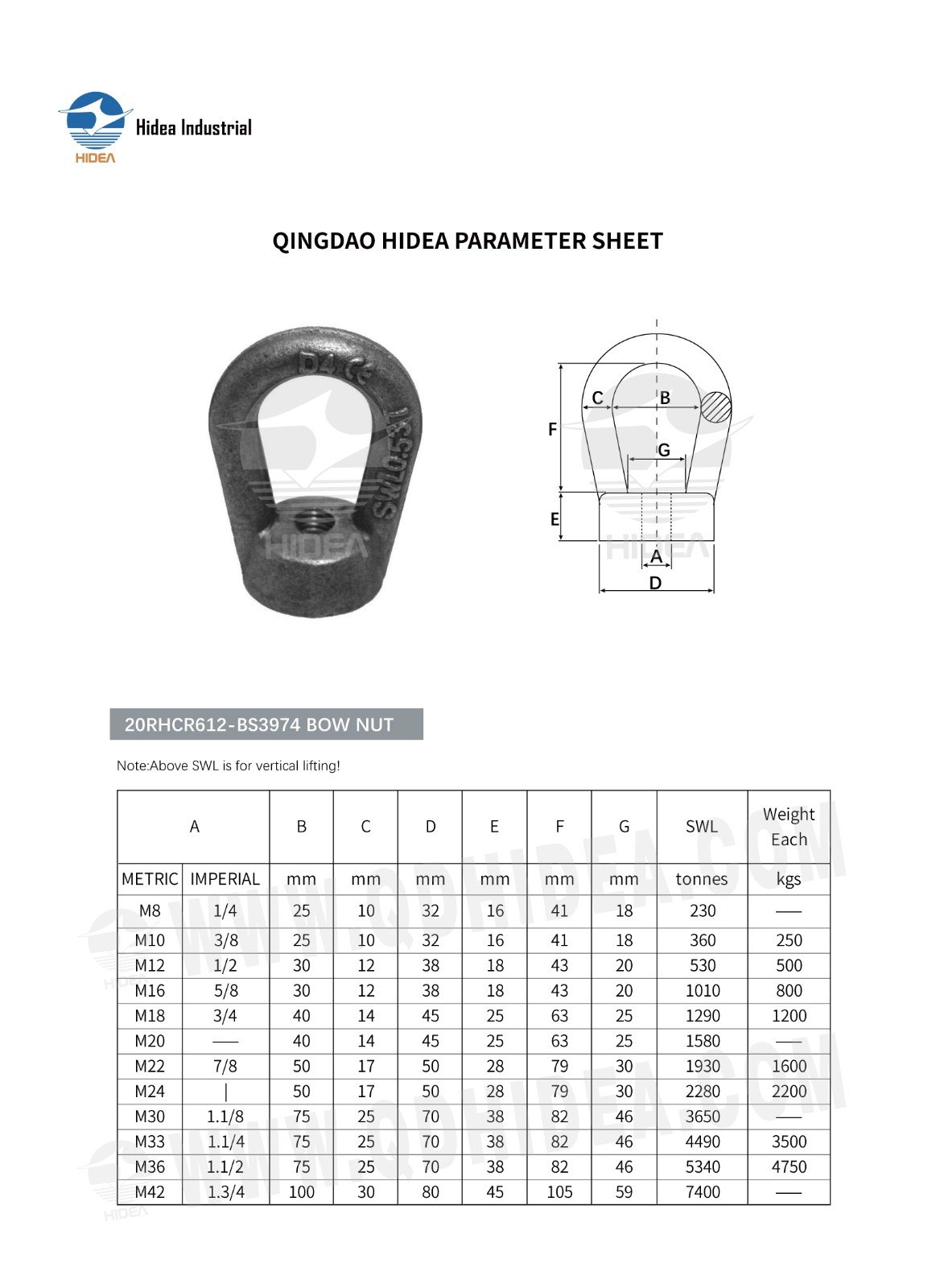

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR612-BS3974 BOW NUT

A		B	C	D	E	F	G	SWL	Weight Each
METRIC	IMPERIAL	mm	mm	mm	mm	mm	mm	tonnes	kgs
M8	1/4	25	10	32	16	41	18	230	——
M10	3/8	25	10	32	16	41	18	360	250
M12	1/2	30	12	38	18	43	20	530	500
M16	5/8	30	12	38	18	43	20	1010	800
M18	3/4	40	14	45	25	63	25	1290	1200
M20	——	40	14	45	25	63	25	1580	——
M22	7/8	50	17	50	28	79	30	1930	1600
M24	——	50	17	50	28	79	30	2280	2200
M30	1.1/8	75	25	70	38	82	46	3650	—
M33	1.1/4	75	25	70	38	82	46	4490	3500
M36	1.1/2	75	25	70	38	82	46	5340	4750
M42	1.3/4	100	30	80	45	105	59	7400	——
