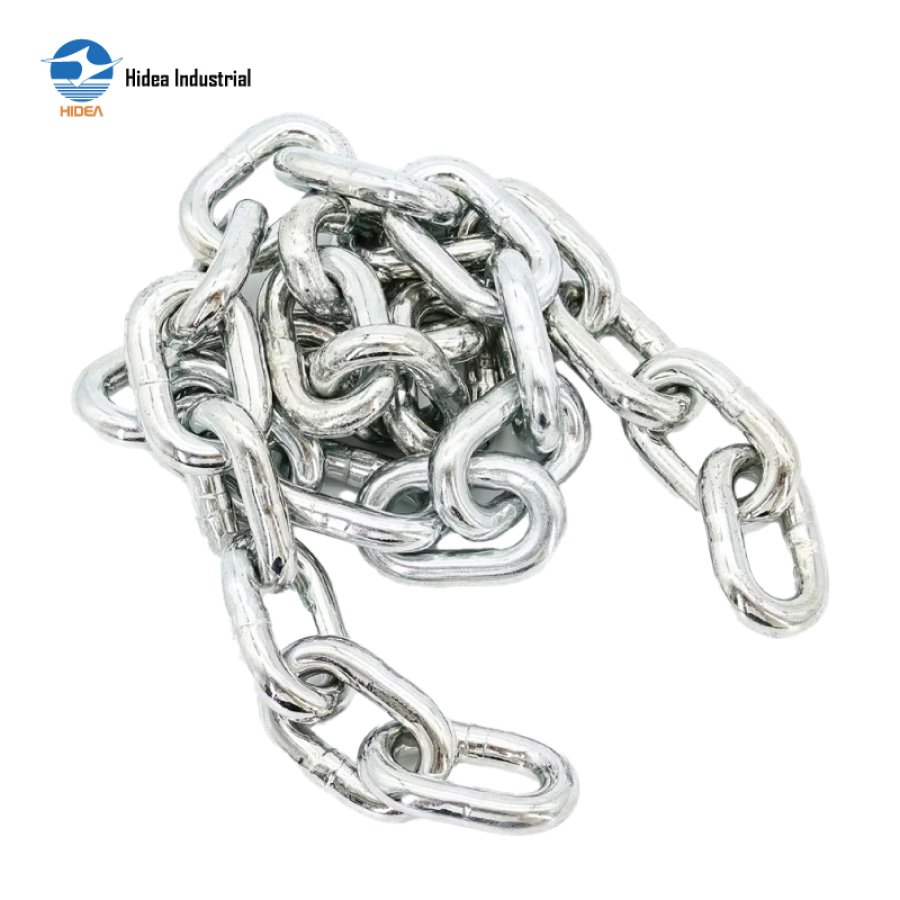

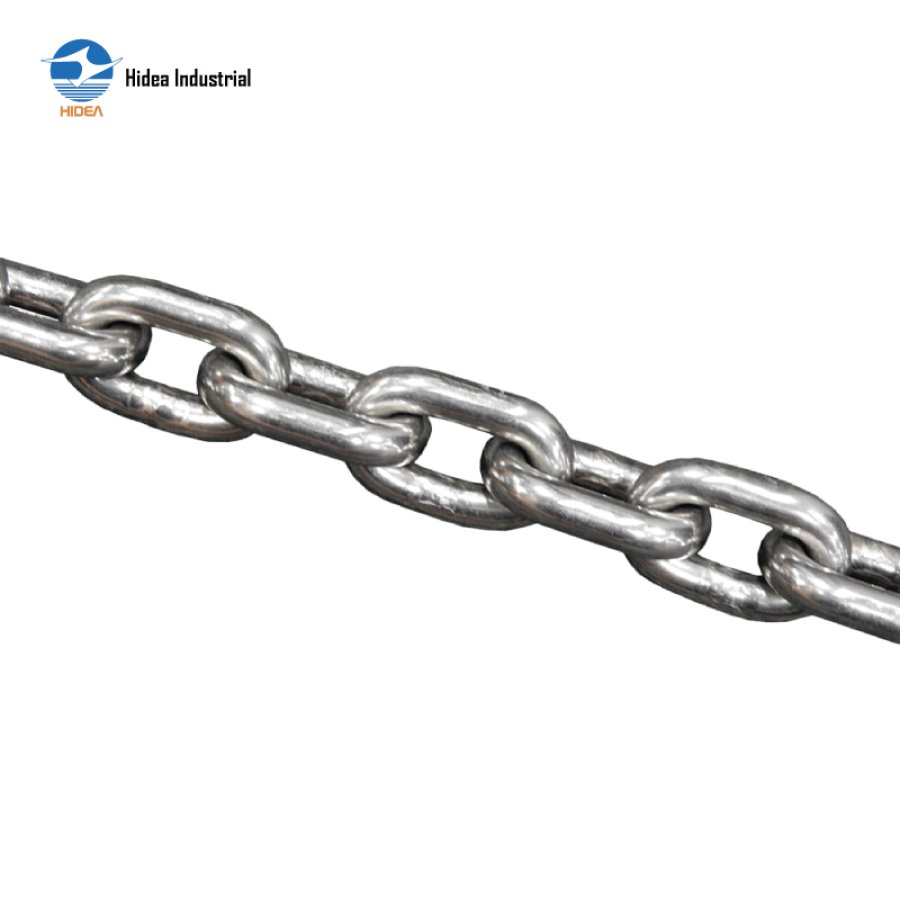

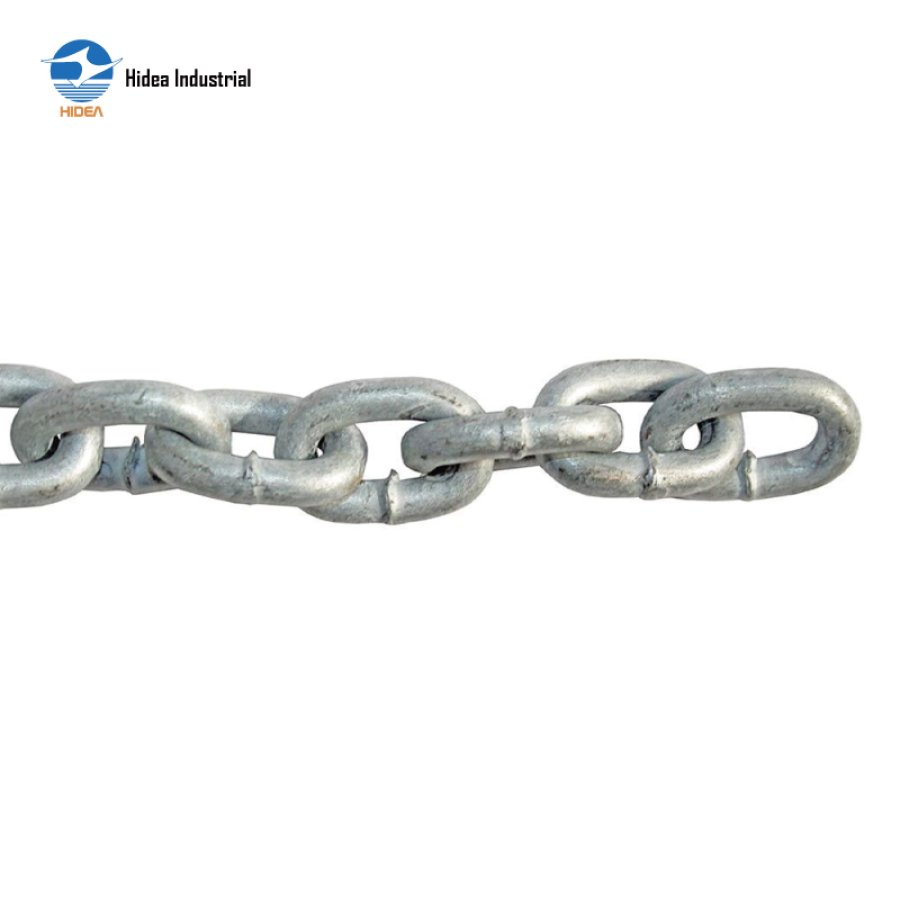

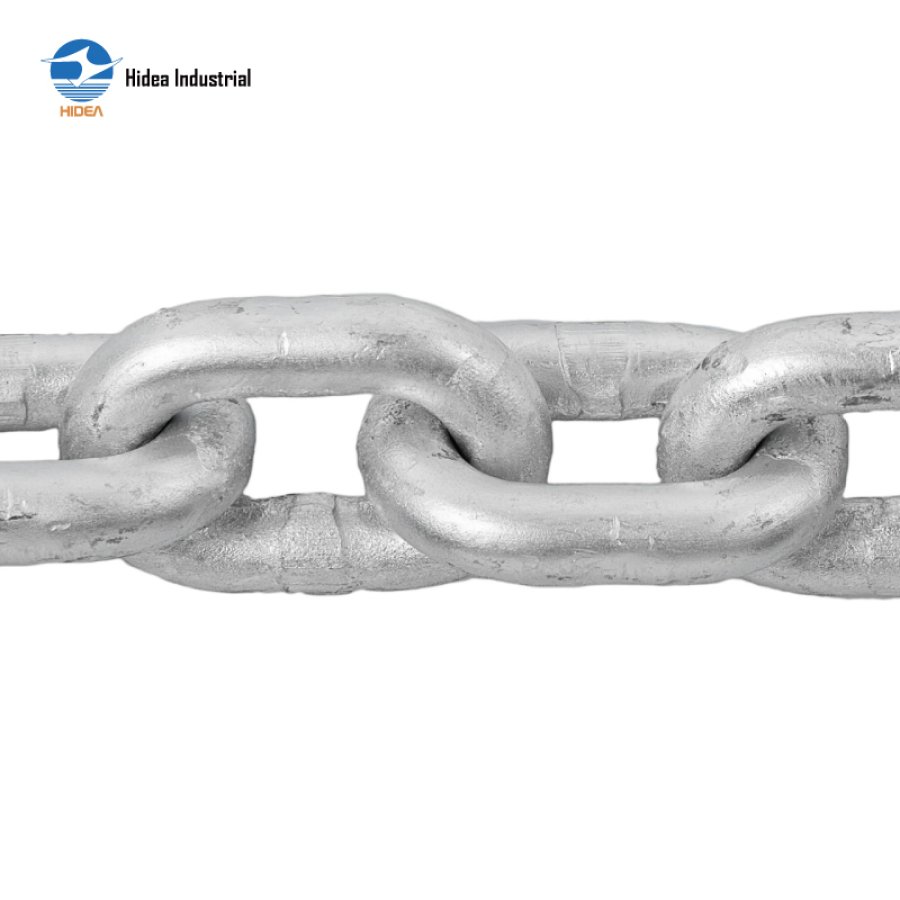

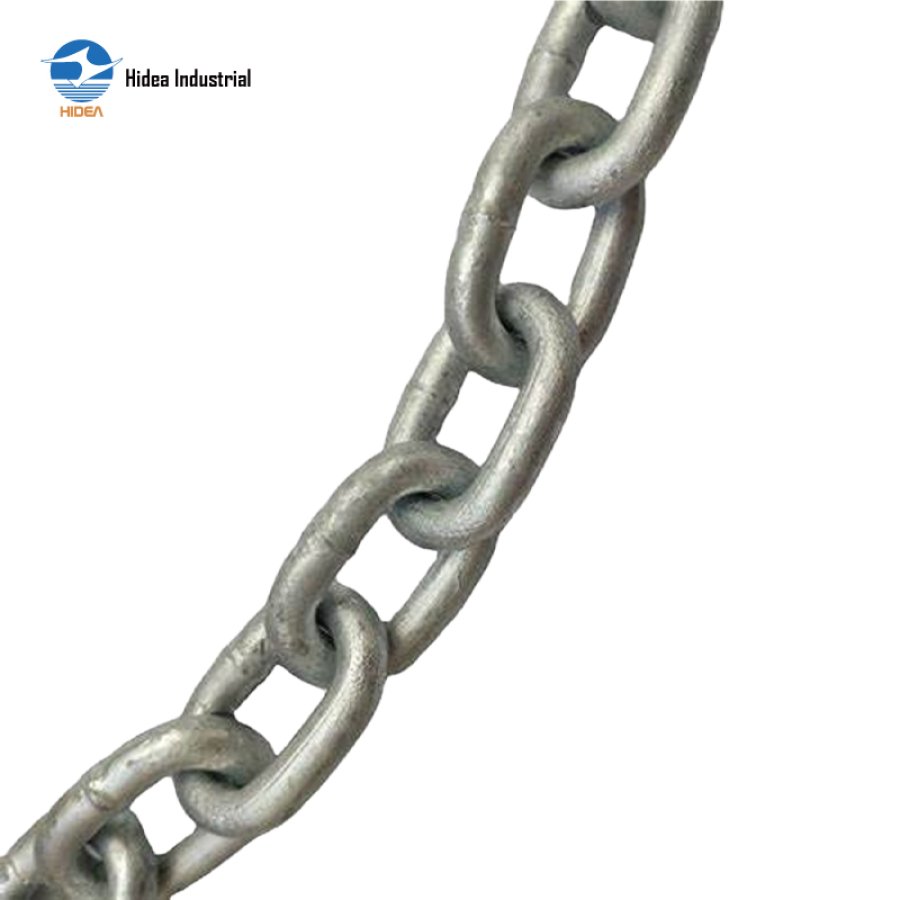

High-Strength HIDEA Grade L Short-Link Chain – Ideal for Australian Electric Windlasses and Anchoring

AUSTRALIA STANDARD GRADE L LINK CHAIN

Material: Carbon Steel Mild Steel
Surface Treatment: Hot Dip galvanized, Blackened or as requested
Australia Standard Grade L Link Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC140 Australia Standard Grade L Link Chain

Size	Working Load	Inside Length	Outside Width	Links Per m	Length Per 100kg		B.F weight	H.D.G weight
Size	Working Load	Inside Length	Outside Width	Links Per m	B.F	H.D.G	B.F weight	H.D.G weight
mm	mt	mm	mm	pc	m	m	kg/m	kg/m
5	0.25	14.6	17.2	68.3	174	167	0.57	0.60
6	0.40	18.8	21.6	53.2	116	110	0.86	0.91
8	0.64	23.8	27	42	71.4	69.9	1.40	1.43
10	1.00	29.8	34.3	33.6	44.8	43.9	2.23	2.28
13	1.70	38.8	44.6	25.8	28.9	26.3	3.46	3.80
16	2.58	47.8	54.8	20.9	17.8	17.5	5.62	5.71
20	4.03	59.2	68.5	16.9	11.3	11.1	8.85	9.01
22	5.06	64.9	77	15.4	9.5	9.2	10.53	10.87
24	5.61	71	82.2	14.1	7.8	7.6	12.82	13.16
