Hidea WQ Light Duty Cargo Trolley: Perfect for Small Loads and Tight Spaces

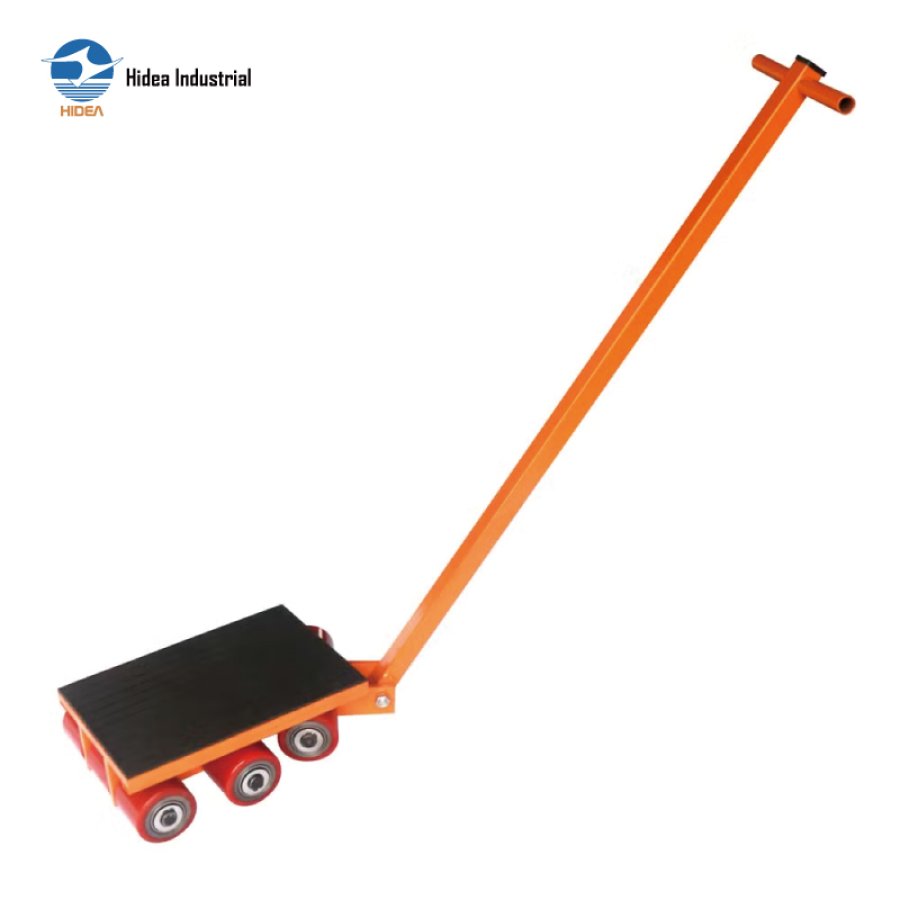

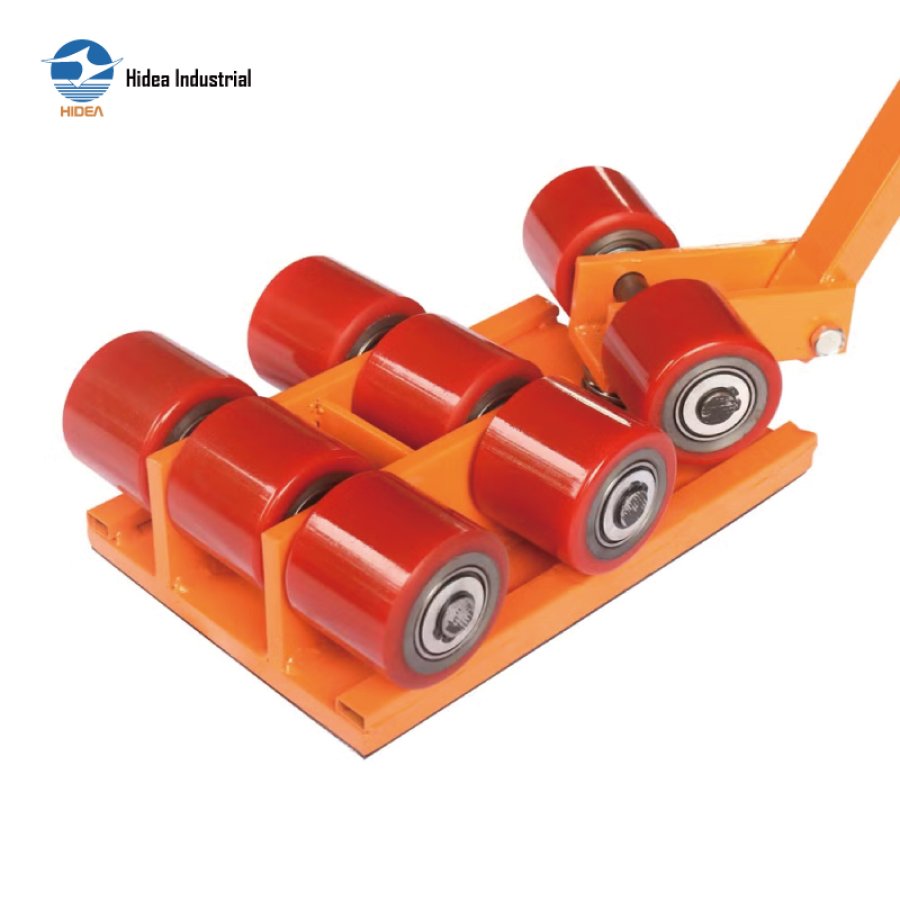

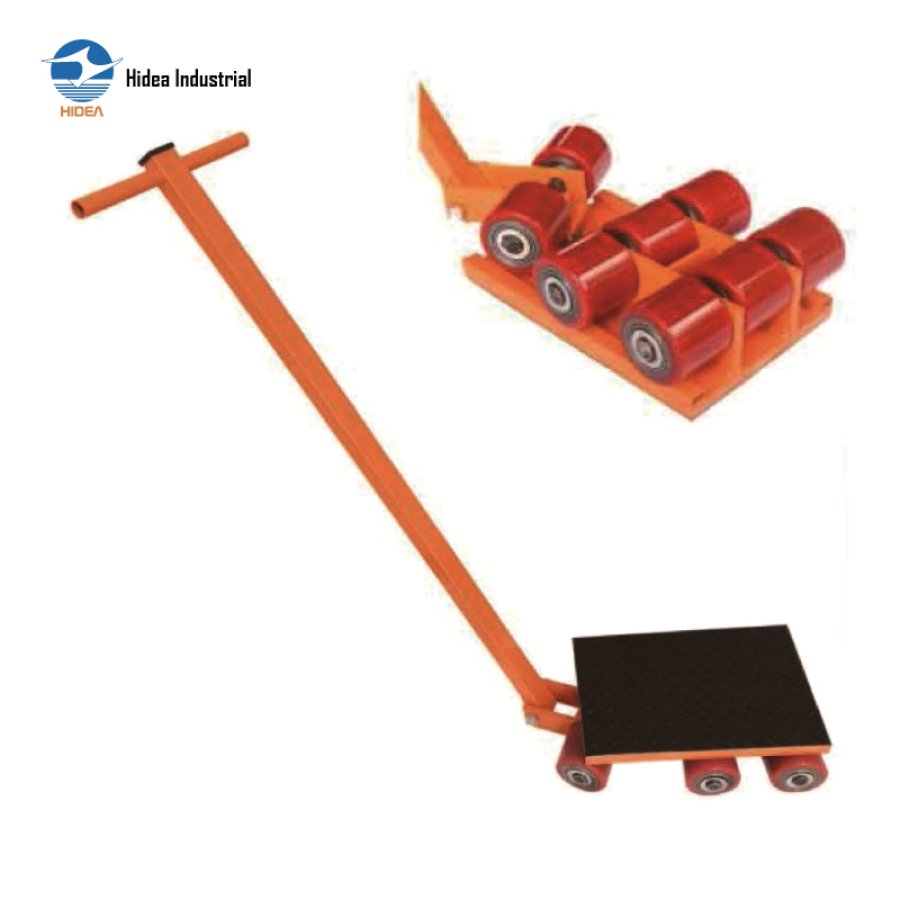

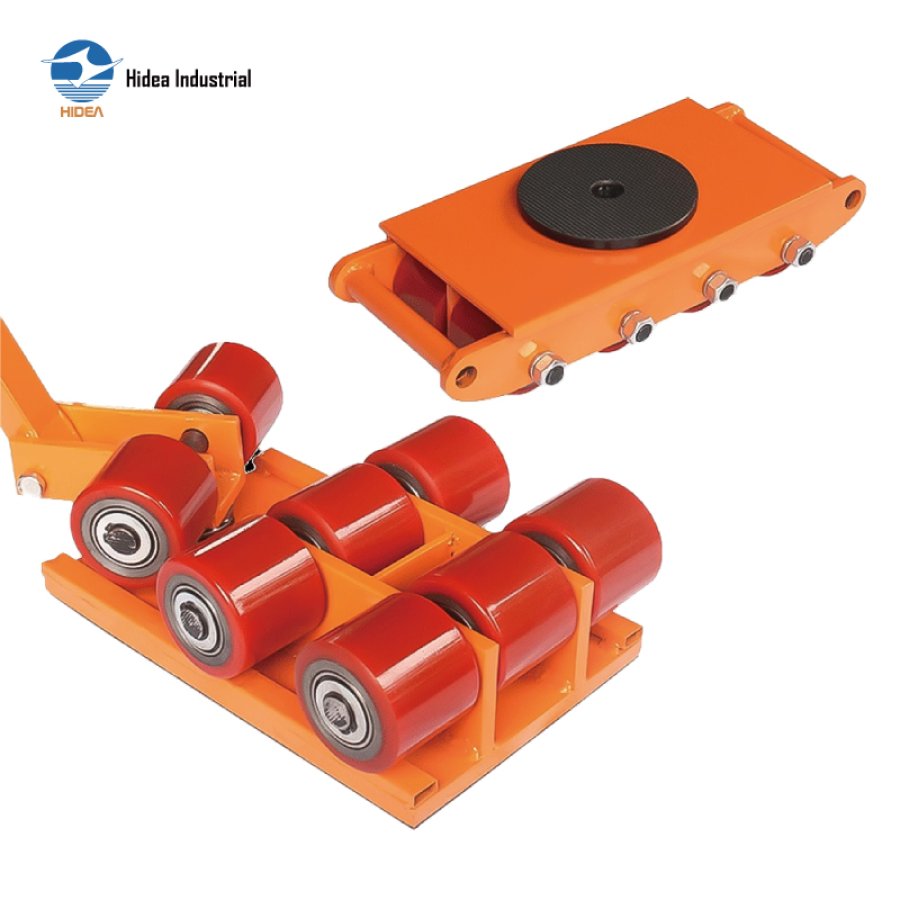

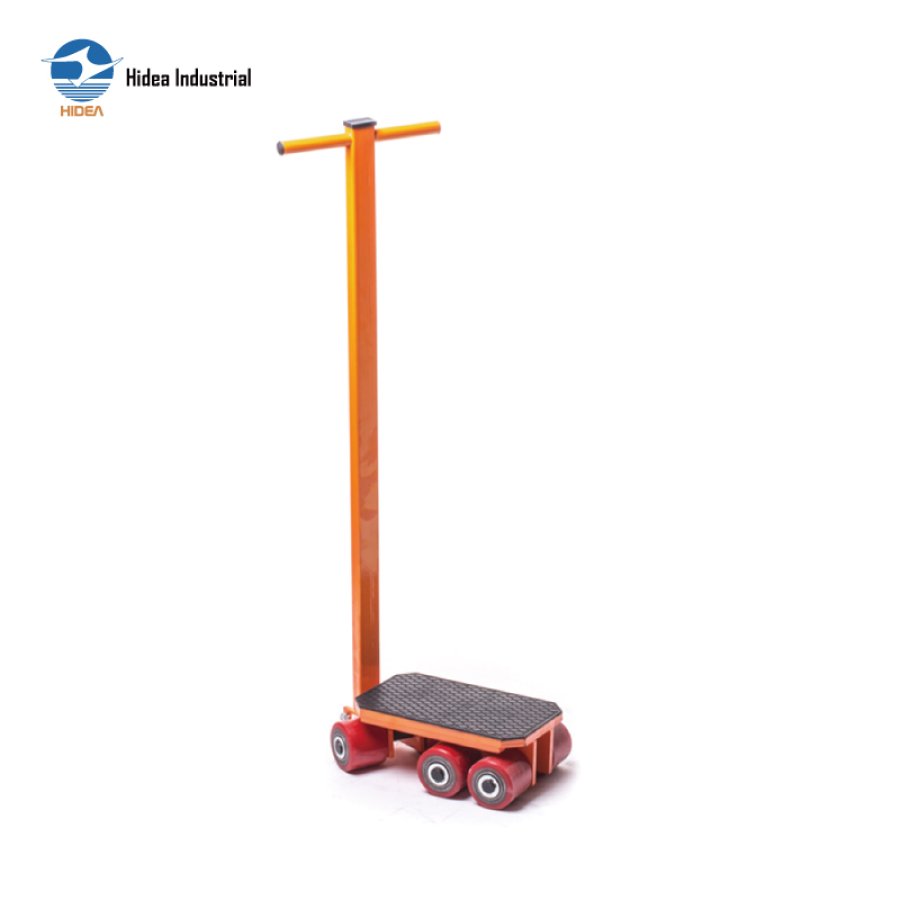

WQ CARGO SKATE TROLLEY 180-DEGREE STEERABLE LIGHT DUTY TYPE

WQ floor tanks steerable & turnable light duty type are made of high quality steel and light in weight， easier and more flexible in steering, safer and more convenient in operation; the max capacity can be from 4 tons to 12 tons
The WQ floor tanks as a light duty steerable type, with steering mechanism built in, it can be steered within a 180-degree direction adjustment during running
Floor tanks also known as Heavy Duty Dolly, Skate Roller Mover, Cargo Trolley

Inquire Now

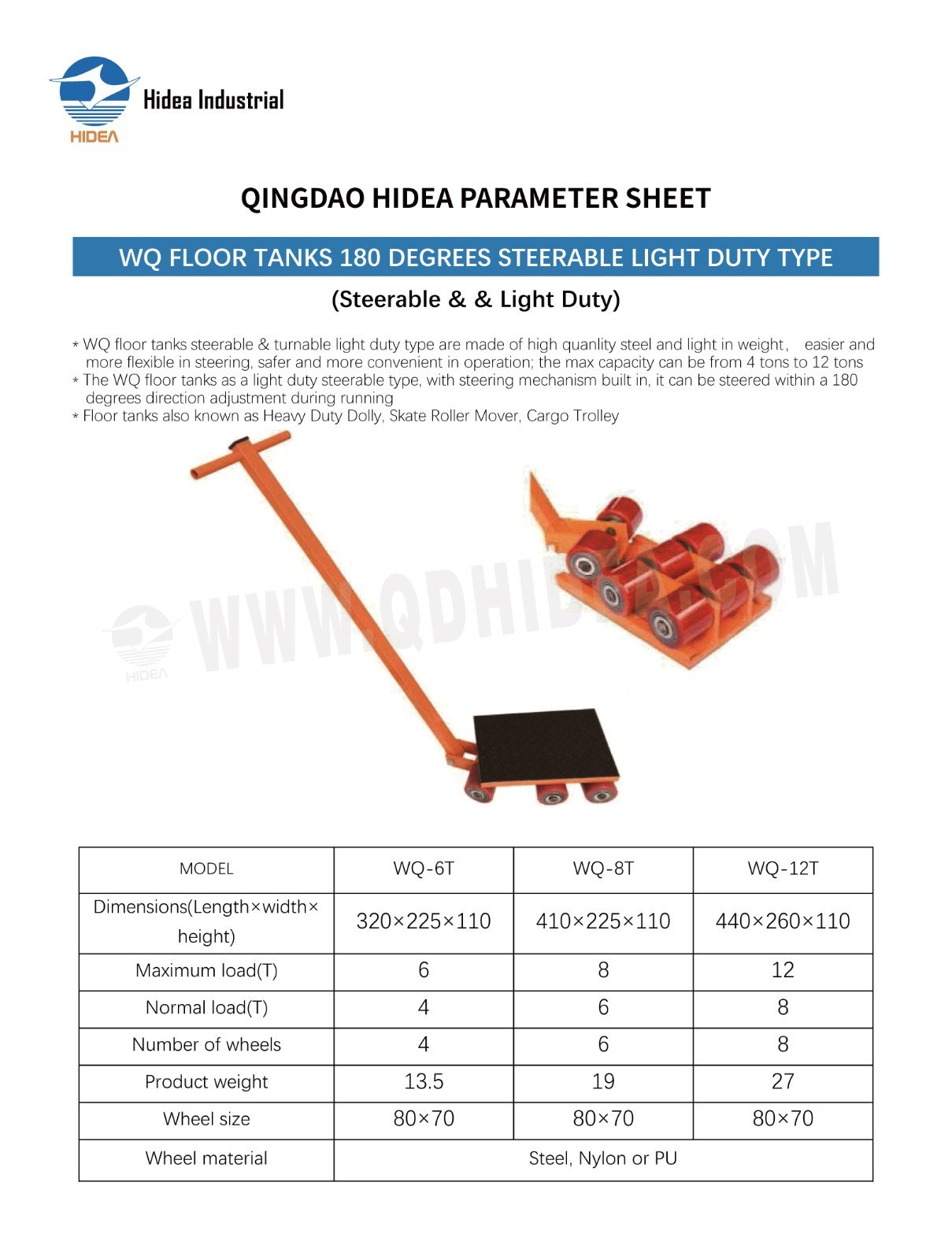

QINGDAO HIDEA PARAMETER SHEET FOR

WQ FLOOR TANKS 180 DEGREES STEERABLE LIGHT DUTY TYPE

MODEL	WQ-6T	WQ-8T	WQ-12T
Dimensions(Length×width× height)	320×225×110	410×225×110	440×260×110
Maximum load(T)	6	8	12
Normal load(T)	4	6	8
Number of wheels	4	6	8
Product weight	13.5	19	27
Wheel size	80×70	80×70	80×70
Wheel material	Steel,Nylon or PU
