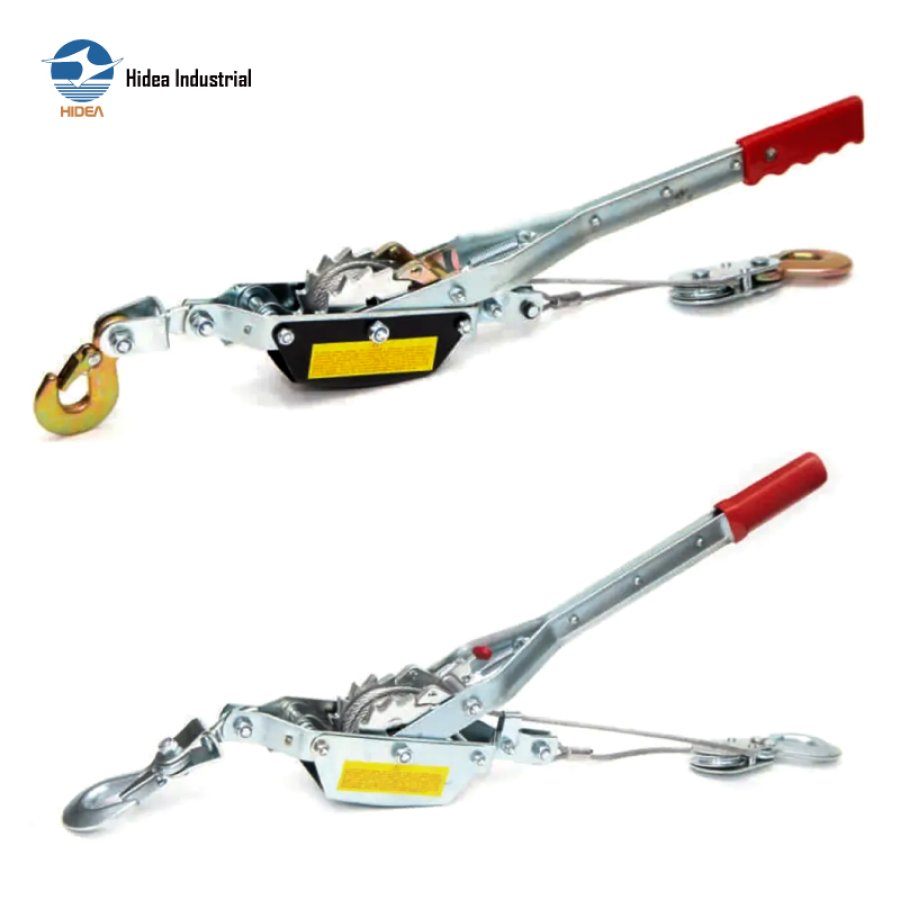

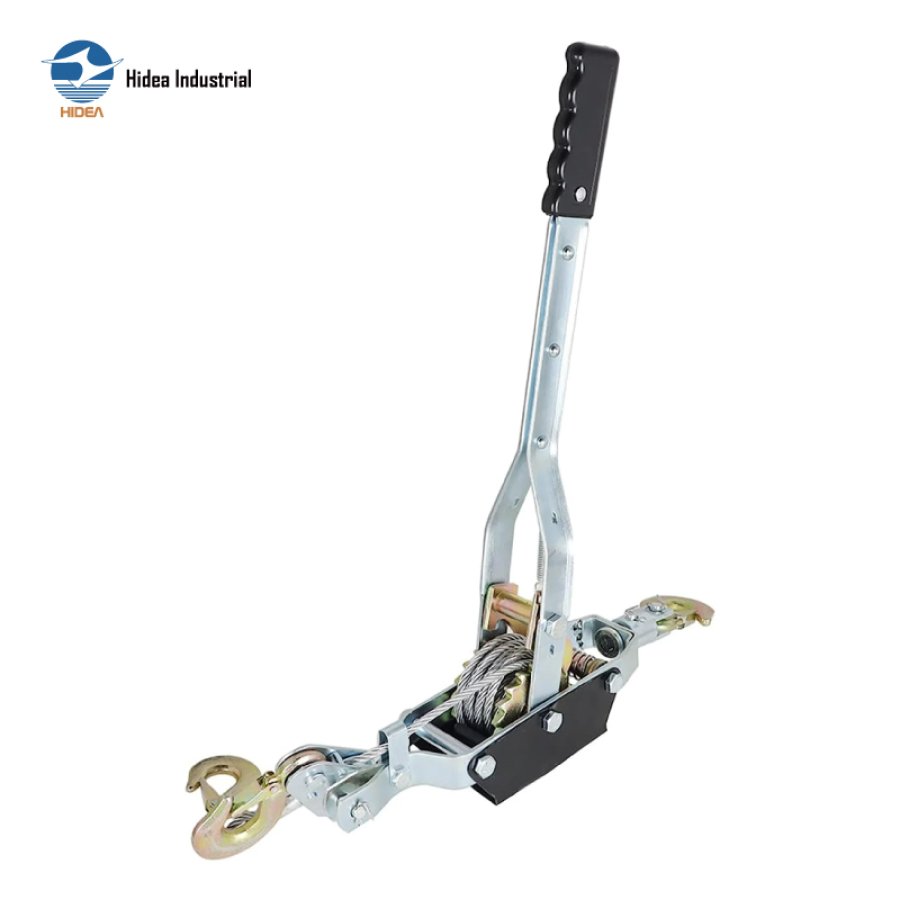

The ratchet hand puller with cable and crank handle, also known as hand cable puller or ratchet hand lever puller or dual gear cable puller, can be used widely in cases of construction, landscaping, warehousing and manufacturing, cargo binding and handling, vehicle towing & recovery, telecommunications cables towing and agricultural activities tensioning etc.

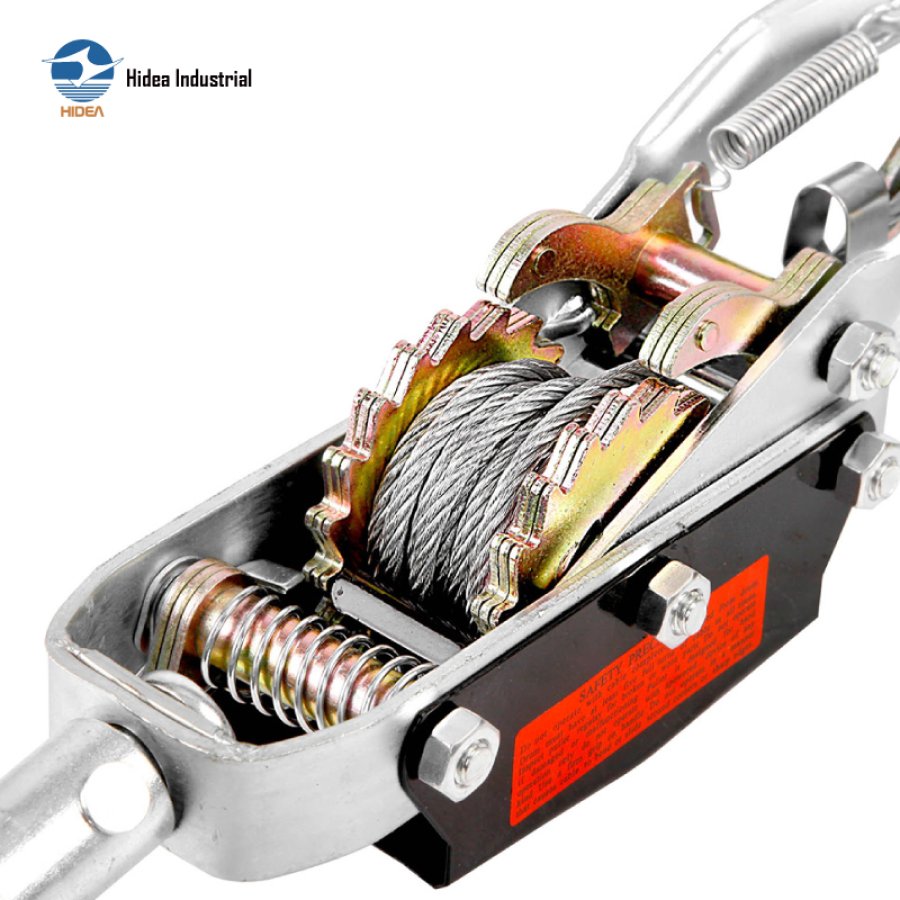

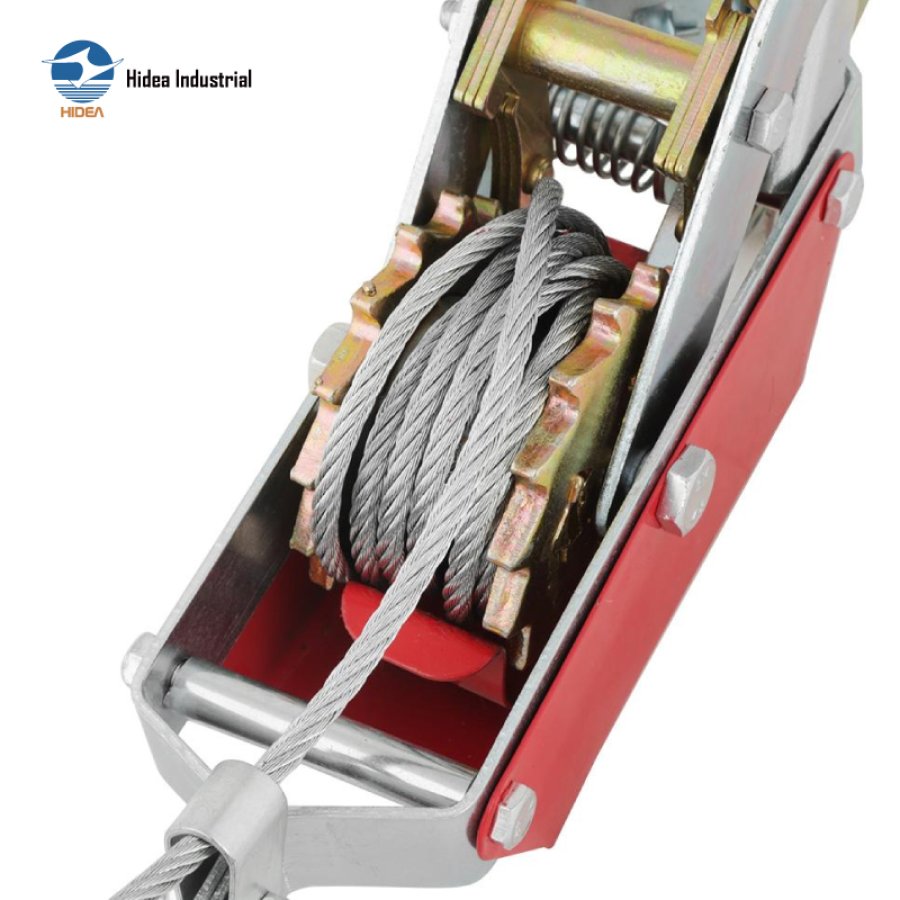

The ratchet hand pullers are manufactured from high quality carbon steel and die forged, the ratchet parts properly heat treated for breaking strength from 1T up to 4T

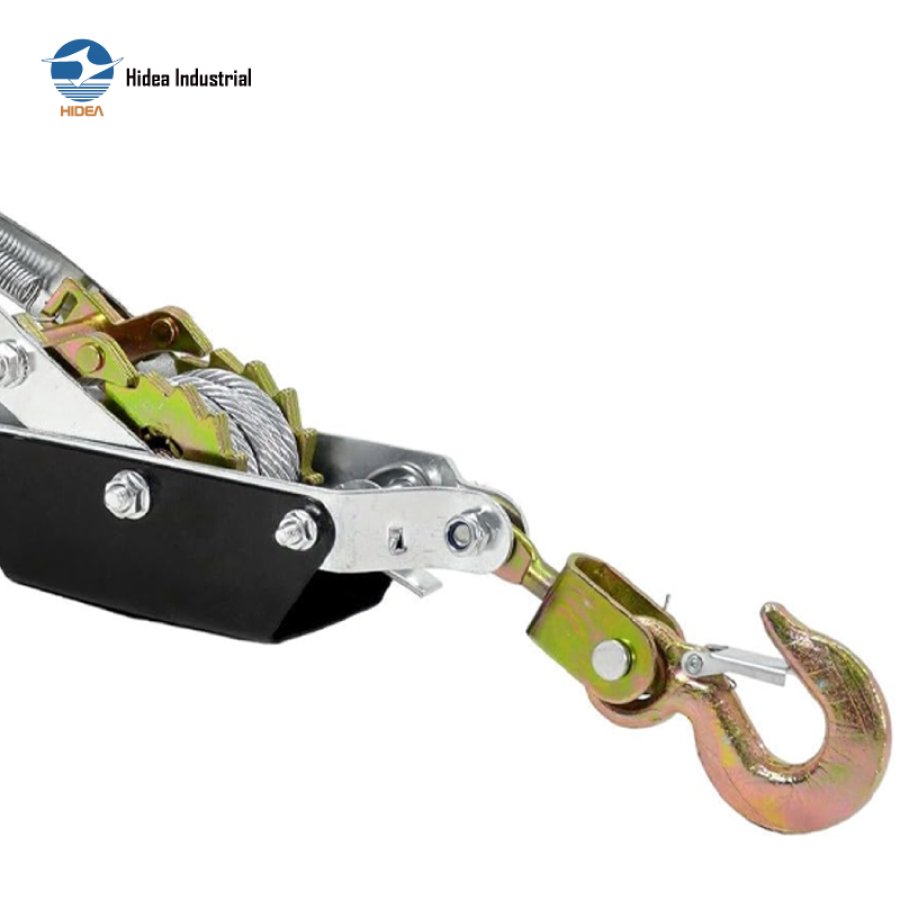

The pullers are equipped with anti-twist cable to match the rated capacities respectively; and with forged alloy steel hooks, 2 or 3 hook available; also with cushioned non-slip vinyl coated handle grip
The hand pullers meeting standards of and in conformity with ASME B30.21, OSHA 29 CFR 1910.184 & EN 13157
QINGDAO HIDEA PARAMETER SHEET FOR
RATCHET HAND PULLER WITH CABLE US TYPE
| Part No. | B/S(kg) | Max Working Load(kg) | Cable | N.W. (kg) | |
| 60MT-PP1000 | 1000 | 500 | φ4.8mm×2.2m | 2.28 | |
| 60MT-PP2000 | 2000 | 1250 | φ4.8mm×2.2m | 3 | |
| 60MT-PP3000 | 3000 | 1500 | φ4.8mm×3.65m | 3.3 | |
| 60MT-PP4000 | 4000 | 2000 | φ6mm×3.05m | 5.6 | |
