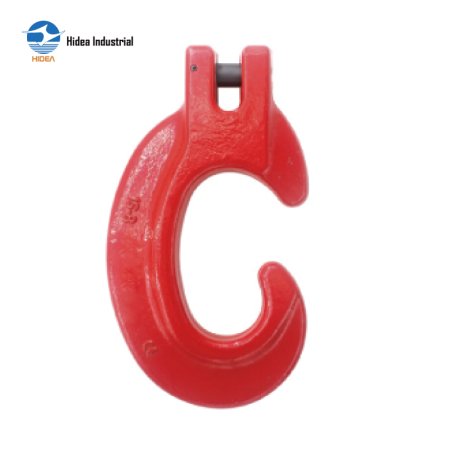

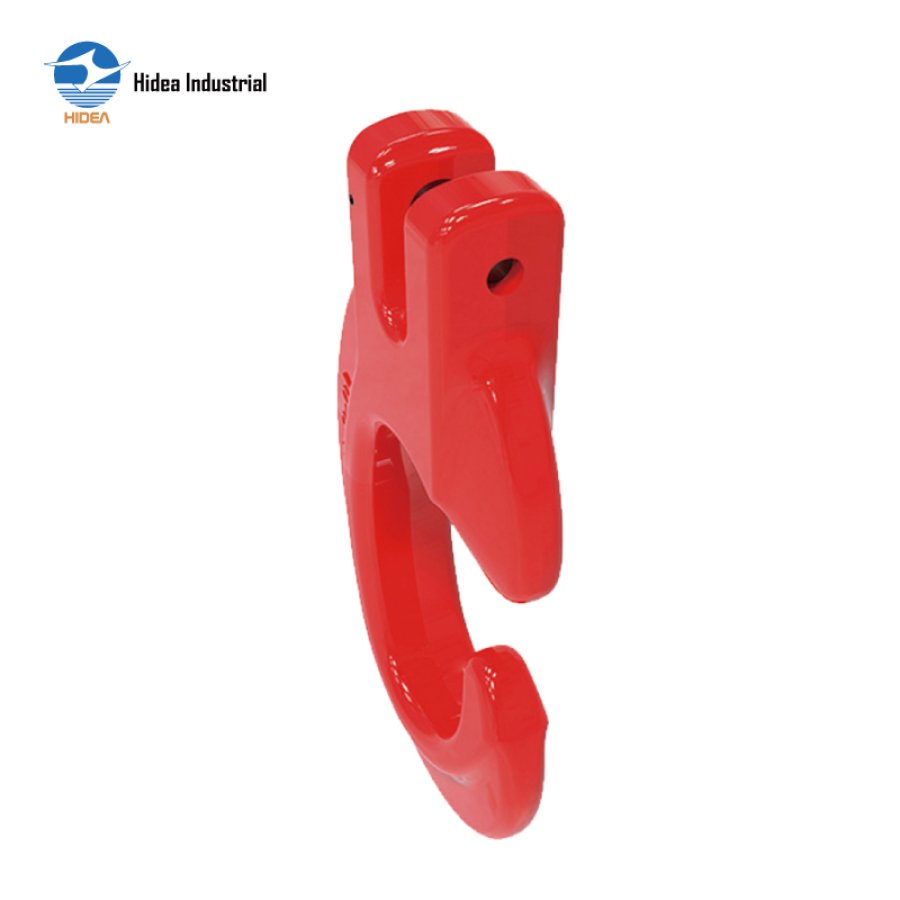

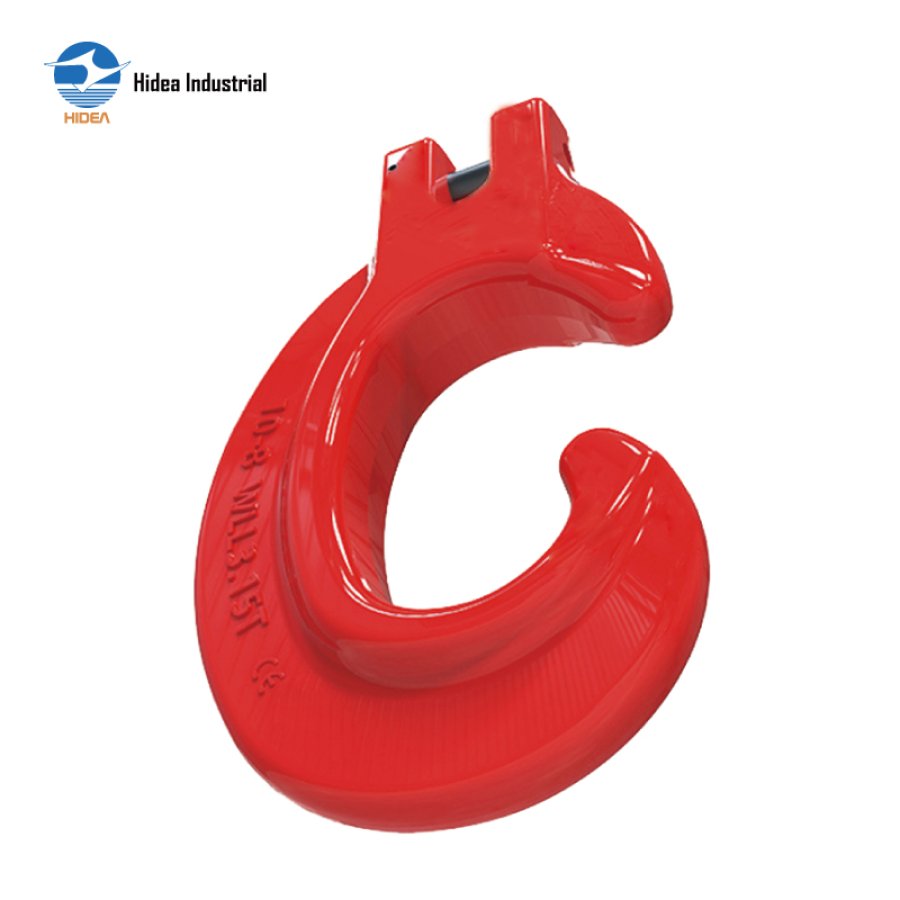

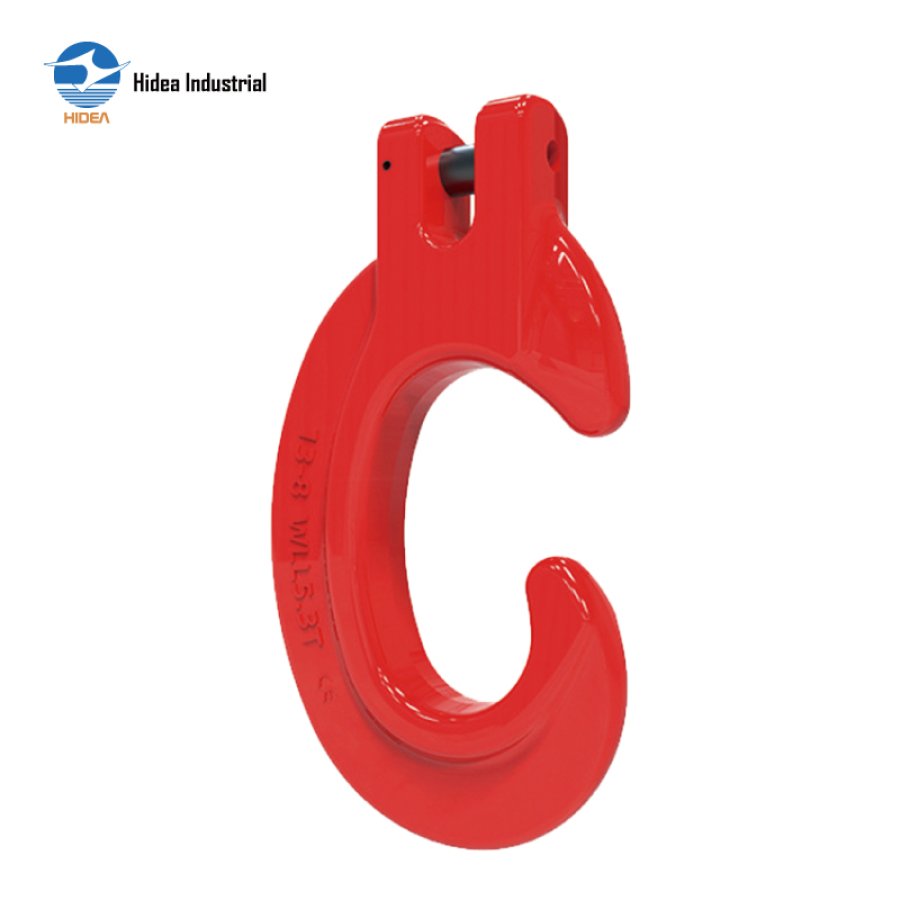

Heavy-Duty Hidea Clevis C Hook for Lashing and Rigging Applications

G80 CLEVIS C HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

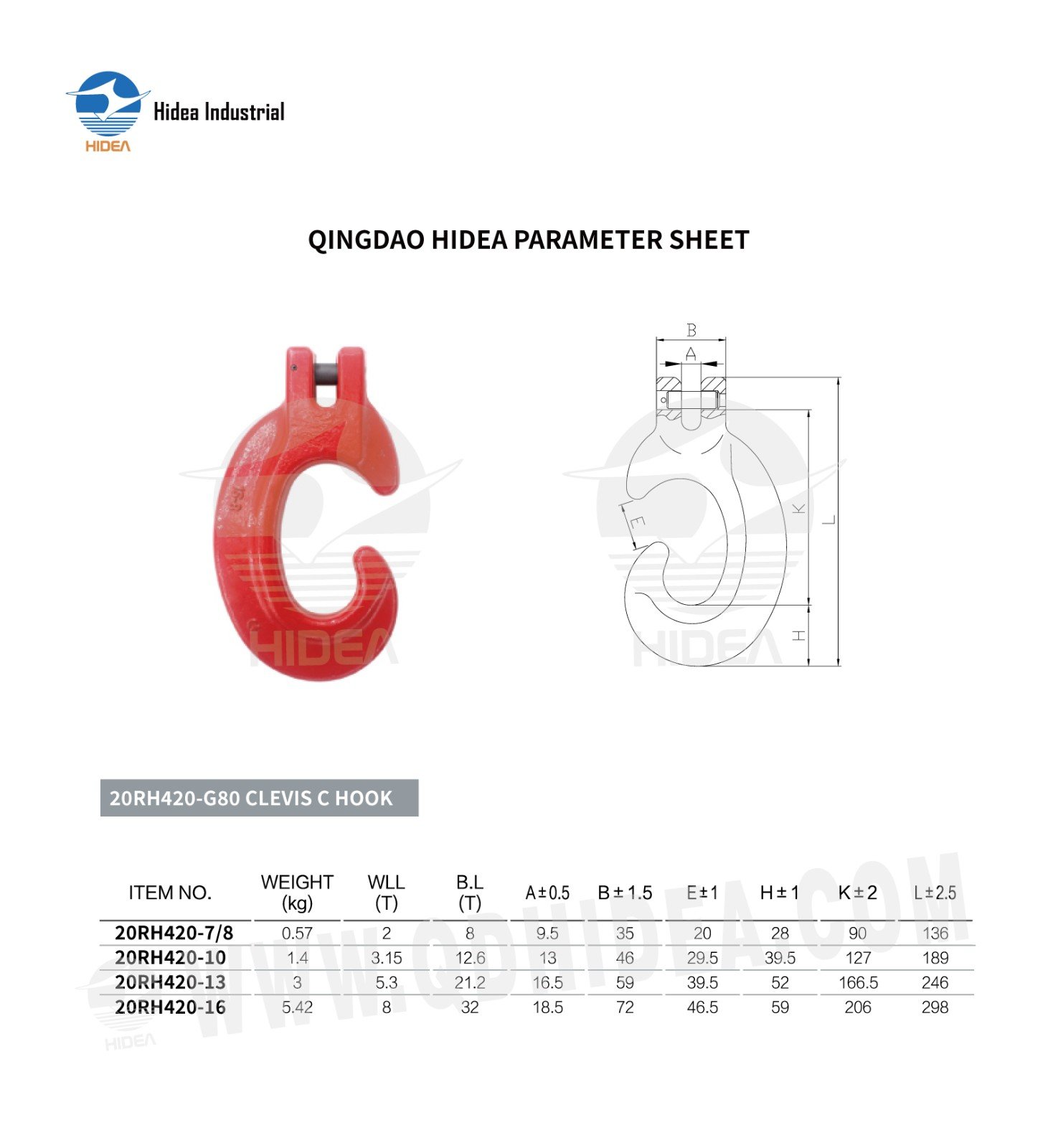

QINGDAO HIDEA PARAMETER SHEET FOR

20RH420-G80 CLEVIS C HOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±0.5	B±1.5	E±1	H±1	K±2	L±2.5
20RH420-7/8	0.57	2	8	9.5	35	20	28	90	136
20RH420-10	1.4	3.15	12.6	13	46	29.5	39.5	127	189
20RH420-13	3	5.3	21.2	16.5	59	39.5	52	166.5	246
20RH420-16	5.42	8	32	18.5	72	46.5	59	206	298
